Description et caractéristiques

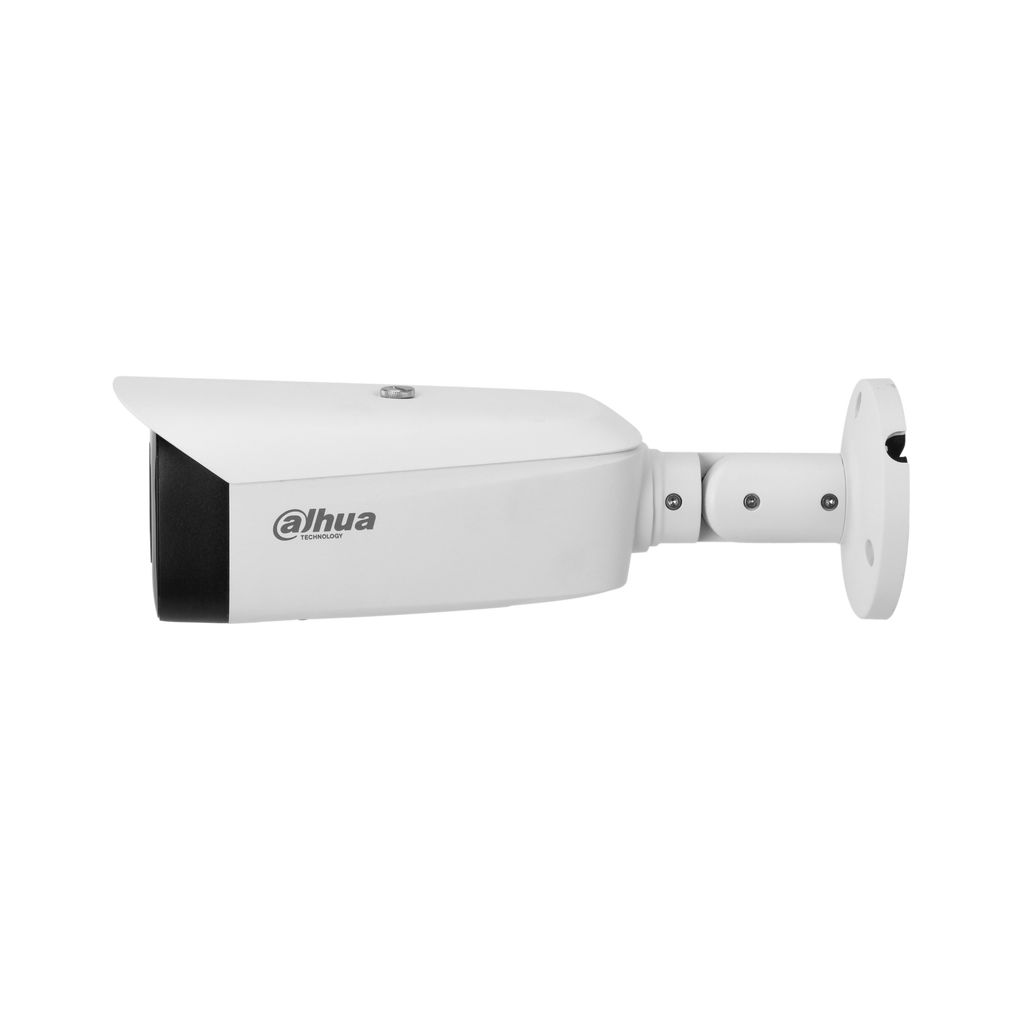

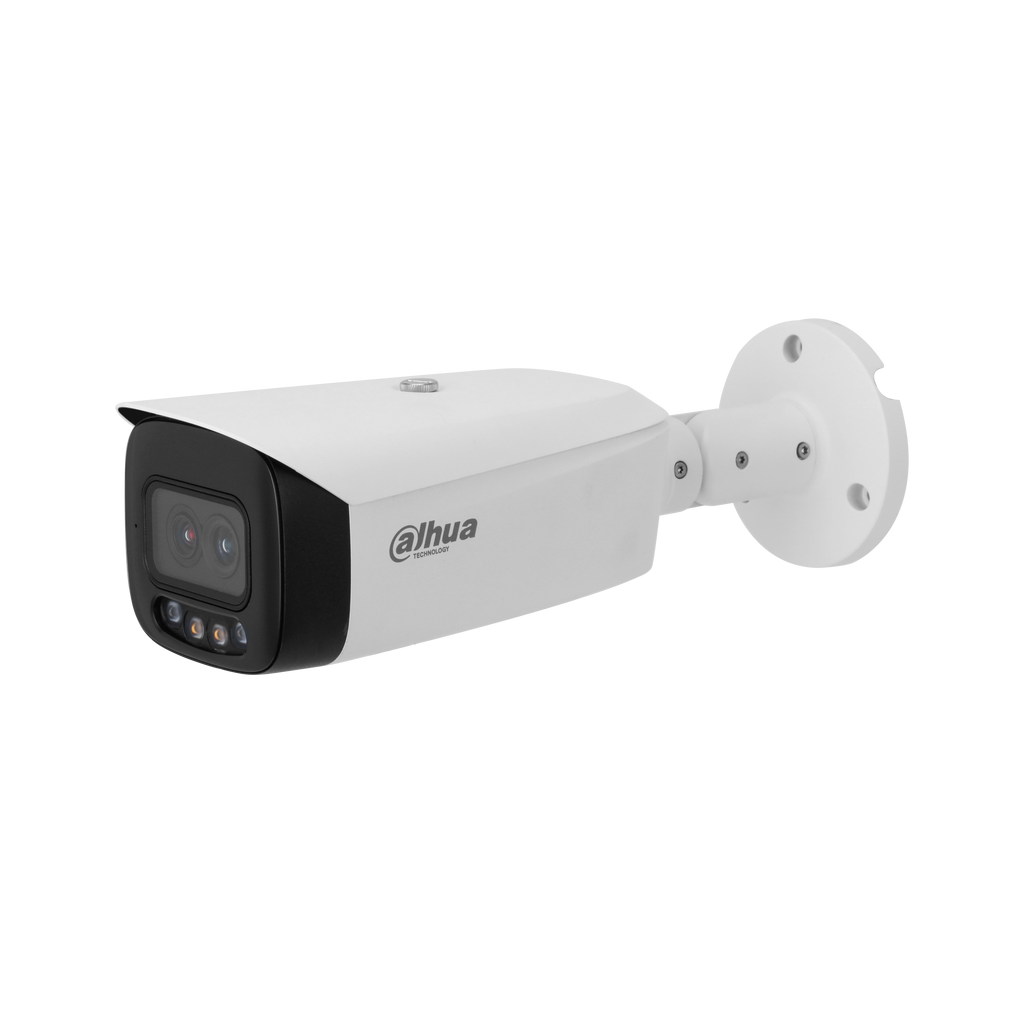

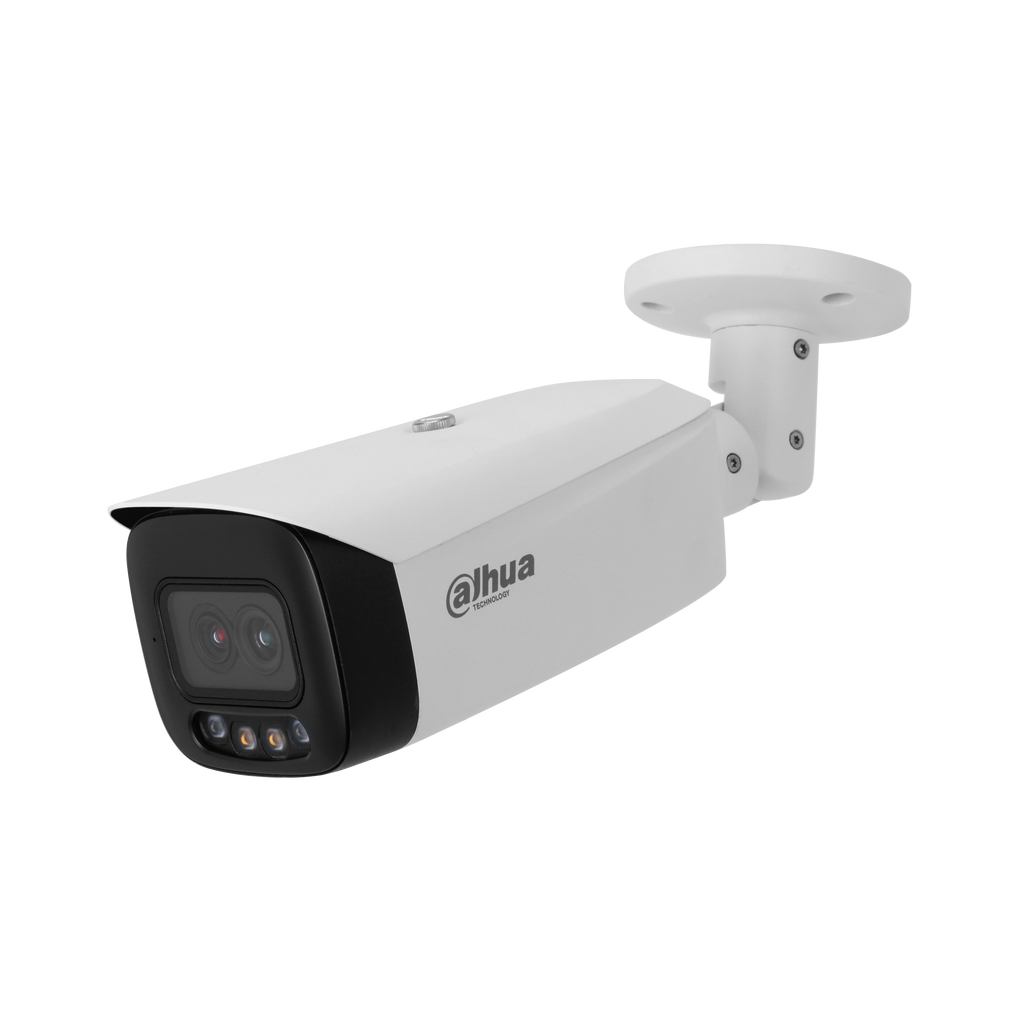

Tube IP blanc
- 4 MP
- FF 3,6mm IR 50m
- DWDR
- Full Color
- Starlight
- WizMind
- Protection périmétrique
- Reconnaissance faciale
- Comptage de personne
- Micro et haut-parleur intégrés
- IP67
- IK10
- 12V POE ePOE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Full Color, Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Reconnaissance faciale, Comptage de personne
- Résolution : 4 MP
- Focale Fixe : 3.6 mm
Fiche technique
| Capteur | 1/1.8" + 1/1.8" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0002 lux @F1.0 |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 50 m (164.04 ft) |
| Contrôle de l'éclairage | Auto; manual |
| Nombre d'illuminateurs | 4 (IR light); 2 (warm light) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M16 |
| Focale | 2.8 mm; 3.6 mm; 6 mm |
| Ouverture max. | F1.0 |
| Champ de vision | 2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal: 115° 3.6 mm: Horizontal: 75°; Vertical: 39°; Diagonal: 87° 6 mm: Horizontal: 47°; Vertical: 25°; Diagonal: 56° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 4 m (13.1 ft) 3.6 mm: 5 m (16.4 ft) 6 mm: 6 m (19.7 ft) |
| Distance DORI | Identify |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| SMD 3.0 | Less false alarm, longer detection distance |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps |
| Jour/Nuit | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Micro intégré | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Navigateur | IE: IE8, IE9, IE11 Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: 5 mA 3 V–5 VDC |
| Sortie d'alarme | 1 channel out: 300 mA 12 VDC |
| Alimentation | 12 VDC (±30%); PoE (802.3af); ePoE |
| Consommation | Basic: 3.4 W (12 VDC); 4.5 W (PoE) Max. (H.265+IR and Warm light on): 9.9 W (12 VDC); 11.8 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (-40 °F to +140 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Température de stockage | –40 °C to +60 °C (-40 °F to +140 °F) |
| Indice de protection | IP67 |
| Casing | Metal |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H) |
| Poids net | 1.0 kg (2.20 lb) |
| Poids brut | 1.23 kg (2.71 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HFW5449T1P-ASE-D2-0360B · Marque : Dahua
