Description et caractéristiques
Eyeball IP blanc
- 4 Mp
- FF 2.8 mm
- IR 20m
- IA WizMind
- Starlight
- Protection périmétrique
- Comptage
- Micro
- Haut-parleurs
- 12V POE
Fiche technique
| Capteur | 1/2.8”4Megapixel progressive CMOS |
|---|---|
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4GB |
| RAM | 1GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 2.0 mm: 0.007 lux@F2.0 (Color, 30 IRE) 0.0007 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) 2.8 mm: 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 20 m (65.62 ft) (IR LED) |
| Contrôle de l'éclairage | Auto |
| Nombre d'illuminateurs | 1 (IR LED) |
| Plage pan/tilt/rotation | Tilt: –10° to 70° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.0 mm; 2.8 mm |
| Ouverture max. | 2.0 mm: F2.0 2.8 mm: F1.6 |
| Champ de vision | 2.0 mm: Horizontal: 122°; Vertical: 72°; Diagonal: 141° 2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114° |
| Iris | Fixed |
| Distance mini de mise au point | 2.0 mm: 0.5 m (1.64 ft) 2.8 mm: 1.1 m (3.61 ft) |
| Distance DORI | Identify |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Abnormal Behavior Analysis | Leave post detection which triggers alarms when no one is in the detection area, personnel have left their post or there is an abnormal number of people on duty in the detection area. Supports setting up to 20 personnel on duty at the same time. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Fréquence d'images | Main stream: 2560 × 1440 @(1–25/30 fps ) Sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Third stream: 1920 × 1080 @ (1–25/30 fps) |
| Flux | 3 streams |
| Résolutions | 4 M (2560 × 1440); 3 M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Masques de confidentialité | 4 areas |
| Micro intégré | Yes |
| Built-in Speaker | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 64 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE: IE 9 and later Chrome Firefox Safari: Safari 12 and later |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 2 channels (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 2 channels in: 5 mA 3 V–5 VDC |
| Sortie d'alarme | 2 channels out: 300 mA 12 VDC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Alimentation | 12 VDC/PoE (802.3af) |
| Consommation | Basic: 4 W (12 VDC); 6.4 W (PoE) Max. (H.265+main stream/IR intensity+IR on): 11.3 W (12 VDC); 12.9 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67; IK10 |
| Casing | Metal |
| Dimensions | 204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43") (L × W × H) |
| Poids net | 0.82 kg (1.81 lb) |
| Poids brut | 1.18 kg (2.60 lb) |
📄 Télécharger la fiche technique (PDF)

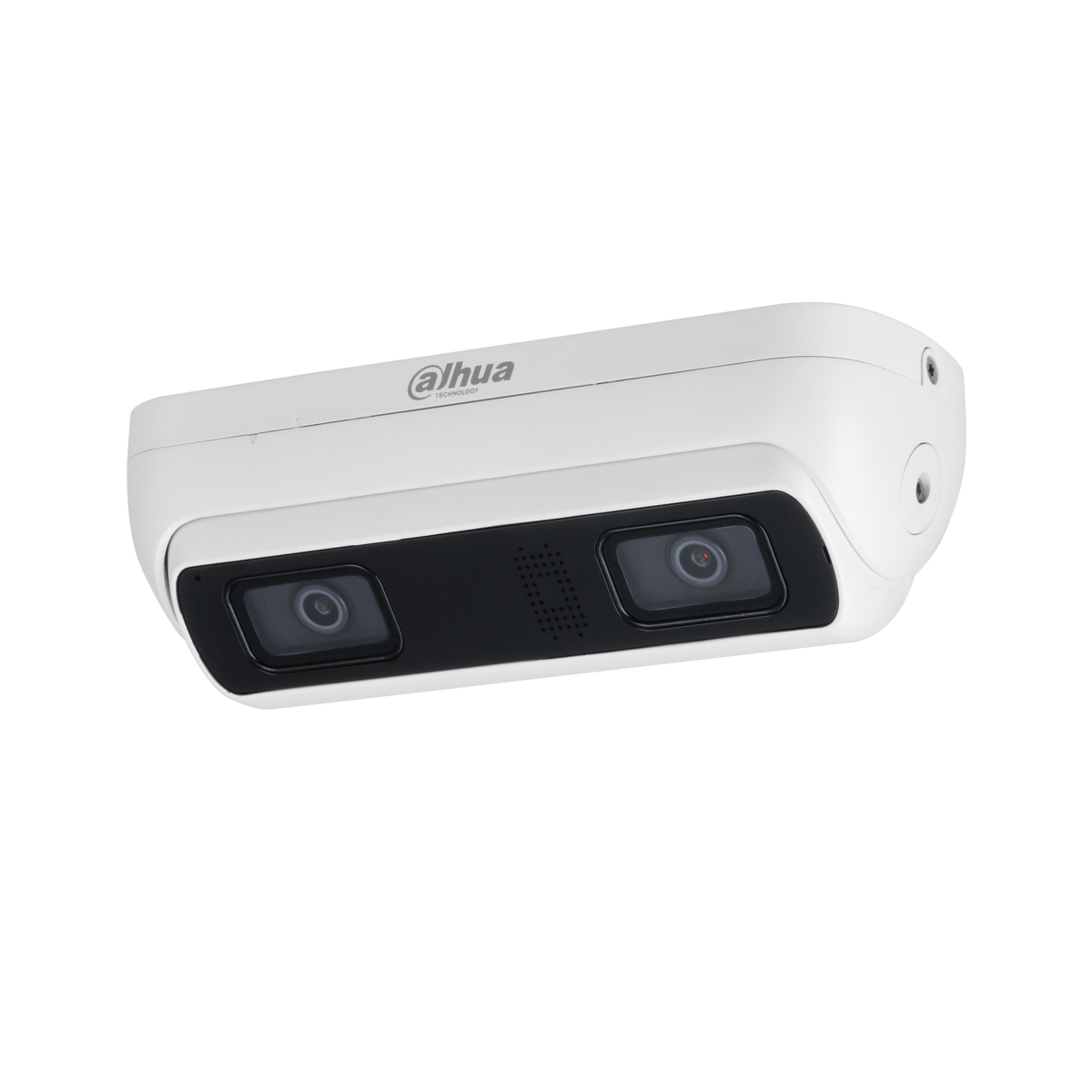

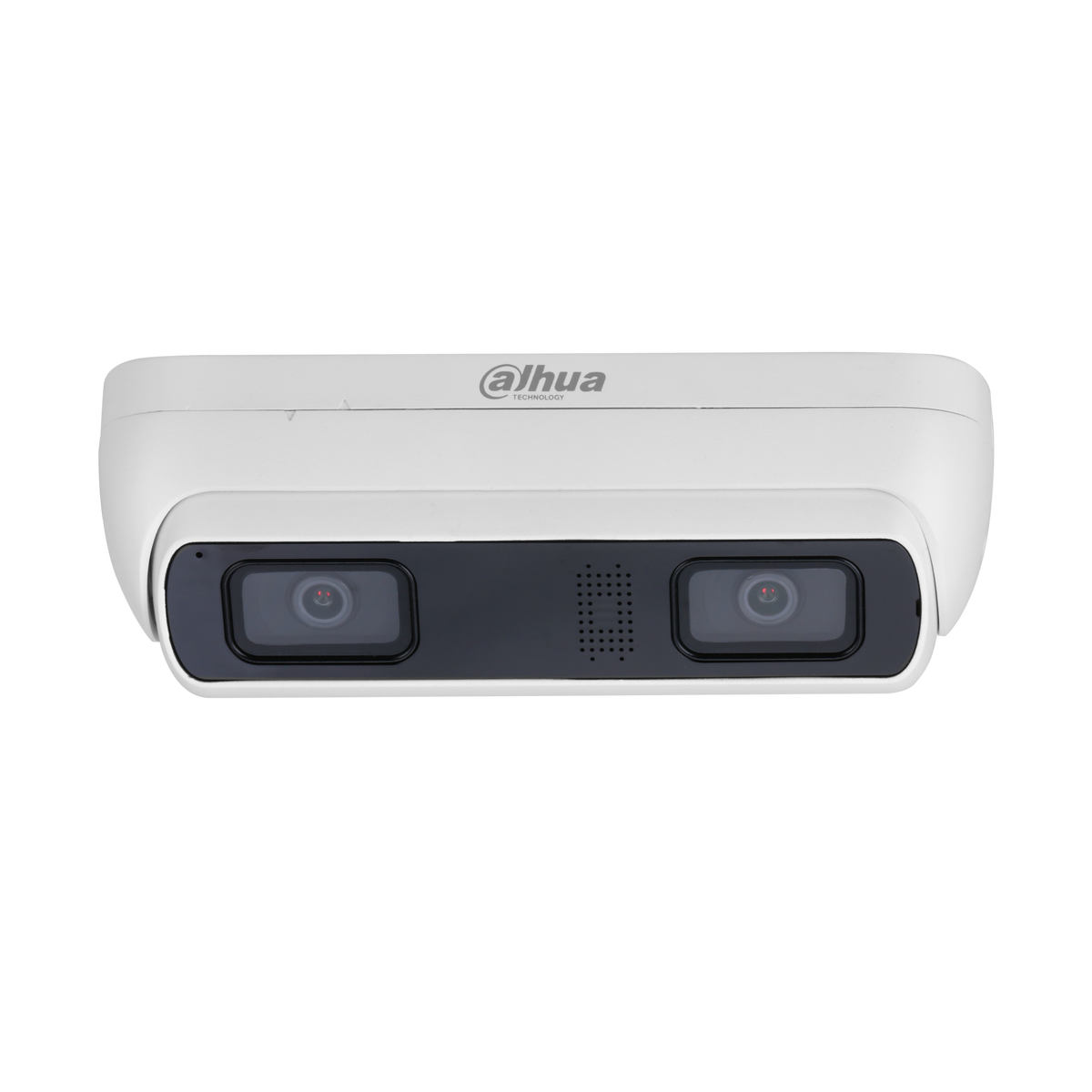

Référence fabricant : IPC-HDW8441XP-3D-0280B · Marque : Dahua
