Description et caractéristiques

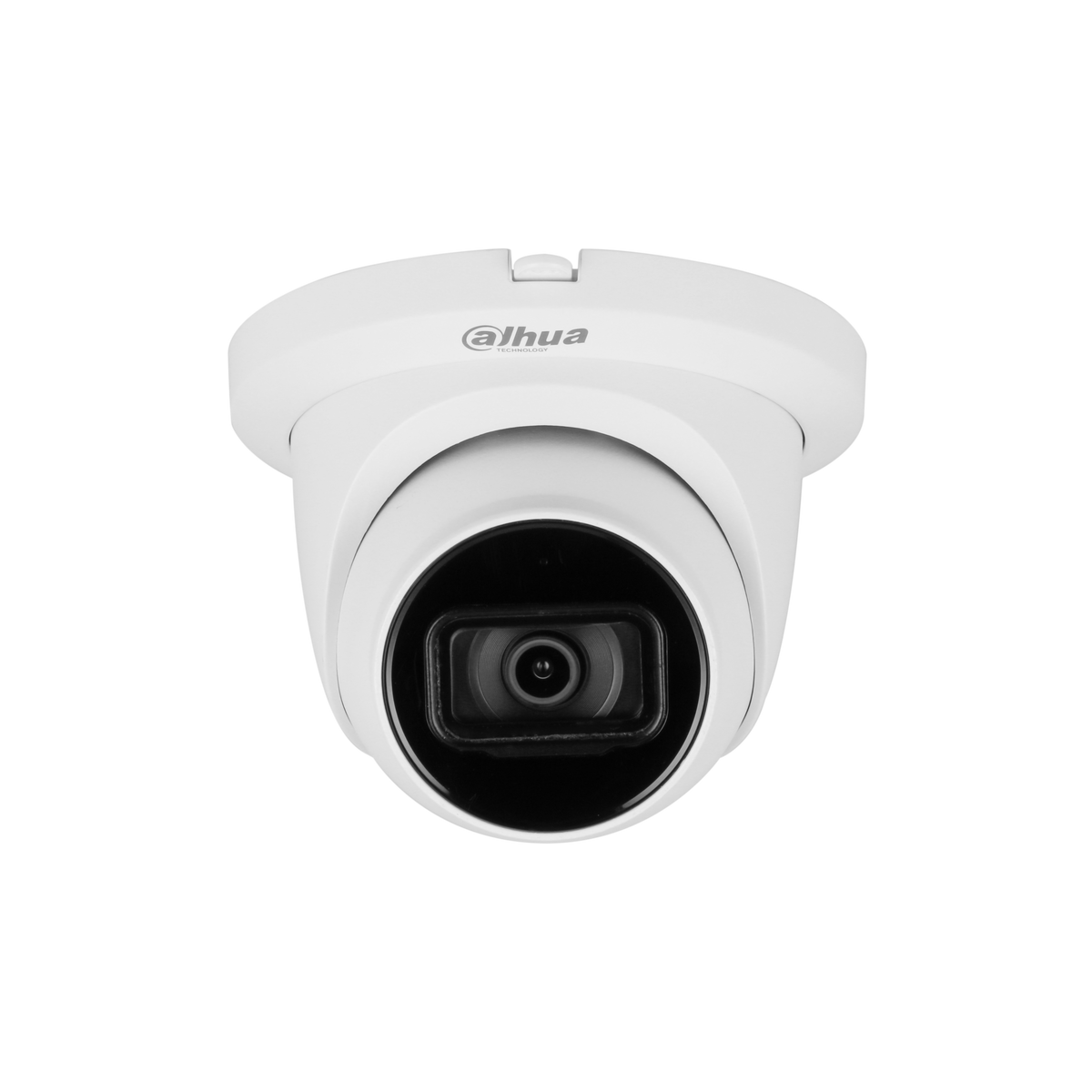

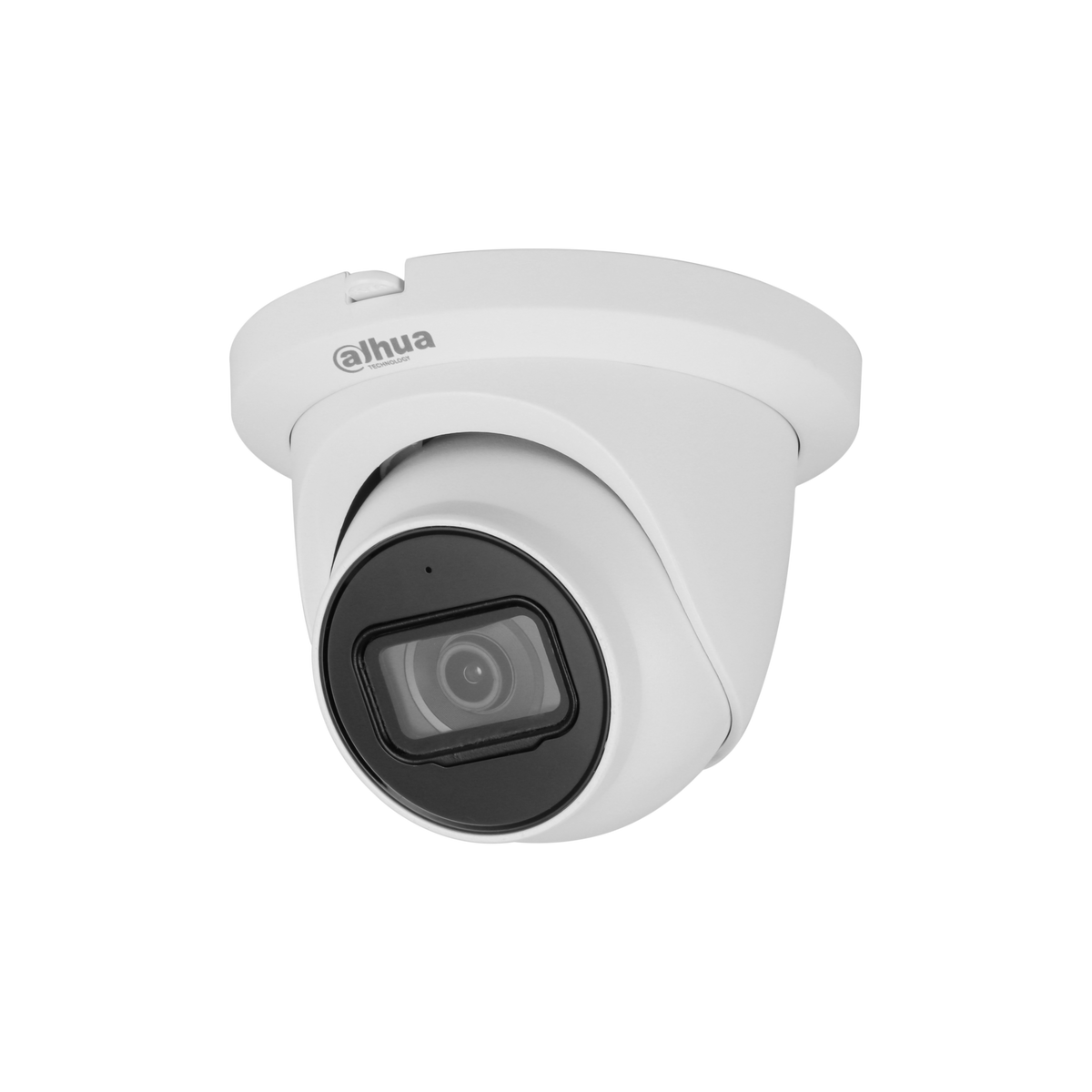

Eyeball IP blanc
- 5 Mp
- FF 2.8 mm
- IR 50m
- Protection périmétrique
- Comptage
- Micro intégré
- 12V POE ePoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind S, Protection périmétrique, Comptage de personne
- Résolution : 5 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 50 m
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 2960 (H) × 1668 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6( B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 50 m (164.04 ft) (IR) |
| Contrôle de l'éclairage | Auto; Manual |
| Nombre d'illuminateurs | 2 (IR LED) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm; 3.6 mm; 6 mm |
| Ouverture max. | F1.6 |
| Champ de vision | 2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 92°; V: 45°; D: 110° 6 mm: H: 57°; V: 30°; D: 65° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 1.1 m (3.06 ft) 3.6 mm: 1.7 m (5.58 ft) 6 mm: 3.2 m (10.50 ft) |
| Distance DORI | Identify |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD (détection humain/véhicule) | SMD 3.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 4 streams |
| Résolutions | 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–16384 kbps H.265: 12 kbps–11776 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| LDC | Yes (only 2.8mm/3.6mm supports) |
| Micro intégré | Yes |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Logiciels de gestion | SmartPSS Lite; DSS; DMSS |
| Application mobile | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: wet contact, 5 mA 3V–5 VDC |
| Sortie d'alarme | 1 channel out: wet contact, 300mA 12V DC |
| Alimentation | 12 VDC/PoE (802.3af)/ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Consommation | Basic: 4 W (12 VDC); 5.8 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 6.2 W (12 VDC); 8.3 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de stockage | 10%–95% (RH), non-condensing |
| Indice de protection | IP67 |
| Matériau du boîtier | Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDW5541TMP-ASE-0280B-S3 · Marque : Dahua
