Description et caractéristiques

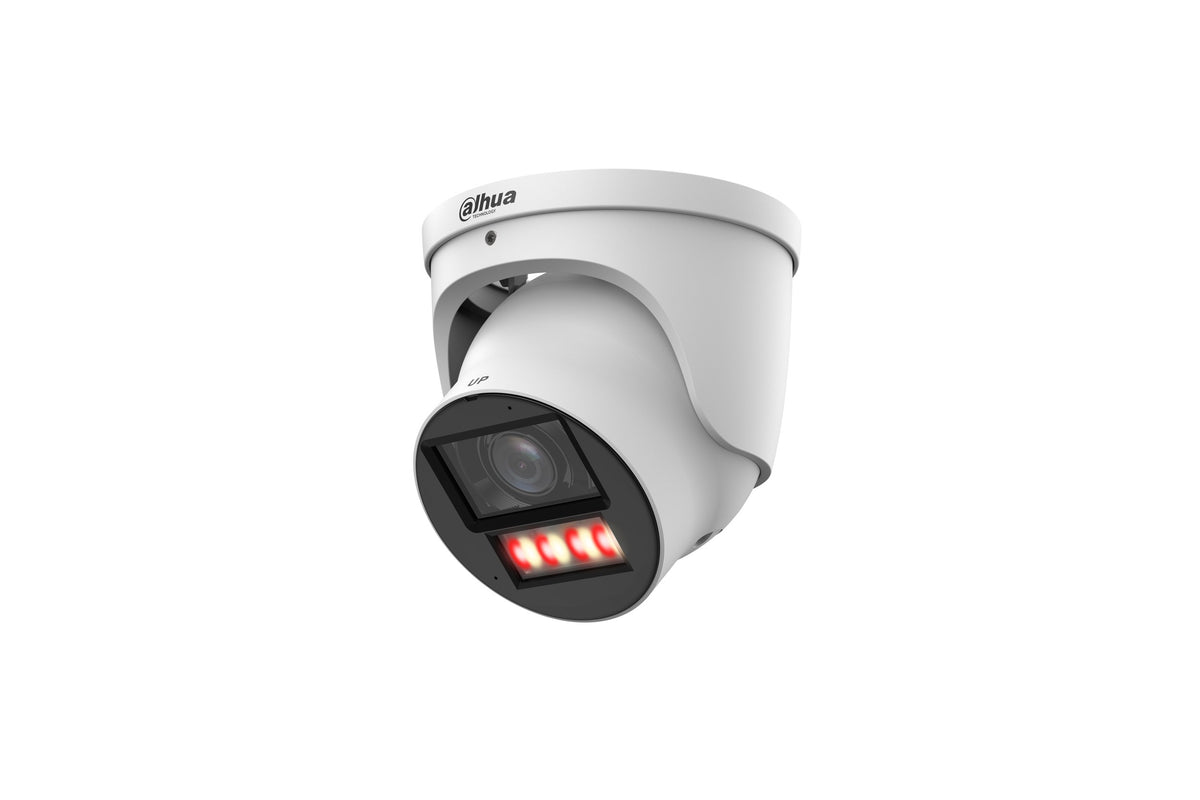

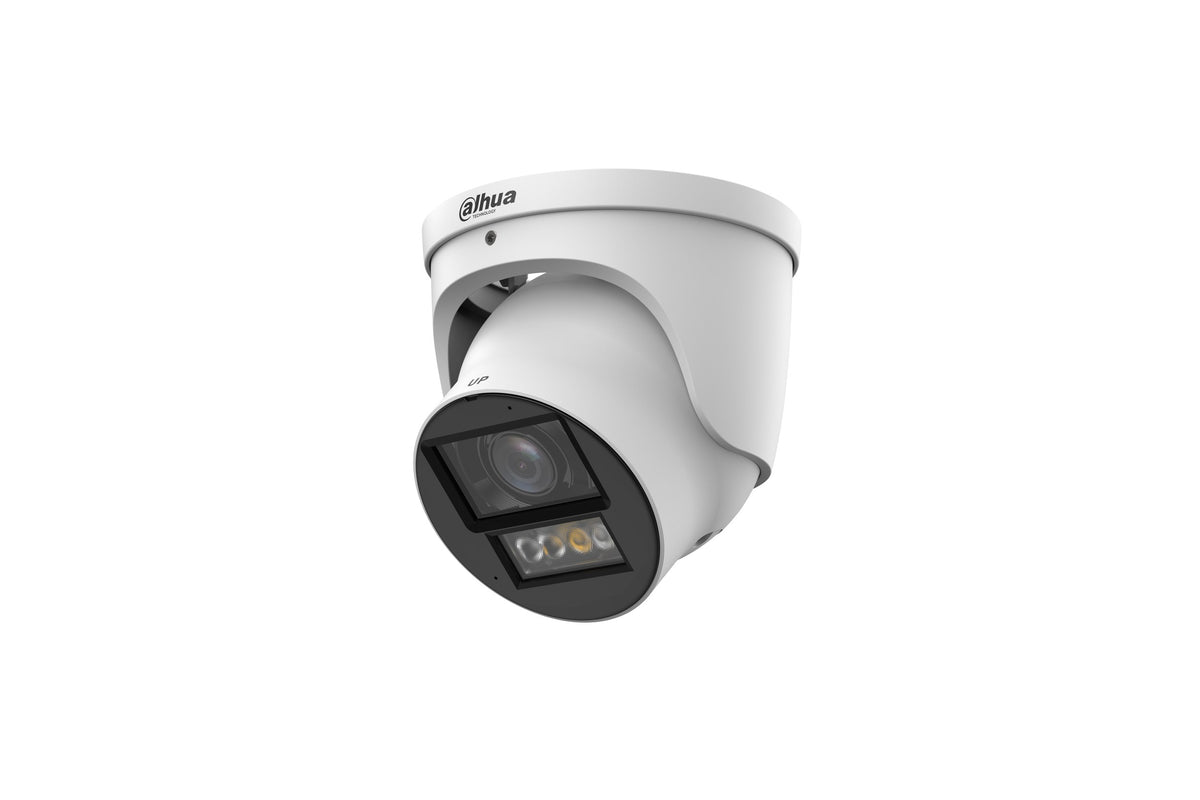

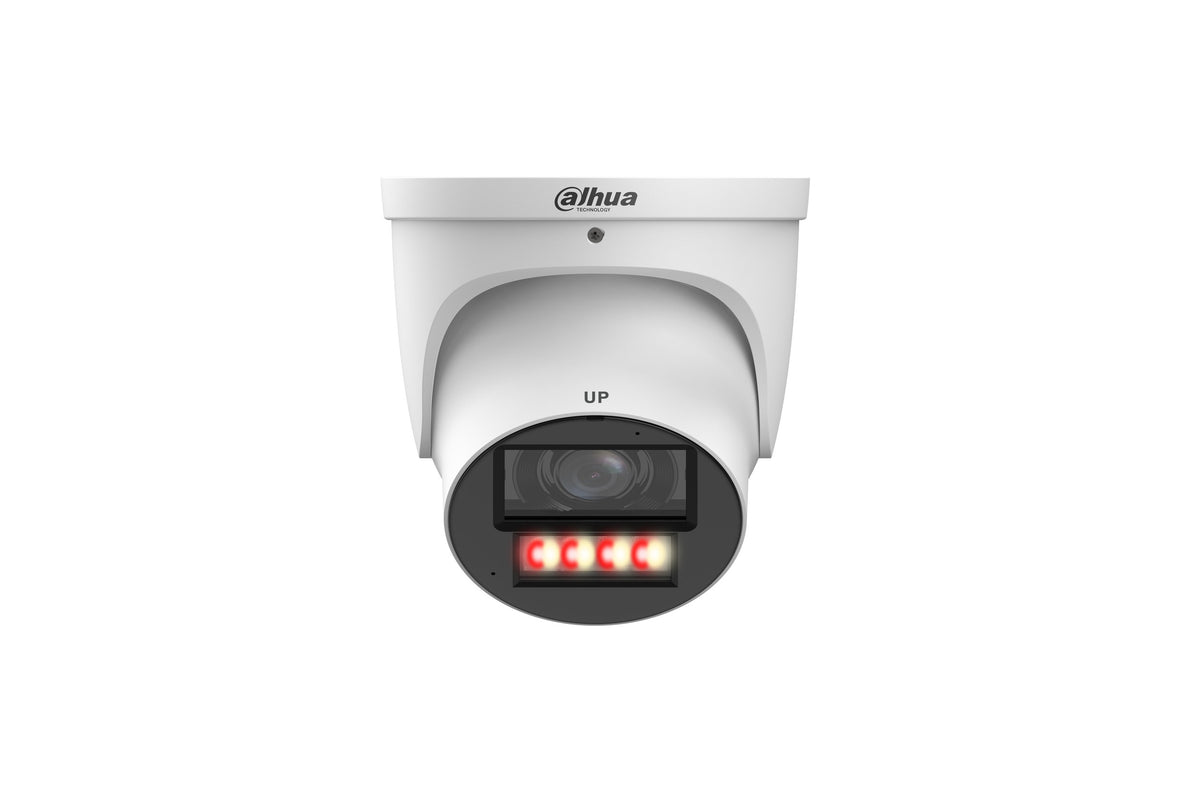

Eyeball IP blanc
- 4 MP
- VF motorisée 2.7-12 mm IR 60 m
- Smart Dual Light
- WizColor
- WizMind
- Xinghan
- Protection périmétrique
- Détection de visage
- AcuPick
- Comptage de personnes
- Micro et Haut‑parleur intégrés
- IP67
- IK10
- 12V POE+ ePOE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Smart Dual Light
- Intelligence Artificielle : WizMind, Protection périmétrique, Détection de visage, Comptage de personne, AcuPick
- Résolution : 4 MP
- Varifocale : 2.7 - 12 mm
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0003 lux@F1.2 (Color, 30 IRE) 0.0001 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Contrôle de l'éclairage | Auto;Manual;Zoomprio |
| Nombre d'illuminateurs | 4 (Multi-core (IR + warm) light) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Motorized vari-focal |
| Monture | φ14 |
| Focale | 2.7 mm–12 mm |
| Ouverture max. | F1.2 |
| Champ de vision | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris | Auto |
| Iris Control Type | P-Iris |
| Distance mini de mise au point | 0.2 m (0.67 ft) |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| W | 6.0 m ( 19.69 ft) |
| T | 12.9 m ( 42.32 ft) |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
| SMD (détection humain/véhicule) | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Yes |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265; AI H.264 *include smart codec technology, Smart H.265+ and Smart H.264+ |
| Fréquence d'images | Main stream: 2688 × 1520@ (1–25/30 fps) /1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 4 streams |
| Résolutions | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | VBR;CBR |
| Débit vidéo | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Micro intégré | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE 11 and later; Chrome: Chrome 102 and later; Firefox: Firefox 88 and later |
| Logiciels de gestion | DSS; DMSS; DoLynk Care |
| Application mobile | iOS;Android |
| Sécurité | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;AES 256;SSL/TLS1.3;TPM 2.0 (optional) |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100. Play times can be set from 1 to 10. |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Sortie d'alarme | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Alimentation | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Consommation | Basic: 4.1 W (12 VDC); 4.8 W (PoE) Max.: 21.6 W (12 VDC); 24.2 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence) |
| ePoE | Yes |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDW5459HP-ZE-PV-2712-PRO · Marque : Dahua
