Description et caractéristiques

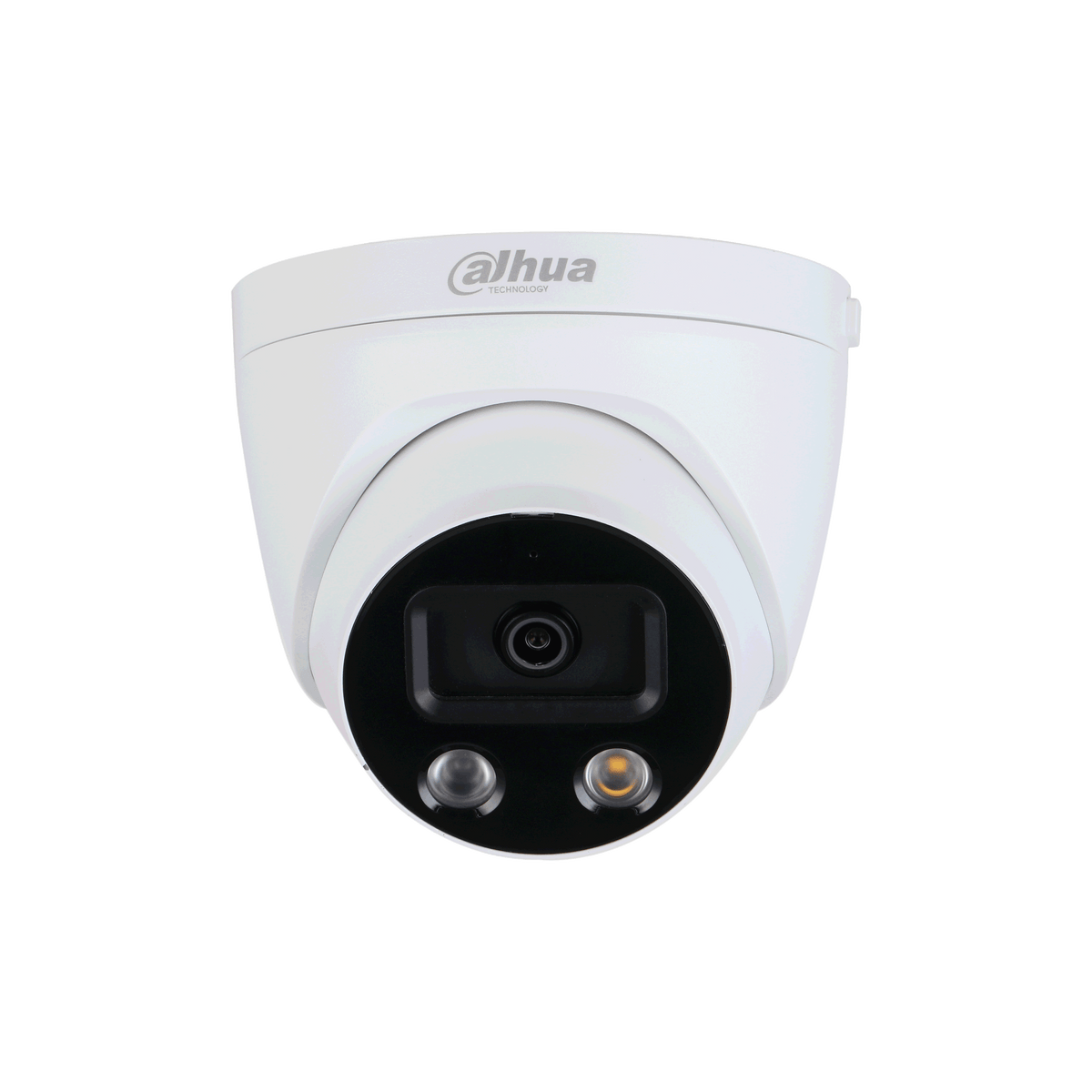

Eyeball IP blanc
- 2 MP
- Focale fixe 2.8 mm
- Smart IR
- Active deterrence
- Lumière blanche
- Sirène
- Détection de visage
- Protection périmétrique
- Comptage de personnes
- IR 50 m
- Micro intégré
- Haut-parleur intégré
- Entrée / Sortie audio
- WDR 120 dB
- 12V
- PoE
- IP67
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Active Deterrence
- Intelligence Artificielle : Protection périmétrique, Détection de visage, Comptage de personne
- Résolution : 2 MP
- Focale Fixe : 2.8 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Résolution max. | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | > 56 dB |
| Portée de l'éclairage | 50 m (164.04 ft) (IR) |
| Contrôle de l'éclairage | Auto; Manual |
| Nombre d'illuminateurs | 1 (IR LED) 1 (Warm light) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm; 3.6 mm; 6 mm |
| Ouverture max. | F1.6 |
| Champ de vision | 2.8 mm: Horizontal: 106°; Vertical: 57°; Diagonal: 126° 3.6 mm: Horizontal: 87°; Vertical: 46°; Diagonal: 104° 6 mm: Horizontal: 53°; Vertical: 30°; Diagonal: 60° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.2 m (3.94 ft) 6 mm: 2.5 m (8.20 ft) |
| Distance DORI | Identify |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| SMD 3.0 | Less false alarm, longer detection distance |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 1080p (1–25/30 fps) Sub stream: D1 (1–25/30 fps) Third stream: 1080p (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto;Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| Micro intégré | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE: IE 8 and later Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: 5 mA 3V–5 VDC |
| Sortie d'alarme | 1 channel out: 300 mA 12 VDC |
| Alimentation | 12 VDC/PoE (802.3af) |
| Consommation | Basic: 2 W (12 VDC); 2.6 W (PoE) Max. (H.265 + three streams + intelligence on + IR on + warm light + max. speaker volume ): 7.9 W (12 VDC); 9.4 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67 |
| Casing | Metal + plastic |
| Dimensions | Φ122 mm × 113.5 mm (Φ4.80" × 4.47") |
| Poids net | 485 g (1.07 lb) |
| Poids brut | 650 g (1.43 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDW5241HP-AS-PV · Marque : Dahua
