Description et caractéristiques

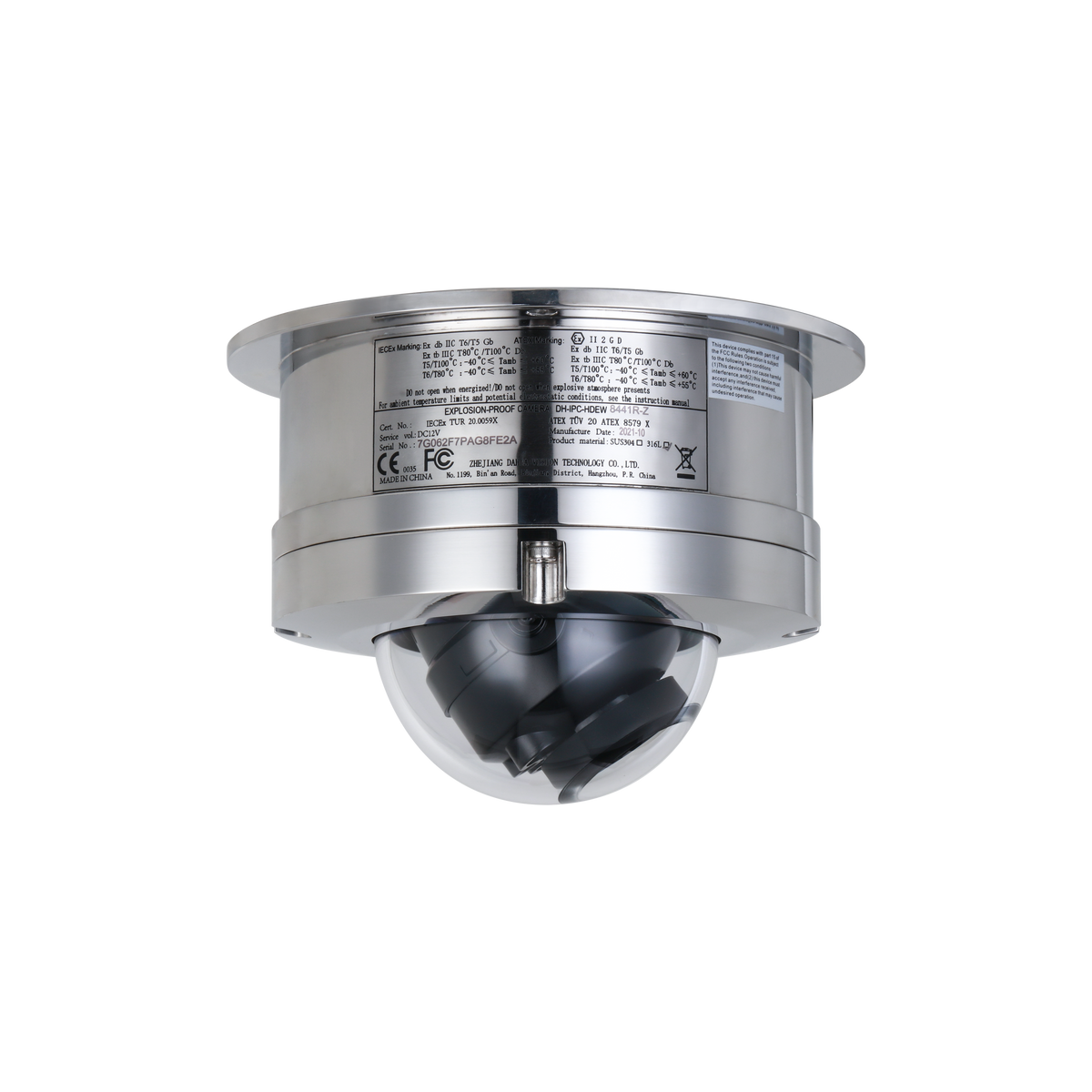

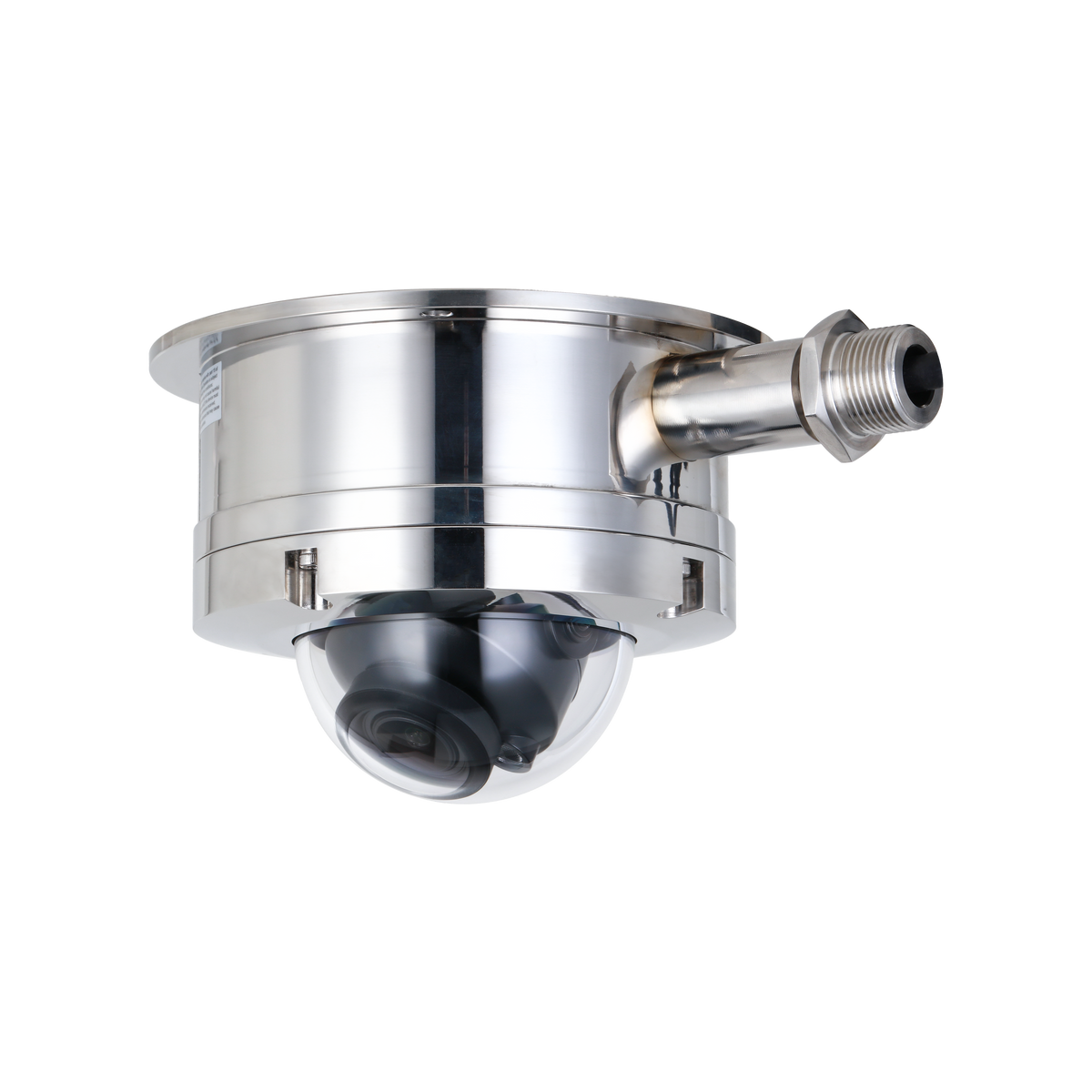

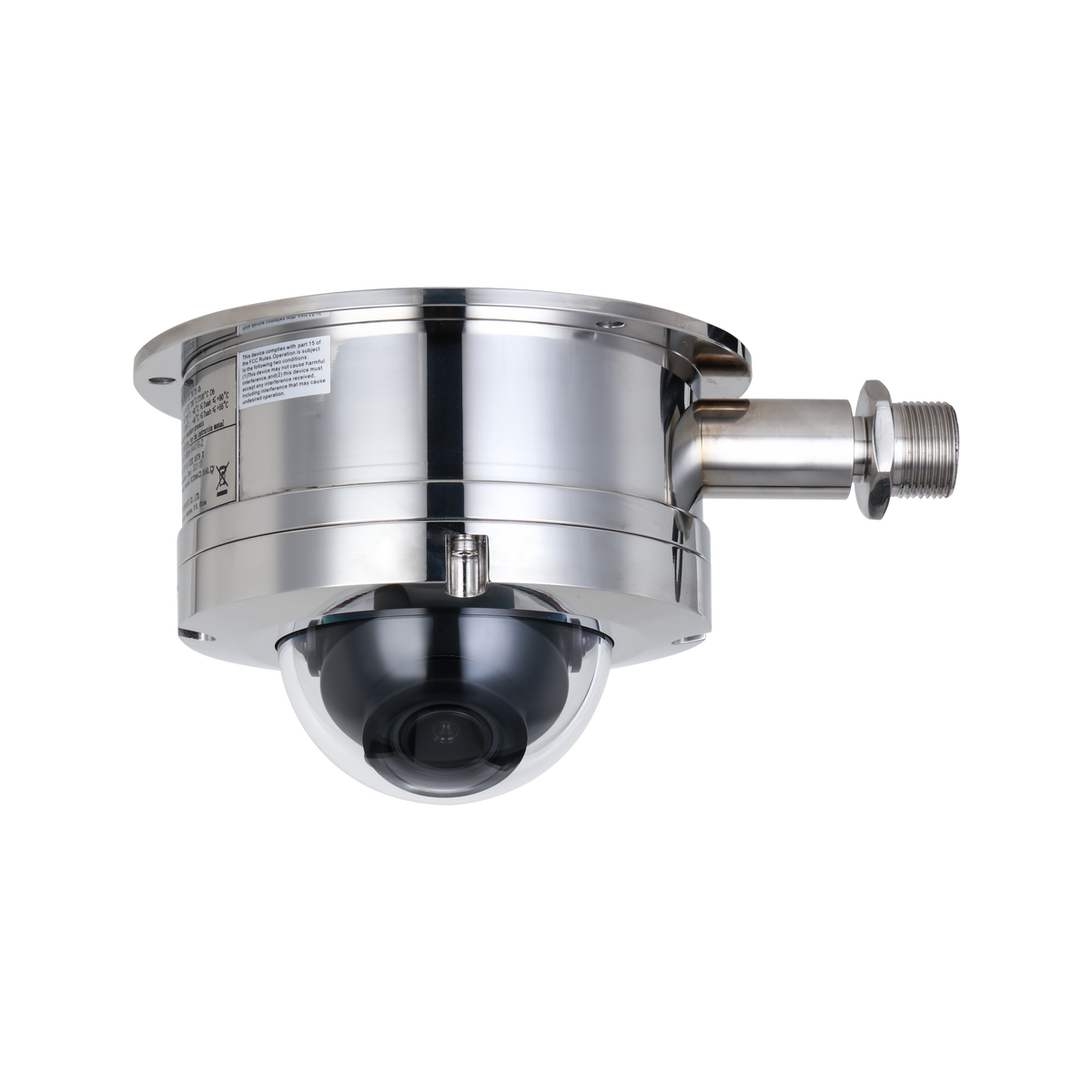

Dôme IP anti explosion 4 MP
- Varifocale motorisée 2.7
- 13.5 mm
- IA WizMind
- IR 50m
- Starlight
- Comptage
- Entrée / Sortie audio
- 12V POE
- IP68
- IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, Anti-explosion
- Intelligence Artificielle : WizMind, Comptage de personne
- Résolution : 4 MP
- Varifocale : 2.7 - 13.5 mm
Fiche technique
| Capteur | 1/3" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 40 m (131.23 ft) (IR LED) |
| Contrôle de l'éclairage | Auto; Manual |
| Nombre d'illuminateurs | 2 (IR LED) |
| Plage pan/tilt/rotation | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Type d'objectif | Motorized vari-focal |
| Monture | φ14 |
| Focale | 2.7 mm–13.5 mm |
| Ouverture max. | F1.5 |
| Champ de vision | H: 104°–29° V: 56°–16° D: 125°–34° |
| Iris | Fixed |
| Distance mini de mise au point | 0.8 m (2.62 ft) |
| Distance DORI | Identify |
| W | 6.4 m (21.00 ft) |
| T | 21.0 m (68.90 ft) |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| SMD 3.0 | Less false alarm, longer detection distance |
| People Counting | Tripwire people counting, generating and exporting report (day/month/year); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Fréquence d'images | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@ (1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @ (1–25/30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 ×1296); 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–16384 kbps H.265: 32 kbps–16384 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Scene Self-adaptation (SSA) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; Security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B ATEX: EN 60079-0/EN 60079-1/EN 60079-31 IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31 Certificate: ATEX: TÜV 20 ATEX 8579 X IECEx: IECEx TUR 20.0059X |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Entrée audio | 1 channel (terminal) |
| Sortie audio | 1 channel (terminal) |
| Entrée d'alarme | 3 channels in: 5mA 3V–5V DC |
| Sortie d'alarme | 2 channels out: 300mA 12V DC |
| Alimentation | 12 VDC/PoE (802.3af) |
| Consommation | Basic: 3.1 W (12 VDC); 3.6 W (PoE) Max. (H.265+intelligence on +WDR +IR on + auto focus): 6.2 W (12 VDC); 7.3 W (PoE) |
| Température de fonctionnement | T5/T100 °C : –40 °C ≤ Tamb ≤ +60 °C (–40 °F to +140 °F) T6/T80 °C :–40 °C ≤ Tamb ≤ +55 °C (–40 °F to +131 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP68; IK10 |
| Humidité de stockage | ≤95% |
| Matériau du boîtier | SUS316L (316 stainless steel) |
| Dimensions | 219.5 mm × Φ165 mm × 118.2 mm (8.64" × Φ6.50" × 4.65") (L × W × H) |
| Poids net | 4.5 kg (9.92 lb) |
| Poids brut | 5.3 kg (11.68 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDEW8441RP-Z-27135-316-S2 · Marque : Dahua
