Description et caractéristiques

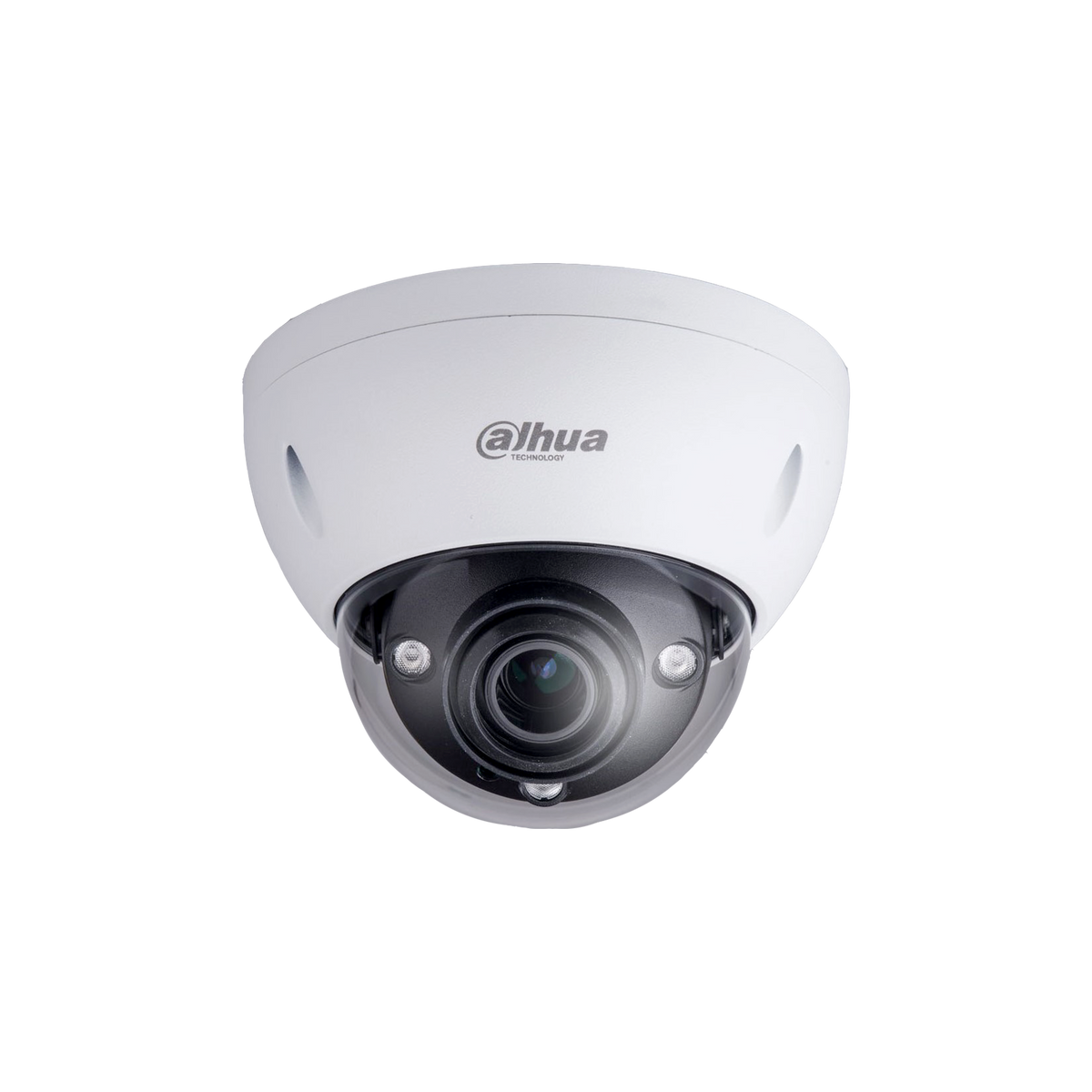

Dôme IP blanc
- 3 MP
- Varifocale motorisée 2.7
- 13.5 mm
- Starlight
- Détection de visage
- Comptage de personnes
- IR 50 m
- Entrée / Sortie audio
- WDR 140 dB
- 12V
- 24V
- PoE+
- IP67
- IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : Détection de visage, Comptage de personne
- Résolution : 3 MP
- Varifocale : 2.7 - 13.5 mm
Fiche technique
| Capteur | 1/2.8” 3Megapixel progressive scan CMOS |
|---|---|
| Effective Pixels | 2048(H)x1536(V) |
| RAM/ROM | 1024MB/128MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.005Lux/F1.4 (Color,1/3s,30IRE) 0.03Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
| Rapport signal/bruit | More than 50dB |
| IR Distance | Distance up to 100m(328ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 3 |
| Type d'objectif | Motorized /Auto Iris(HALL) |
| Mount Type | Board-in |
| Focale | 7~35mm motorized |
| Ouverture max. | F1.4 |
| Angle of View | H: 32°~11°, V:24°~8.6° |
| Zoom optique | 5x |
| Focus Control | Motorized |
| Predictive Focus Algorithm (PFA) | Support |
| Distance mini de mise au point | 0.3m(0.98ft) |
| Distance DORI | Identify |
| W | 15m(49ft) |
| T | 49m(162ft) |
| Plage pan/tilt/rotation | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
| Compression | G.711a/G.711Mu/AAC/ G.726 |
| Smart Codec | Support H.265+/H.264+ |
| Flux | 3 Streams |
| Résolutions | 3M(2048x1536)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240) |
| Frame Rate | Main Stream: 3M(1~50/60fps) |
| Contrôle du débit | CBR/VBR |
| Bit Rate | H.264: 24~ 10240Kbps H.265: 14~ 9216Kbps |
| Jour/Nuit | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(140dB)/ SSA |
| Balance des blancs | Auto/Natural/Street Lamp/Outdoor/Manual |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D DNR |
| Détection de mouvement | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | Support |
| Defog | Support |
| Zoom numérique | 16x |
| Flip | 0°/90°/180°/270° |
| Miroir | Off / On |
| Masques de confidentialité | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (100/1000Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS |
| Interopérabilité | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NAS Local PC for instant recording Mirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Logiciels de gestion | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
| Video Interface | 1 Port(For adjustment only) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm | 1 channel In: 5mA 5VDC 1 channel Out: 1A 30VDC / 0.5A 50VAC |
| Alimentation | DC12V,AC24V, PoE+ (802.3at)(Class 4) |
| Consommation | <18W |
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Storage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | Φ159.1mm×117.9mm(Φ6.26 ” ×4.64 ” ) |
| Poids net | 0.96kg(2.12lb) |
| Poids brut | 1.75 kg(3.56lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW8331E-Z5 · Marque : Dahua
