Description et caractéristiques

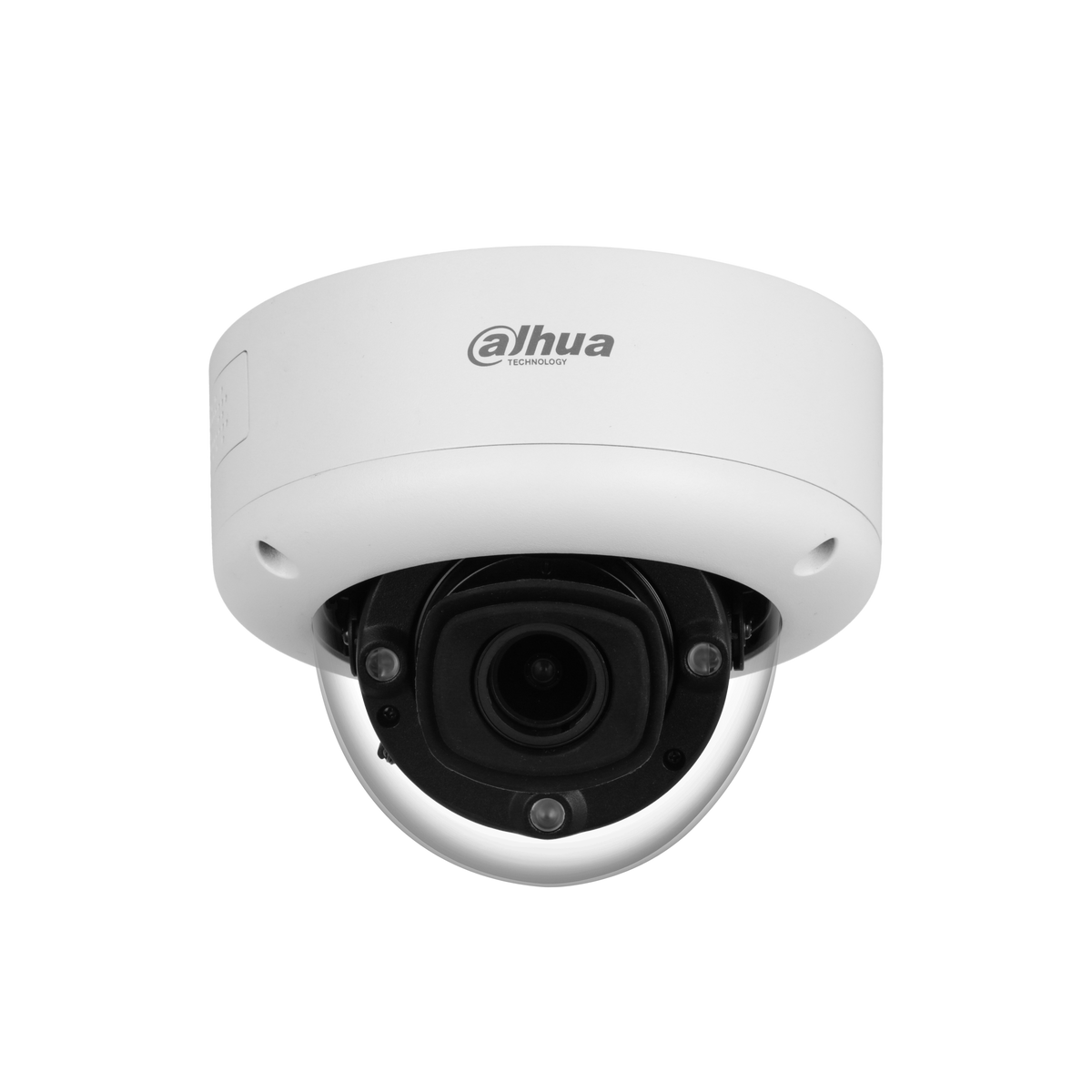

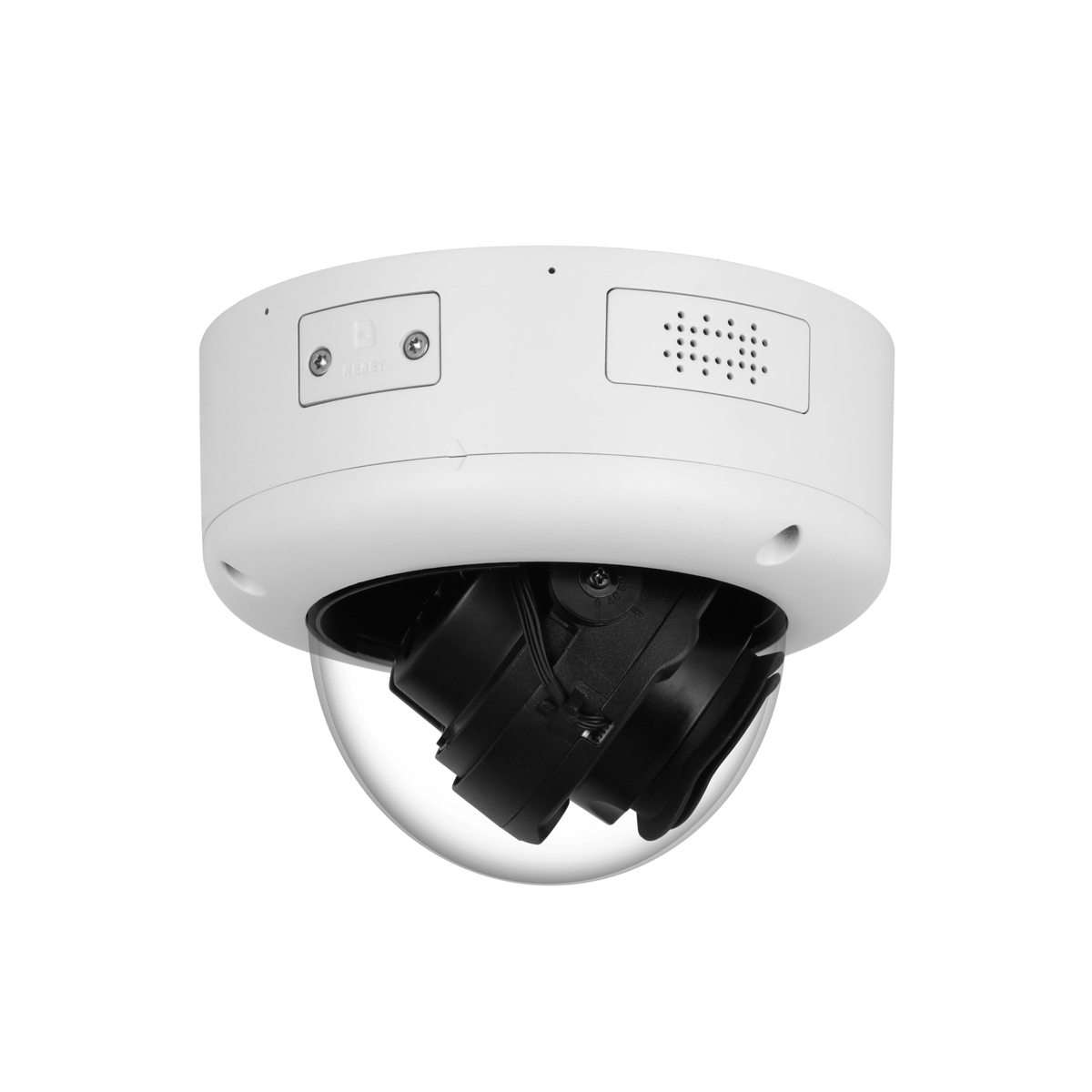

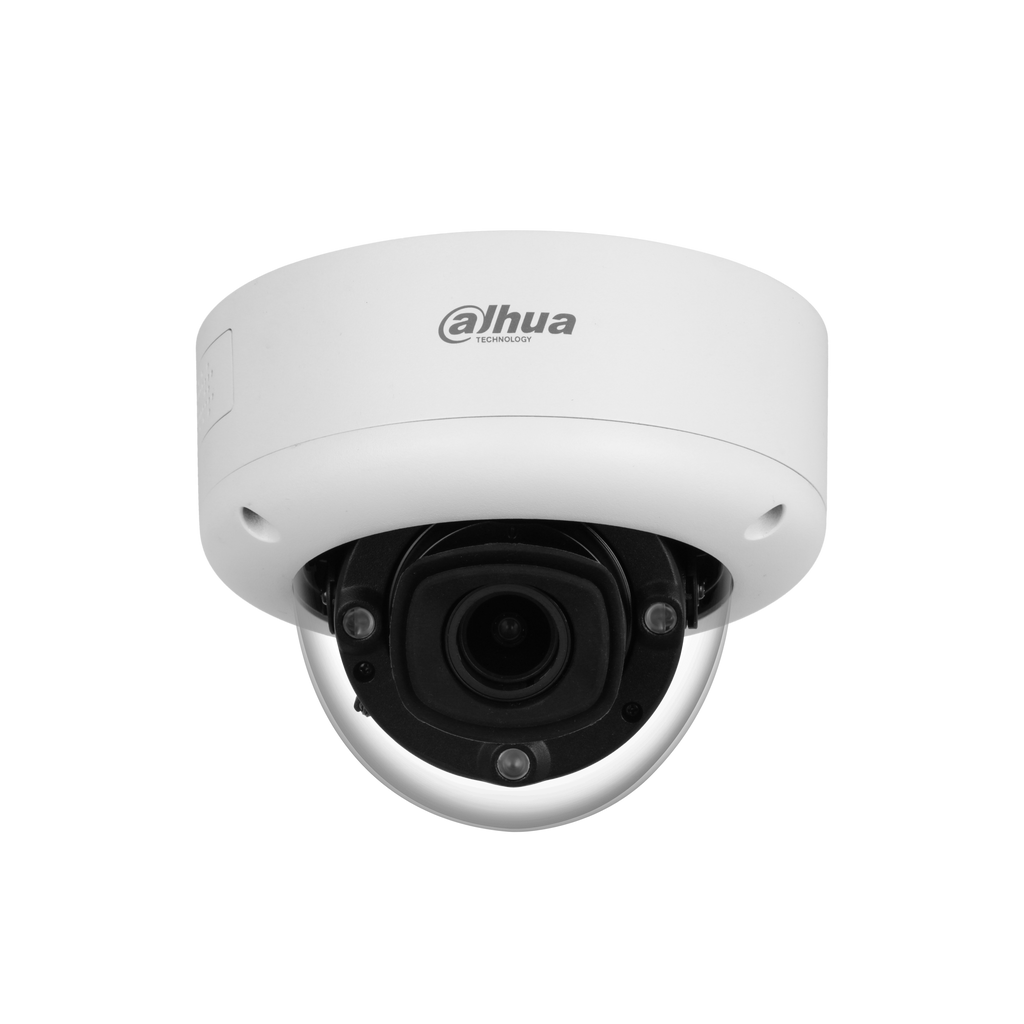

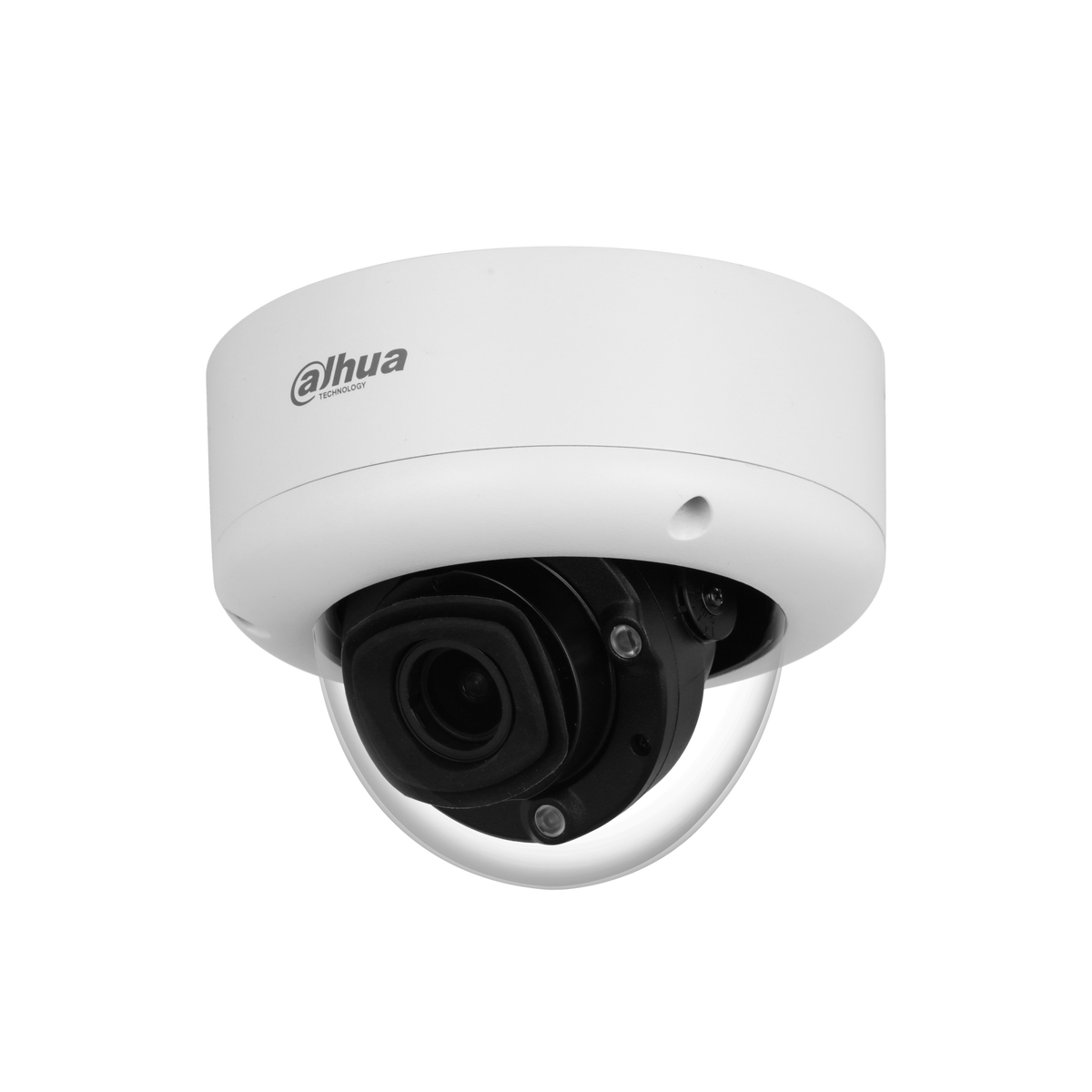

Dôme IP blanc
- 8 Mp
- VF motorisée 2.7-12mm
- IR 40m
- IA WizMind
- Protection périmétrique
- Comptage
- Micro
- HP
- IP67
- IK10
- POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne
- Résolution : 8 MP
- Varifocale : 2.7 - 12 mm
- IR & LED : IR 40 m
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0006 lux@F1.2 (Color, 30 IRE) 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 40 m (131.23 ft) (IR) |
| Contrôle de l'éclairage | Auto |
| Nombre d'illuminateurs | 3 (IR LED) |
| Réglage angulaire | Pan: 0-355° Tilt:0-80° Rotation: 0-355° |
| Type d'objectif | Motorized vari-focal |
| Monture | φ16 |
| Focale | 2.7 mm–12 mm |
| Ouverture max. | F1.2 |
| Champ de vision | H: 105°–48°; V: 55°–27°; D: 124°–55° |
| Iris | Auto |
| Iris Control Type | P-Iris |
| Distance mini de mise au point | 1.8 m (5.91 ft) |
| Distance DORI | Identify |
| W | 8.8 m (28.87 ft) |
| T | 18.7 m (61.35 ft) |
| IVS | Abandoned object; missing object |
| EPTZ | Yes |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, privacy protection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (workwear, safety helmet, cap, face mask, apron, gloves, shoe covers, boots, safety vest, and seatbelt). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protection |
| Heat Map | Yes |
| ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Fréquence d'images | Default: Main Stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920×1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main Stream: 3840 × 2160@(1–50/60 fps) Sub stream: 1920×1080@(1–25/30 fps) |
| Flux | 5 streams |
| Résolutions | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072×1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| LDC | Yes |
| Micro intégré | Dual MICs |
| Built-in Speaker | Yes |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Profile M; Auto Register |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T/ Profile M); CGI; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 340 M) |
| Stockage | FTP;SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later |
| Logiciels de gestion | SmartPSS Lite; DSS; DMSS |
| Application mobile | iOS; Android |
| Sécurité | Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: wet contact, 5mA 3V–5V DC |
| Sortie d'alarme | 2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Alimentation | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW7842E1P-Z-2712F-DC12AC24V-X · Marque : Dahua
