Description et caractéristiques

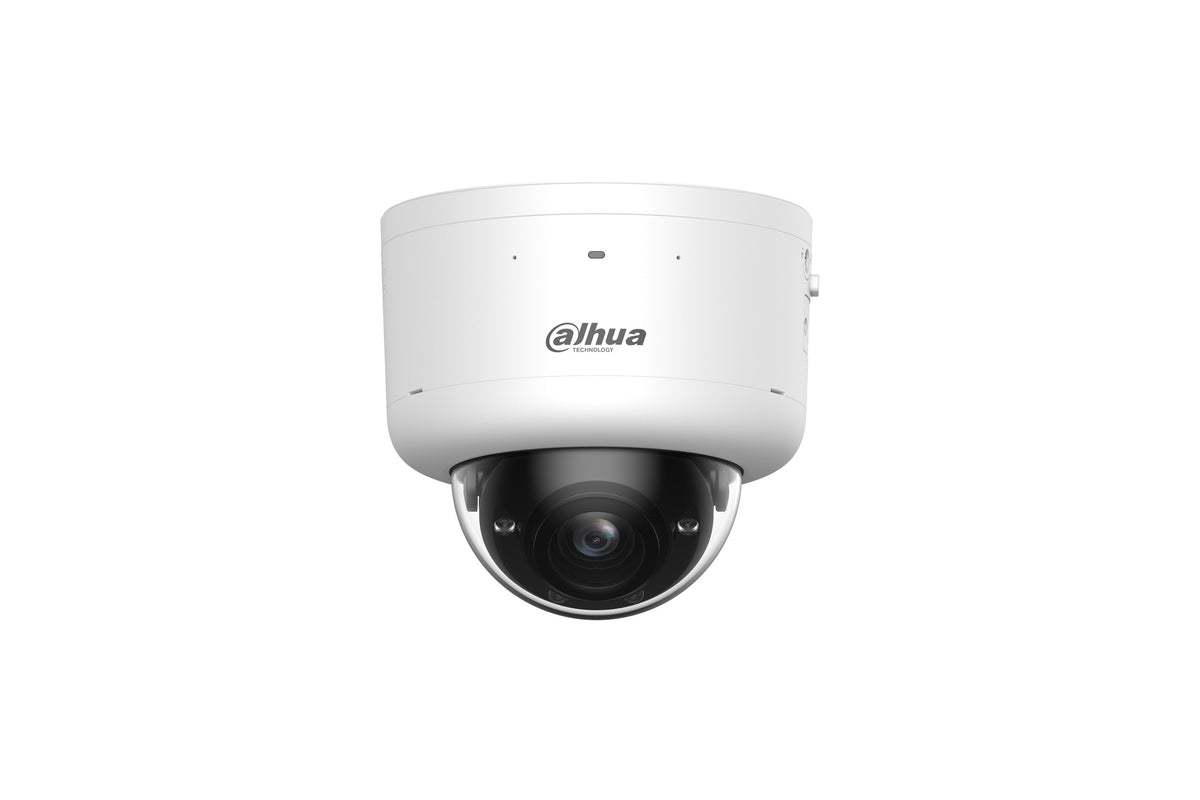

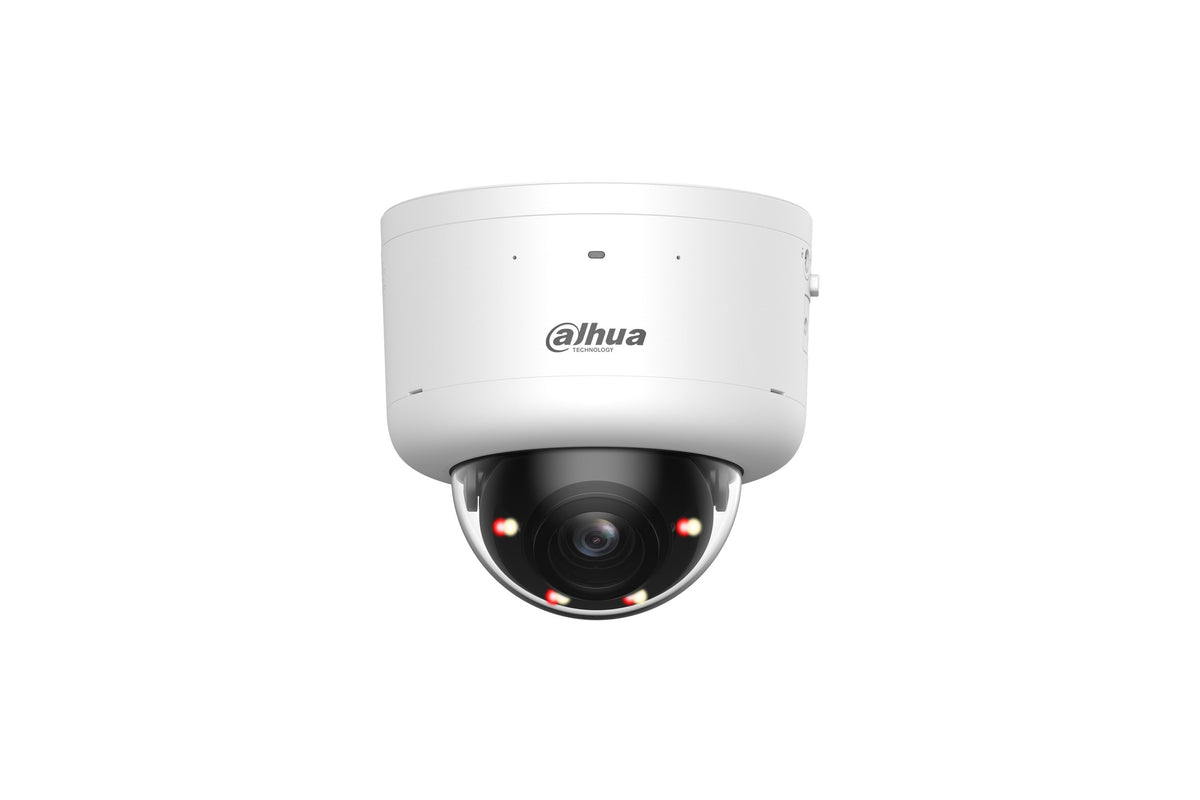

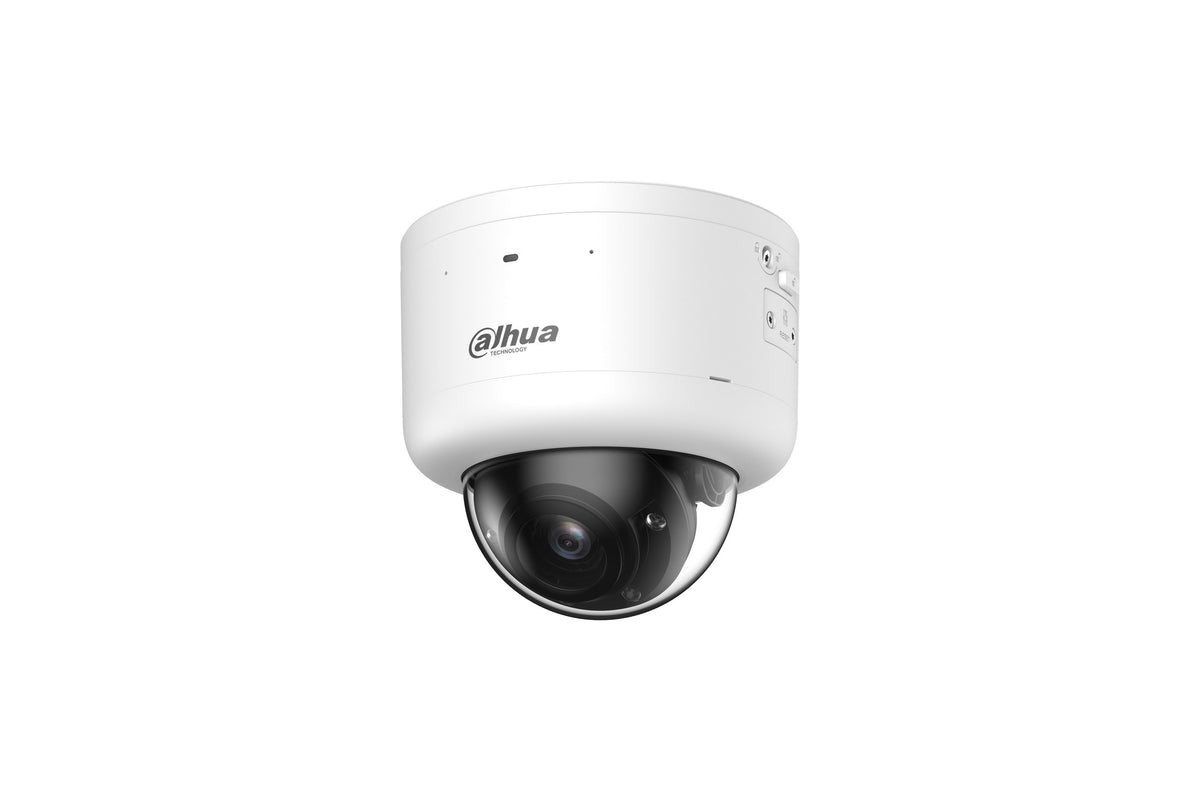

Dome WizMind Network Camera
- 4MP
- Smart Dual Light- PTRZ
- 8mm-32mm
- IR 80m/ LED 60m
- WDR 150 dB
- Micro et audio
- 12/24V
- POE
- IP68/IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind, Protection périmétrique, Détection de visage, Reconnaissance faciale, Comptage de personne, Comptage de véhicule
- Résolution : 4 MP
- Varifocale : 8 - 32 mm
- IR & LED : LED 60 m, IR 80 m
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0006 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 4 (Multi-core (IR + warm) light) |
| Réglage angulaire | Pan: 0° to 355° Tilt: 0° to 80° Rotation: 0° to 355° Remote adjustment (Max 1,000 cycles) |
| Type d'objectif | Motorized vari-focal |
| Monture | Module |
| Focale | 8 mm–32 mm |
| Ouverture max. | F1.6 |
| Champ de vision | H: 41°–16°; V: 23°–9°; D: 48°–18° |
| Iris | Auto |
| Iris Control Type | P-Iris |
| Distance mini de mise au point | 1 m (3.28 ft) |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| W | 15.4 m ( 50.52 ft) |
| T | 38.9 m ( 127.62 ft) |
| IVS | Abandoned object; missing object |
| Intelligence Notes | Dual intelligent functions can be enabled simultaneously: Face detection + people counting; face recognition + people counting; PPE detection + Perimeter Protection; PPE detection + face detection; PPE detection + face recognition |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, and aprons). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection for faces/human bodies. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire people counting, people counting in area, and queue management; supports privacy protection |
| Heat Map | Yes |
| ANPR | ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color, vehicle brand. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60 km/h. Supports privacy protection for vehicle bodies. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles |
| Privacy Protection | Mosaics and frosted glasses can be automatically placed over faces, human bodies and vehicle bodies protect their privacy; adjustable mosaic grain size |
| Recherche intelligente | Yes |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Flux | 5 streams |
| Résolutions | 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | VBR;CBR;ABR |
| Débit vidéo | H.264: 32 kbps–10,240 kbps; H.265: 12 kbps–10,240 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 150 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Gyroscope Image Stabilization (GIS) |
| Éclairage intelligent | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 mosaics + 8 color blocks (The color of every pure color block can be set as one, including red, orange, yellow, green, cyan, blue, purple and black.) |
| Time-Division Exposure | Yes |
| Micro intégré | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 340 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE11 and later; Chrome: Chrome 100 and later; Firefox: Firefox 47.0.2 and later |
| Logiciels de gestion | Smart PSS Lite; DSS; DMSS |
| Application mobile | iOS;Android |
| Sécurité | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;AES 256;TPM 2.0 (FIPS 140-2 level 2);SSL/TLS1.3 |
| Light Warning | Yes |
| Sound Warning | Yes |
| Heater (Window Heating) | Quickly removes water,ice,snow,and mist from the glass to keep images clear |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Sortie d'alarme | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW7459Z-Z4-PV-X · Marque : Dahua
