Description et caractéristiques

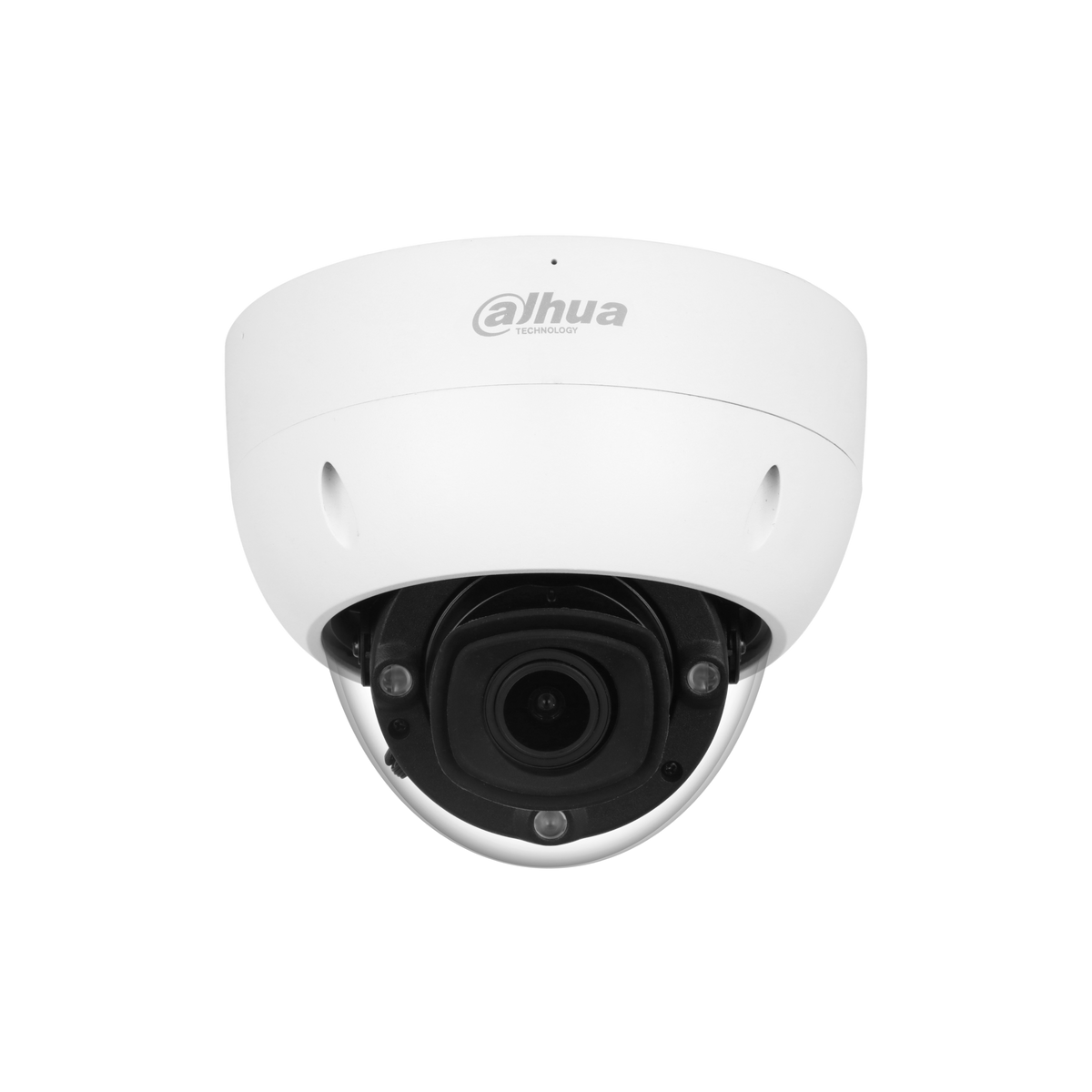

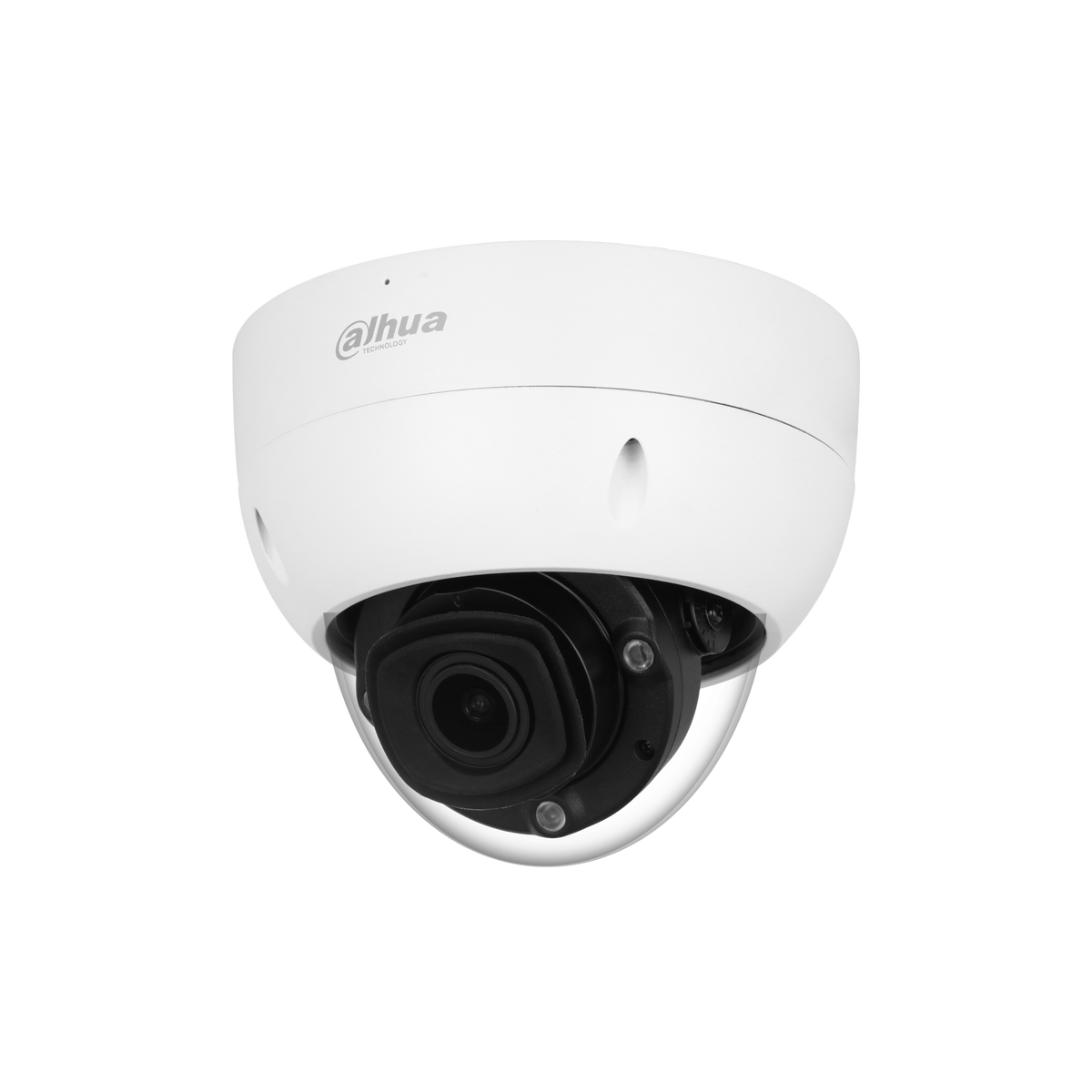

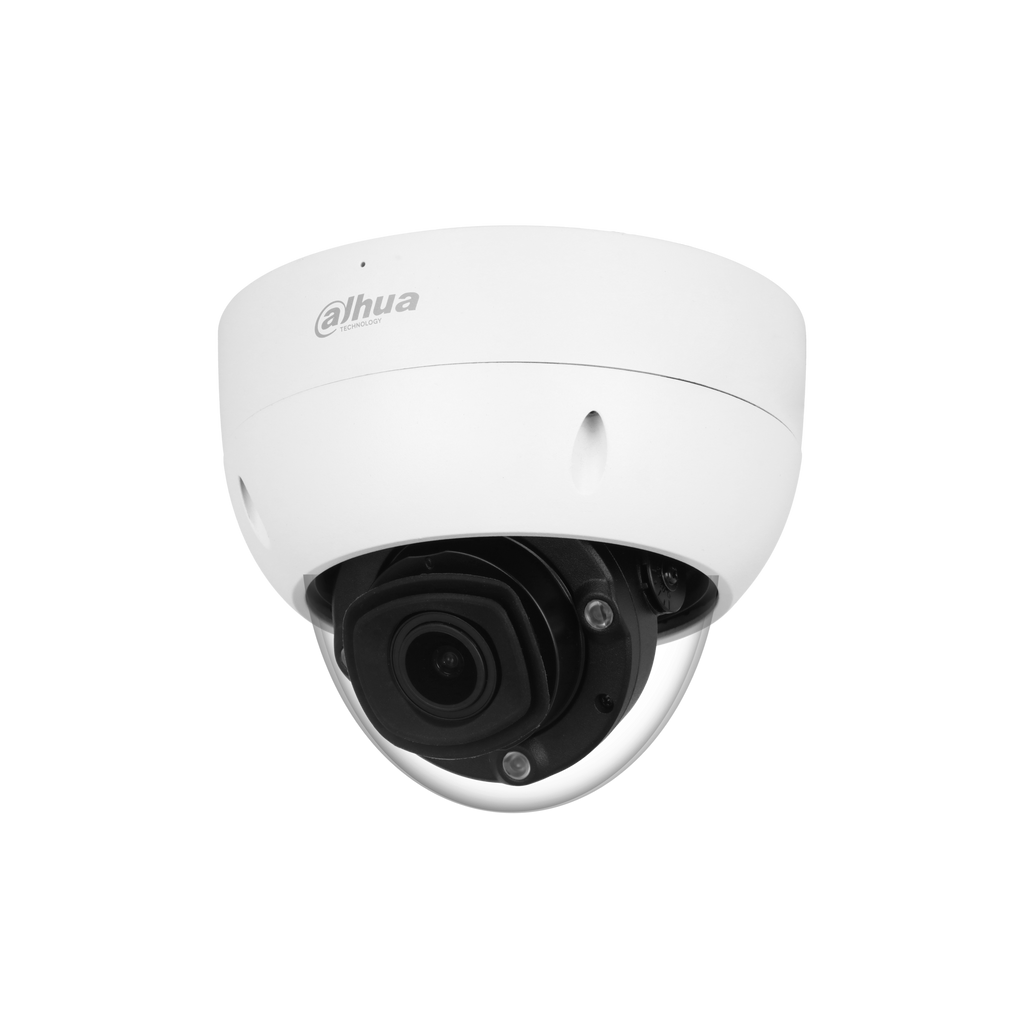

Dôme IP Blanc
- 8 MP
- VM 2.7-12 mm
- IR 40 m
- IA WizMind
- Protection périmétrique
- Comptage
- Entrée/Sortie audio
- IP67
- IK10
- 12V ePOE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne
- Résolution : 8 MP
- Varifocale : 2.7 - 12 mm
- IR & LED : IR 40 m
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0007 lux@F1.2 (Color, 30 IRE) 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 40 m (131.23 ft) (IR) |
| Contrôle de l'éclairage | Auto; Zoomprio; Manual |
| Nombre d'illuminateurs | 3 (IR LED) |
| Réglage angulaire | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Type d'objectif | Motorized vari-focal |
| Monture | φ14 |
| Focale | 2.7 mm–12.0 mm |
| Ouverture max. | F1.2 |
| Champ de vision | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris | Auto |
| Iris Control Type | P-Iris |
| Distance mini de mise au point | 1.75 m (5.74 ft) |
| Distance DORI | Identify |
| W | 8.8 m (28.87 ft) |
| T | 18.7 m (61.35 ft) |
| EPTZ | Yes |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD (détection humain/véhicule) | SMD 3.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 4 streams |
| Résolutions | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520)resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| LDC | Yes |
| Micro intégré | Yes, built-in dual Mic |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Logiciels de gestion | SmartPSS Lite; DSS; DMSS |
| Application mobile | iOS; Android |
| Sécurité | Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional) |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Entrée audio | 1 channel (terminal) |
| Sortie audio | 1 channel (terminal) |
| Entrée d'alarme | 3 channels in: wet contact, 5mA 3V–5V DC |
| Sortie d'alarme | 2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: built-in 2 pin (testing) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Alimentation | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW5842HP-ZHE-2712F-DC12AC24V-S3 · Marque : Dahua
