Description et caractéristiques

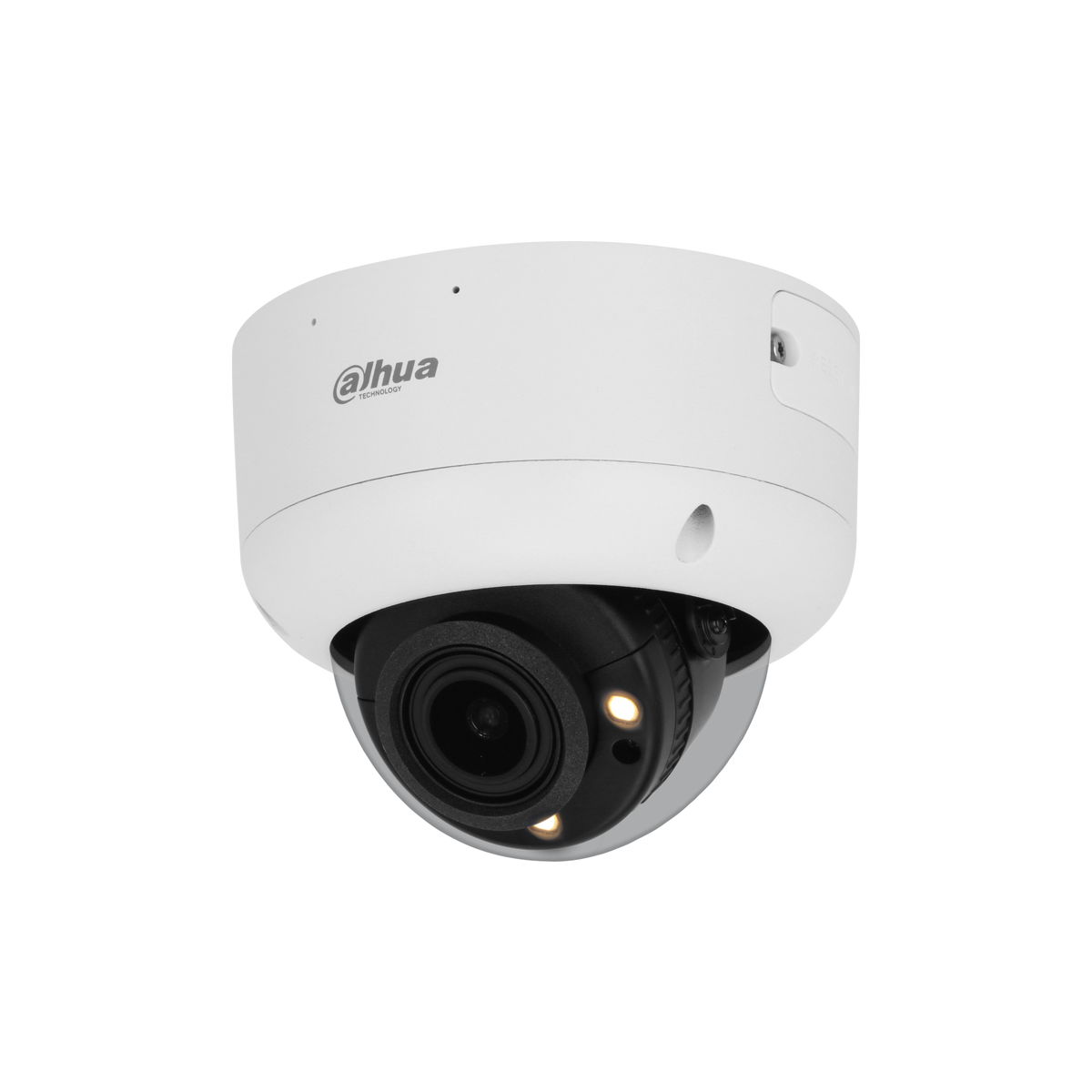

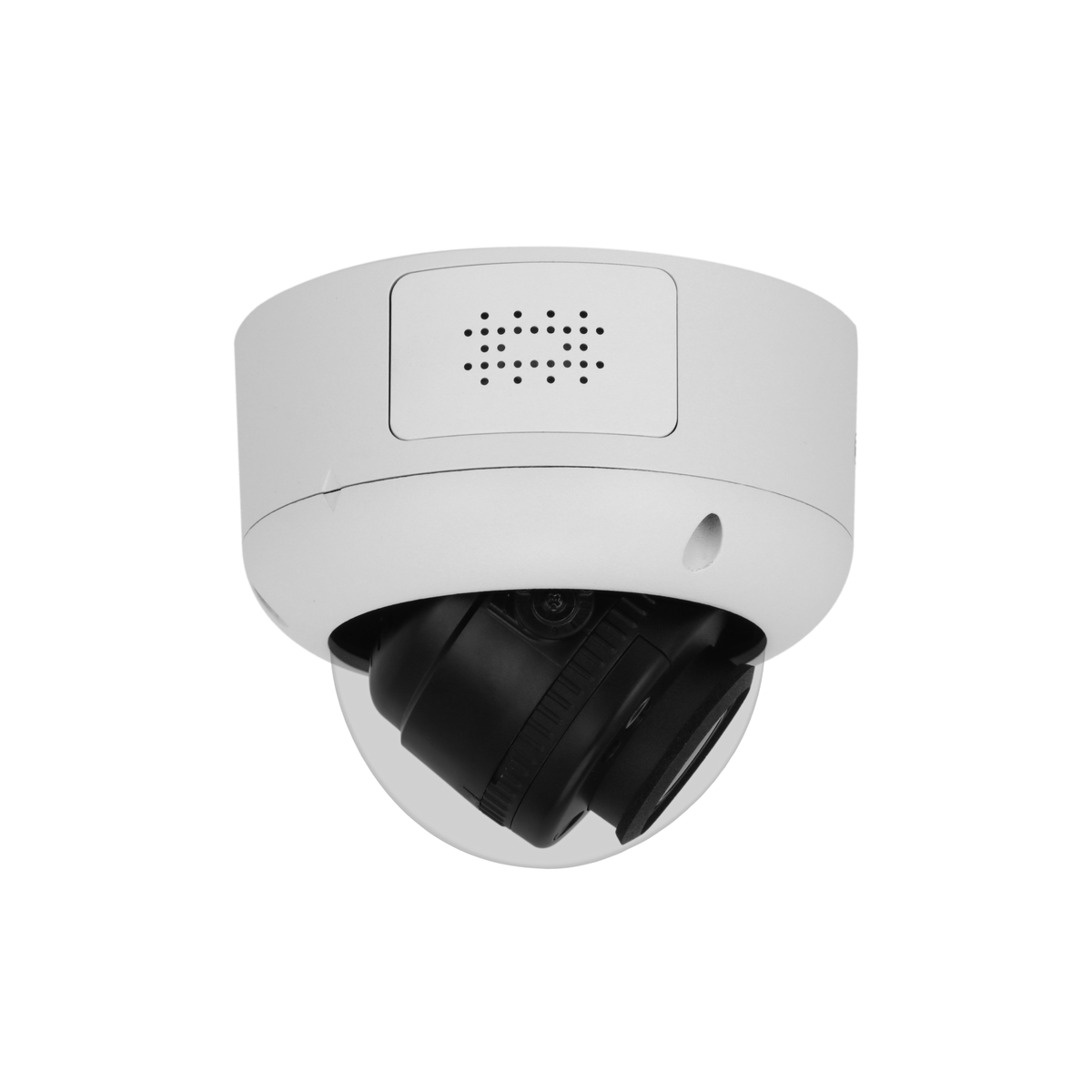

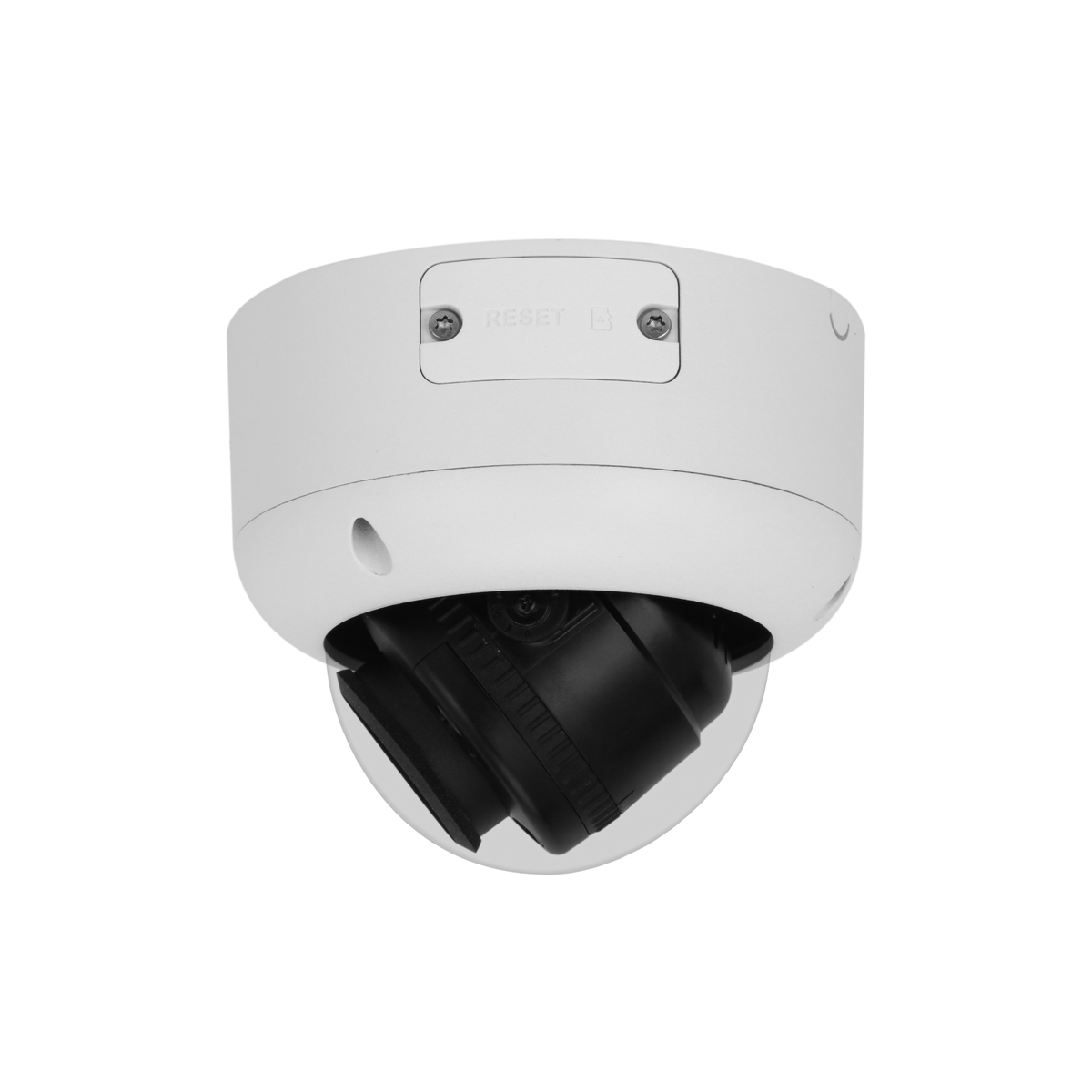

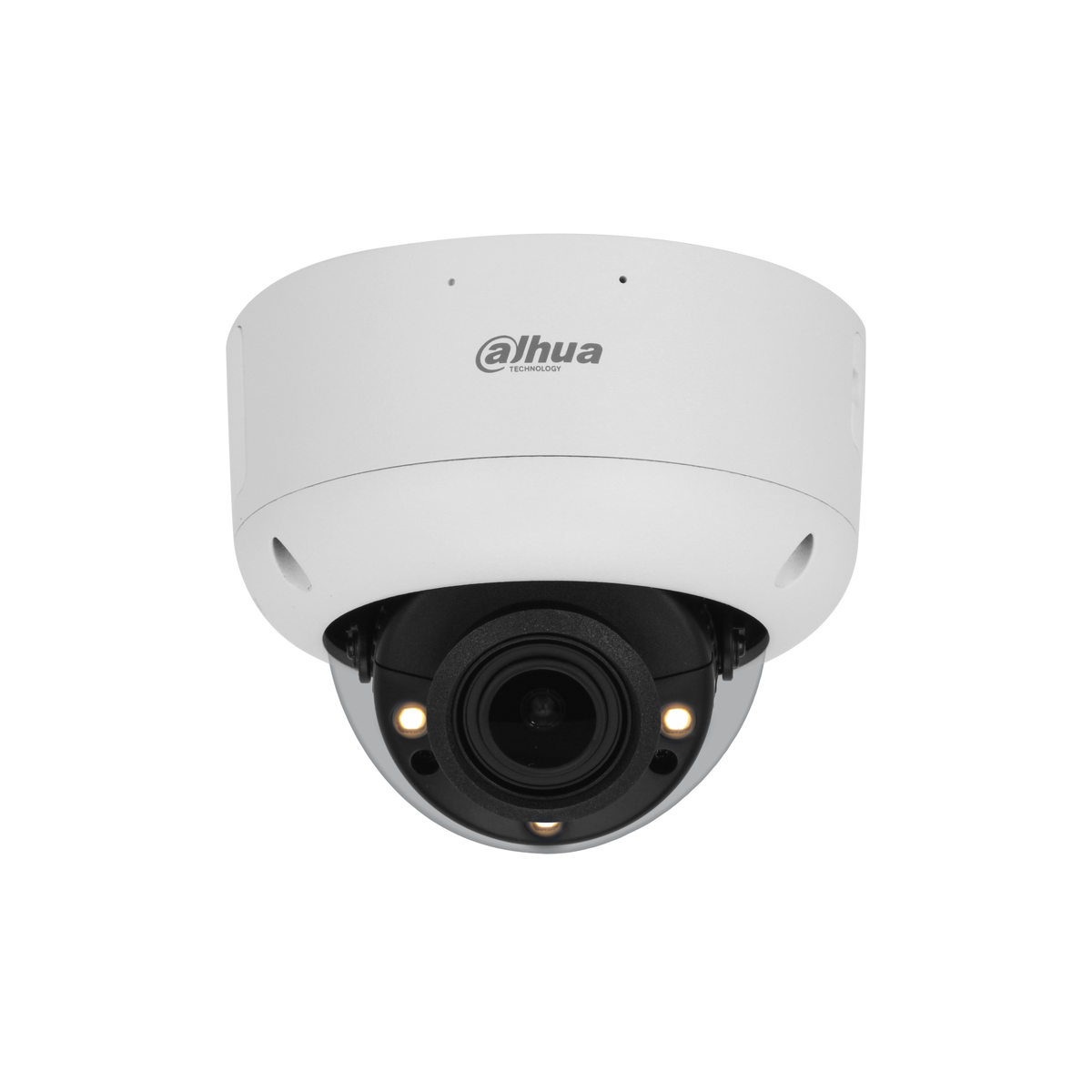

Dôme IP blanc
- 4 MP
- VF motorisée 2.7 -12 mm
- IA WinZmind
- FullColor
- Protection périmétrique
- Reconnaissance faciale
- Comptage de personne
- LED 40m
- Entrée/Sortie audio
- Micro/Haut-parleurs intégrés
- 12V
- PoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Full Color
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne
- Résolution : 4 MP
- Varifocale : 2.7 - 12 mm
Fiche technique
| Capteur | 1/1.8” CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 128 M |
| RAM | 512 M |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0005Lux@F1.0 |
| Rapport signal/bruit | > 56 dB |
| Portée de l'éclairage | 40m(131.2 ft) |
| Contrôle de l'éclairage | Auto; Manual; Zoomprio |
| Nombre d'illuminateurs | 3 (Warm light) |
| Plage pan/tilt/rotation | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Type d'objectif | Motorized vari-focal |
| Mount Type | φ16 |
| Focale | 2.7 mm–12 mm |
| Ouverture max. | F1.0 |
| Champ de vision | Horizontal: 115°–48° Vertical: 59°–27° Diagonal: 142°–55° |
| Iris Type | Auto |
| Distance mini de mise au point | 1.75 m (5.74 ft) |
| Distance DORI | Identify |
| W | 6 m (19.7 ft) |
| T | 12.8 m (42.0 ft) |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| Face Detection | Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/Smart H.264+ |
| Fréquence d'images | Main stream: 2688 × 1520 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Jour/Nuit | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation | Yes |
| Balance des blancs | Auto/natural/street lamp/outdoor/manual/regional custom |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| Micro intégré | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Navigateur | IE: IE8 and later Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | IOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: 5mA 3V–5V DC |
| Sortie d'alarme | 1 channel out: 300mA 12V DC |
| Alimentation | 12V DC (±30%)/PoE (802.3af)/ePoE |
| Consommation | Basic: 2.3 W (12 VDC); 3.3 W (PoE) Max. (H.265 + 3 streams + intelligence + LED): 7.4 W (12 VDC); 9.0 W (PoE) |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Casing | Metal |
| Dimensions | 105 mm × Φ126 mm (4.1" × Φ5.0") |
| Poids net | 716.4 g (1.6 lb) |
| Poids brut | 929.7 g (2.0 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW5449R1P-ZE-LED-2712 · Marque : Dahua
