Description et caractéristiques

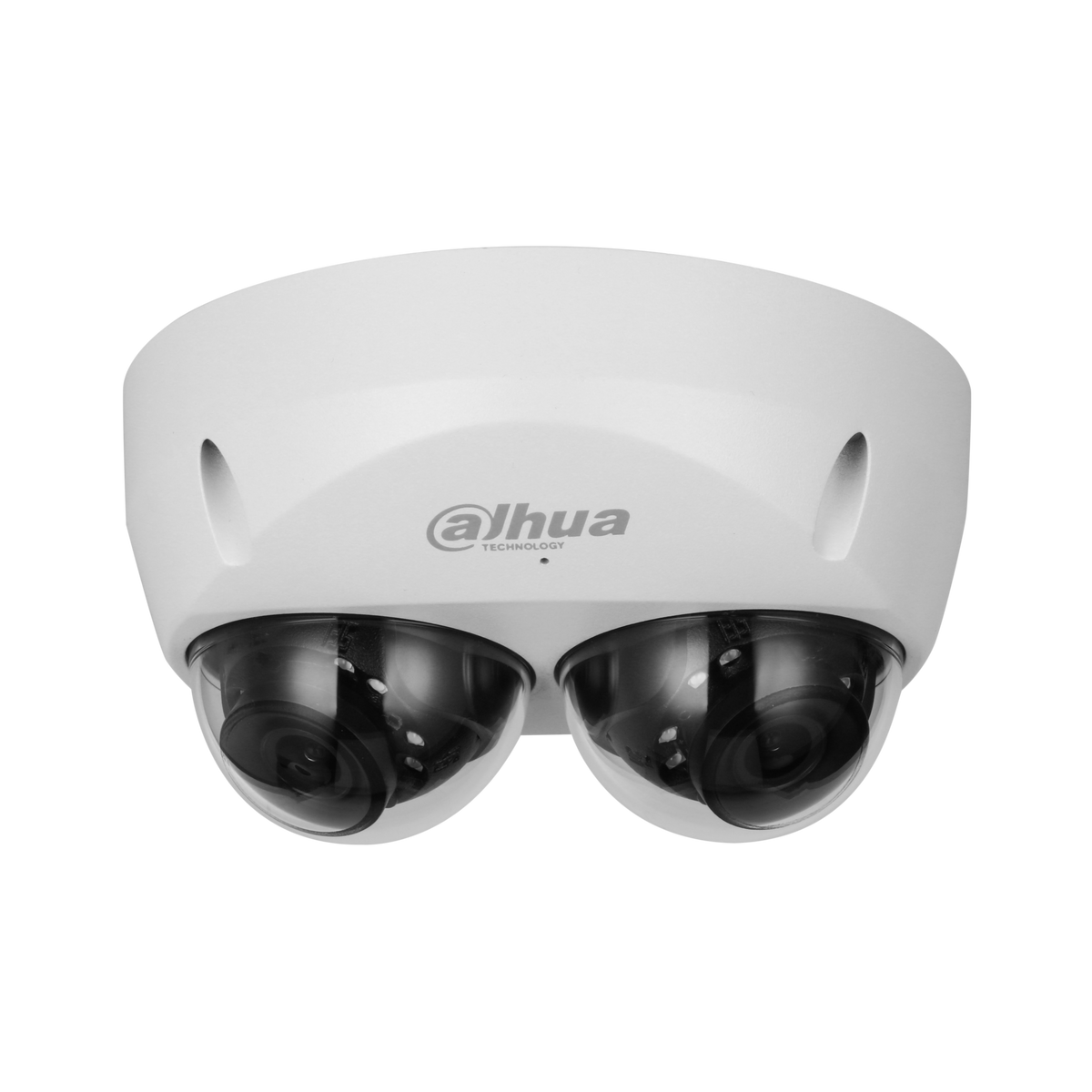

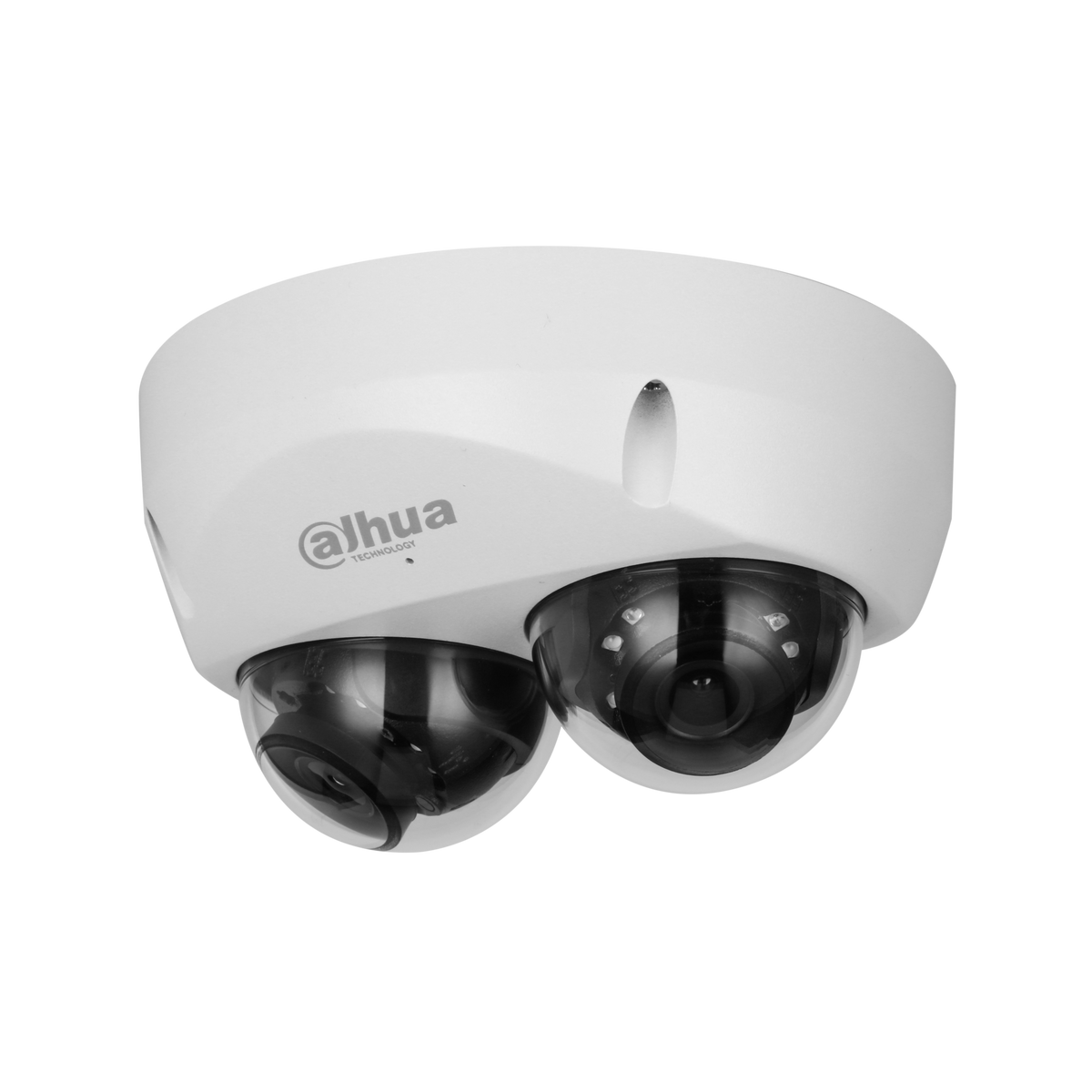

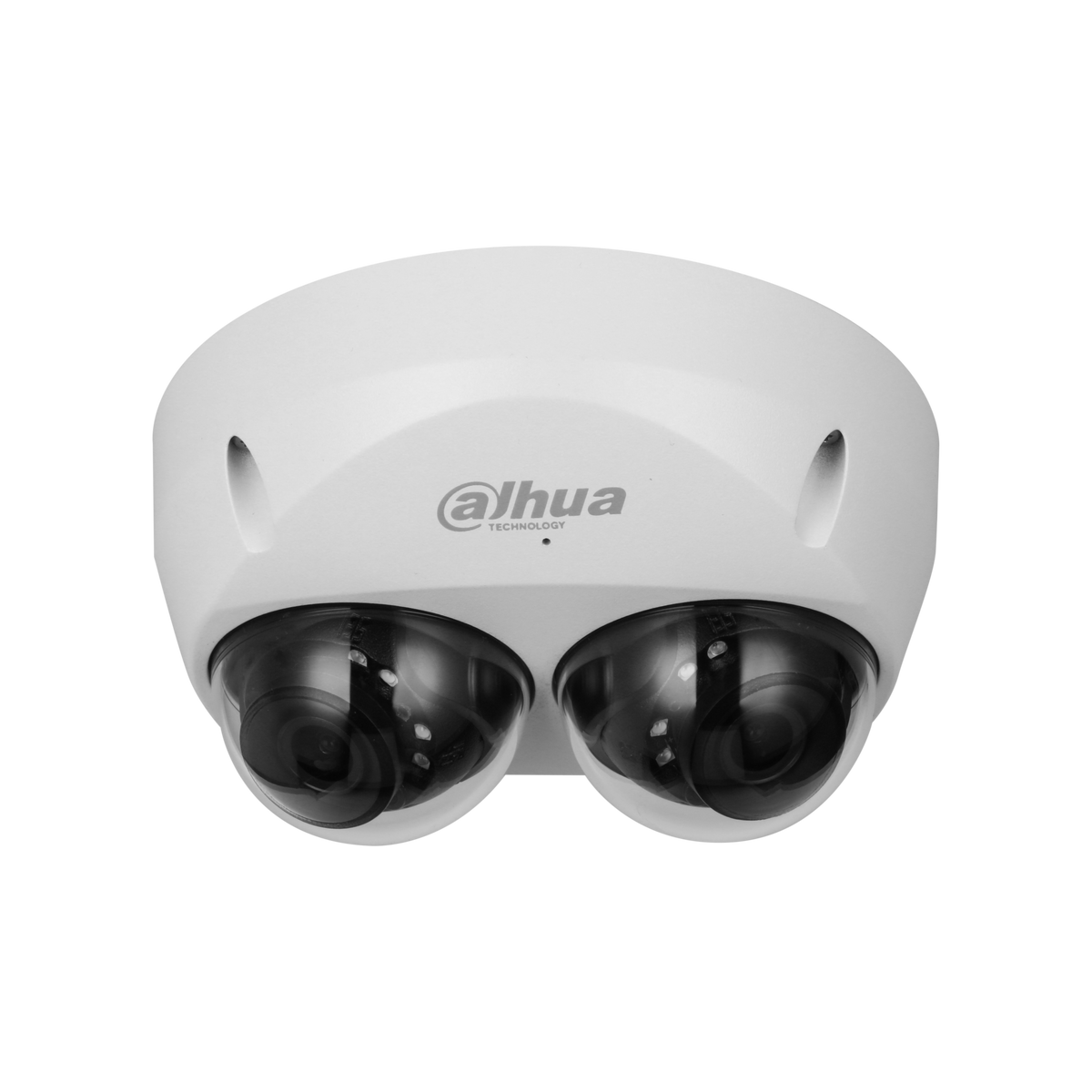

Dôme IP blanc
- 3 Mp
- FF 2.8 mm
- IR 30 m
- IA WizMind
- Reconnaissance faciale
- Micro
- IP67
- IK10
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind, Protection périmétrique, Reconnaissance faciale
- Résolution : 3 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 30 m
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.005 Lux@F1.6 (Color,30 IRE) 0.0005 Lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | > 56 dB |
| Portée de l'éclairage | 30 m (98.43 ft) (IR) |
| Contrôle de l'éclairage | Auto |
| Nombre d'illuminateurs | 16 (IR LED) |
| Plage pan/tilt/rotation | Pan: 0°–175° Tilt: 0°–65° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm; 3.6 mm |
| Ouverture max. | F1.6 |
| Champ de vision | 2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114° 3.6 mm: Horizontal: 78°; Vertical: 41°; Diagonal: 94° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) |
| Distance DORI | Identify |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| SMD 3.0 | With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 2560 × 1440 @(1–25/30 fps ) sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @ (1–25/30 fps) |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–8192 kbps H.265: 32 kbps–8192 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | NA |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| Micro intégré | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| Utilisateurs simultanés | 20 (Total bandwidth: 64 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE: IE8 and later Chrome Firefox Safari: 12 and later |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 2 channels in: 5mA 3V–5 VDC |
| Sortie d'alarme | 2 channels out: 300mA 12 VDC |
| Alimentation | 12 VDC/PoE |
| Consommation | Basic: 3.1 W (12 VDC); 4 W (PoE) Max. (H.265 + IR on + intelligence+ WDR): 6.6 W (12 VDC); 8 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to 140 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to 140 °F) |
| Indice de protection | IP67; IK10 |
| Casing | Metal |
| Dimensions | 66.2 mm × Φ122.0 mm (2.61" × Φ4.80") |
| Poids net | 0.52 kg (1.15 lb) |
| Poids brut | 0.67 kg (1.48 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW5441FP-AS-E2-0280B · Marque : Dahua
