Description et caractéristiques

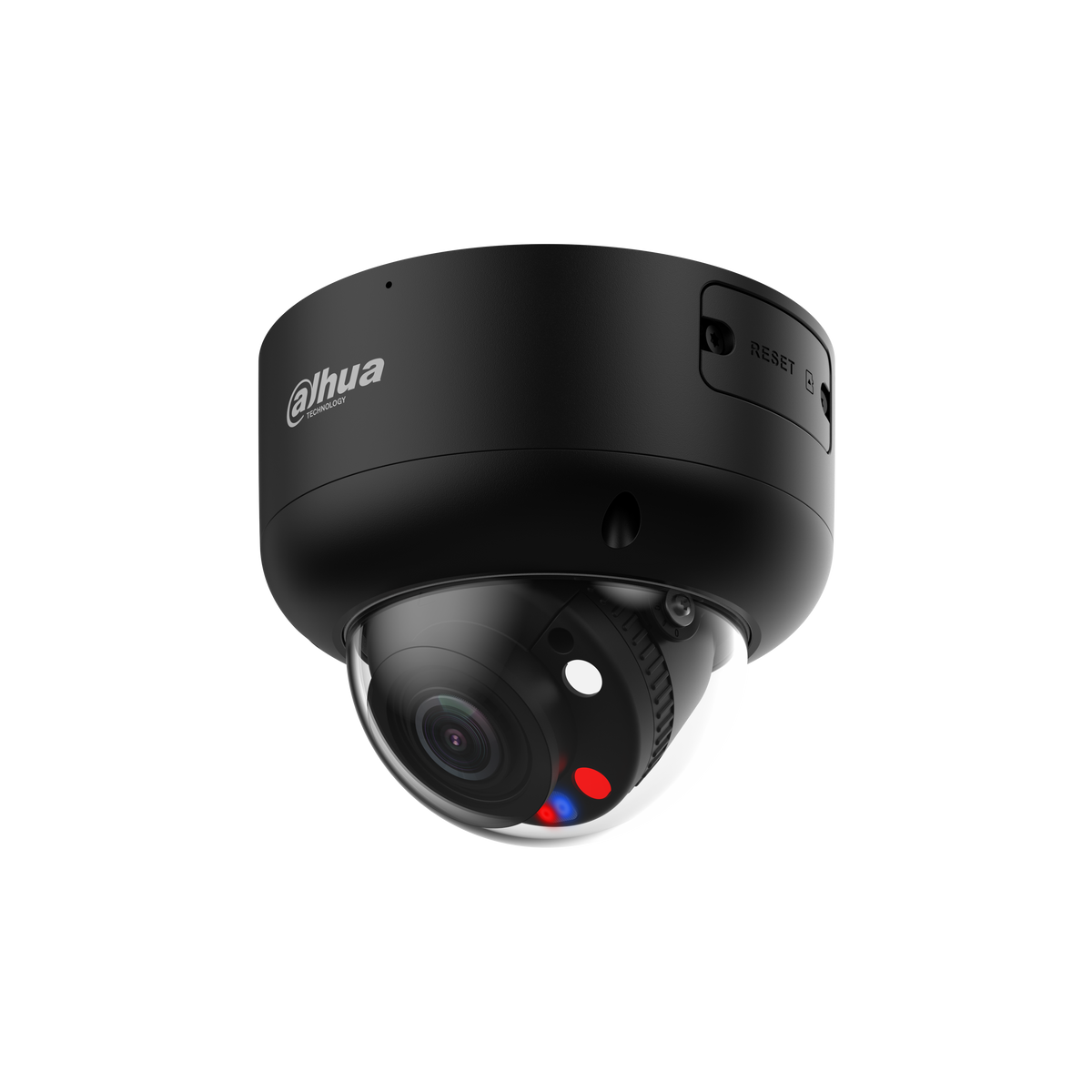

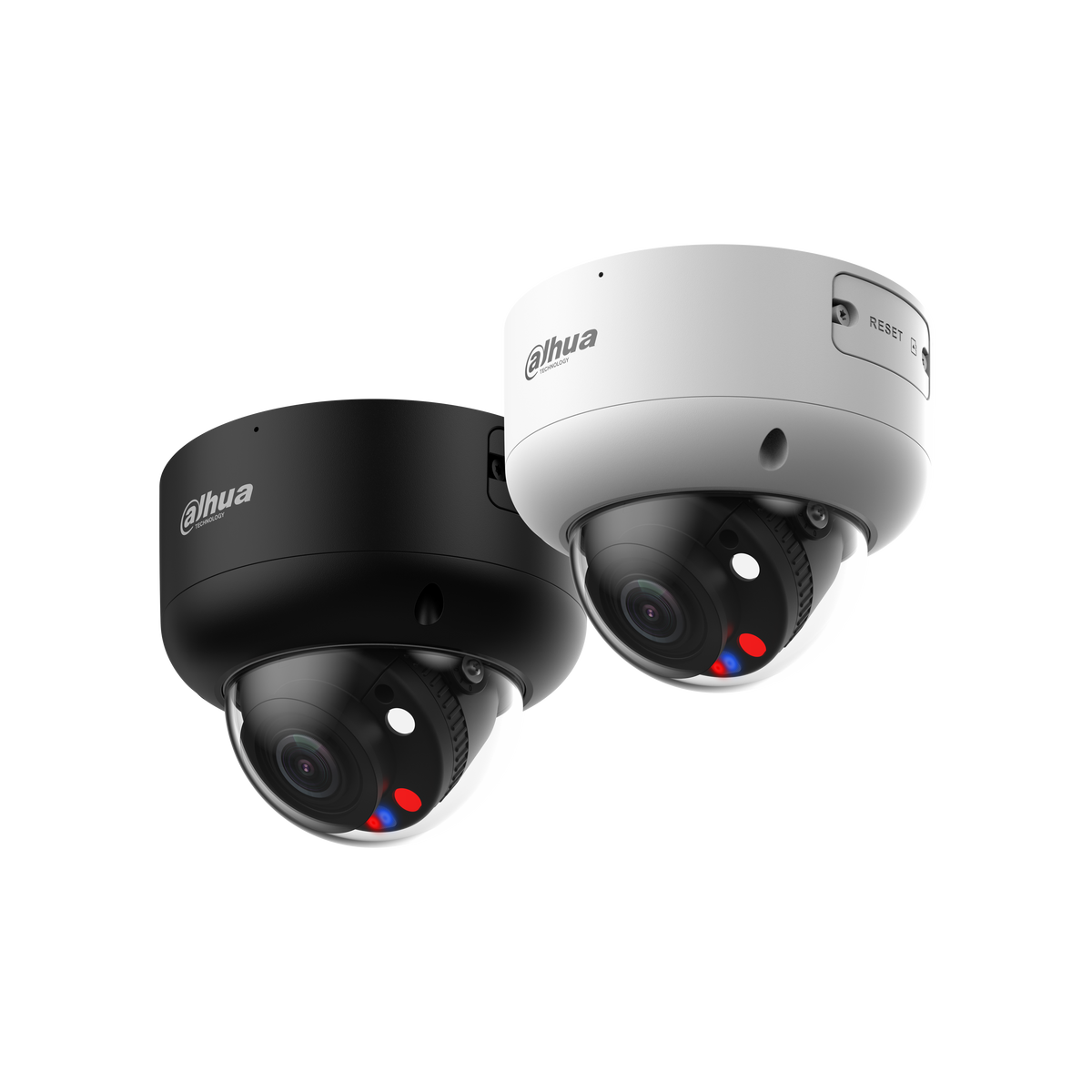

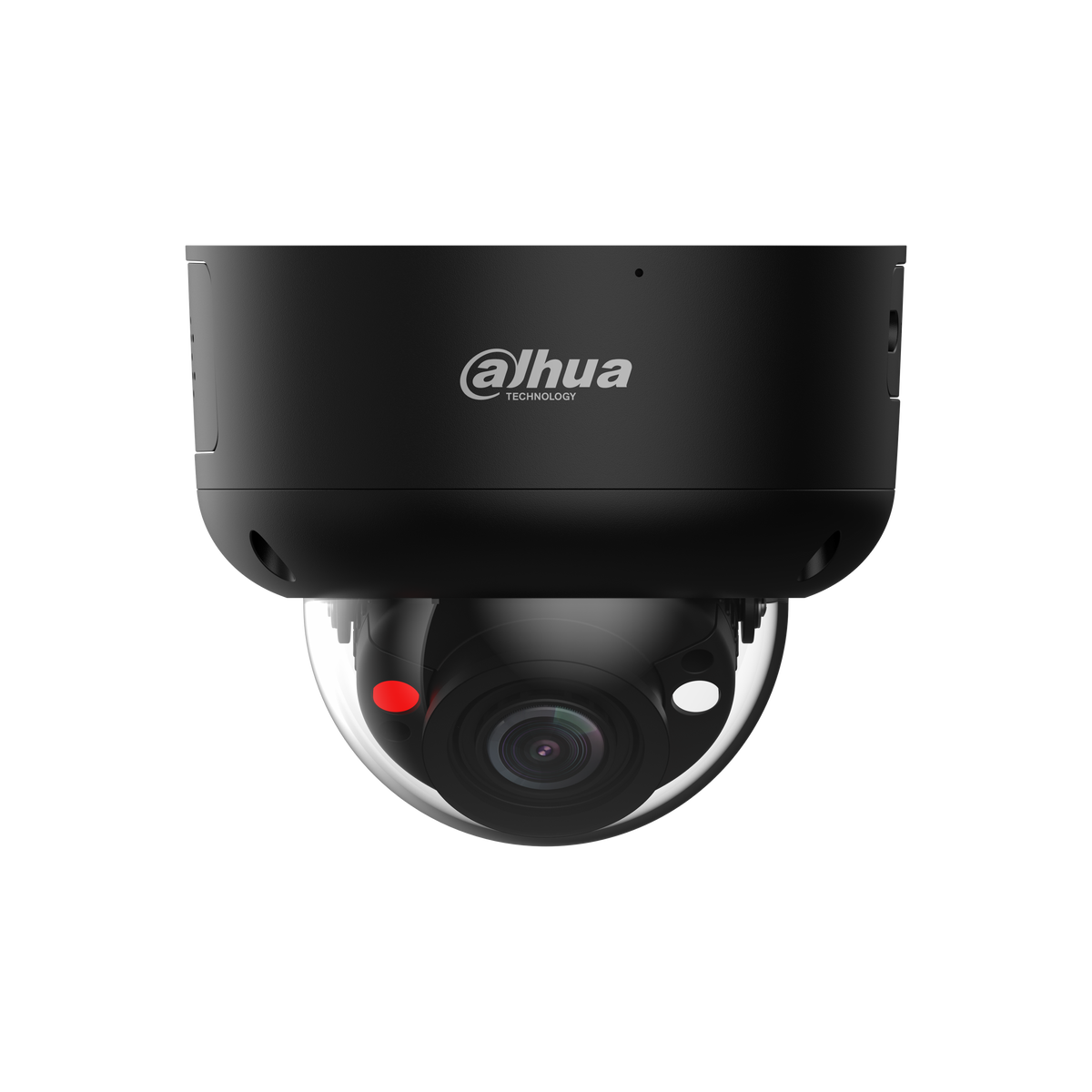

Dôme IP
- Noir
- 4 Mp
- VariFocale motorisée 2.7
- 13.5mm
- IR 50m
- WizSense
- TIOC 2.0
- Starlight
- DualLight
- Protection périmétrique
- WDR 120 dB
- Micro/Haut Parleur
- 12V POE
- IP 67
- IK 10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, TIOC 2.0, DualLight
- Intelligence Artificielle : WizSense, Protection périmétrique
- Résolution : 4 MP
- Varifocale : 2.7 - 13.5 mm
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| Rapport signal/bruit | ﹥56 dB |
| Portée de l'éclairage | Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (warm light) |
| Contrôle de l'éclairage | Auto/Manual |
| Nombre d'illuminateurs | 2 (IR LED) 2 (warm light) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Type d'objectif | Motorized vari-focal |
| Mount Type | φ16 |
| Focale | 2.7 mm–13.5 mm |
| Ouverture max. | F1.0 |
| Champ de vision | Horizontal: 103°–33° Vertical: 54°–18° Diagonal: 124°–38° |
| Iris Type | Fixed |
| Distance mini de mise au point | 1.5 m (4.92 ft) |
| Distance DORI | Identify |
| W | 6.5 m (21.33 ft) |
| T | 18.7 m (61.35 ft) |
| IVS (protection périmétrique) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
| SMD 4.0 | Less false alarm, longer detection distance |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 2688 × 1520@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Built-in Mic | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interopérabilité | ONVIF (Profile S;Profile G;Profile T); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 72 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Navigateur | IE: IE8/9/11 Chrome Firefox |
| Logiciels de gestion | SmartPSS Lite; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: 5 mA 3V–5 VDC |
| Sortie d'alarme | 1 channel out: 300 mA 12 VDC |
| Alimentation | 12 VDC/PoE (802.3af) |
| Consommation | Basic: 3.3 W (12 VDC); 4.7 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 7.7 W (12 VDC); 9 W (PoE) |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67, IK10 |
| Casing | Metal |
| Dimensions | 105 mm × Φ126.0 mm (4.13" × Φ4.96" ) |
| Poids net | 0.73 kg (1.61 lb) |
| Poids brut | 0.9 kg (1.98 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW3449R1P-ZAS-PV-27135-S5-B · Marque : Dahua
