Description et caractéristiques

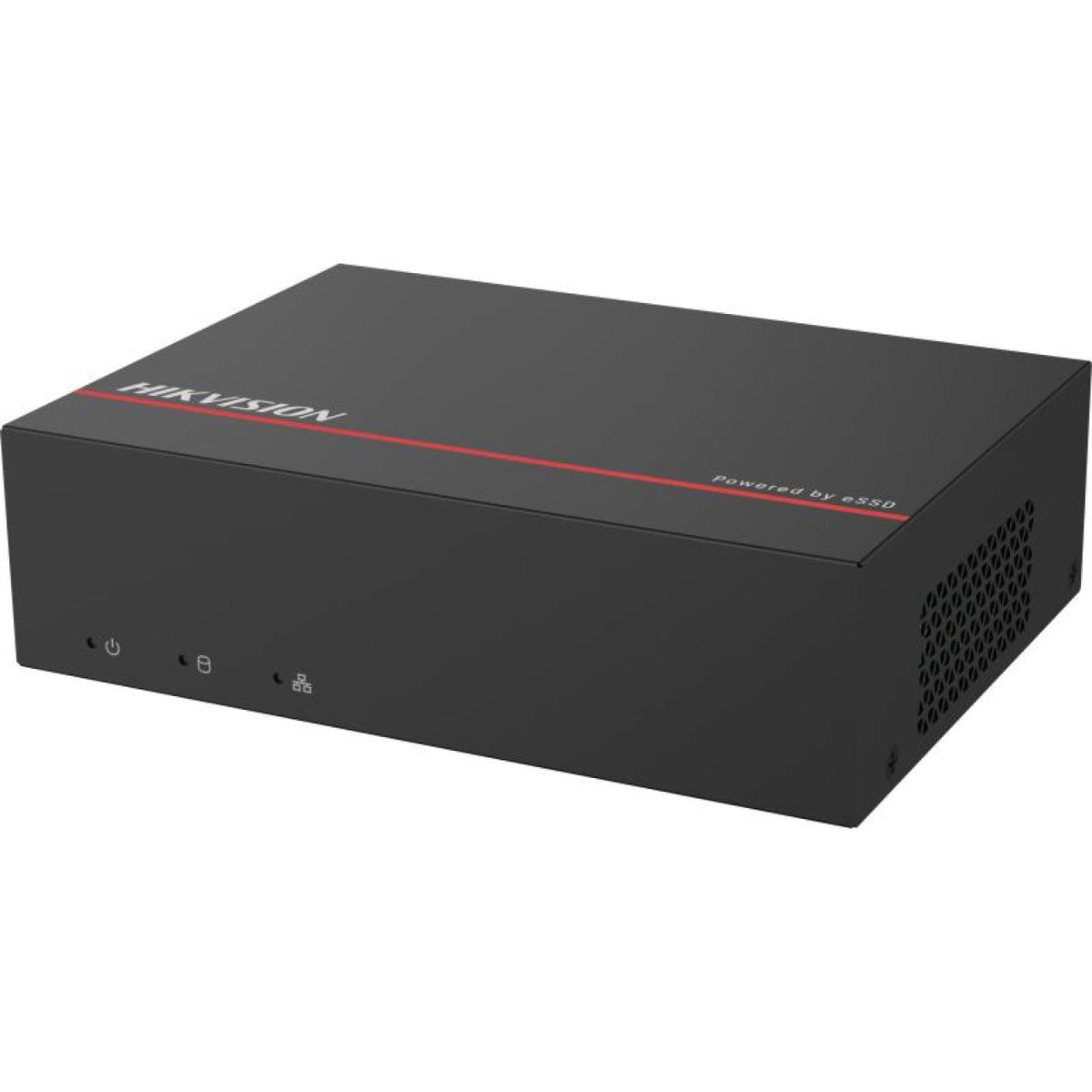

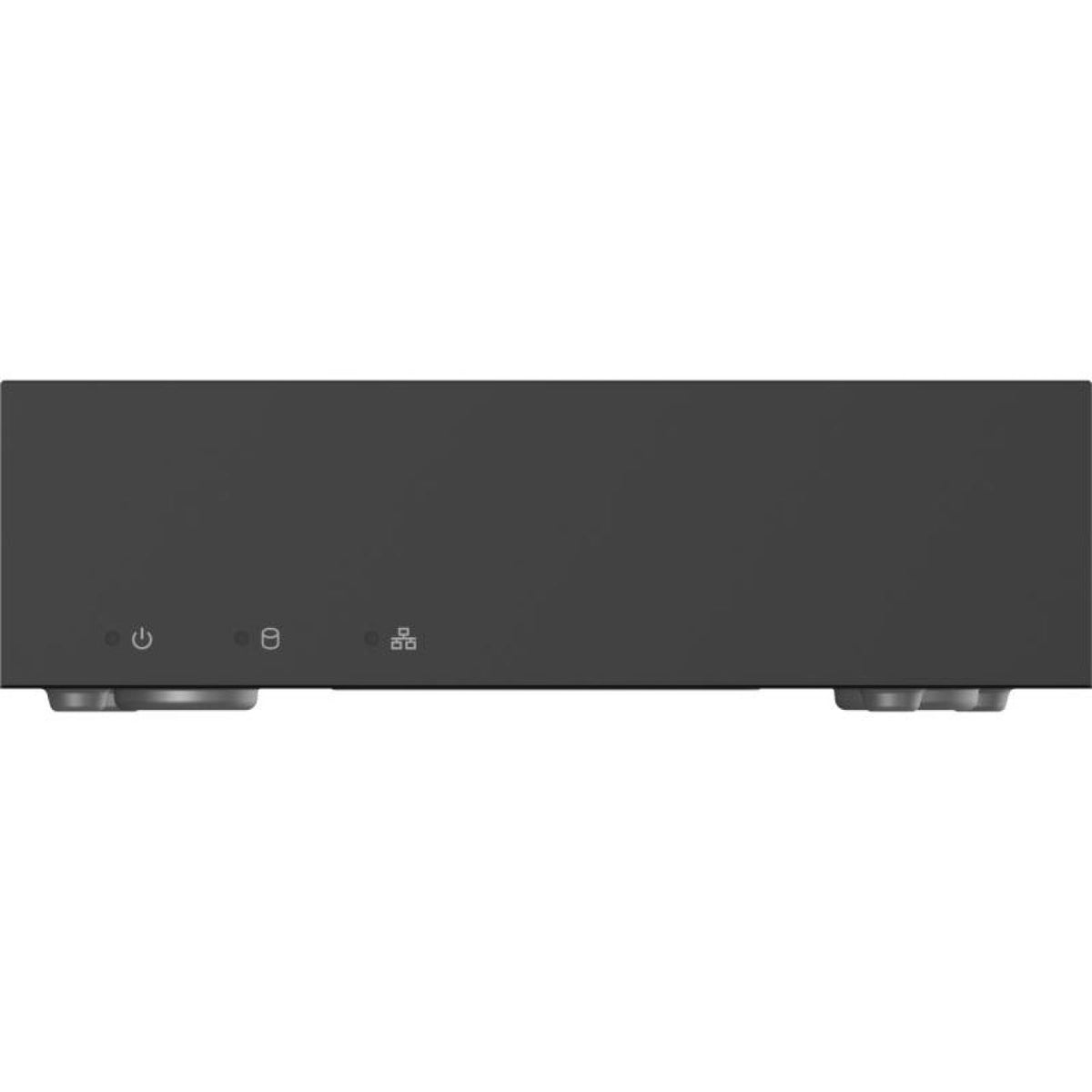

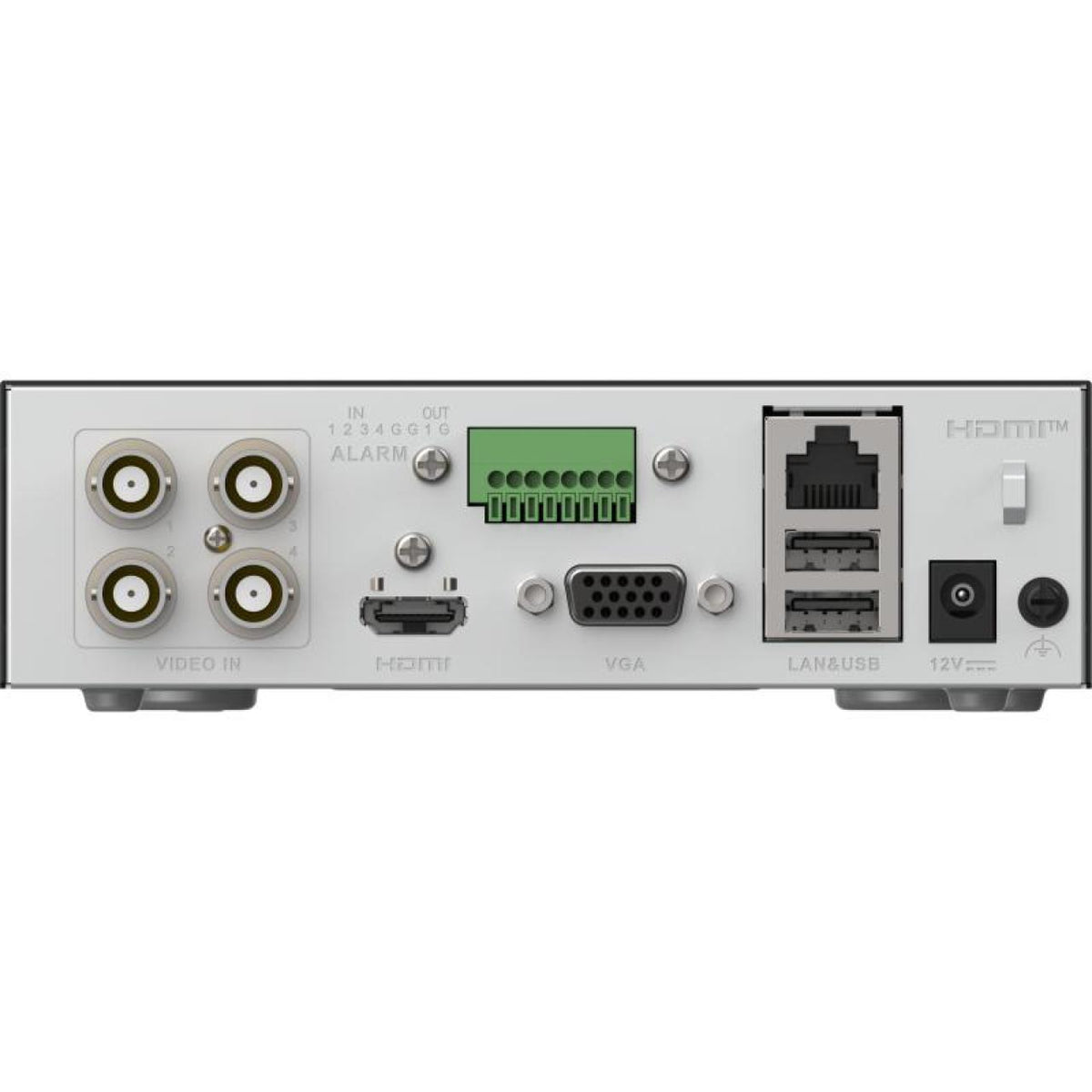

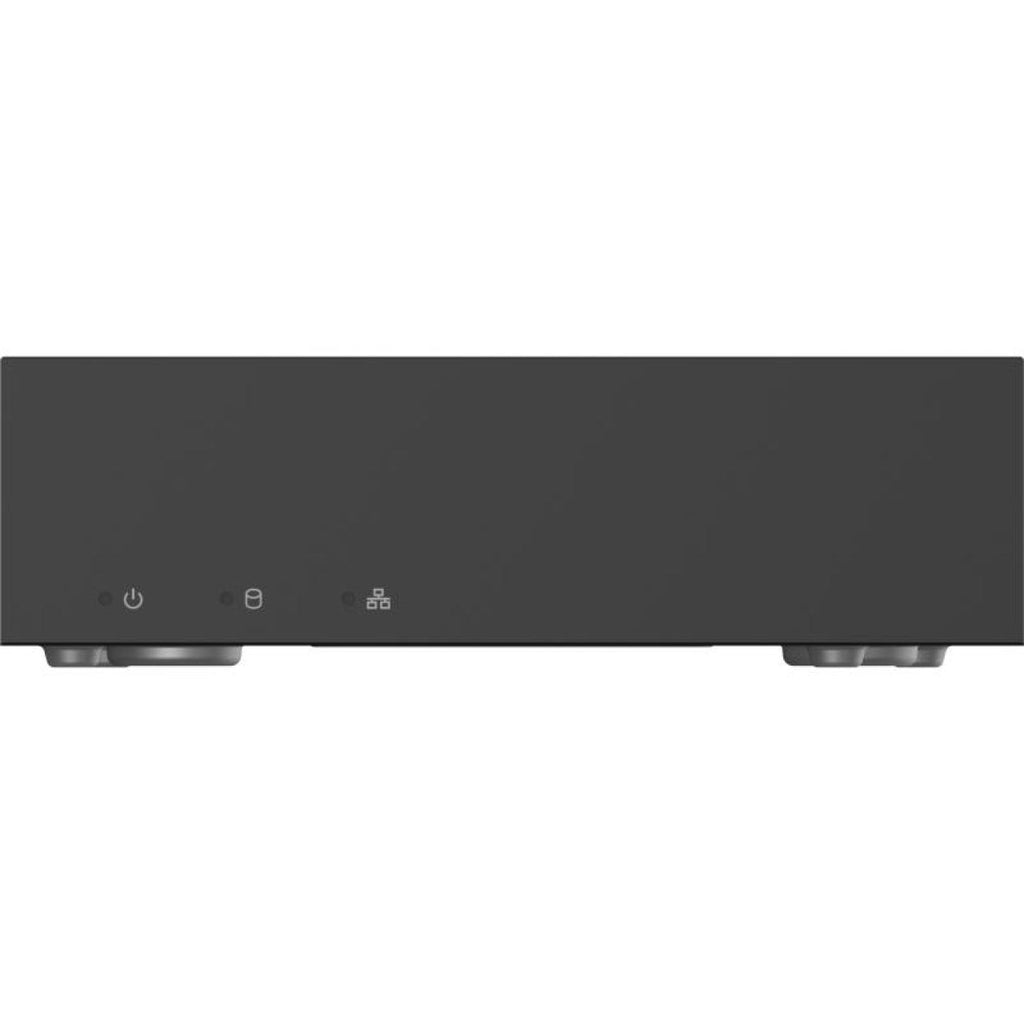

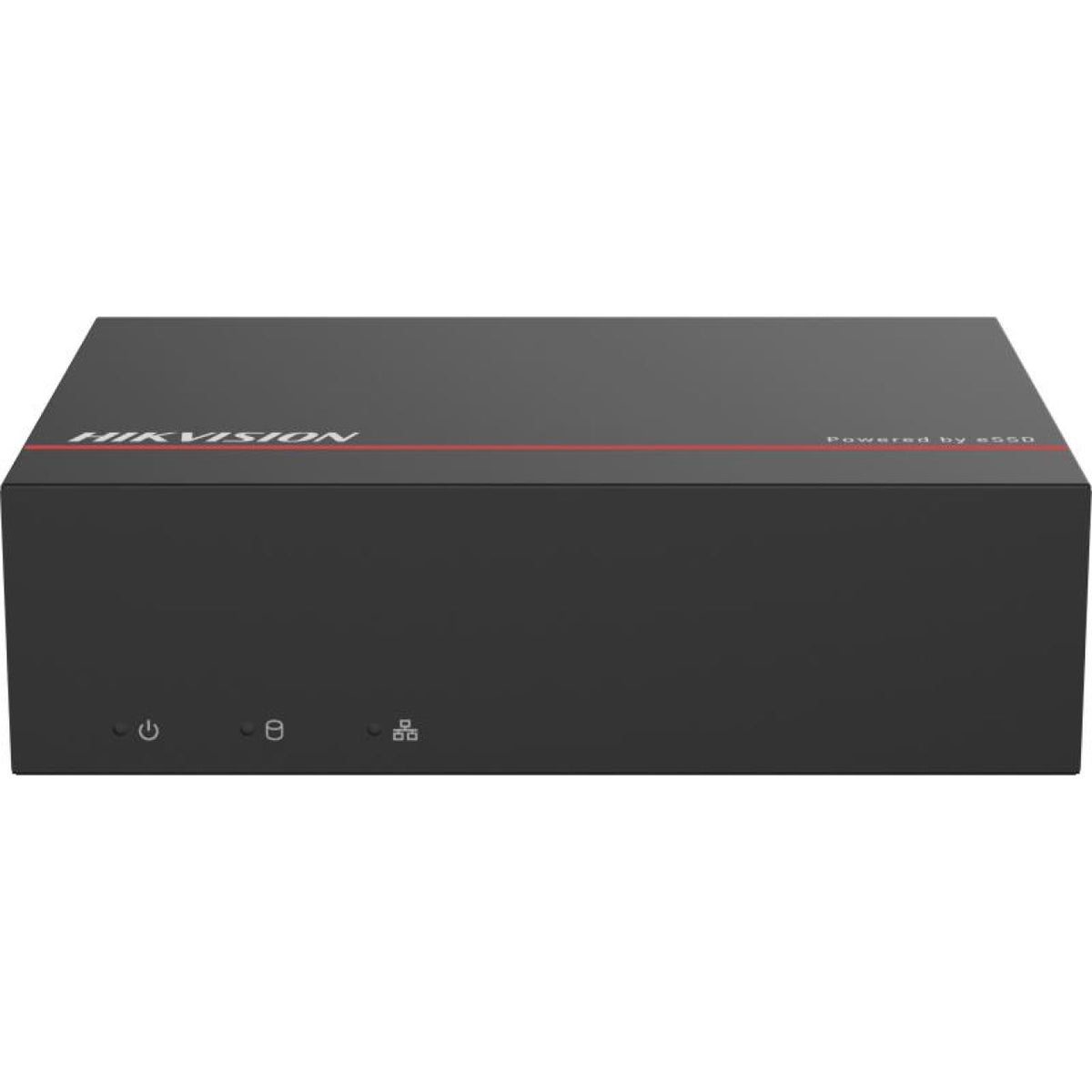

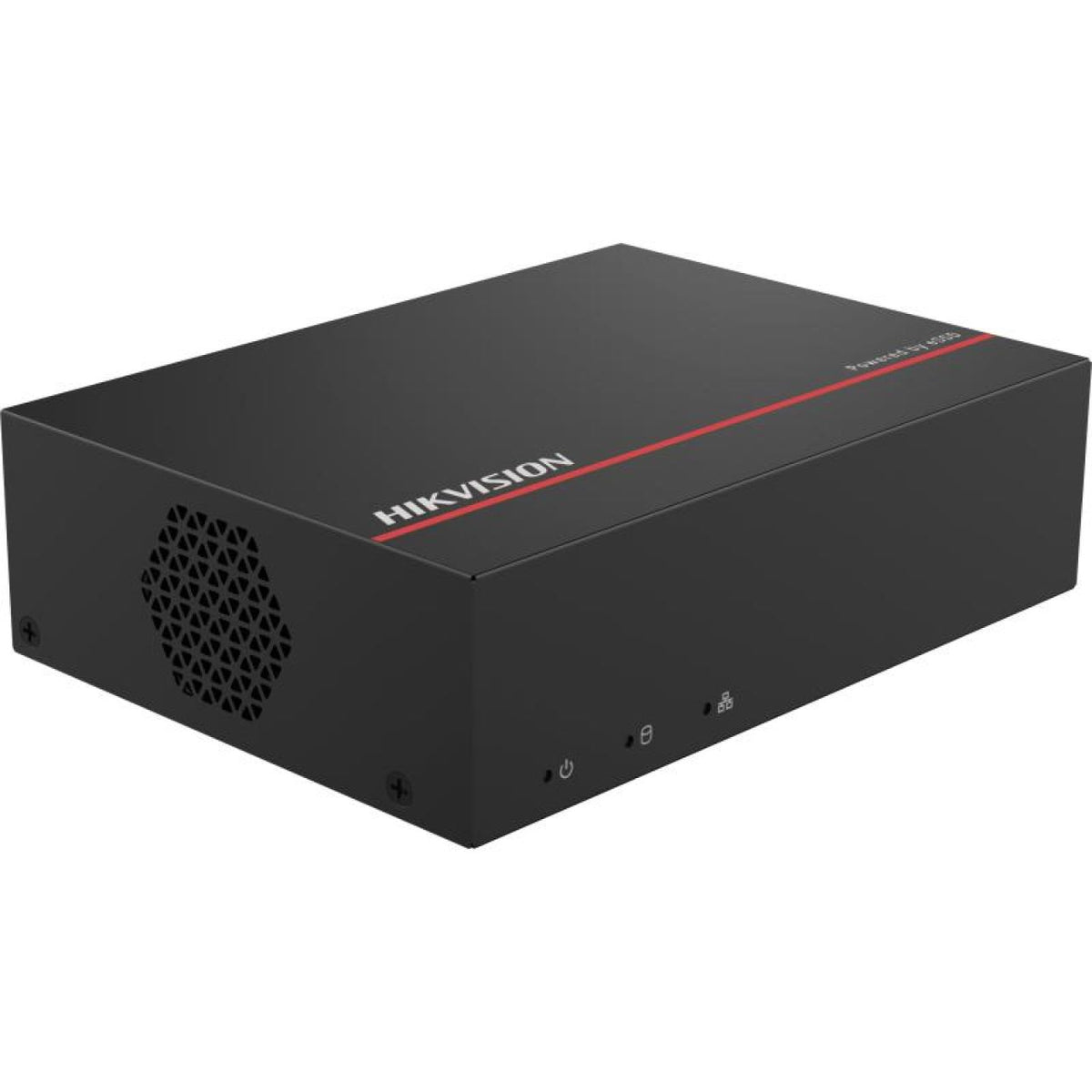

DVR 4 canaux AcuSense
- Détection de mouvement
- Protection périmétrique
- Classification humains et véhicules
- 72 Mbps
- Entrée / Sortie d'alarme en option
- 12V
Caractéristiques principales
- Technologie d'enregistreur : Enregistreurs analogiques
- Nombre de voies vidéo : 4 voies
- IA de l'enregistreur : Oui, AcuSense
- IA supporté par l'enregistreur : Protection périmétrique
- Résolution maximum : 6 MP
Fiche technique
| Human/Vehicle Analysis | Up to 2-ch |
|---|---|
| IP Video Input | 1-ch Up to 6 MP resolution Support H.265+/H.265 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fsp, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input | 4 MP/30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| HDCVI Input | 4 MP/30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Entrée audio | 4-ch via coaxial cable |
| Sortie audio | 1-ch via HDMI |
| Synchronous playback | 4-ch |
| Compression vidéo | H.265 Pro/H.265 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p/VGA/WD1/4CIF/CIF |
| Video Bitrate | According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period. |
| Stream Type | Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual. |
| Compression audio | G.711u |
| Audio Bitrate | 64 Kbps |
| Total Bandwidth | 72 Mbps Incoming bandwidth: 4 Mbps |
| Remote Connection | 32 |
| Protocoles réseau | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Capacity | Built-in 512 GB eSSD (480 GB available) Note: M-SATA interface, capable of plugging and upgrading capacity. The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only. |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | OPTIONAL 4/1 |
| Alimentation | 12 VDC, 1 A |
| Consumption | ≤ 5.4 W (with eSSD) |
| Working Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch) |
Référence fabricant : iDS-E04HQHI-XB · Marque : Hikvision
