Description et caractéristiques

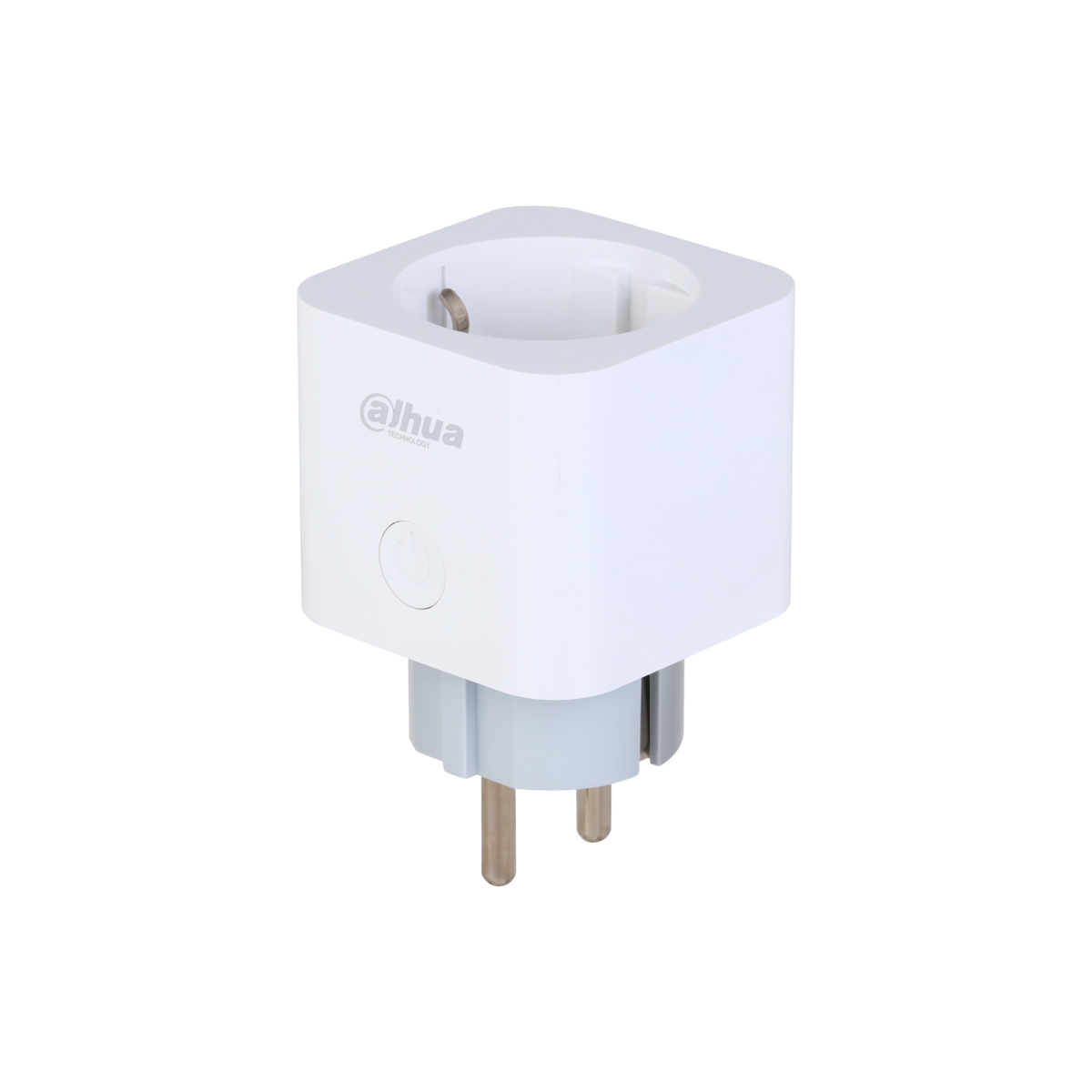

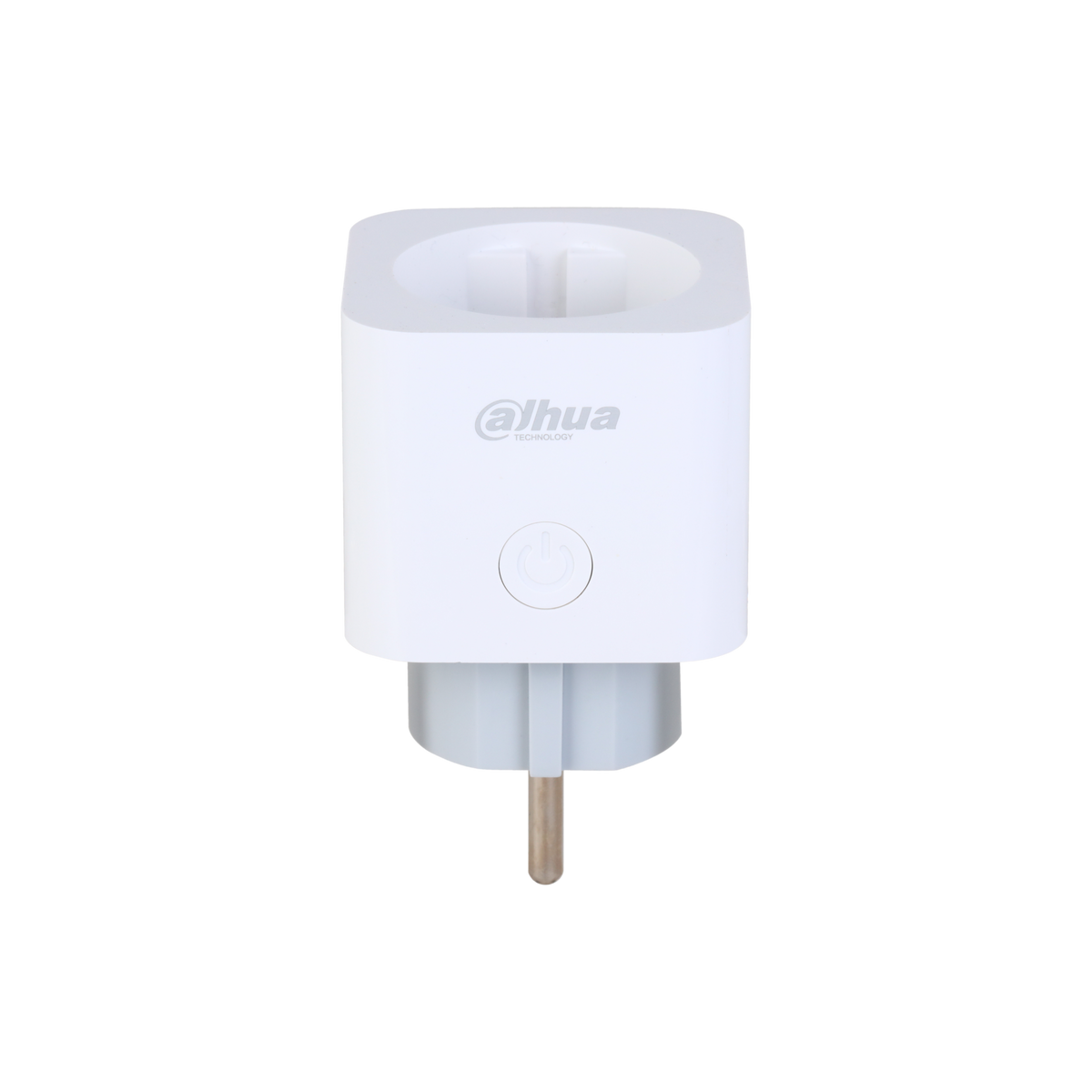

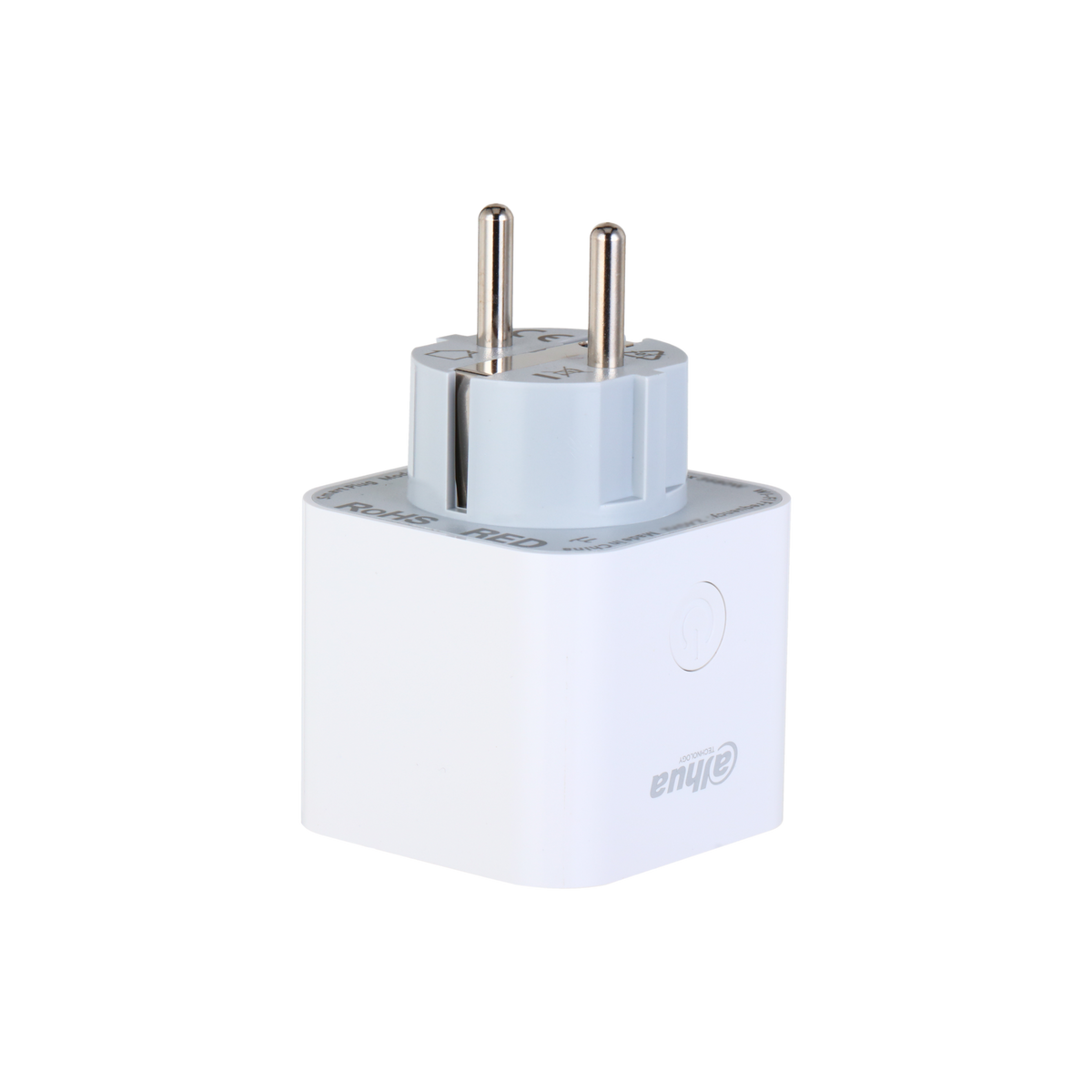

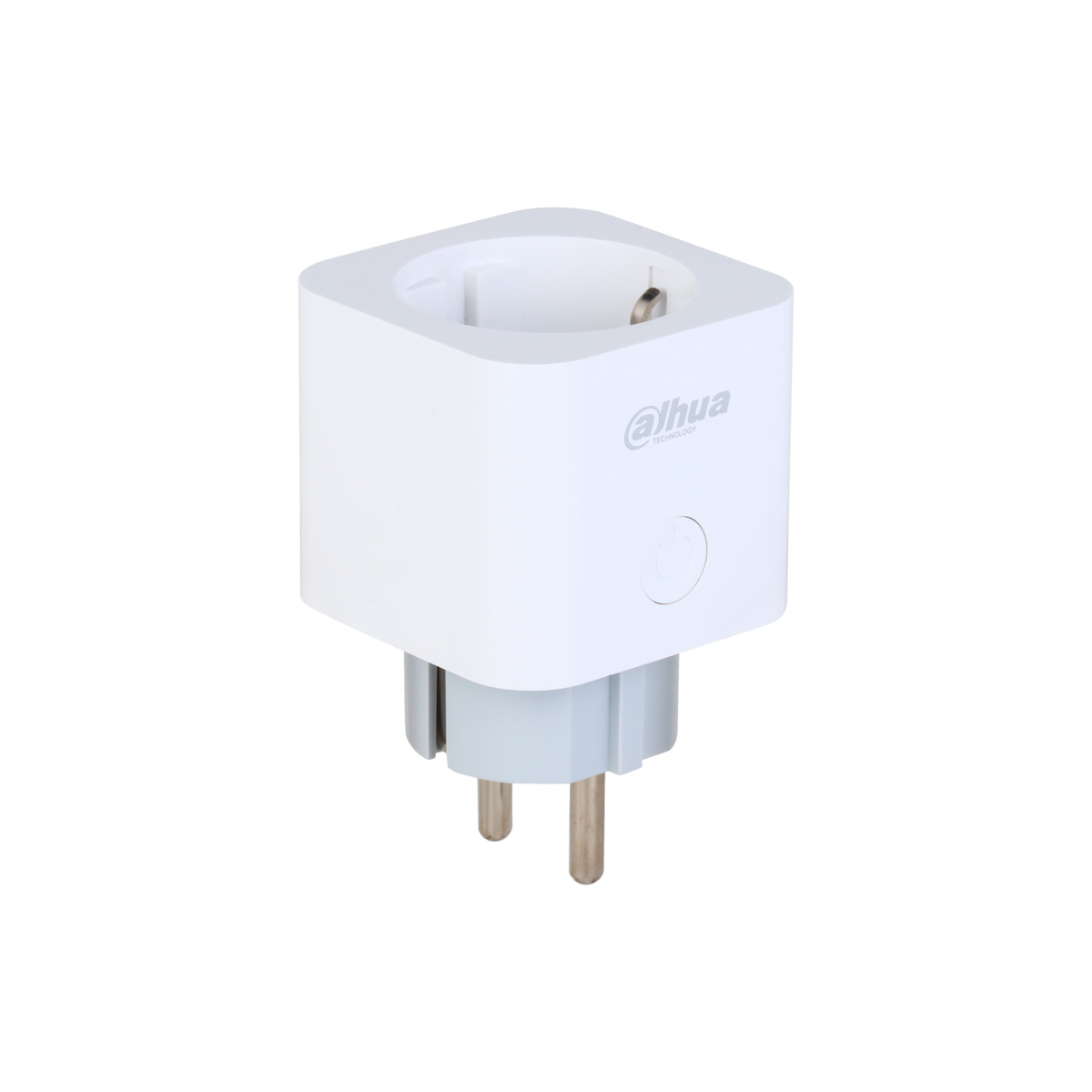

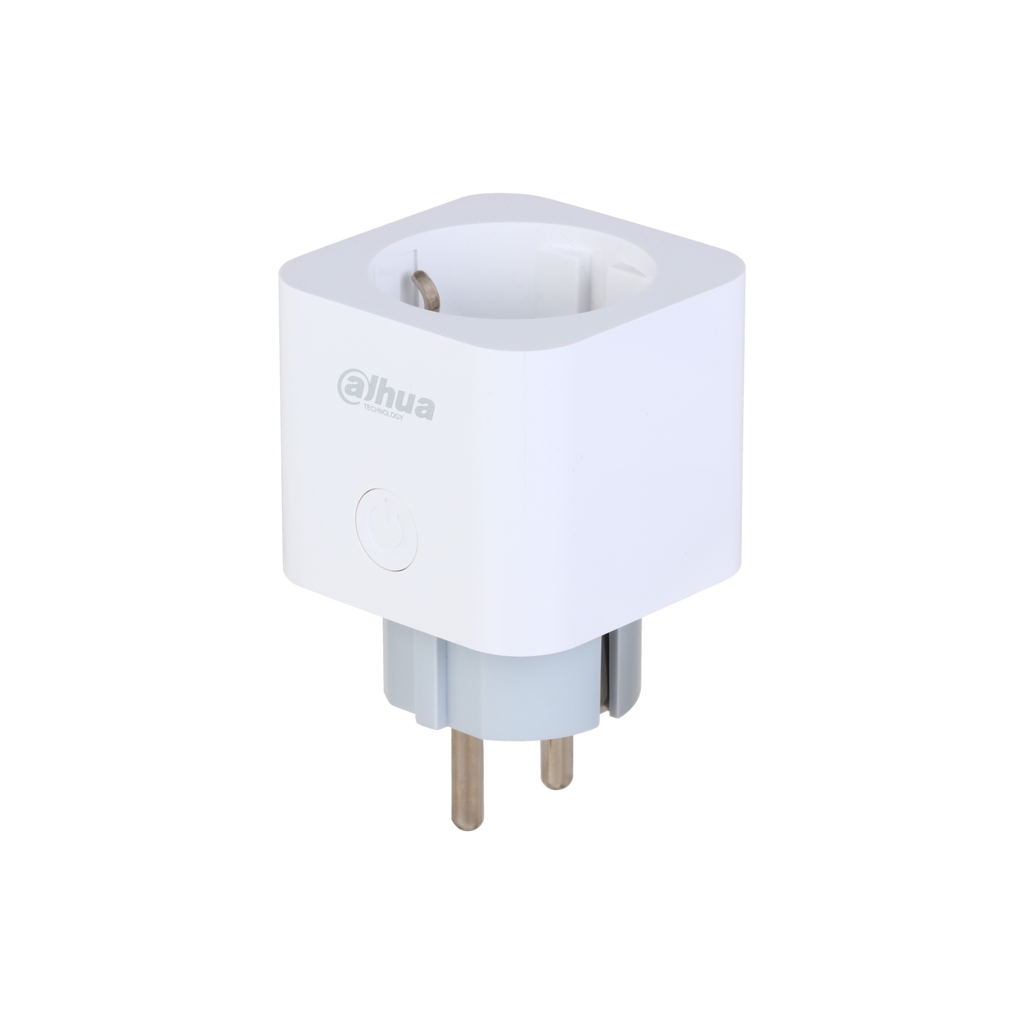

Prise connectée blanche
Caractéristiques principales
- Type de produit : Prise connectée
- Type de raccordement : Raccordement radio
- Couleur : Blanc
Fiche technique
| Relay Output | 1 port, NO/NC (100–240 VAC, max 16 A) |
|---|---|
| Indicator Light | 1 indicator light, displays multiple status Flash green: paring Solid green: the circuit is closed Light off: the circuit is open |
| Remote Update | Supports cloud update |
| Button | 1 button, perform multiple operations (open/close the circuit, restore to the factory settings and pair) |
| Signal Strength | Supports detecting signal strength. |
| Frequency Range | 868-868.6 MHz |
| Communication Distance | In an open environment: 1,600 m (5249.34 ft) |
| MAX Power | 865-868.6 MHz@16.15 dBm |
| Communication Mechanism | Two-way communication. |
| Encryption | AES-128 |
| Frequency Hopping | Yes |
| Température de fonctionnement | Indoor: –10 °C to +55 °C (+14 °F to +131 °F) |
| Humidité de fonctionnement | 10%–90%(RH), non-condensing |
| Température de stockage | –10 °C to +55 °C (+14 °F to +131 °F) |
| Humidité de stockage | 10%–90%(RH), non-condensing |
| Alimentation | 100–240 VAC, 50/60 Hz |
| Dimensions | 52 mm × 52 mm × 82 mm (2.05" × 2.05" × 8.32") (L × W × H) |
| Installation | With power strip/2 Pin |
| Poids net | 83 g (0.18 lb) |
| Consommation | 0.3 W |
| Certifications | CE |
| Matériau du boîtier | PC |
| Data Monitoring | Yes |
| Data Type | Current; voltage; temperature |
| Current Measurement Accuracy | Protection range: 0 A–16 A Measurement Accuracy: level 1.0 and above. |
| Voltage Measurement Accuracy | Protection range: 0 V –250 V Measurement Accuracy: level 1.0 and above. |
| Internal Temperature Monitoring Accuracy | Protection range: 0°C –55 °C Measurement Accuracy: ±2% or ±2 °C |
| Alarm Type | Alarm for overcurrent, overvoltage, and overheating |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ICS1-W2(868) · Marque : Dahua
