Description et caractéristiques

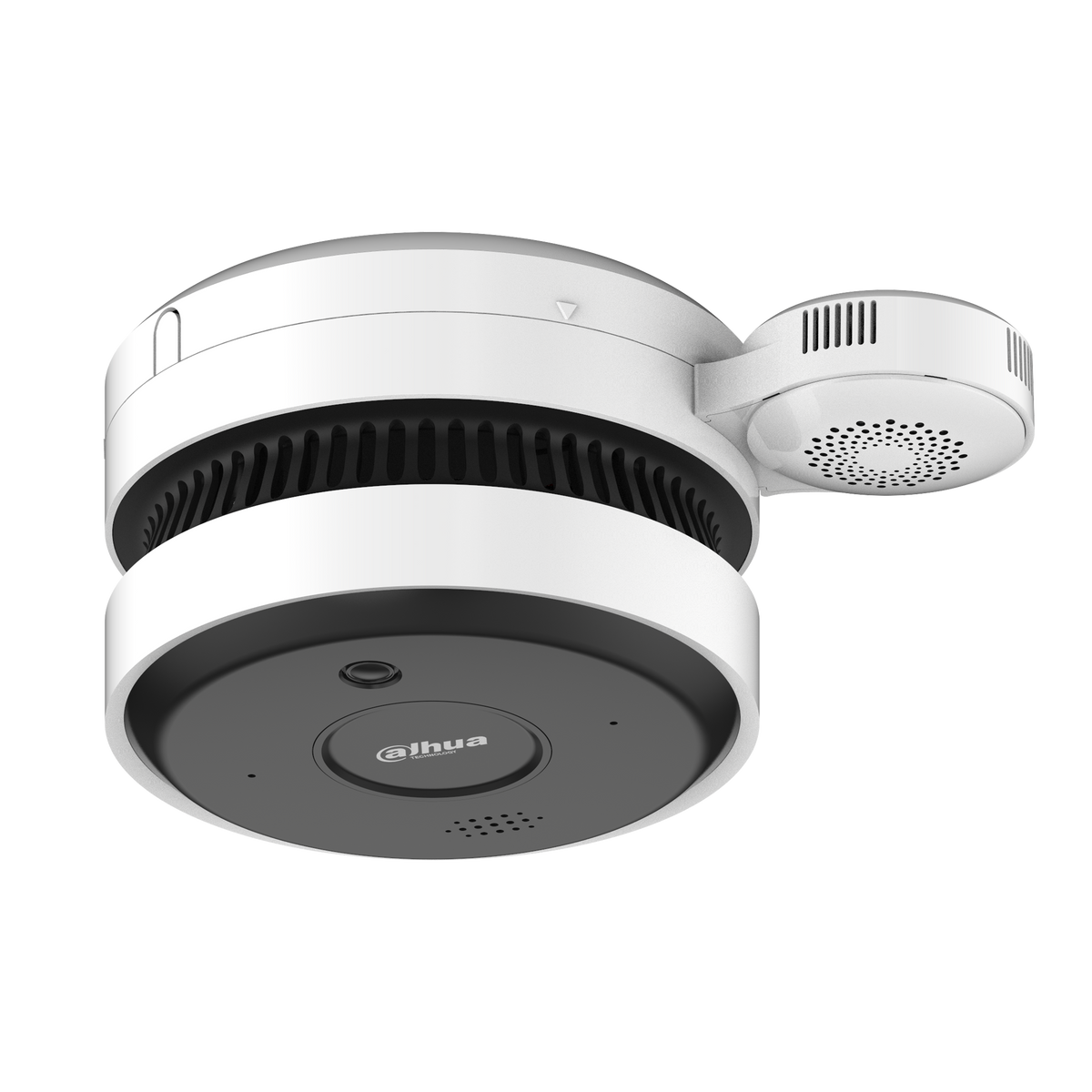

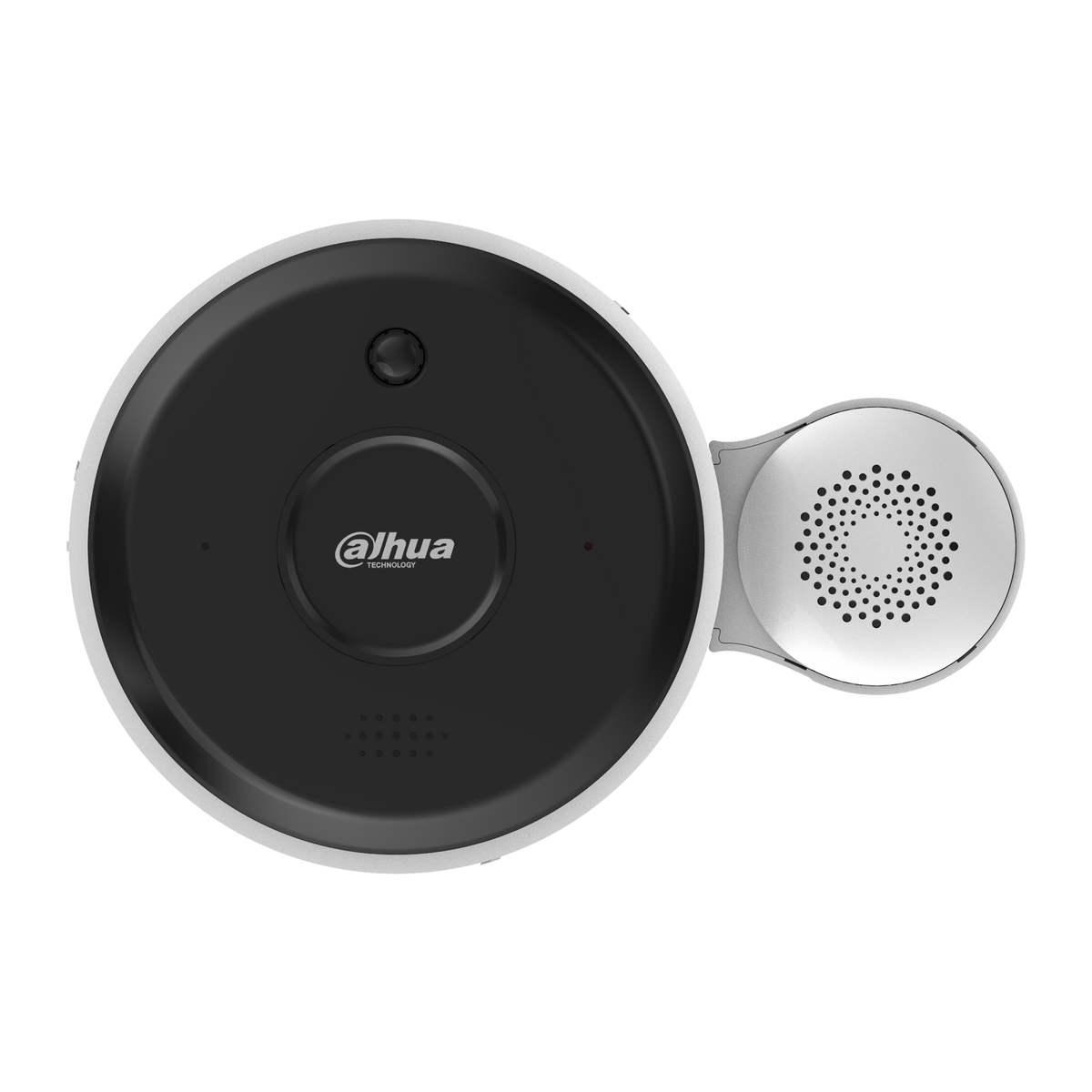

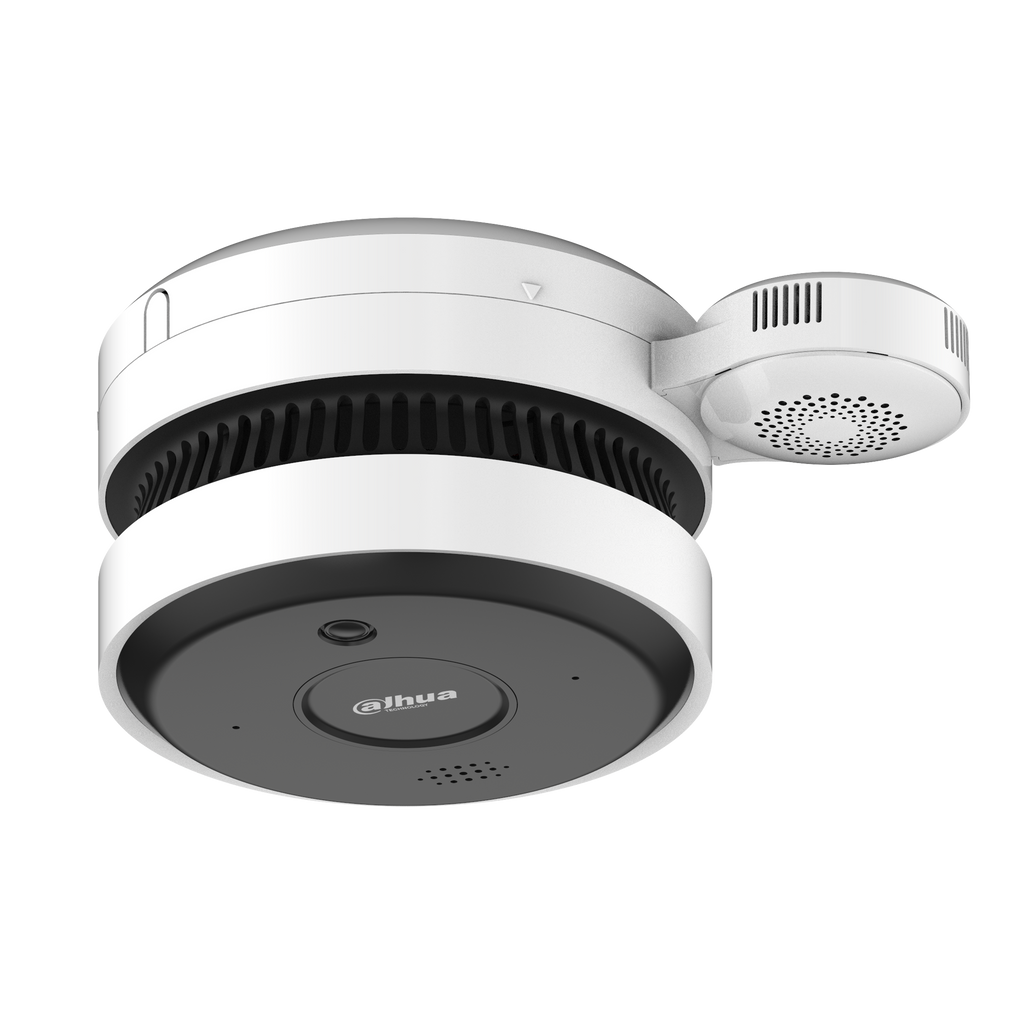

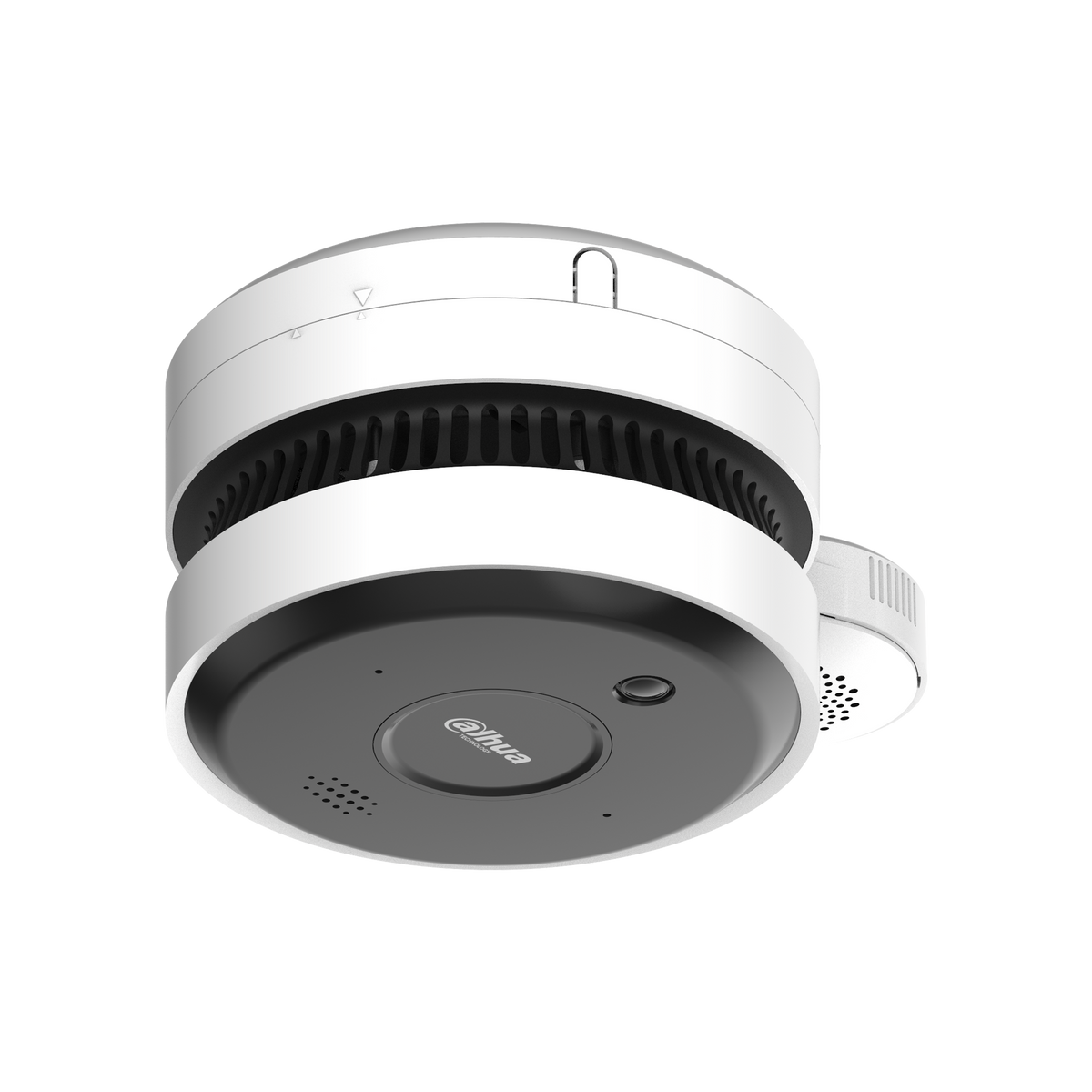

Caméra IP blanc
- 5 Mp
- FF 2mm
- IR 20m
- Micro
- HP
- 12 POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : Détection incendie
- Résolution : 5 MP
- Focale Fixe : 2 mm
- IR & LED : IR 20 m
Fiche technique
| Indicators | Standby: Green indicator flashes once per minute Fault: Red indicator flashes once per minute Alarm: Red indicator flashes once per second Self-testing: Red indicator flashes once per second |
|---|---|
| Protection Area | 30 m 2 –60 m 2 |
| Working Principle | Photoelectric |
| Alarm Mode | Sound and LED Indicator |
| Operating Voltage | Adapter: 12V DC(±25%); PoE: 802.3af |
| Operating Current | ≤ 30uA (Camera excluded) ≤ 300mA (Camera included) |
| Battery Life | ＞ 3 years |
| Alarm Type | Smoke alarm, fault alarm, low battery alarm , heat alarm, humidity alarm |
| Alarm Volume | ≥ 85 dB (A) @ 3 m (9.84 ft) |
| Appearance | Circular |
| Capteur | 1/2.7" CMOS |
| Pixel | 5 MP |
| Résolution max. | 2592 (H) × 1944 (V) |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3s~1/100000s |
| Sensibilité (éclairement min.) | 0.002Lux (color) 0.0002Lux (dark) 0Lux (IR) |
| Rapport signal/bruit | ＞ 56 dB |
| Portée de l'éclairage | Distance up to 20 m (65.62 ft) |
| Nombre d'illuminateurs | 2 (IR LED) |
| Type d'objectif | Fixed-focal |
| Monture | M8 |
| Focale | 2.0 mm |
| Ouverture max. | F2.0 |
| Champ de vision | Horizontal: 144°; Vertical: 92°; Diagonal: 179.6° |
| Iris | Fixed |
| Distance mini de mise au point | 0.2 m (0.66 ft) |
| AI Event | Flame detection |
| Compression vidéo | H.265; H.264; H.264H; H.264B |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Fréquence d'images | Main stream: 2592×1944 (1 fps-20 fps) 2688×1520 (1 fps–25/30 fps) 2560×1440 (1 fps–25/30 fps) 2304×1296 (1 fps–25/30 fps) 1920×1080 (1 fps–25/30 fps) Sub stream: D1 (1 fps–20 fps) D1 (1 fps–25/30 fps) Third stream: 1920×1080 (1 fps-17/24 fps) |
| Débit vidéo | H.264: 32 Kbps–10240 Kbps H.265: 12 Kbps–7168 Kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 90 dB |
| Balance des blancs | Auto/natural/street lamp/outdoor/manual/regional custom |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Default Bit Rate with Default Resolution | 2048 Kbps (2688 × 1520) |
| Rotation de l'image | Yes |
| Image Flip | Yes |
| Miroir | Yes |
| Rotation | Yes |
| Masques de confidentialité | 8 areas |
| Language | English, TradChinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish, Romanian, Hungarian, Korean, Czech, Dutch, Ukrainian, Vietnamese, Arabic, Spanish(Europe), Hebrew, Thai, Bahasa Indonesia |
| Audio Port | Yes |
| Micro intégré | Yes |
| Built-in Speaker | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; AAC; G.723 |
| Audio Sampling | 8KHz/16KHz/32KHz/48KHz/64KHz |
| Alarm | Yes |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; flame detection;heat detection; humidity detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarm |
| Port réseau | 1 RJ-45 PoE 10M/100M Ethernet ports |
| Protocoles réseau | HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP |
| Interopérabilité | ONVIF; MileStone; Genetec; CGI; PISA |
| Utilisateurs simultanés | 10 channels at most |
| Stockage | FTP; SFTP; Micro SD card (256G); NAS |
| Navigateur | IE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+ |
| Image Setting | Brightness; Contrast; Sharpness; Saturation; gamma |
| OSD Overlay | Channel title / time title / geographical location / battery voltage / heat / humidity |
| Record Mode | Manual record; video detection record; schedule record; alarm record Record priority: Manual > external alarm > video detection > schedule |
| Micro SD Card (Max.) | 256 GB |
| Default | Support one-click restore |
| User Management | Up to 20 |
| Sécurité | Username and password; MAC address; HTTPS; IEEE802.1x; network access control |
| Certification | CE-CRP : EN 14604:2005/AC:2008 CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 2 channels In: 5mA 3V–5V DC |
| Sortie d'alarme | 2 channels Out: 300mA 12V DC |
| RS-485 Port | 1 (baud rate range:1200 bps–115200 bps) |
| Alimentation | DC12V+PoE |
| Consommation | Basic power consumption: 2.1W (12V DC); 2W (PoE) Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE) |
| Température de fonctionnement | –10°C to +55°C (+14°F to +131°F) |
| Humidité de fonctionnement | 0%–95% RH (non-condensing) |
| Matériau du boîtier | Plastic |

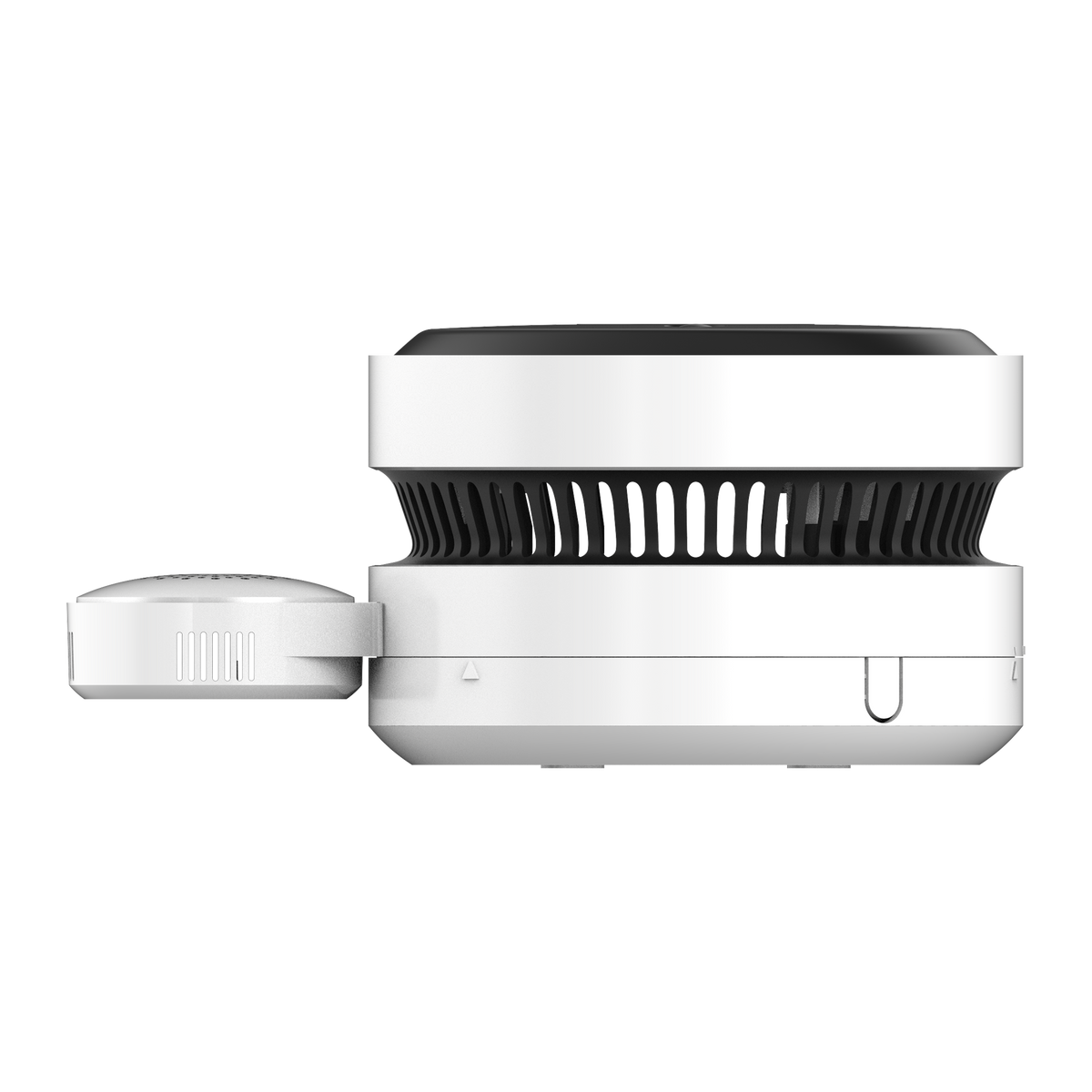

| Dimensions | 175.3 mm×120.0 mm×81.6 mm(6.9" × 4.72" × 3.21") |
| Packaging Dimensions | 205 mm × 148 mm × 111 mm (8.06" × 5.82" × 4.37")(L × W × H) |

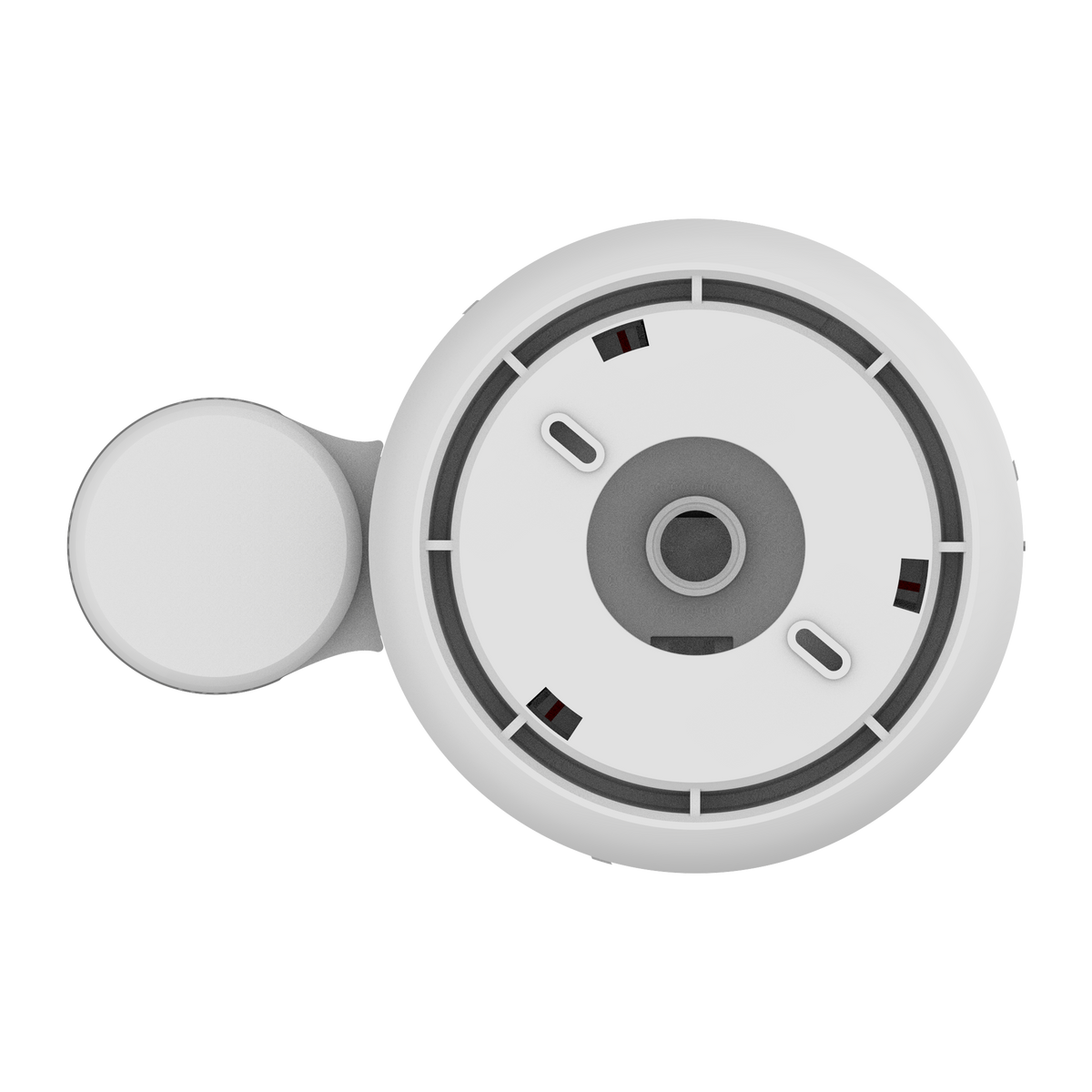

| Installation | Ceiling mount |
| Power Adapter | Optional |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HY-SAV849HAP-E · Marque : Dahua
