Description et caractéristiques

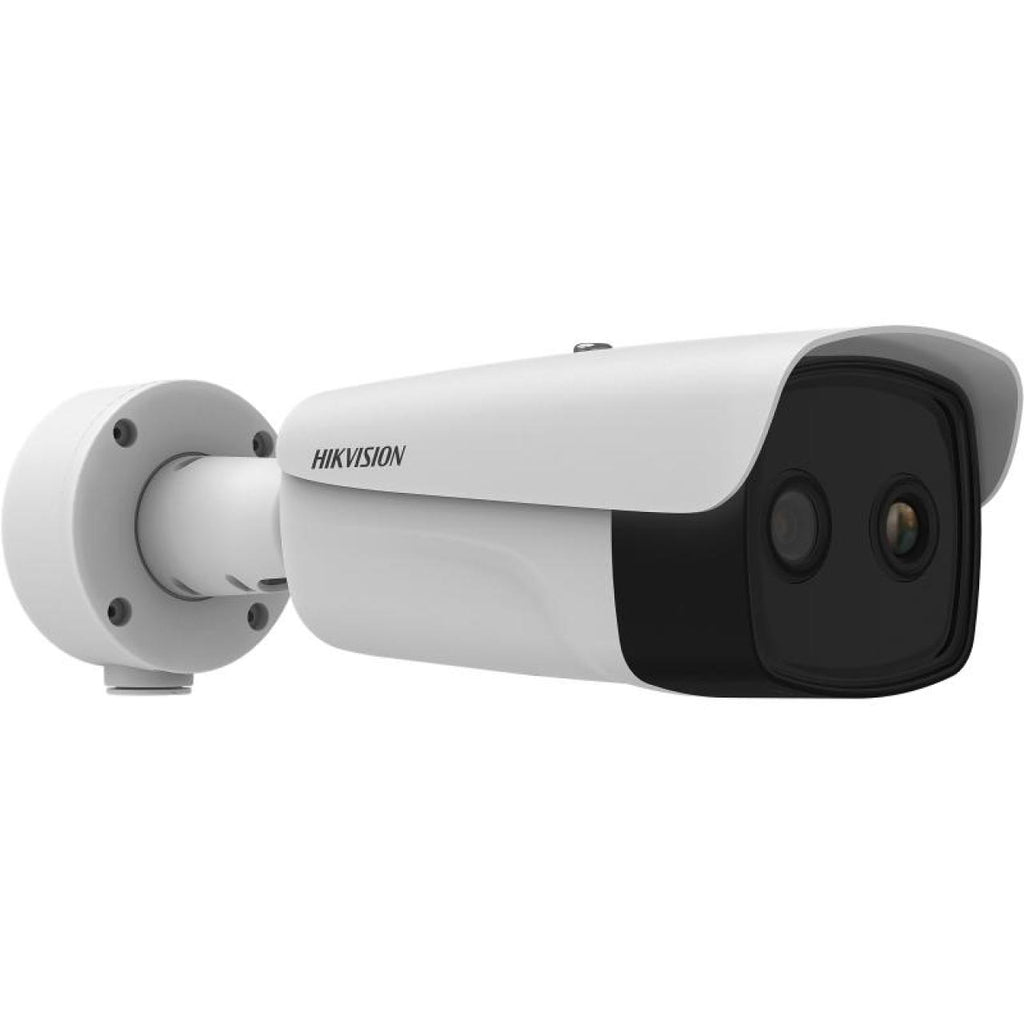

Tube IP Bi-spectrum blanc
- Thermique 384×288 / Optique 4 MP
- FF 4.4 mm + 2.2 mm
- IR 30 m
- IA GUANLAN
- Protection périmétrique
- Détection incendie et fumée
- Anti-Corrosion
- IP67
- IK10
- 12V 24V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique, Multicapteurs, Anti-corrosion
- Intelligence Artificielle : Protection périmétrique, Détection incendie
- Résolution : 4 MP
- Résolution thermique : 384 × 288
Fiche technique
| Capteur | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Résolutions | 384 x 288 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 20 mK (@25° C,F# = 1.0) |
| Focale | 4.4 mm |
| IFOV | 2.73 mrad |
| Aperture | F1.0 |
| Champ de vision | 60.2° × 40.6° (H × V) |
| Min. Focusing Distance | 0.6 m |
| Zoom numérique | ×2, ×4，×8 |
| Sensibilité (éclairement min.) | 0.0176Lux @(F2.25,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Balance des blancs | MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| EIS | Thermal channel supports EIS, exclusive with all smart functions |
| IR Distance | Up to 30 m |
| IR Intensity and Angle | Automatically adjusted |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable |
| Smoking Detection | Up to 10 smoking points detected |
| Main Stream | Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288) |
| Sub-stream | Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288) |
| Compression vidéo | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Compression audio | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Sécurité | User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Entrée d'alarme | 2, alarm input (0-5 VDC) |
| Sortie d'alarme | 2-ch, relay outputs (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Entrée audio | 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Sortie audio | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Menu Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Alimentation | 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3) |
| Consommation | 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W |
| Working Temperature/Humidity | Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less |
| Protection Level | IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMA 4X anti-corrosion housing |
| Dimensions | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
| VCA Range for Humans | 52 m |
| VCA Range for Vehicles | 120 m |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1 |
| Environment | CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006 |
| Indice de protection | IP67: IEC 60529-2013 IK10: IEC 62262-2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HM-TD2638-4/G1/T3Y · Marque : Hikvision
