Description et caractéristiques

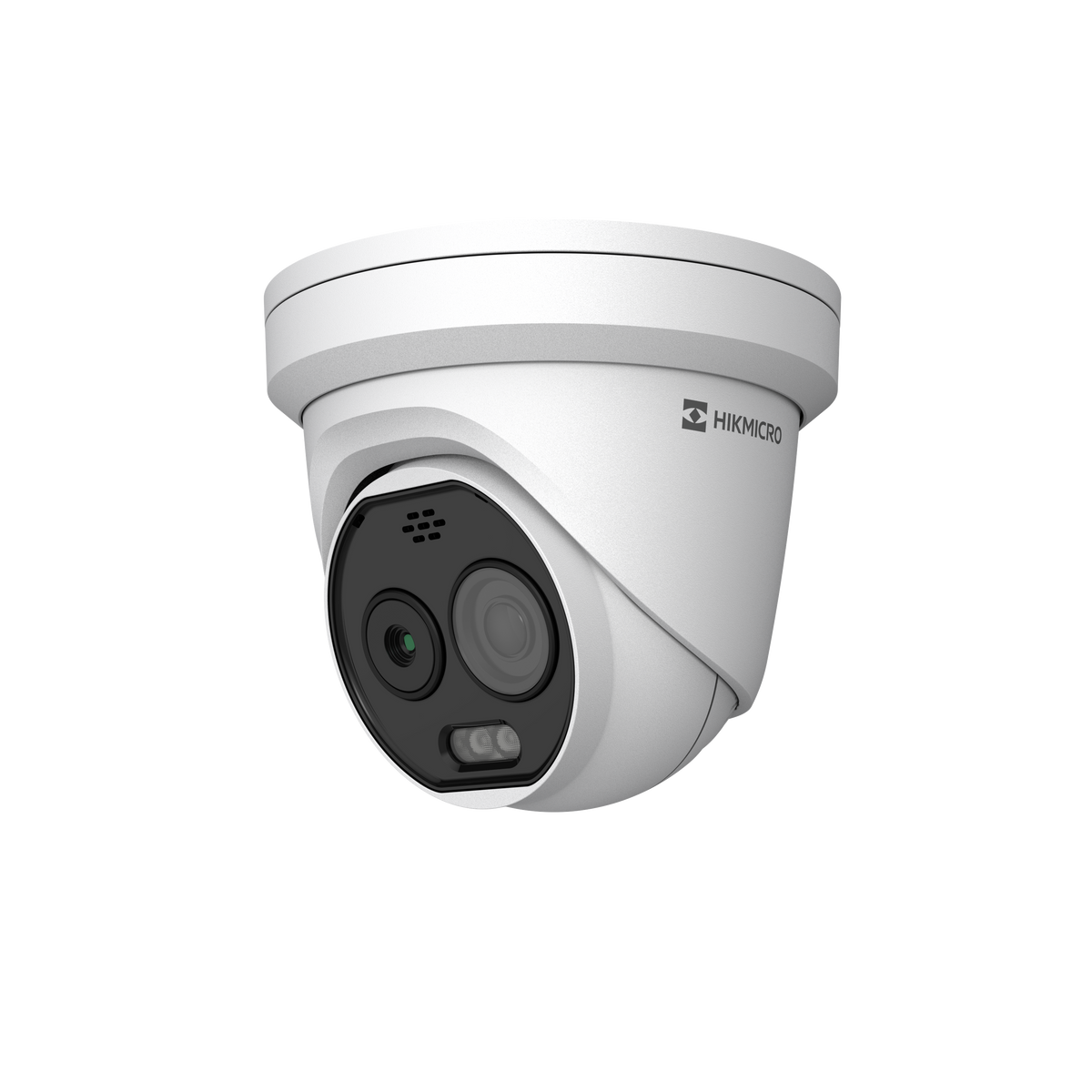

Eyeball IP Bi-spectrum blanc
- Thermique 256×192 / Optique 5 MP
- FF 2.1 mm + 2.2 mm IR 30 m
- Multicapteurs
- IA GUANLAN
- Protection périmétrique
- Supporte Smart Hybrid Light/ Détection feu/fumée
- IP67
- 12V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique, Multicapteurs
- Intelligence Artificielle : Protection périmétrique
- Résolution : 5 MP
- Résolution thermique : 256 x 192
Fiche technique
| Capteur | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Résolutions | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤25 mK (25°C, F1.0) |
| Focale | 2.1 mm |
| IFOV | 5.71mrad |
| Champ de vision | 90° × 65.4° (H × V) |
| Min. Focusing Distance | 0.1 m |
| Aperture | F1.0 |
| Zoom numérique | ×2, ×4 |
| Sensibilité (éclairement min.) | 0.0176Lux @(F2.25,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Aperture (Range) | F2.25 |
| WDR | 120 dB |
| Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| Light Supplement | Hybrid (IR, White light or Smart mode) |
| IR Distance | Up to 30m |
| White Light Range | Up to 30 m |
| Visual Alarm | Yes. White light alarm with adjustable flashing frequencies |
| Audio alarm | Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types (point, area, line), 21 rules in total |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Compression vidéo | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Compression audio | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Color Palettes | 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Sécurité | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| Entrée d'alarme | 1, alarm input (0-5 VDC) |
| Sortie d'alarme | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Entrée audio | 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Sortie audio | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Power Output | 12 VDC, max. 1W |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Alimentation | 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3at, class 4) |
| Consommation | 12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Protection Level | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 138.3 mm × 138.3 mm × 121.6 mm |
| VCA Range for Humans | 24 m |
| VCA Range for Vehicles | 60 m |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1 |
| Environment | CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006 |
| Indice de protection | IP67: IEC 60529-2013 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HM-TD1228-2/G1/T3A · Marque : Hikvision
