Description et caractéristiques

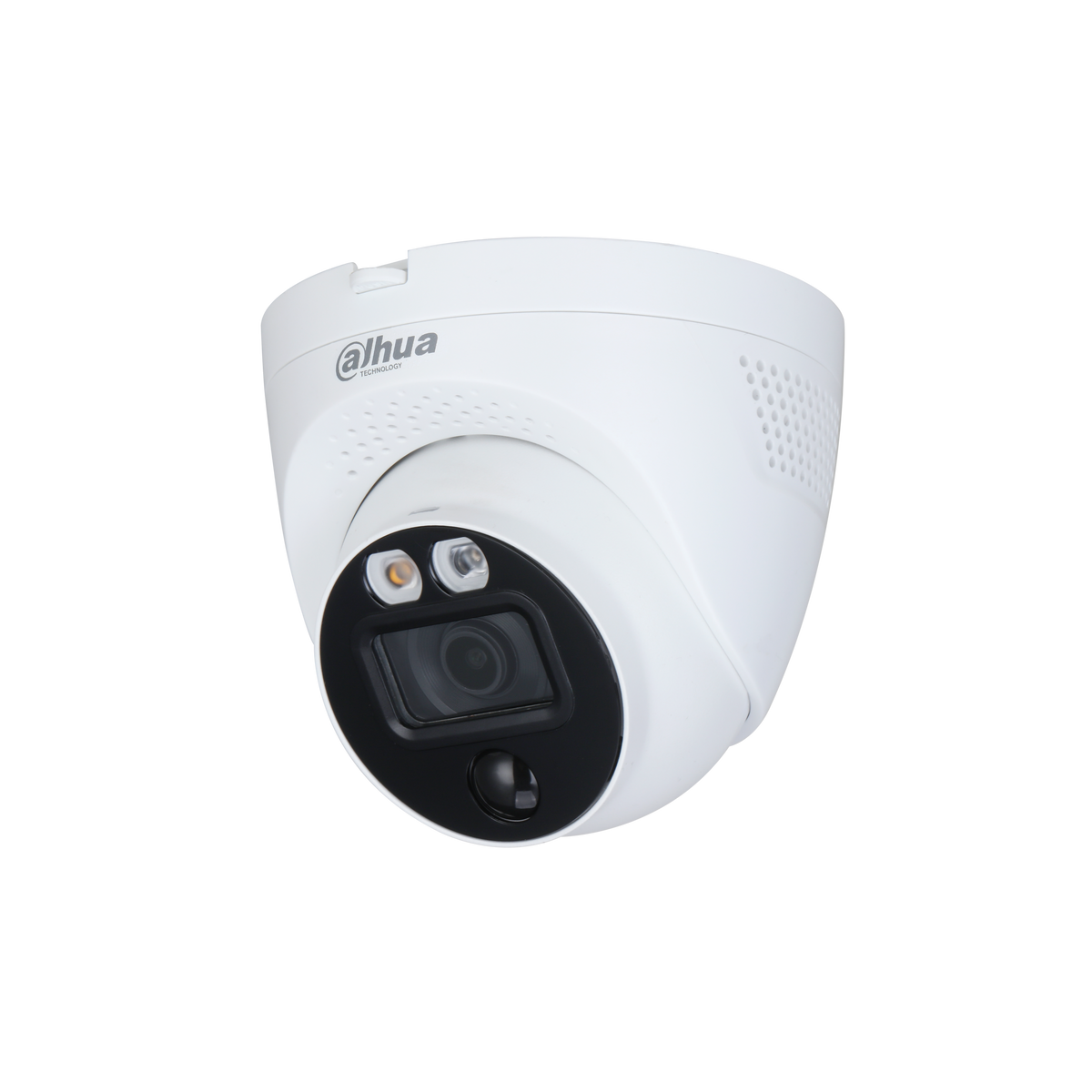

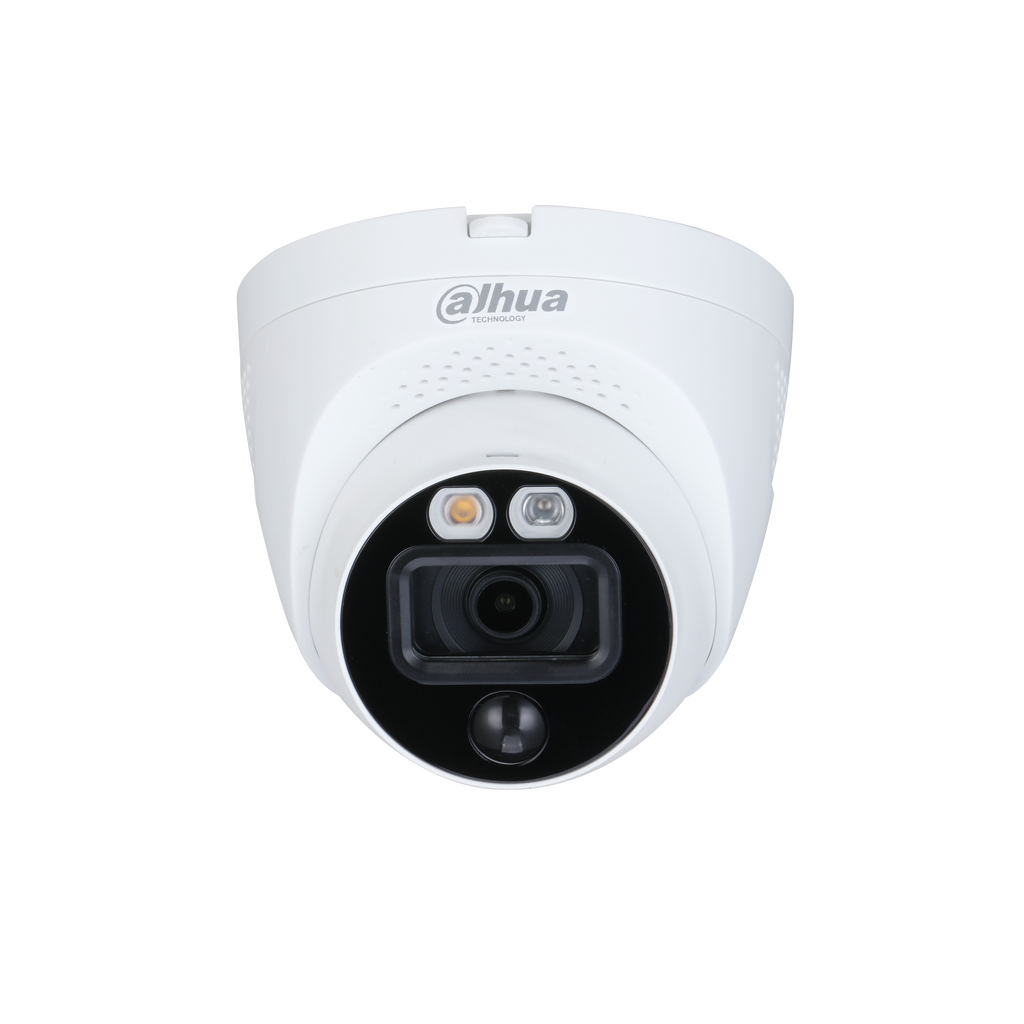

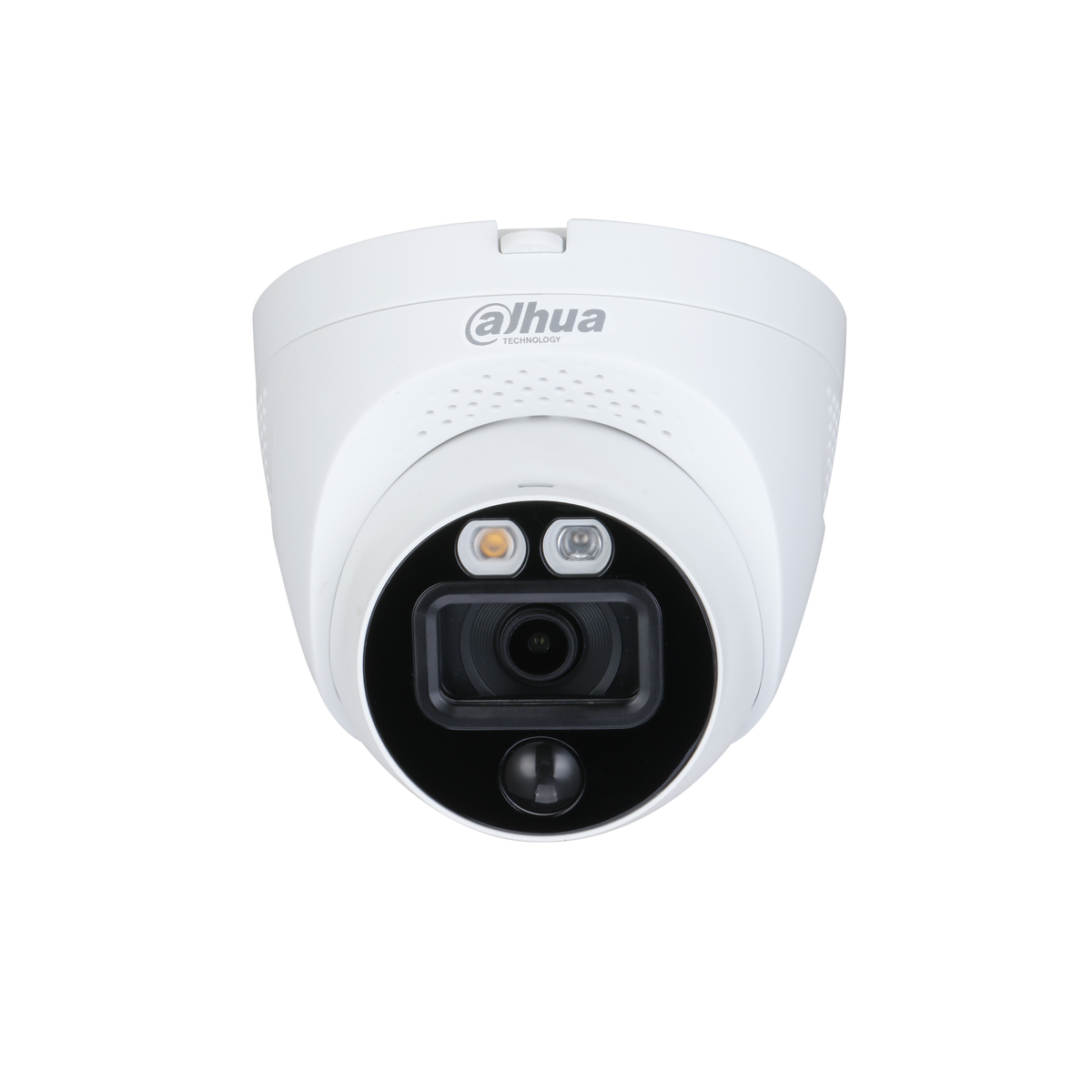

Dôme HDCVI
- 5 mégapixels
- FullColor Active Deterrence
- Focale fixe 2.8mm
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 2592 (H) × 1944 (V) |
| Pixel | 5MP |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Rapport signal/bruit | >65 dB |
| Sensibilité (éclairement min.) | 0.005 Lux/F1.2, 0 Lux warm light on |
| Portée de l'éclairage | 40 m (131.2 ft) |
| Illumination Type | Warm light |
| Contrôle de l'éclairage | Auto; manual |
| Nombre d'illuminateurs | 2 (Warm light) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Mount Type | M12 |
| Focale | 2.8 mm; 3.6 mm |
| Ouverture max. | 2.8 mm: F1.2 3.6 mm: F1.2 |
| Champ de vision | 2.8 mm: H: 98°; V: 71°; D: 129° 3.6 mm: H: 83°; V: 60°; D: 112° |
| Iris Type | Fixed iris |
| Distance mini de mise au point | 2.8 mm: 1.6 m (5.25 ft) 3.6 mm: 1.9 m (6.23 ft) |
| Distance DORI | Identify |
| Frame Rate | CVI: 5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5M@20 fps; TVI: 5M@20 fps; CVBS: 960H |
| Résolutions | 5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| BLC Mode | BLC/HLC/DWDR |
| WDR | DWDR |
| Balance des blancs | Auto/Manual |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 2D |
| Smart Light | Yes |
| Miroir | Off/On |
| Masques de confidentialité | Off/On (8 Area, Rectangle) |
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition) |
| Video Output | 1 BNC output Support CVI/TVI/AHD/CVBS |
| Alimentation | 12V ±30% DC |
| Consommation | Max 7.0W (12V DC, warm light on) |
| Detection Component | Pyroelectric infrared sensor |
| Detection Range | 10 m (32.8 ft), 110° |
| Recommended Installation Height | 2.2 m–3 m (7.2 ft–9.8 ft) |
| Recommended Environment Temperature for PIR | –10°C to 50°C (14°F to 122°F) |
| Sound Warning | Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB |
| Température de fonctionnement | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Température de stockage | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Ingress Protection | IP67 |
| Casing | Inner core: Metal Cover: Plastic |
| Camera Dimensions | Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97") |
| Poids net | 0.30 kg (0.66 lb) |
| Poids brut | 0.49 kg (1.08 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-ME1509EQP-PIRLS-0280B · Marque : Dahua
