Description et caractéristiques

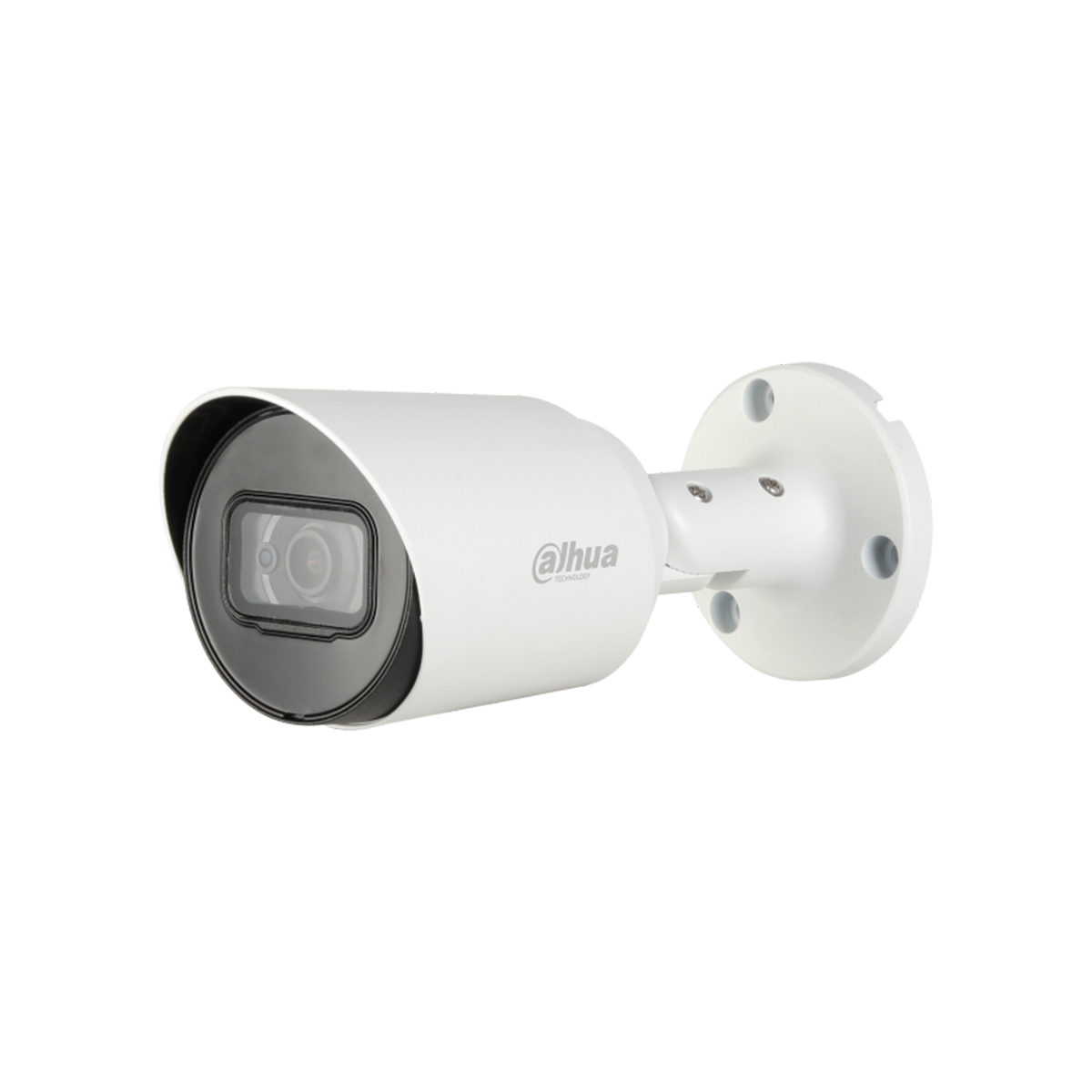

Tube HDCVI blanc
- 5 Mp
- FF 2.8mm
- IR 30m
Caractéristiques principales
- Technologie de caméra : Caméra HDCVI
- Résolution : 5 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 30 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Effective Pixels | 2592(H)×1944(V), 5MP |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| Rapport signal/bruit | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 1 |
| Type d'objectif | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focale | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.85 |
| Angle of View | H: 77.5° (93°/49°) |
| Focus Control | N/A |
| Distance mini de mise au point | 1400mm (800mm/2800mm) 55" (31.5''/110'') |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| Résolutions | 5MP (2592×1944) |
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Jour/Nuit | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Contrôle du gain | AGC |
| Réduction du bruit | 2D |
| Balance des blancs | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | N/A |
| Alimentation | 12V DC ±30% |
| Consommation | Max. 3.7W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85") |
| Poids net | 0.37kg (0.82lb) |
| Poids brut | 0.48kg (1.06lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-HFW1500TP-0280B-S2 · Marque : Dahua
