Description et caractéristiques

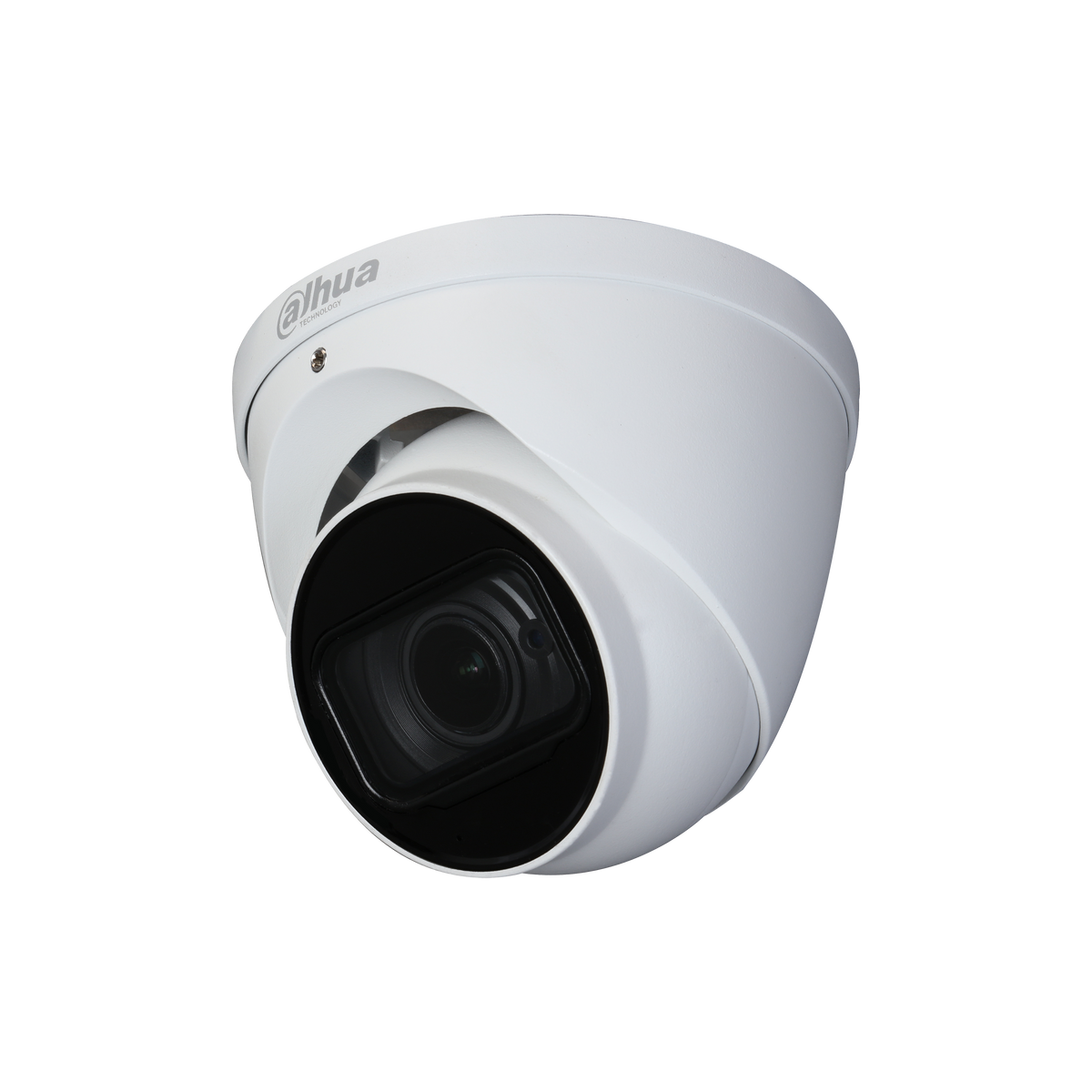

Eyeball HDCVI blanc
- 2 Mp
- VF motorisée 2.7-13.5mm
- IR 60m
- Starlight
- Micro
Caractéristiques principales
- Technologie de caméra : Caméra HDCVI
- Fonctionnalités de la caméra : Starlight
- Résolution : 2 MP
- Varifocale : 2.7 - 13.5 mm
- IR & LED : IR 60 m
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s |
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
| Rapport signal/bruit | More than 65dB |
| IR Distance | Up to 60m (197eet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Type d'objectif | Motorized lens / Fixed iris |
| Mount Type | Board-in |
| Focale | 2.7-13.5mm |
| Max Aperture | F1.6 |
| Angle of View | H: 108.7°~28.7° |
| Focus Control | Auto / Manual |
| Distance mini de mise au point | 200mm 7.87'' |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Résolutions | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Jour/Nuit | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Contrôle du gain | AGC |
| Réduction du bruit | 2D/3D |
| Balance des blancs | Auto / Manual |
| Smart IR | Auto / Manual |
| Wide | Tele |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | 1ch in & Built-in Mic |
| Alimentation | 12V DC ±30% |
| Consommation | Max. 5.4W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH * Start up should be done at above -30°C (-22°F) |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×107mm (Φ4.8"×4.2") |
| Poids net | 0.59kg (1.30lb) |
| Poids brut | 0.69kg (1.52lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-HDW2241TP-Z-A-27135-S2-DIP · Marque : Dahua
