Description et caractéristiques

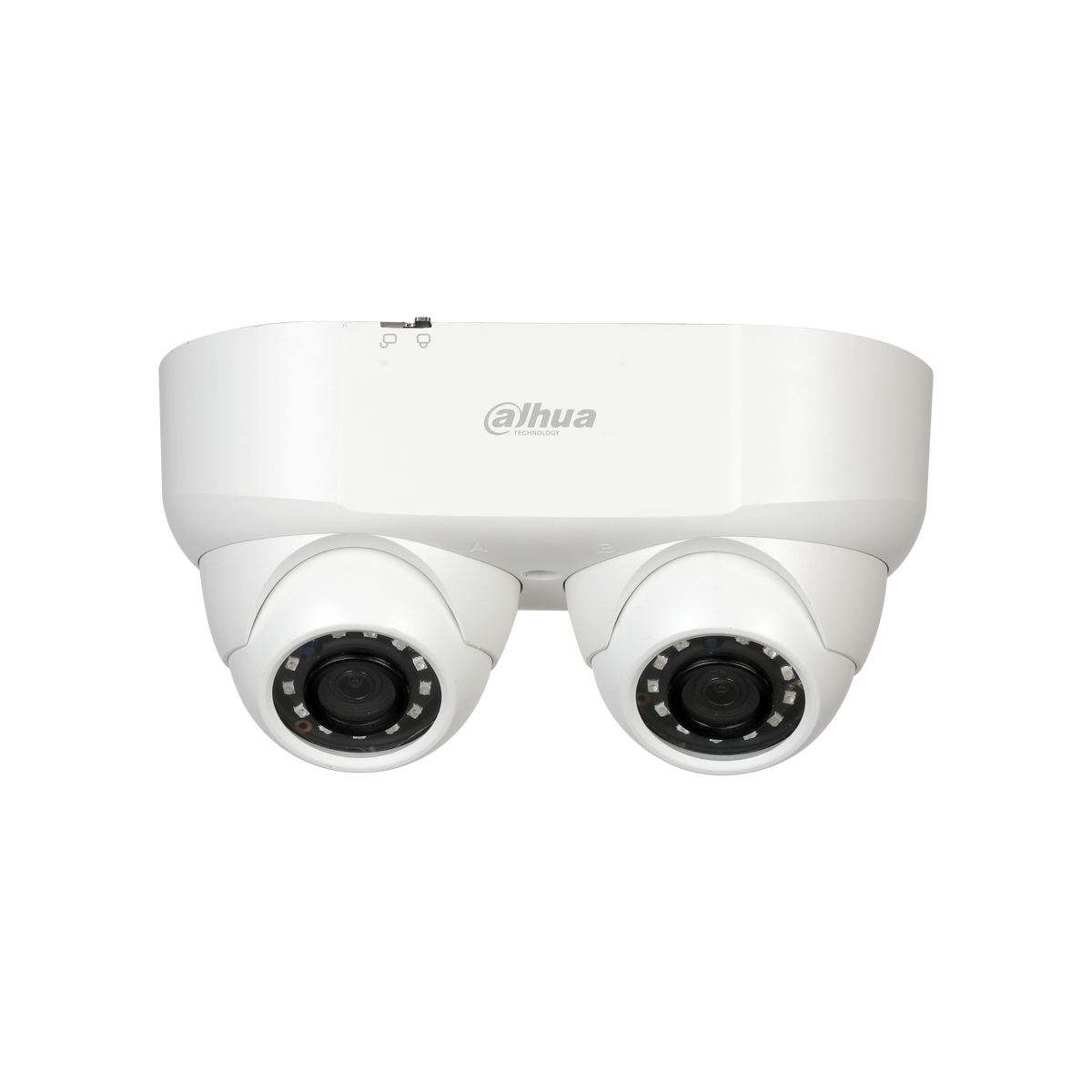

Dôme HDCVI blanc
- 2MP
- FF 3.6mm IR 30m
- Starlight
- Multicapteurs
- Transmission longue distance jusqu'à 800m
- Audio haute qualité
- IP67
- 12V
Caractéristiques principales
- Technologie de caméra : Caméra CVBS, Caméra HDCVI
- Fonctionnalités de la caméra : Starlight, Multicapteurs
- Résolution : 2 MP
- Focale Fixe : 3.6 mm
- IR & LED : IR 30 m
Fiche technique
| Capteur | 2×1/2.8" CMOS |
|---|---|
| Effective Pixels | Single view: 1920(H)×1080(V), 2MP |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
| Rapport signal/bruit | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2×12 |
| Type d'objectif | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focale | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.6 |
| Angle of View | Single view(H): 86.9° (110°/52.8°) |
| Focus Control | N/A |
| Distance mini de mise au point | 1200mm (500mm, 2200mm) 47.2'' (19.7"/ 86.6") |
| Pan/Tilt/Rotation | P an: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| Résolutions | Single view: 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 2-channel BNC high definition video output / CVBS video output (DIP switch) |
| Jour/Nuit | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Contrôle du gain | AGC |
| Réduction du bruit | 2D / 3D |
| Balance des blancs | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Interface | 1 |
| Alimentation | 1×12V DC ±30% |
| Power Consumptio n | Max. 9.2W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditio ns | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | 201mm×101mm×95mm (7.91"×3.98"×3.74") |
| Poids net | 0.68kg (1.50lb) |
| Poids brut | 1.05kg (2.31lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-HDW2241M-E2 · Marque : Dahua
