Description et caractéristiques

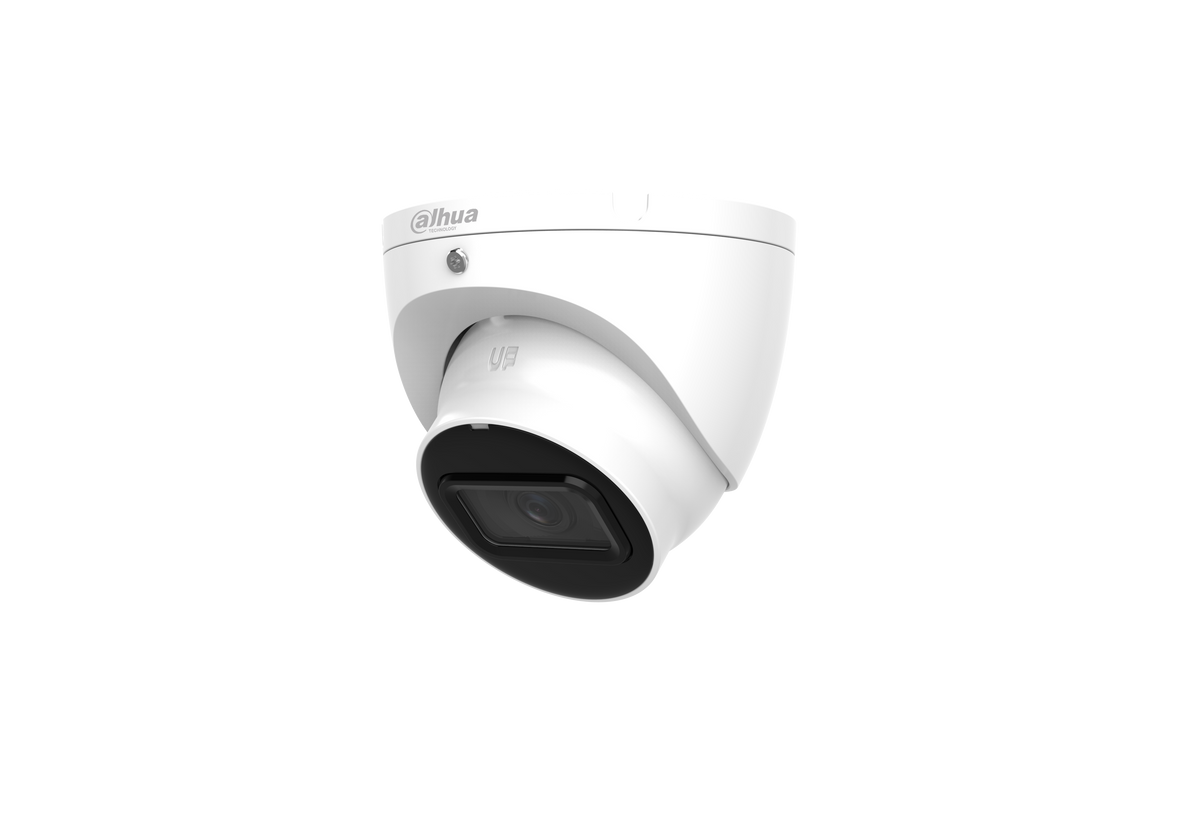

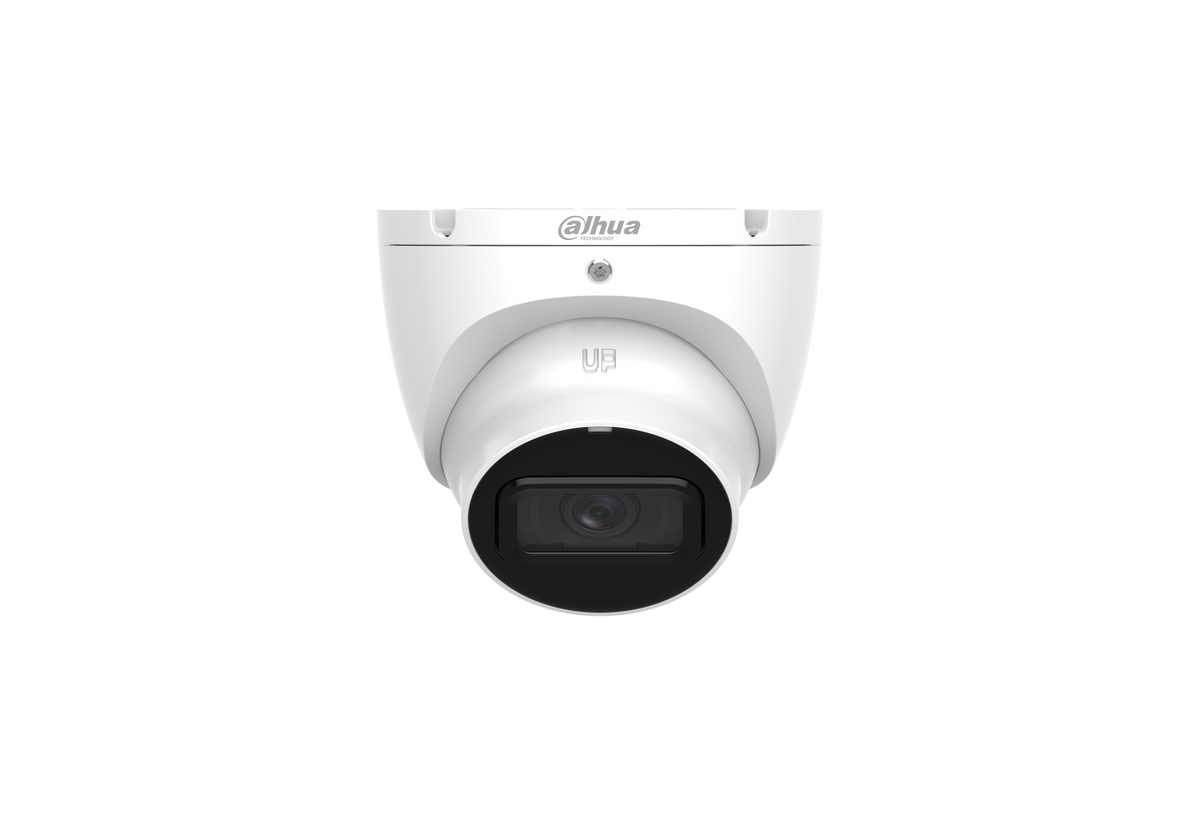

Eyeball blanc
- 8MP
- Focale fixe 3.6 mm
- IR LED 30m
- WDR 120 dB
- IP67
- 12V
Caractéristiques principales
- Résolution : 8 MP
- Focale Fixe : 3.6 mm
- IR & LED : IR 30 m
- Compensation contre jour : WDR 120dB
- Audio : Entrée audio
Fiche technique
| Capteur | 4K CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >65 dB |
| Portée de l'éclairage | IR: 30 m (98.43 ft) |
| Contrôle de l'éclairage | Auto/Manual |
| Nombre d'illuminateurs | 1 (IR light) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm; 3.6 mm |
| Ouverture max. | F2.0 |
| Champ de vision | 2.8 mm: H: 105.5°; V: 56.5°; D: 125.3° 3.6 mm: H: 86.8°; V: 44.6°; D: 104.5° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 1.3 m (4.27 ft) 3.6 mm: 2.1 m (6.89 ft) |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| Fréquence d'images | CVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps; TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; CVBS: PAL: 960H NTSC: 960H |
| Résolutions | 4K (3840 × 2160); 960H (960 × 576/960 × 480) |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | WDR |
| Balance des blancs | Auto |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Illumination Mode | Smart IR |
| Miroir | Yes |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
| Built-in Mic | Yes |
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Alimentation | 12 VDC (±30%) |
| Consommation | Max 3.3 W (12 VDC, IR on) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | <95% (RH), non-condensing |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de stockage | <95% (RH), non-condensing |
| Indice de protection | IP67 |
| Niveau anticorrosion | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Matériau du boîtier | Metal |
| Dimensions | Φ94.0 mm × 85.7 mm (Φ3.7" × 3.37") |
| Poids net | 0.33 kg (0.73 lb) |
| Poids brut | 0.47 kg (1.04 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-HDW1801TLMP-A · Marque : Dahua
