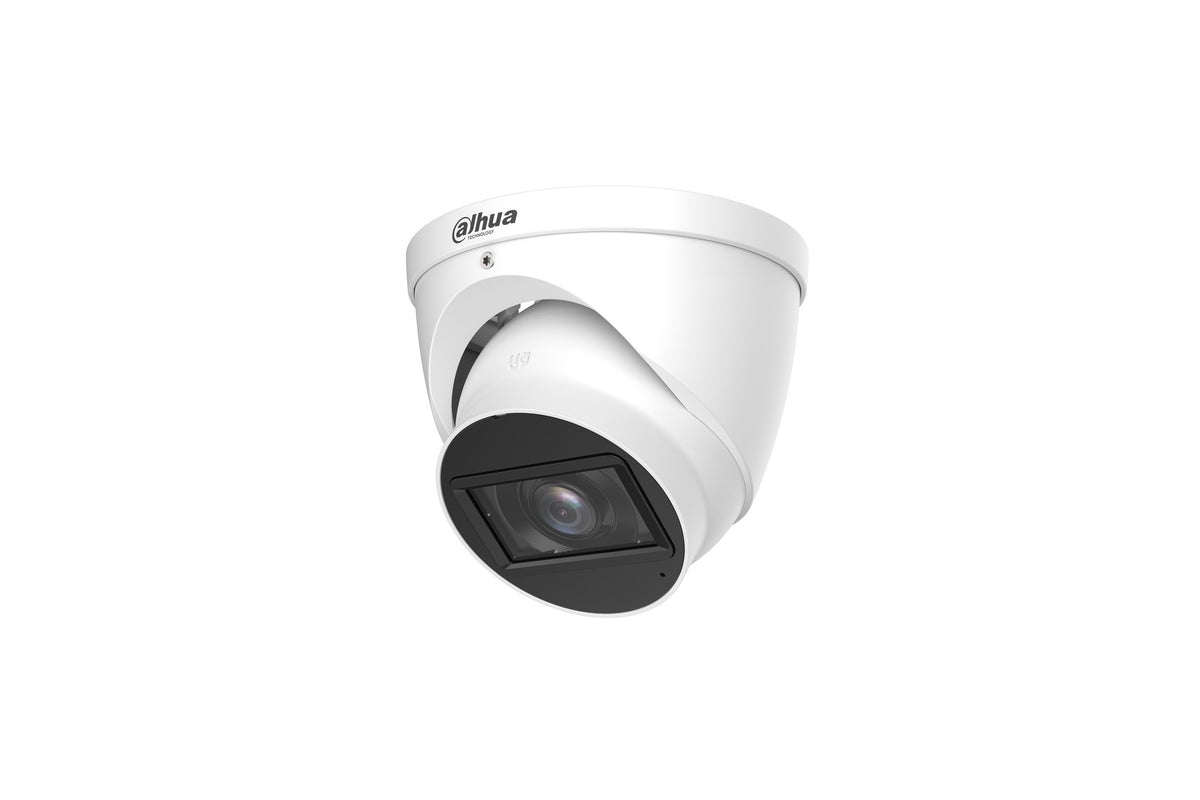

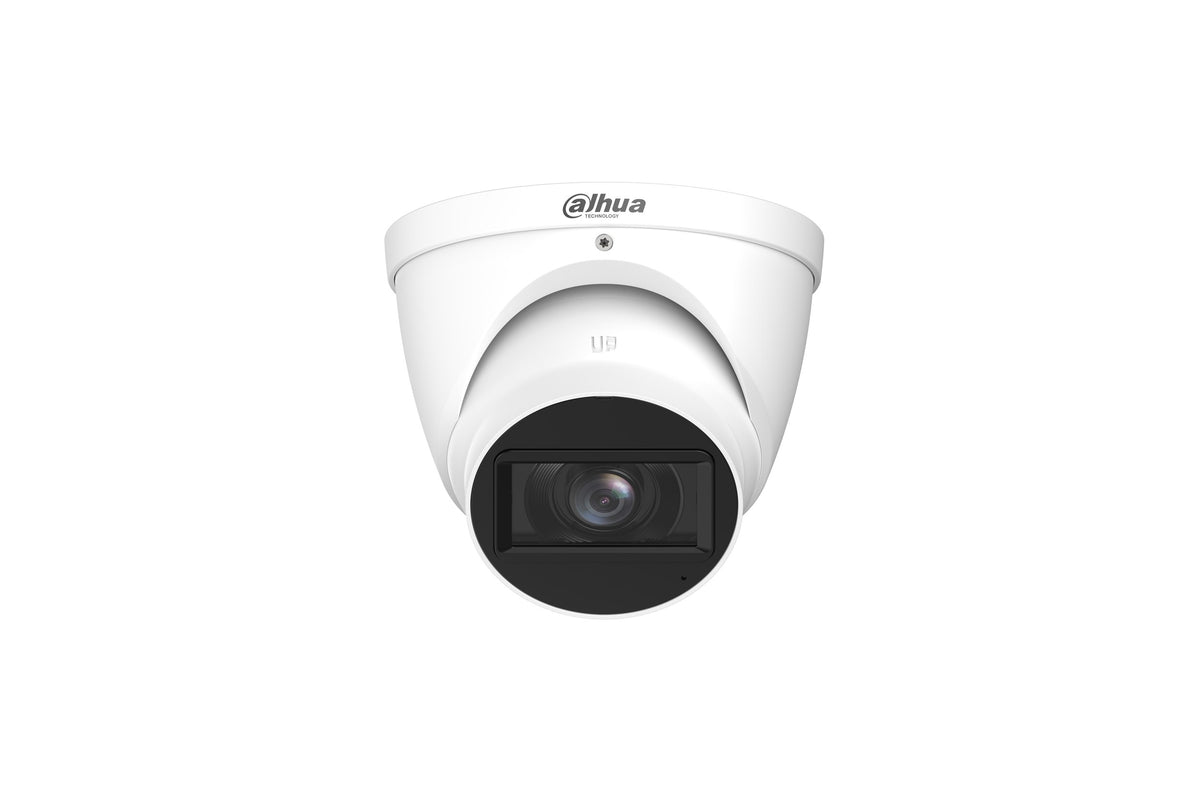

Description et caractéristiques
Eyeball blanc
- 5MP
- Varifocale motorisée 2.7
- 13.5 mm
- IR LED 80m
- Micro intégré
- IP67
- 12V
Caractéristiques principales
- Technologie de caméra : Caméra HDCVI
- Résolution : 5 MP
- Varifocale : 2.7 - 13.5 mm
- IR & LED : IR 80 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 5 MP CMOS |
|---|---|
| Résolution max. | 2880 (H) × 1620 (V) |
| Balayage | Progressive |
| Obturateur électronique | PAL: 1/25 s–1/100.000 s NTSC: 1/30 s–1/100.000 s |
| Sensibilité (éclairement min.) | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >65 dB |
| Portée de l'éclairage | 80 m (262.47 ft) |
| Contrôle de l'éclairage | Auto/Manual |
| Nombre d'illuminateurs | 4 (IR light) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Motorized vari-focal |
| Auto Focus | No |
| Monture | φ14 |
| Focale | 2.7 mm–13.5 mm |
| Ouverture max. | F1.6 |
| Champ de vision | H: 32.7°–111.8°; V: 18.4°–58.3°; D: 37.5°–135.2° |
| Iris | Fixed |
| Distance mini de mise au point | 1.2 m (3.94 ft) |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| W | 6.54 m ( 21.46 ft) |
| T | 20.2 m ( 66.27 ft) |
| Fréquence d'images | CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| Résolutions | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960 H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| Balance des blancs | Auto;Area white balance |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Illumination Mode | Smart IR |
| Miroir | Yes |
| Masques de confidentialité | Off/On (8 areas, rectangle) |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
| Built-in Mic | Yes |
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Alimentation | 12 VDC (±30%) |
| Consommation | Max 9.9 W (12 VDC, IR on) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | <95% (RH), non-condensing |
| Température de stockage | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de stockage | <95% (RH), non-condensing |
| Indice de protection | IP67 |
| Niveau anticorrosion | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Matériau du boîtier | Metal |
| Dimensions | Φ122 mm × 108.2 mm (Φ4.80" × 4.26") |
| Poids net | 0.61 kg (1.34 lb) |
| Poids brut | 0.77 kg (1.70 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : HAC-HDW1500TP-Z-A-27135-S3-DIP · Marque : Dahua
