Description et caractéristiques

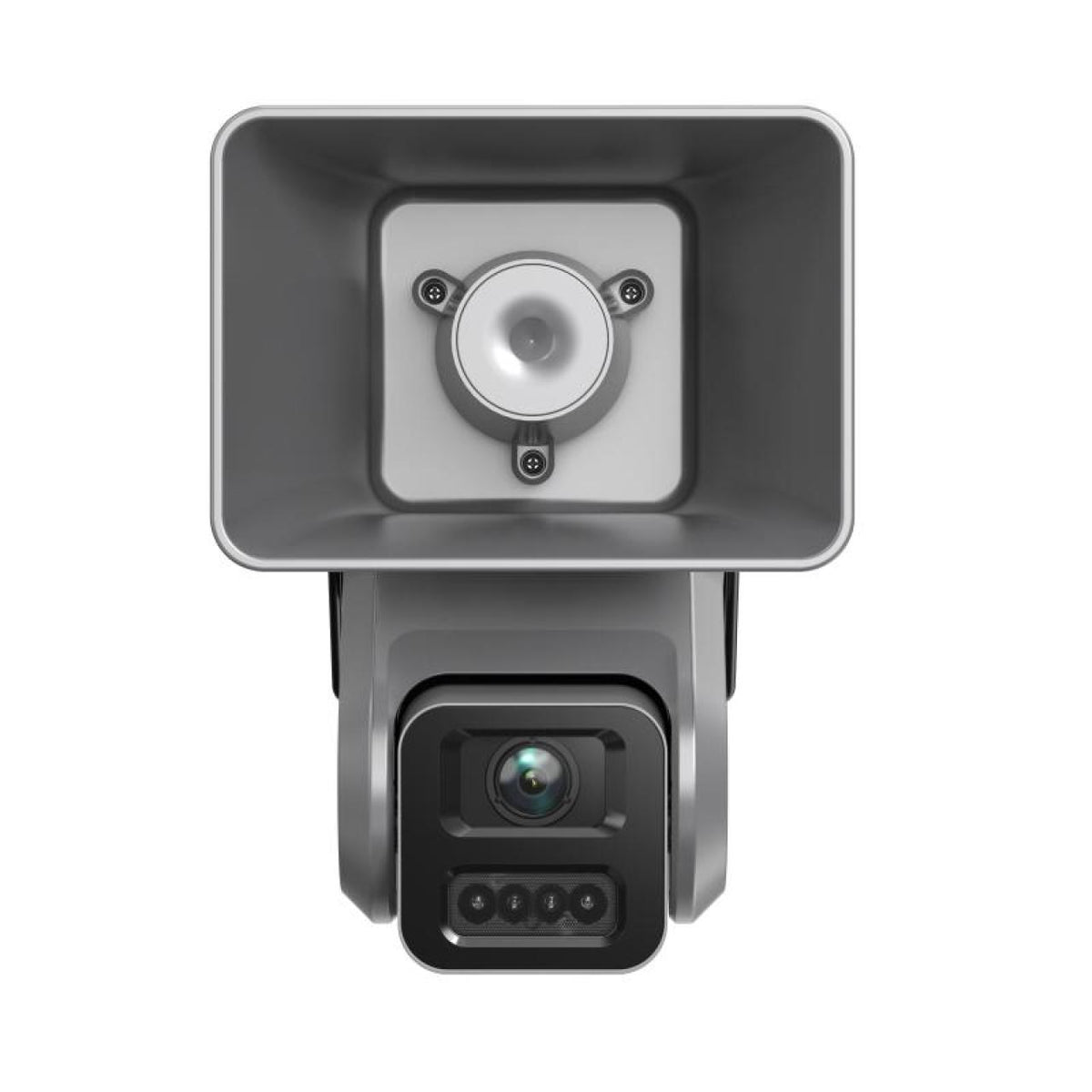

Caméra IP grise
- 4 MP
- VF motorisé 2.8-12 mm IR 50 m
- Protection périmétrique
- Audio bidirectionnel avec double microphone et haut-parleur 7 W intégré
- IP67
- PoE 12 VDC
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : Protection périmétrique
- Résolution : 4 MP
- Varifocale : 2.8 - 12 mm
- IR & LED : IR 50 m
Fiche technique
| Capteur | 1/3" Progressive Scan CMOS |
|---|---|
| Résolution max. | 2560 × 1440 |
| Sensibilité (éclairement min.) | Color: 0.005 Lux @(F1.6, AGC ON) Black&White: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | ICR |
| Réglage angulaire | Vertical: 0° to 80° |
| Adjustment Method | Manual Adjustment |
| FOV | Horizontal FoV: 99° to 30.4°, Vertical FoV: 52.9° to 17.2°, Diagonal FoV: 117.7° to 34.9° |
| Focus | Auto |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Focale | 2.8 to 12 mm |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras |
| Metadata | Intrusion detection,line crossing detection,region entrance detection,region exiting detection |
| Type | electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -32 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
| Impedance | 8 Ω |
| Rated Power | 7 W |
| Total Harmonic Distortion (THD) | 5 % |
| Sensitivity(1 m, 1 W) | 107 dB |
| Maximum Sound Pressure Level | 115 dBSPL |
| Speaker Unit | Dome Tweeter |
| Audio Algorithm | AEC, NS, AGC, DRC |
| Two-Way Audio | Support |
| Protocoles réseau | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets |
| Interface Protocol (API) | Open Network Video Interface, ISAPI, ISUP5.0 |
| User Management | Up to 32 users. 3 user levels: administrator, operator, and user |
| Network Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | Support MicroSD/MicroSDHC/MicroSDXC cards (up to 512 GB) with automatic network replenishment and local storage, NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Navigateur | Plug-in required live view: IE10, IE11. Local service: Chrome 57.0+, Firefox 52.0+. Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+ |
| Client | iVMS-4200, HikConnect, HikCentral Professional |
| Supplement Light Type | Hybrid (IR and White Light) |
| Supplement Light Range | White Light: Up to 20 m,IR: Up to 50 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Image Parameters Switch | Support |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Balance des blancs | Auto, Manual |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| SNR (A-Weighted) | 85 dB |
| Audio Bit Rate | 64 Kbps（G.711ulaw/G.711alaw）/16 Kbps（G.722.1）/16 Kbps（G.726）/32~192 Kbps（MP2L2）/16~64 Kbps（AAC-LC）/8~320 Kbps（MP3） |
| Compression audio | G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Audio Type | Mono sound |
| Environment Noise Filtering | Support |
| Alarm | 1 input, 1 output |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Local Storage | 8 GB EMMC |
| Reset | 1 |
| RS-485 | 1 |
| MicroSD | Built-in MicroSD/MicroSDHC/MicroSDXC slot, up to 512 GB |
| Power Interface | 1 power input, phoenix terminal |
| Basic Event | Motion detection, video tampering alarm, alarm input, exception, video quality diagnosis, defocus detection, audio exception detection, scene change detection |
| Linkage | Upload to FTP/NAS/SD card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Power | PoE: 42.5 V to 57 V, 0.447 A to 0.6 A, max. 25.5W,12 VDC, 2.125 A, max. 25.5 W |
| Material | Metal |
| Dimension | 338 mm × 244.9 mm × 190.1 mm (13.31” × 9.64” × 7.48”) |
| Package Dimension | 420 mm × 280 mm × 316 mm (16.54” × 11.02” × 12.44”) |
| With Package Weight | 5.07 kg (11.18 lb.) |
| Color | Gray |
| Température de fonctionnement | -30 °C to 60 °C (-22 °F to 140 °F) |
| Humidité de fonctionnement | Humidity 95% or less (non-condensing) |
| Bracket Adjustment Angle | -53° to 165° |
| Indice de protection | IP67 |
| EMC | Class B |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Main Stream | 50 Hz：25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576，640 × 480) 60 Hz: 30 fps (704 × 480，640 × 480) |
| Fourth Stream | 50 Hz：25 fps（704 × 576，640 × 480） 60 Hz：30 fps（704 × 480，640 × 480） |
| Fifth Stream | 50 Hz：25 fps（704 × 576，640 × 480） 60 Hz：30 fps（704 × 480，640 × 480） |
| Third Stream | 50 Hz：25 fps（1920 × 1080，1280 × 720，704 × 576，640 × 480） 60 Hz：30 fps（1920 × 1080，1280 × 720，704 × 480，640 × 480） |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-QACAM07G1-4LIZSU · Marque : Hikvision
