Description et caractéristiques

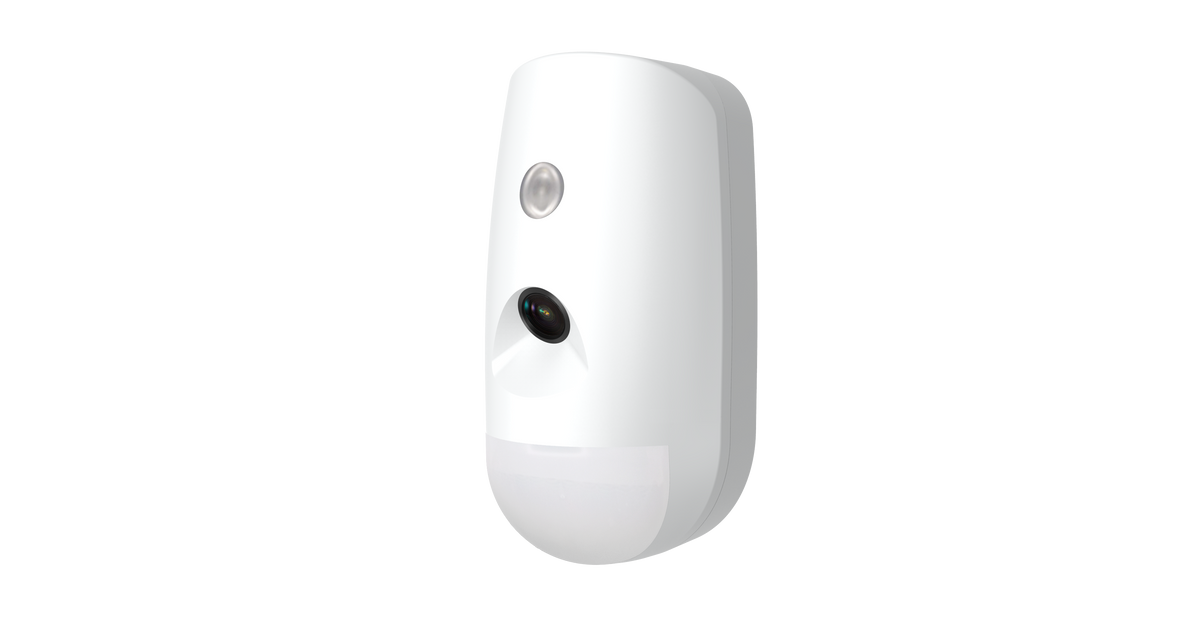

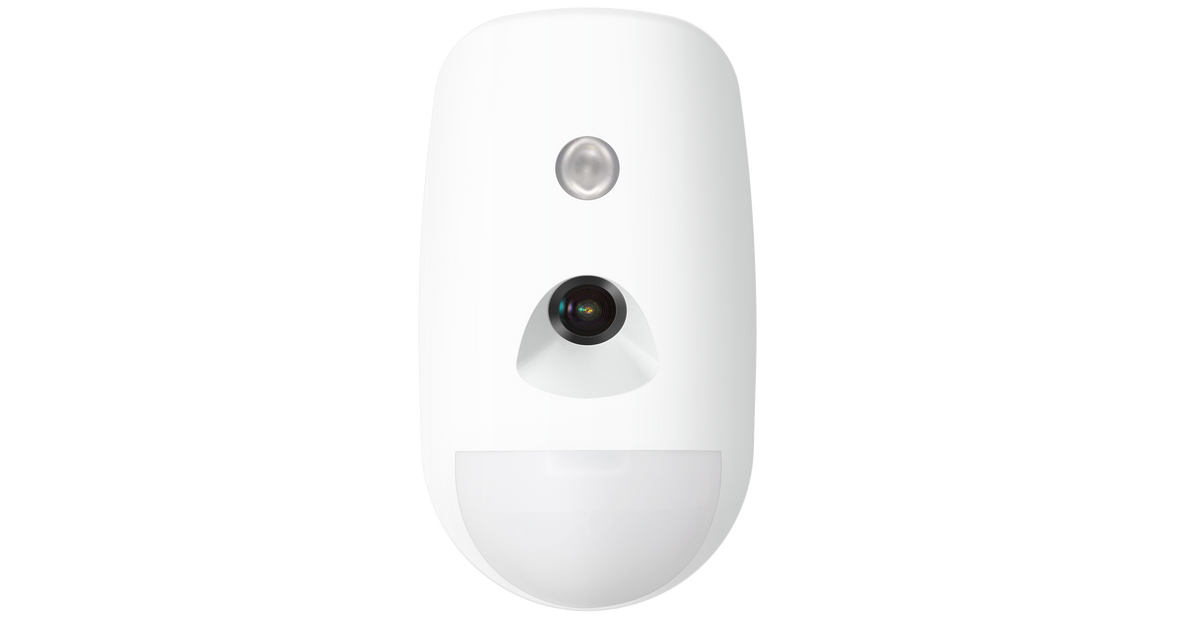

Détecteur de mouvement PIRCAM AX Hybrid PRO
- Bus RS-485
- 12 m/ 90°
- Immunité animaux jusqu’à 24 kg
- Caméra intégrée
- Configurable à distance via App
- Montage mural ou plafond
- LED alarme/défaut
- Anti-sabotage avant/arrière
Caractéristiques principales
- Type de périphérique : Détecteur de mouvement
- Zone de couverture - mouvement : Distance 12m / Angle 90°
- Type de raccordement : Raccordement filaire
- Technologie du détecteur : Infrarouge, Immunité des animaux
- Couleur : Périphérique alarme blanc
Fiche technique
| Detection method | Low noise Dual Element Pyroelectric sensor |
|---|---|
| Detection range | 12 m |
| Detection angle | 90° |
| Detection zones | 84 |
| Detection planes | 7 |
| Detectable speed | 0.3 m/s ~ 2 m/s |
| Sensitivity | Low, Normal, High |
| Pet immunity | 30kg |
| White light filter | 6500 lux |
| Sealed optics | Support |
| Digital processing | Support |
| Temperature compensation | Automatic |
| Angle | 109°(H) 60°(V) |
| Sensor type | CMOS |
| Day light video | Colour |
| Night vision video | Black & White |
| Illumination | Automatic with 1 × IR LED |
| Illumination range | 12 m |
| Image format | JPEG |
| Résolutions | VGA (640 × 480) HD(1280 × 720) FHD(1920 × 1080) |
| Images in series | Up to 3 images with resolution FHD Up to 6 images with resolution HD Up to 10 images with resolution VGA |
| Bus-extender | No |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²) |
| Input voltage | 12 VDC nominal (9~16 VDC), powered by bus |
| Quiescent current | 70 mA @12VDC |
| Max. current | 100 mA @12VDC |
| Operating temperature | -10°C to 50°C (14°F to 122°F), indoor use only |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | 10% ~ 90% non-condensing |
| Dimension (W × H × D) | 73 mm × 130.5 mm × 56.7 mm |
| Tamper-proof | Front and Rear |
| Installation method | Wall mount & Celling mount (with bracket) |
| Bracket | DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional) |
| Mounting height | 1.8 m ~ 2.4 m, 2.1 m typical |
| Electrical conformity | CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-PD501PC12 · Marque : Hikvision
