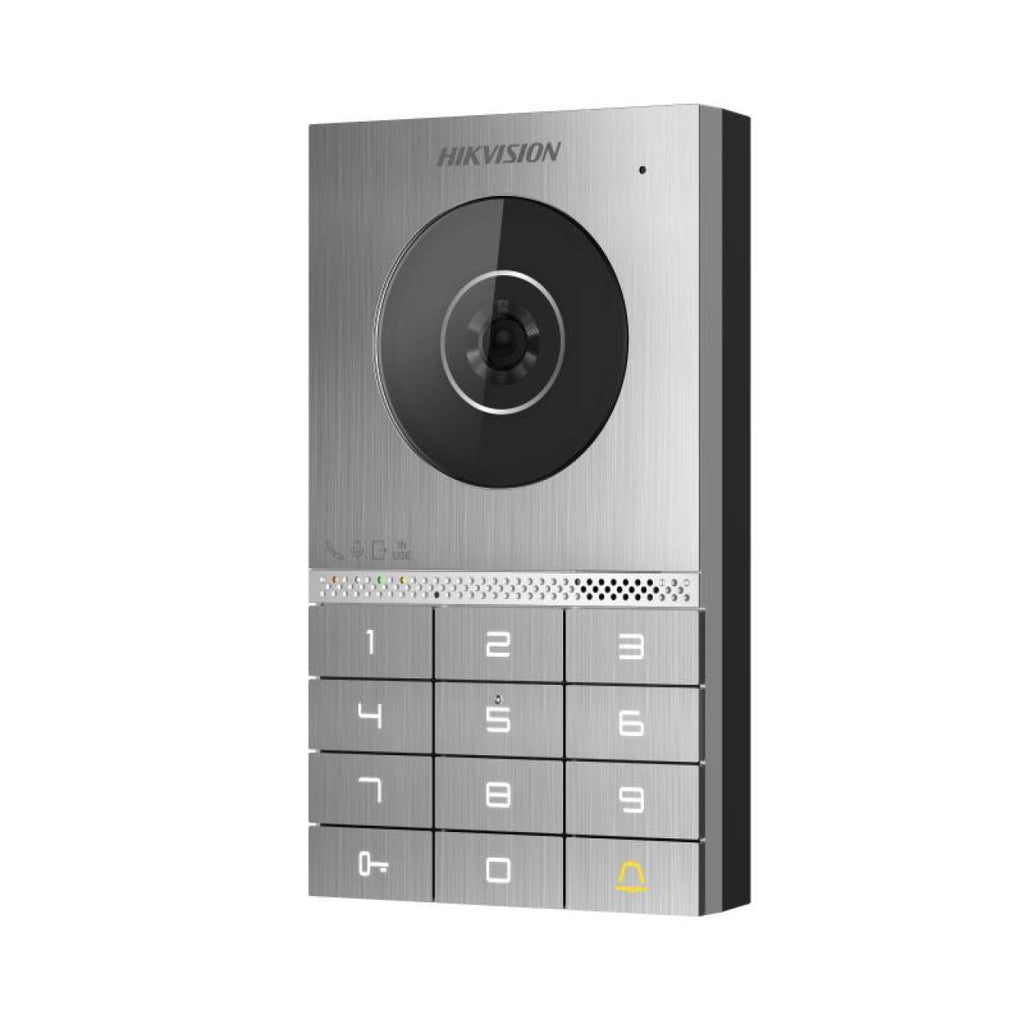

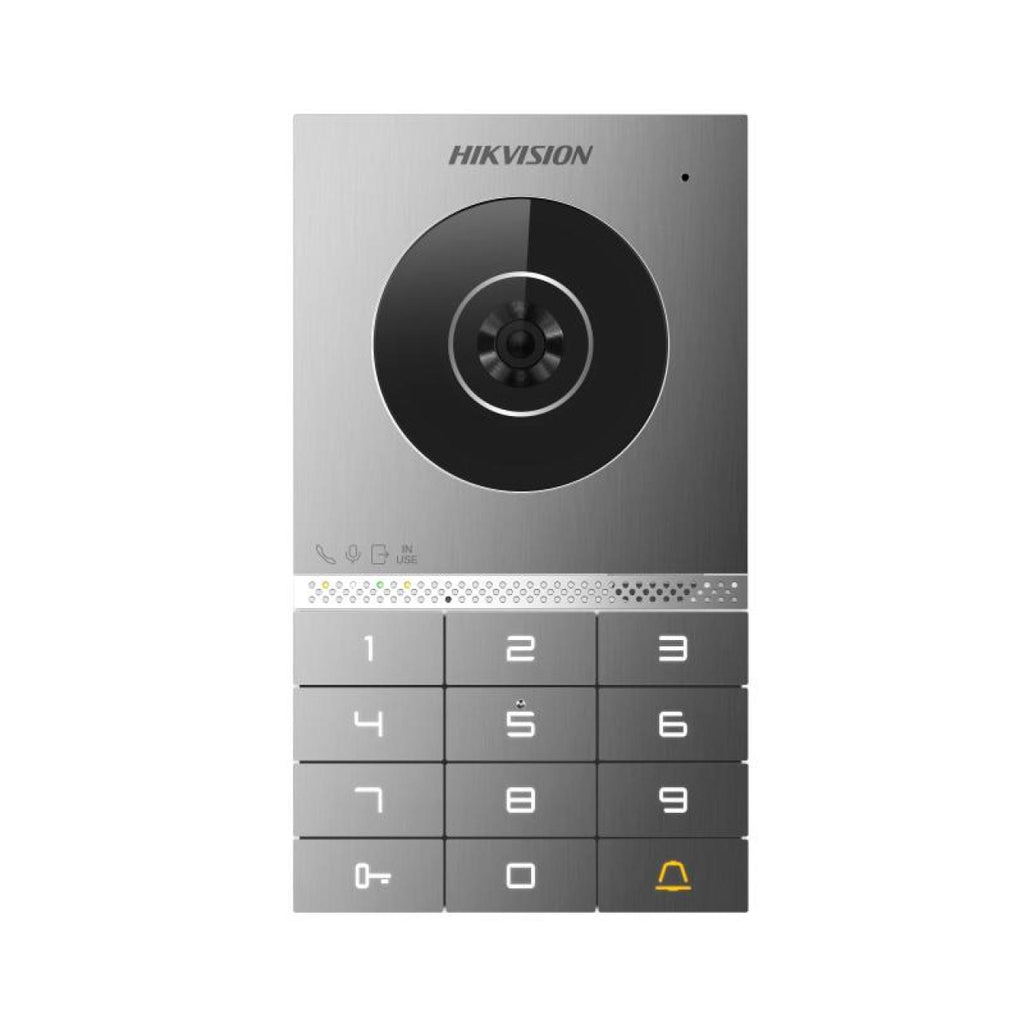

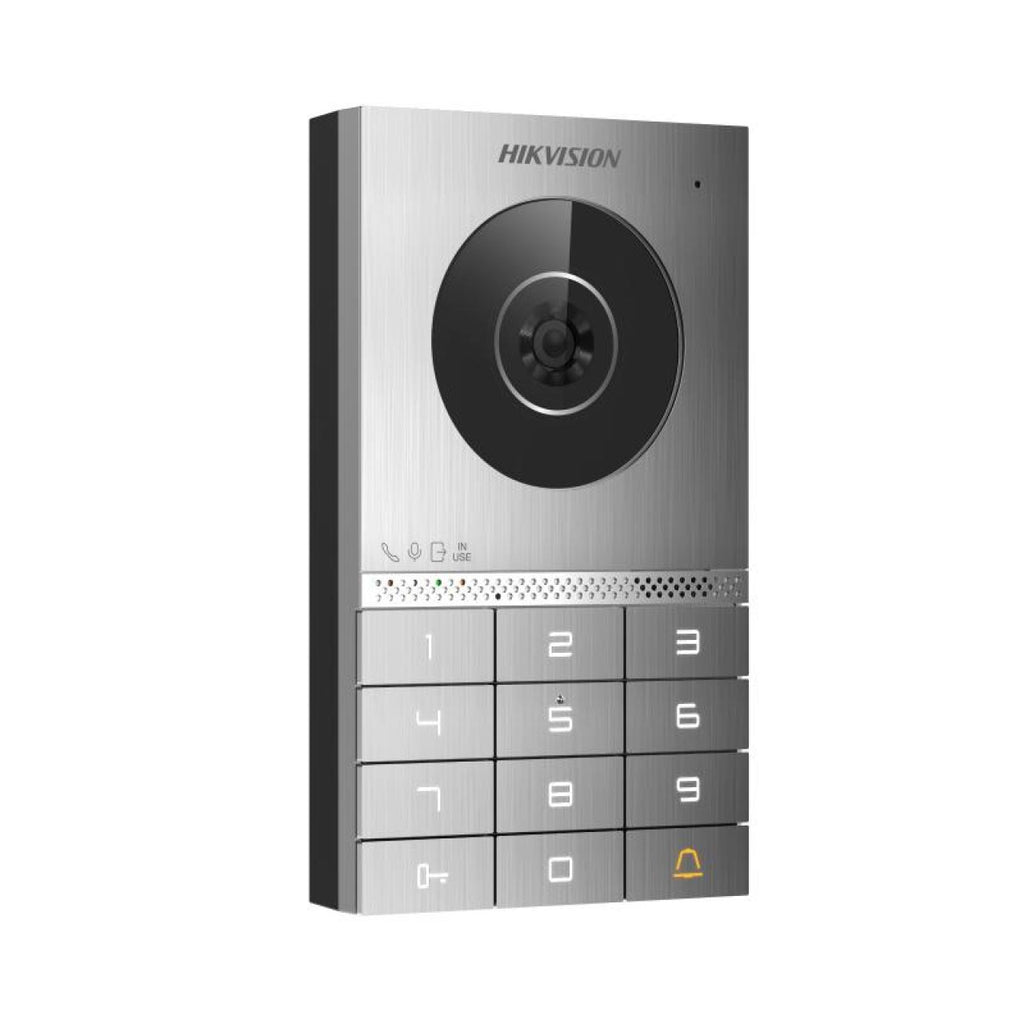

Description et caractéristiques
Platine de rue vidéo 2 fils
- Caméra HD 2 MP FOV 135°/85°
- 12 boutons
- Micro et haut-parleur intégrés (>80 dB)
- LED IR pour faible luminosité
- Support code PIN
- Lecteur Mifare
- Sortie relais pour serrure
- Montage en surface
- IP65
- IK08
- Alimentation 48V via distributeur DS-KAD7060EY ou 12V
Caractéristiques principales
- Technologie : Platine 2 fils
- Type d'accès : Bouton
- Nombre de boutons : 12 boutons
- Caméra intégrée : Caméra intégré
- Alimentation : Alimentation platine 12V, Alimentation platine 48V
Fiche technique
| Operating system | Embedded Linux operation system |
|---|---|
| ROM | 4 GB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Résolutions | NA |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Objectif | 1 |
| FOV | Horizontal: 135°, Vertical: 85° |
| WDR | Support |
| Audio compression standard | G.711 U, G.726 |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 30 cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
| Linked indoor station capacity | Max. 1 flat, up to 4 indoor stations |
| Sub door station capacity | 16 |
| Wired network | 10/100 Mbps self-adaptive through 2-wire interface |
| Wi-Fi | Only AP mode for configuration |
| Bluetooth | NA |
| 3G/4G | NA |
| Alarm input | 2（supports Exit button or Door contact input） |
| Network interface | NA |
| TAMPER | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| RS-485 | 1 |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max ) |
| Power interface | 48V，Powered by distributor DS-KAD7060EY or 12VDC |
| Two-wire IP interface | 1 |
| Button | 12 |
| Installation | Surface mounting & flush mounting |
| Indicator | 4 LED lights(Opening door、Calling、Intercom、In use） |
| Protective level | IP65 IK08 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimensions | 165mm × 95 mm × 25 mm(6.5" × 3.7" × 0.98") |
| Batterie | / |
| Application environment | Outdoor |
| Power consumption | ≤ 6 W |
| Language | English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-KV7023EY-IME2 · Marque : Hikvision
