Description et caractéristiques

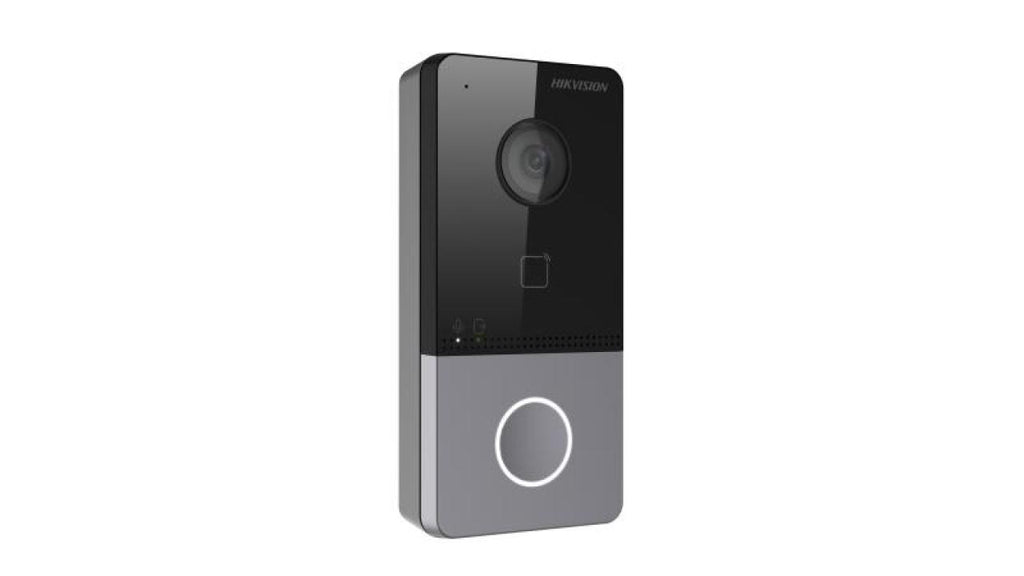

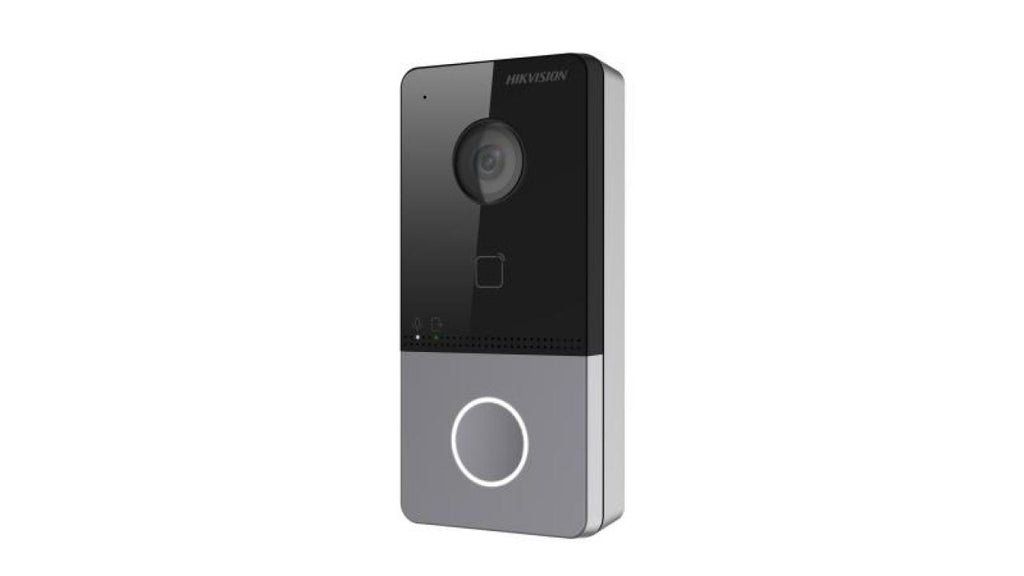

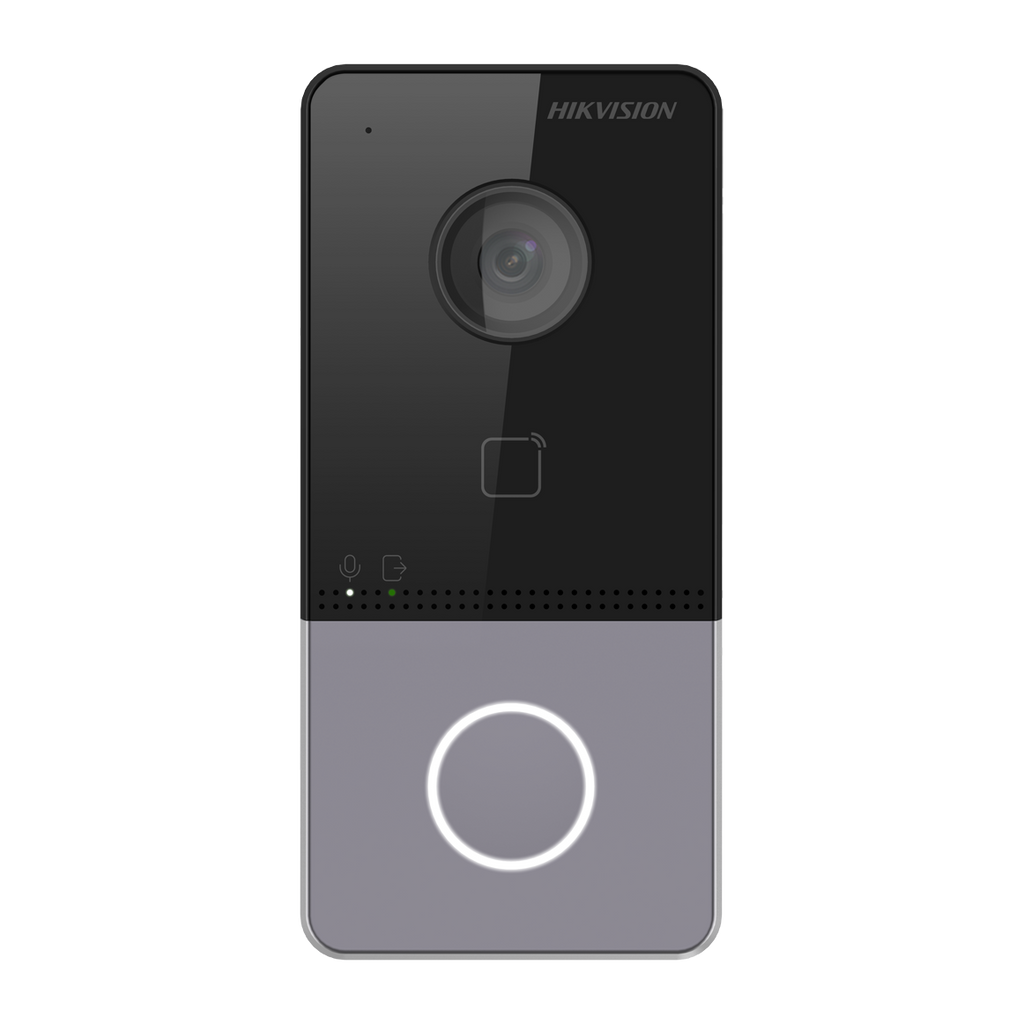

Station de porte vidéo IP avec caméra 2 MP
- Résolution 1920 × 1080p
- Audio bidirectionnel
- Vision nocturne IR
- Suppression du bruit et annulation d'écho
- Lecture de carte Mifare
- Contrôle d'accès à 1 station intérieure
- PI65
- 12V POE
Caractéristiques principales
- Technologie : Platine IP
- Type d'accès : Lecteur Mifare
- Nombre de boutons : 1 bouton
- Caméra intégrée : Caméra intégré
- Alimentation : Alimentation platine 12V, Alimentation platine POE
Fiche technique
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Screen size | / |
| Operation method | / |
| Type | / |
| Résolutions | / |
| Objectif | 1 |
| FOV | Horizontal: 131° Vertical: 78° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
| Face capacity | / |
| Card capacity | 10000 |
| Network protocol | TCP/IP, RSTP, IPV6, ONVIF |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Not supported. |
| 3G/4G | / |
| Alarm input | 4 |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 1 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Reserved |
| Alarm output | / |
| Lock control | 1 relay, Max. 30 VDC 2 A |
| Door contact input | 1 |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | 2 |
| Protective level | IP65 |
| Working temperature | -40 °C to 55 °C(-40 °F to 131 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1") |
| Batterie | / |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Power supply | 12 VDC,Standard PoE, af |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-KV6113-WPE1(C) · Marque : Hikvision
