Description et caractéristiques

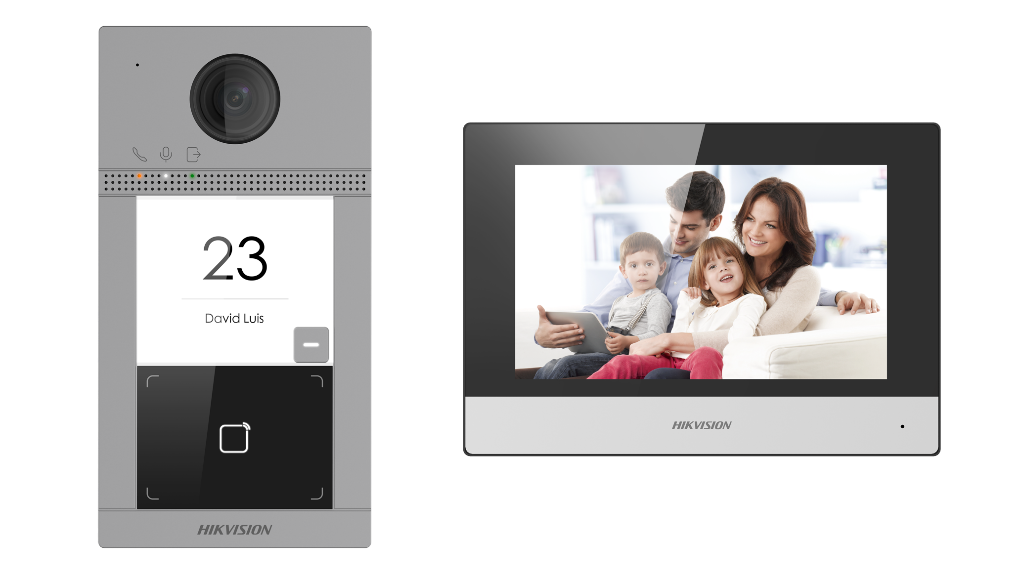

Kit vidéo interphone avec un bouton d'appel
- 7" TFT
- 1024 × 600
- Écran tactile capacitif
- Audio bidirectionnel
- Wi-Fi et Ethernet
- Jusqu'à 32 Go de carte TF pour stockage
- 12V POE
Caractéristiques principales
- Technologie du kit interphonie : Kit interphonie IP, Kit interphonie Wifi
- Alimentation du kit interphonie : Alimentation kit interphonie 12 V, Alimentation kit interphonie POE
Fiche technique
| Operation system | Embedded Linux operation system |
|---|---|
| Flash | 32 M |
| RAM | 256 M |
| Supplement light | IR supplement |
| Résolutions | Main stream : 1920 × 1080p, 1280 x 720p Sub stream : 1280 x 720p, 640 × 480 |
| Objectif | 1 |
| WDR | Support |
| FOV | Horizontal: 124° Vertical: 75° |
| Video compression standard | H.264; h.265; MJPEG |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (more than 80 dB within 30 cm) |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio compression standard | G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1 |
| Audio compression Rate | 64 Kbps |
| User capacity | 2000 |
| Network protocol | TCP/IP, RTSP, IPV6,ONVIF |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| 3G/4G | / |
| Bluetooth | / |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 0 |
| Alarm input | 4 |
| Lock control | 2 |
| Exit button | 2 Max. |
| Door contact | 2 |
| Alarm output | 0 |
| Power interface | 1 |
| TAMPER | 1 |
| USB interface | 0 |
| TF card | 1 (reserved) |
| Button | 1 |
| Indicator | 3 |
| Power consumption | ＜ 10 W |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 174 mm × 91 mm × 29 mm |
| Application environment | Outdoor |
| Protection level | IP65, IK08 |
| Installation | Surface Mounting |
| Memory | 128 MB |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Relay output | 2 |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
Référence fabricant : DS-KIS604-S(C) · Marque : Hikvision
