Description et caractéristiques

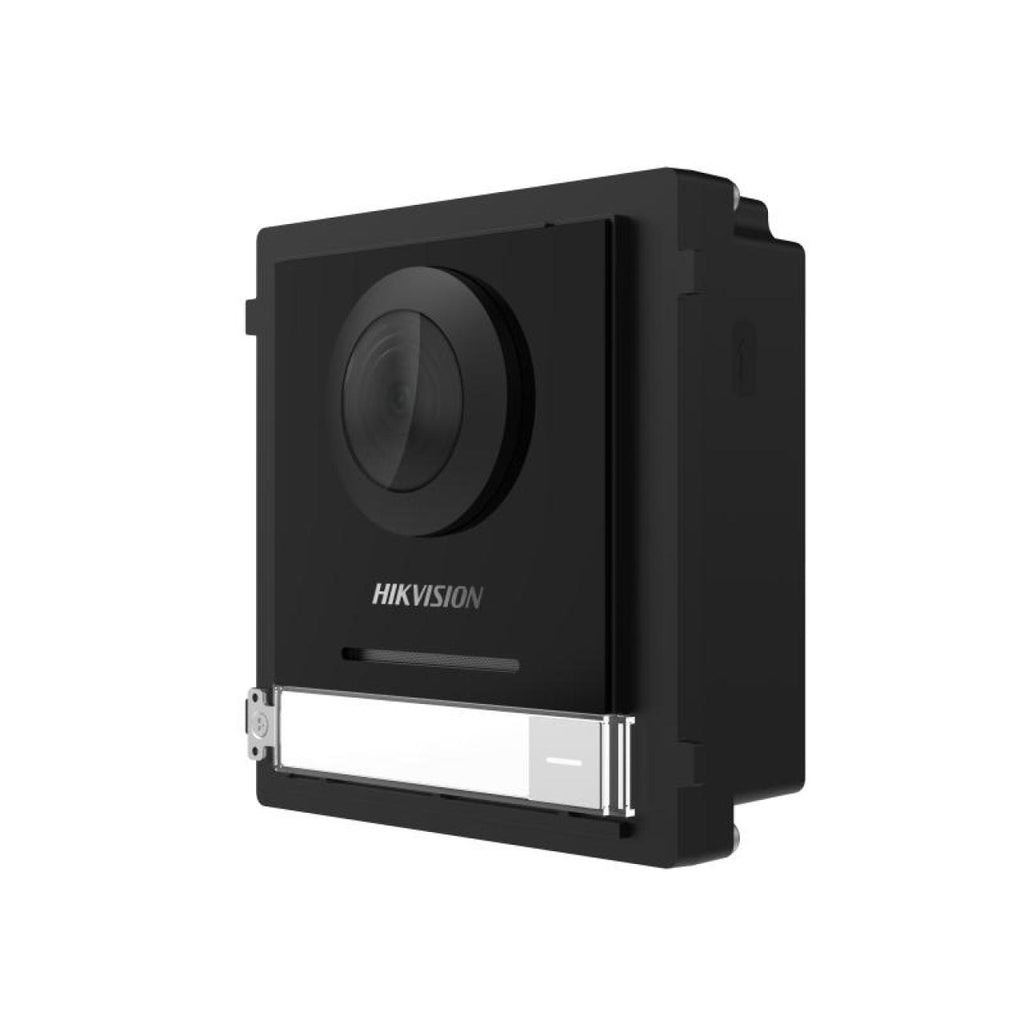

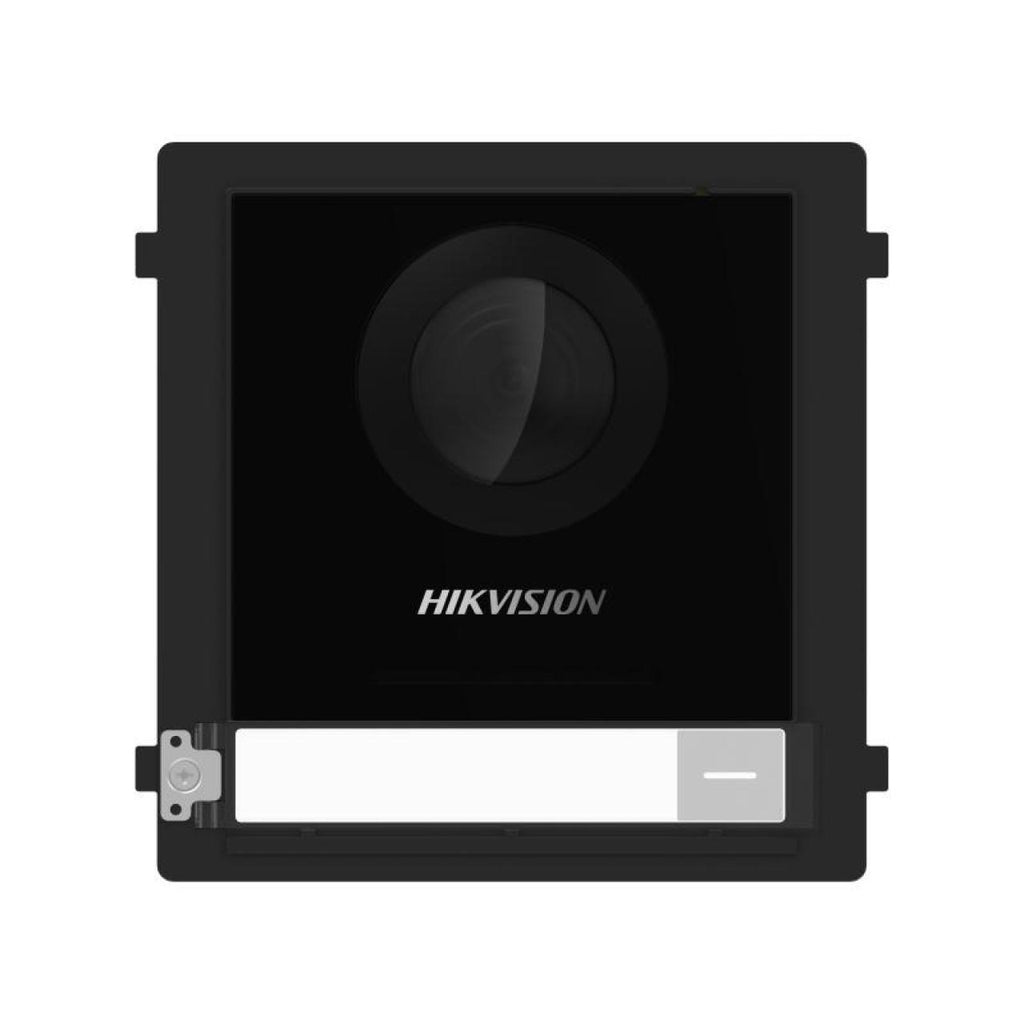

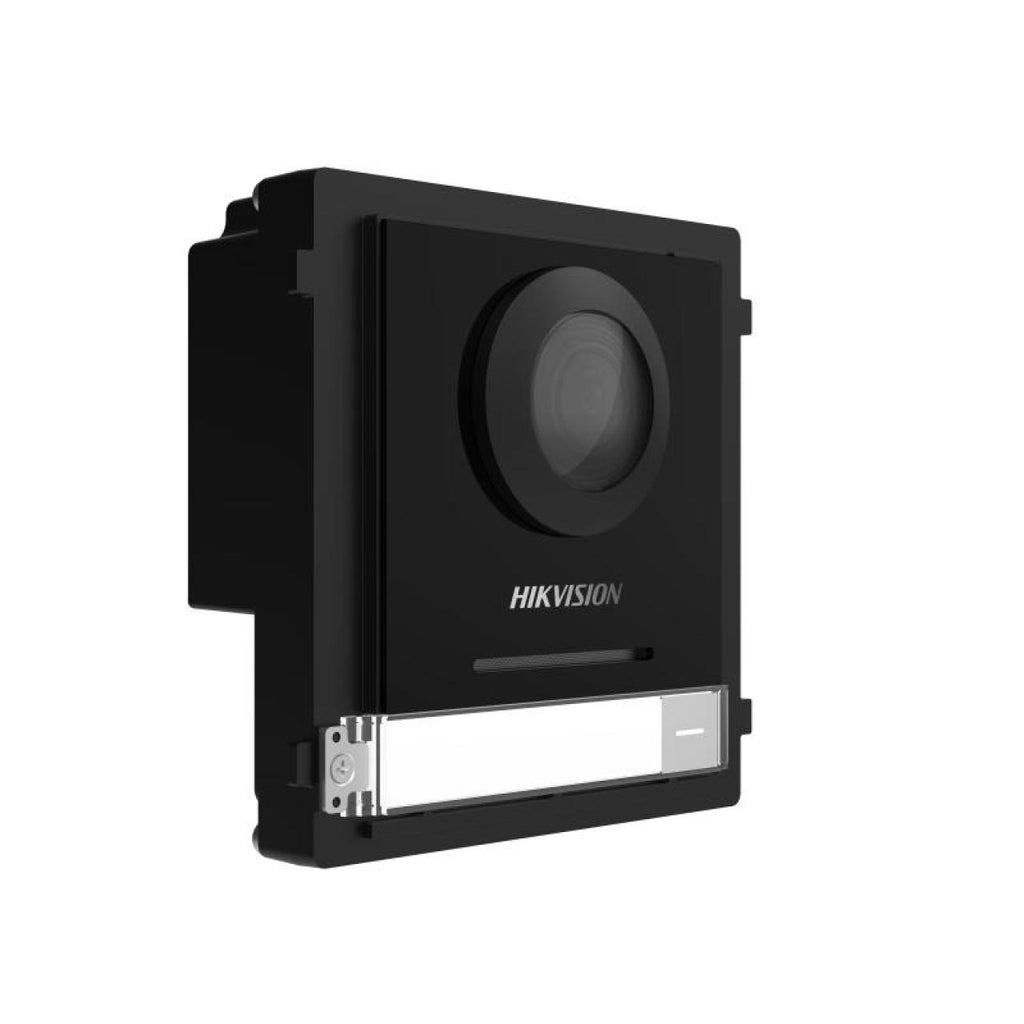

Station de porte modulaire
- 2 Mp
- Fish eye
- 12 V POE
- IP65
Caractéristiques principales
- Type de module : Module bouton, Module caméra
- Type d'accès : Bouton
- Nombre de boutons : 1 bouton
- Alimentation : Alimentation platine 12 V, Alimentation platine POE
- Couleur : Platine modulaire noire
Fiche technique
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Screen size | / |
| Operation method | / |
| Type | / |
| Résolutions | / |
| Objectif | 2 MP HD camera |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | Low illumination, IR supplement lights |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
| Face capacity | / |
| Fingerprint capacity | / |
| Card capacity | 6000 |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP, , ipv6, onvif |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | NA |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| USB | / |
| Wiegand | / |
| TF card | / |
| Alarm output | / |
| Lock control | 2 relays, Max. 30 VDC, 2 A |
| Door contact input | 2 |
| Two-Wire IP interface | / |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | / |
| Protective level | IP65 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Batterie | / |
| Power supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-KD8003-IME1(B) · Marque : Hikvision
