Description et caractéristiques

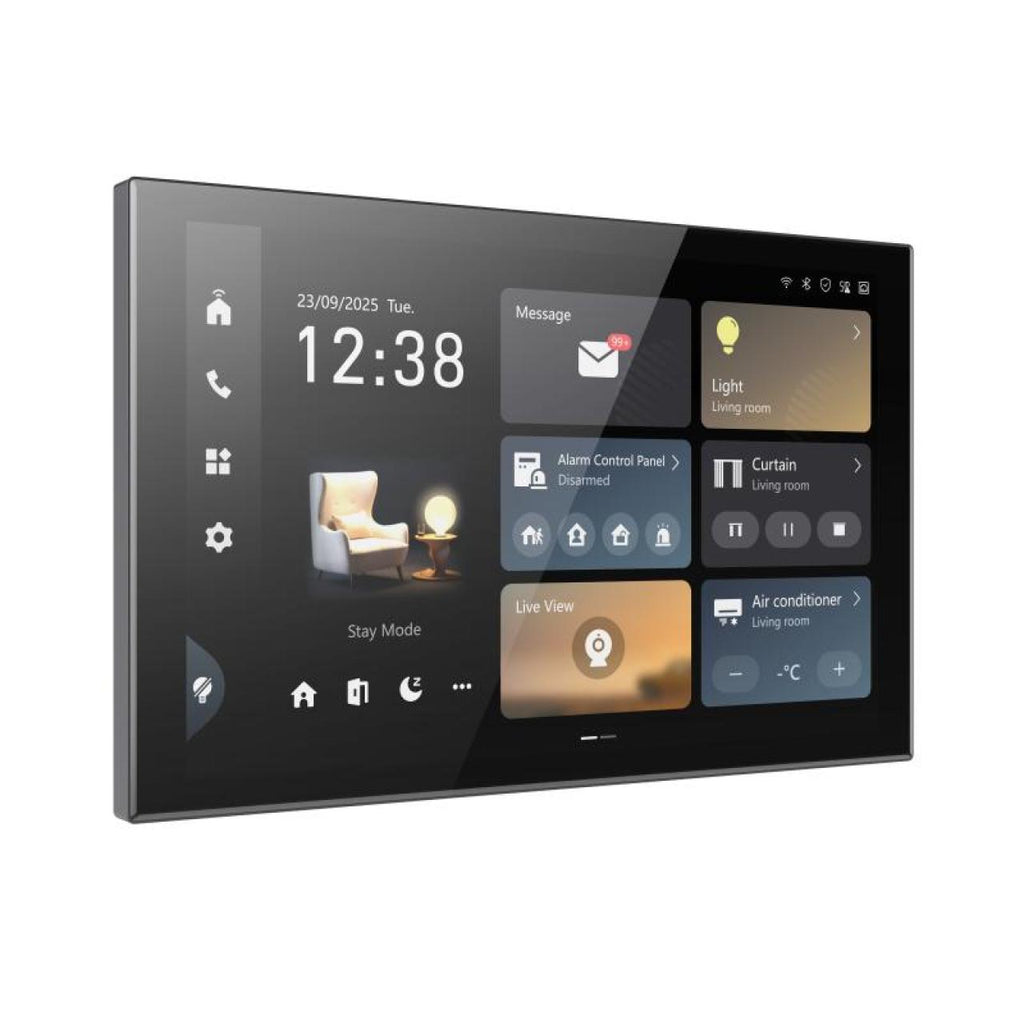

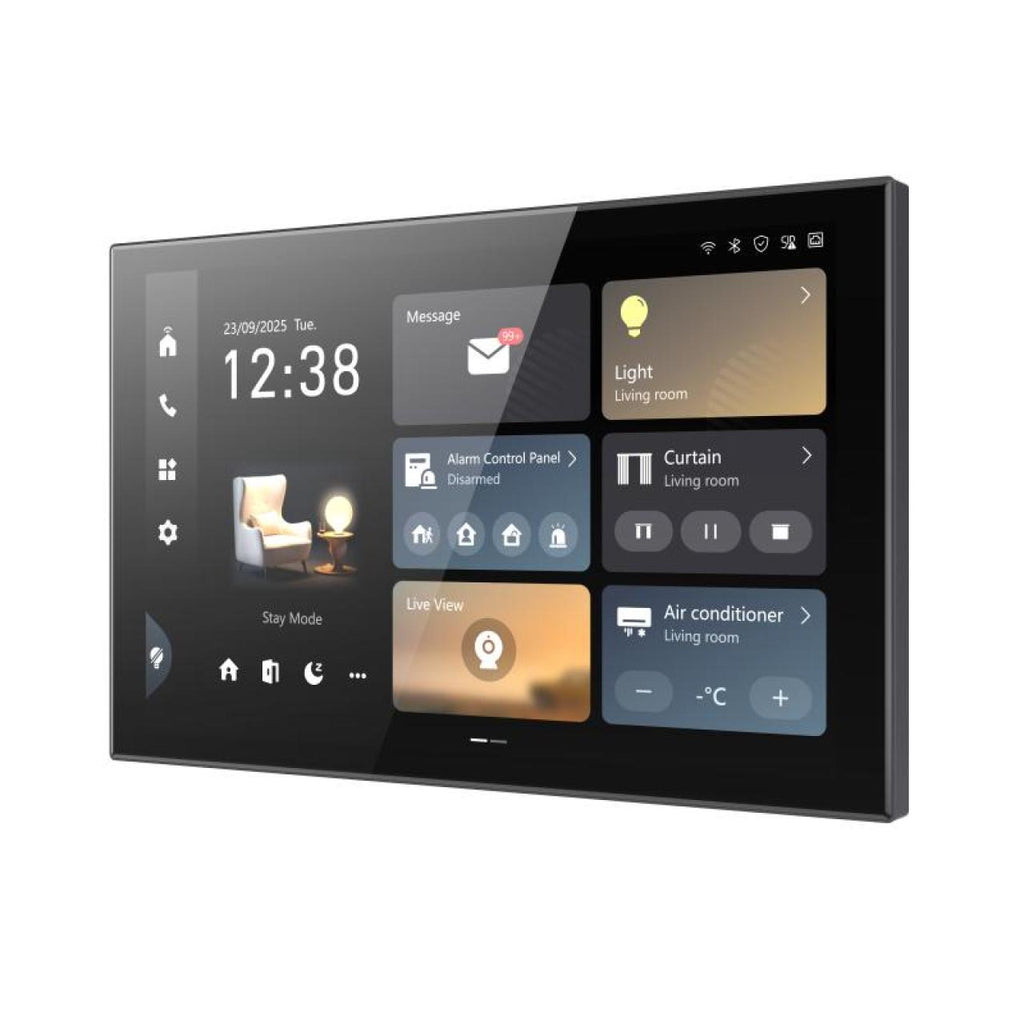

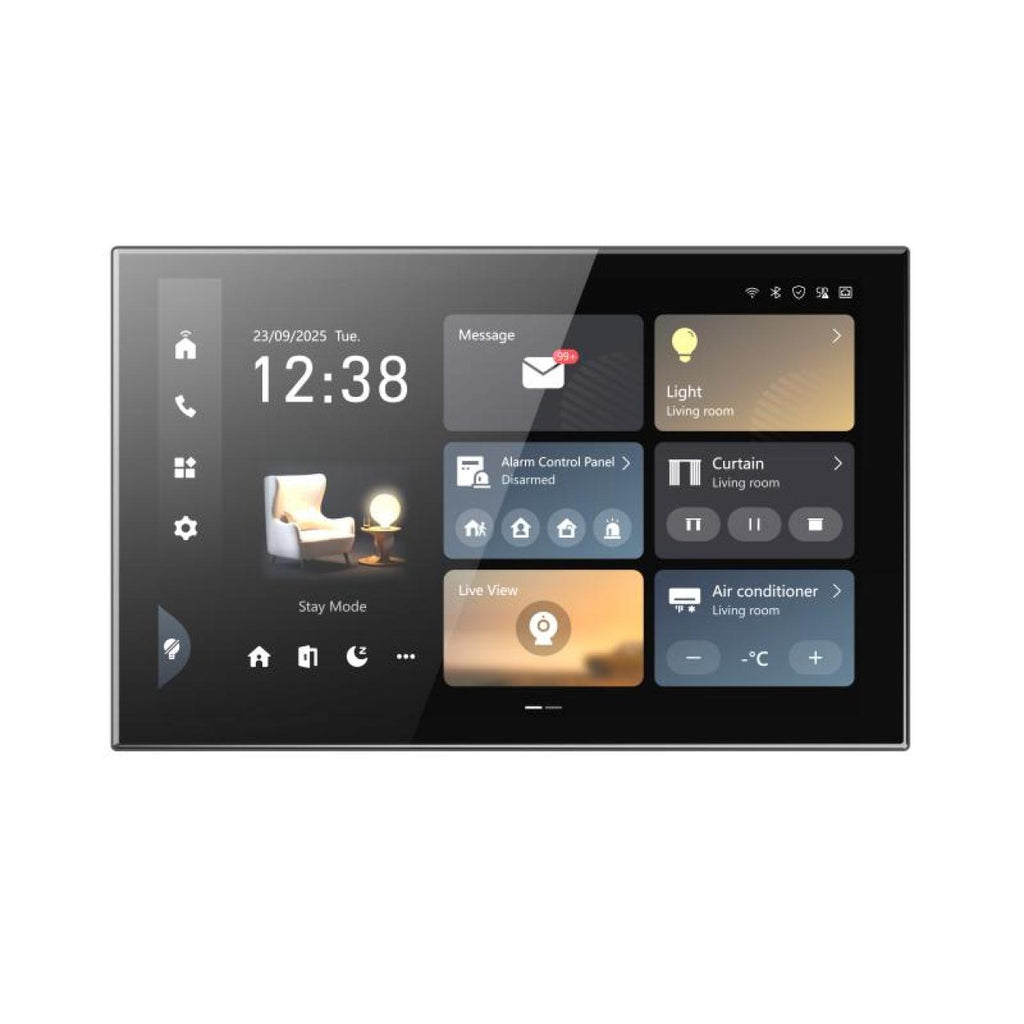

Panneau de contrôle de la série 9
- Hub de contrôle unifié pour Éclairage
- Rideaux
- CVC
- Interphone
- Alarmes
- Caméras réseau
- Accès aux ascenseurs
- Fonctionnement ultra fluide :
- Processeur 4 cœurs
- Android 14
- Jusqu'à 4 Go de RAM + 16 Go de ROM
- Super HD Clarté :
- Écran tactile IPS de 10,1 pouces
- résolution 1920×1200
- Microphones et haut-parleurs doubles
- Suppression du bruit et de l'écho
Caractéristiques principales
- Type de moniteur : Ecran
- Technologie de moniteur : Moniteur filaire
- Taille de l'écran : Écran 10.1 pouces
- Alimentation : Alimentation 12 V, Alimentation POE
- Couleur : Moniteur noir
Fiche technique
| Operation system | Android 14 |
|---|---|
| ROM | 16GB |
| RAM | 4GB |
| Processor | Embedded high performance processor |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful IPS |
| Résolutions | 1920 ×1200 |
| Objectif | / |
| Video compression standard | / |
| Audio input | 2 built-in omnidirectional microphone |
| Audio compression standard | G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD |
| Audio output | 2 built-in loudspeaker (Max. 80dB@50cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Linked doorphone capacity | 17 |
| Message capacity | 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records |
| Linked indoor extensions capacity | 16 |
| Linked network camera capacity | 16 (Up to 4 1080P decoding streams at the same time, H.264&H.265) |
| Wi-Fi | Wi-Fi 6, 2.4 GHz & 5GHz |
| Bluetooth | BLE 5.0 |
| Network protocol | IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF |
| Alarm input | 8 (Reserved) |
| Network interface | 2 RJ-45 10/100 Mbps self-adaptive，1 for Video Intercom, 1 for Smart Home |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card (FAT32/exFAT), up to 256 G |
| Alarm output | 2 high/low level alarm output (3.3V/0V) (Reserved) |
| Power supply input | 12 VDC |
| Power supply output | 12 VDC, 200mA |
| Relay | 2 (Reserved), Max. 30VDC 1A |
| NTC | 1, R25=10KΩ±1%, B25/50=3950K±1% |
| Proximity Sensor | Distance: 50cm, Horizontal: 25°, Vertical: 25° |
| Installation | Surface mounting |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93") |
| Power supply | 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 24 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-KC9570-WTE1/S · Marque : Hikvision
