Description et caractéristiques

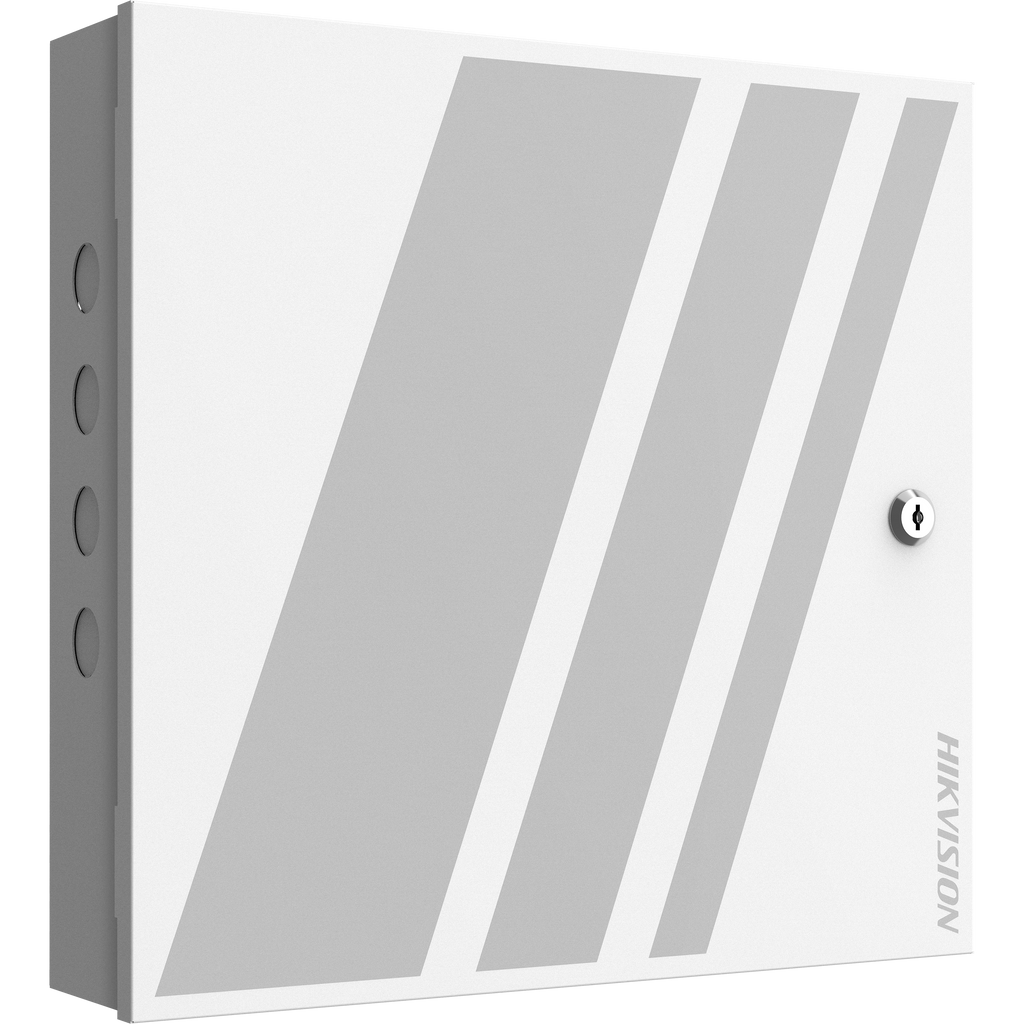

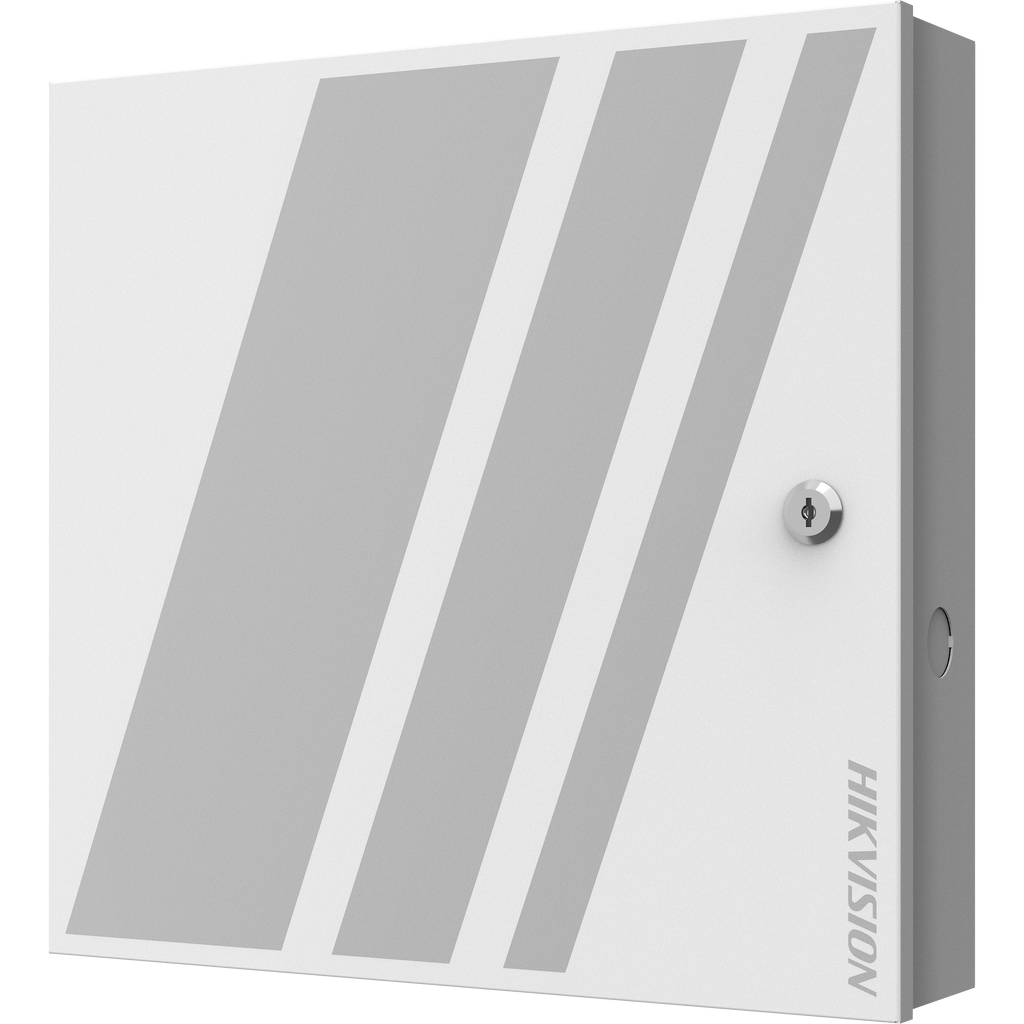

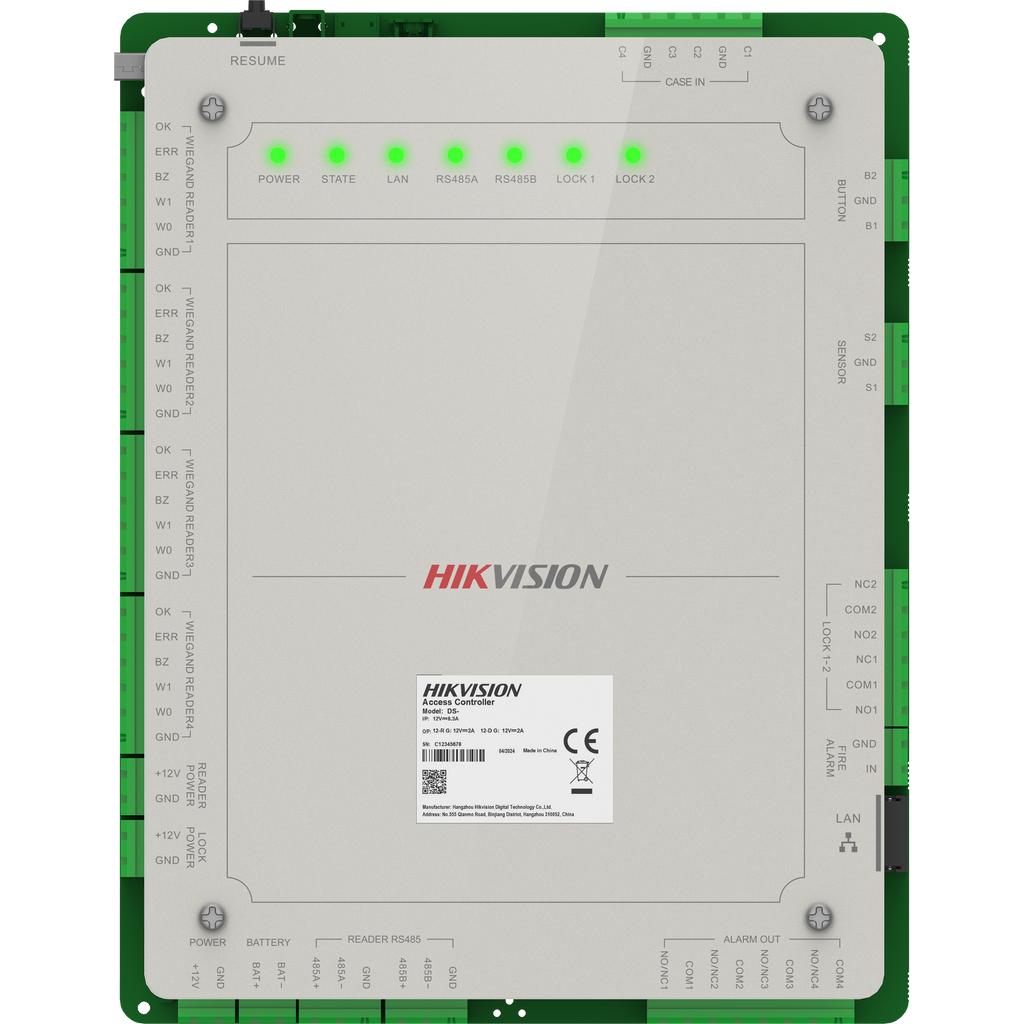

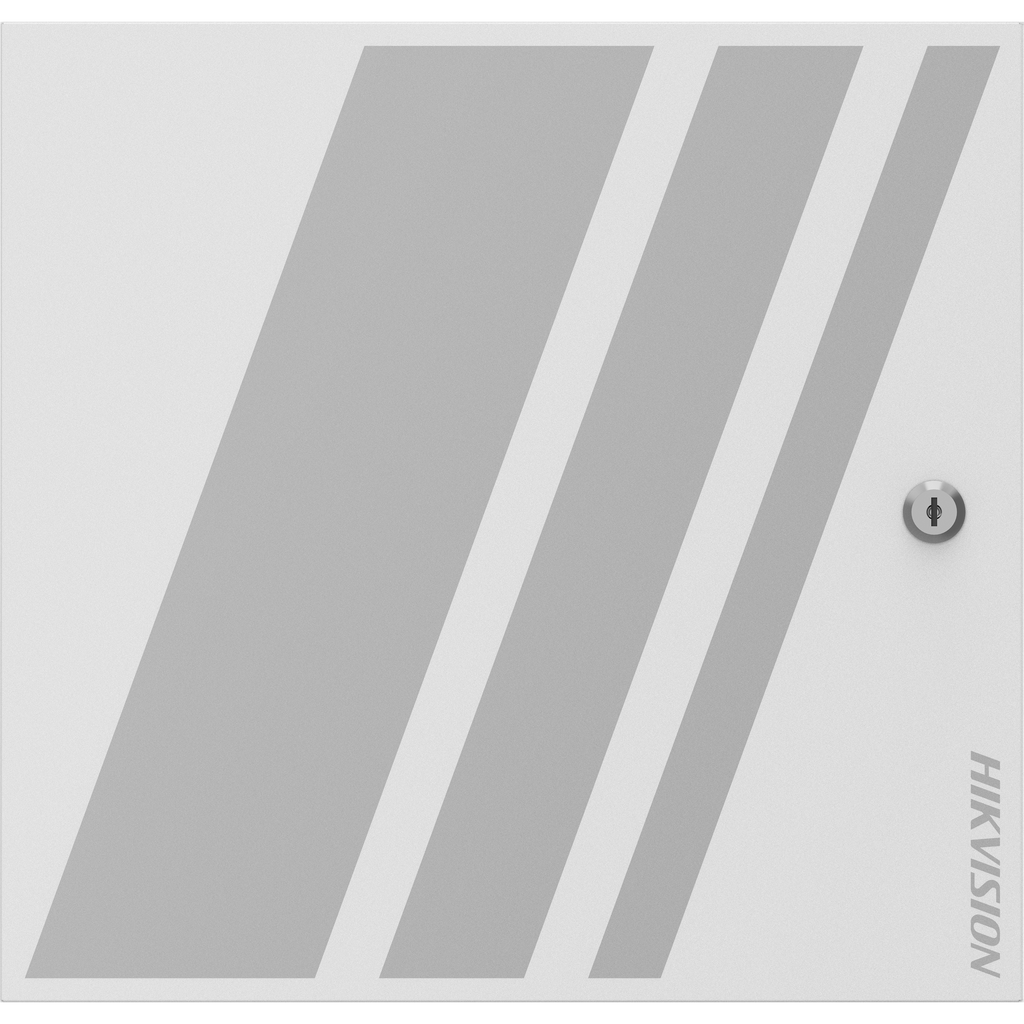

Centrale de contrôle d’accès
- 2 portes
- Communication TCP/IP 10/100 Mbps
- Protocoles IPv4 / IPv6 / DHCP
- Cryptage AES256 / RSA2048 / TLS 1.2
- Support OSDP et Wiegand 26/34
- Jusqu’à 4 lecteurs RS-485 OSDP + 4 lecteurs Wiegand
- Anti-passback et interverrouillage multi-portes
- Gestion via interface Web
- Entrées sorties alarmes intégrées (4 entrées / 4 sorties)
- Alimentation 100-240V AC
Caractéristiques principales
- Type de produit : Centrales
- Type de protocole : RS-485, Wiegand, OSDP
- Nombre de portes : 2 portes
- Nombre de lecteurs supportés : 8 lecteurs supportés
- Alimentation : Alimentation 240V
Fiche technique
| Wired network | 10/100 Mbps self adaptive |
|---|---|
| Network interface | 1 |
| Lock control | 2 |
| Exit button | 2 |
| Door contact input | 2 |
| Alarm input | 4 |
| Alarm output | 4 |
| TAMPER | 1 |
| RS-485 | 2 for card reader (1 for communication, 1 for redundancy; each interface can connect up to 4 readers) |
| Wiegand | 4, standard 26/34 input, supports custom Wiegand settings |
| Fire interface | Support |
| Linked door capacity | 2 |
| Linked card reader capaciry | 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers |
| Power supply | 100 VAC to 240 VAC |
| Batterie | Charge and discharge |
| Power consumption | ≤ 72 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 ° F) |
| Working humidity | 0% to 90% (No condensing) |
| Installation | Wall mounting |
| Language | English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian and Turkish |
| Configuration via Web browser | Support |
| Multi-factor authentication | Support |
| Anti-passback | Support |
| Multi-door interlocking | Support |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-K2622X · Marque : Hikvision
