Description et caractéristiques

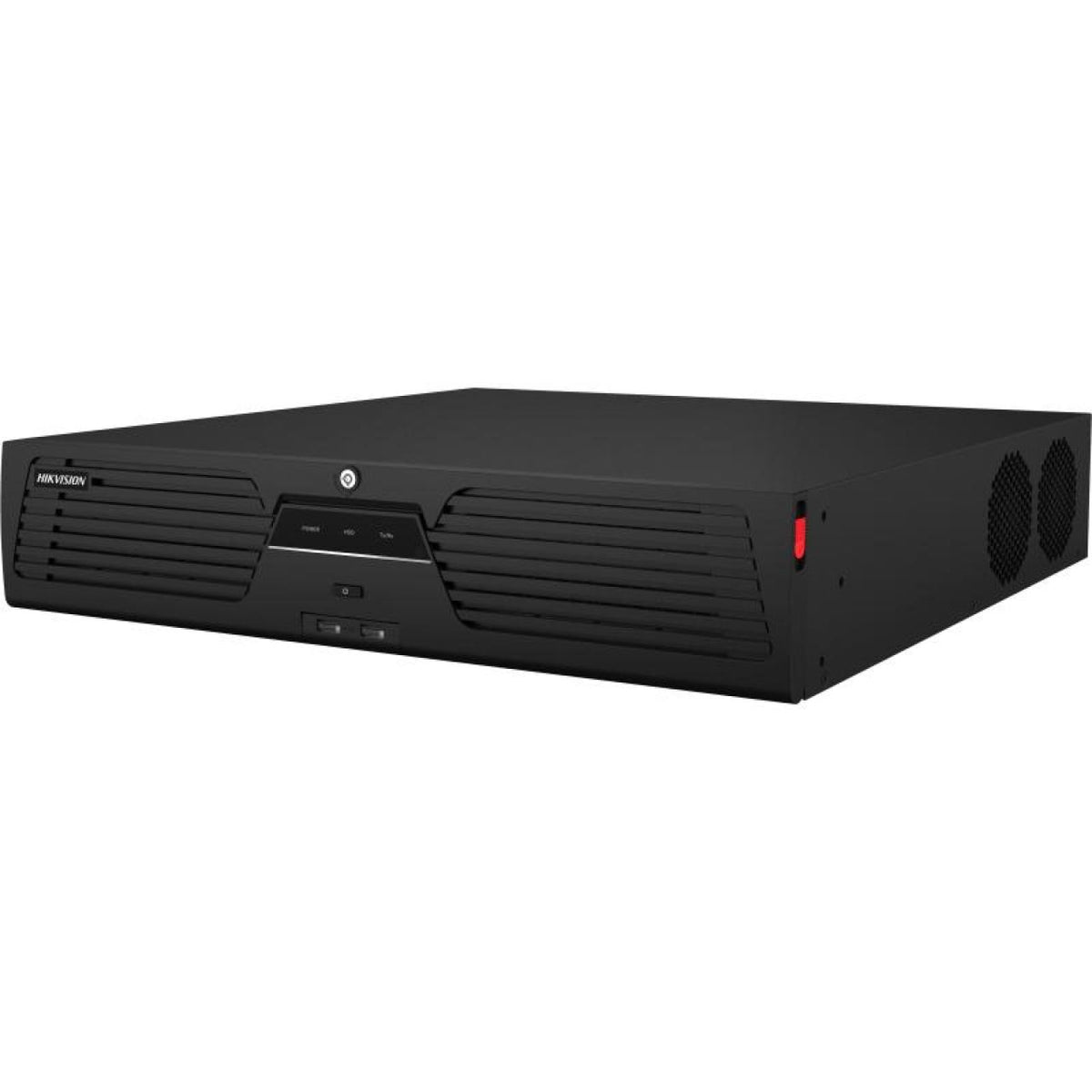

Enregistreur NVR IP
- 64 canaux
- Bande passante entrante 384 Mbps
- AcuSeek
- AcuSearch
- Guanlan
- Reconnaissance faciale
- Protection périmétrique
- Comptage de personnes
- 8 disques SATA hot swap jusqu’à 20 To par disque
- RAID 0/1/5/6/10
- Sorties HDMI 4K et VGA indépendantes
- 2 ports Ethernet Gigabit
- 16 entrées alarme / 9 sorties alarme -100 à 240 VAC
- Châssis 2U
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 64 voies
- IA de l'enregistreur : AcuSeek, Comptage de personne, Protection périmétrique, Reconnaissance faciale
- IA supporté par l'enregistreur : Comptage de véhicule, Lecture de plaque, Protection périmétrique, Reconnaissance faciale
- Résolution maximum : 32 MP
Fiche technique
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0 |
|---|---|
| AI by NVR and Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
| Engine | 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek |
| Performance | 1.If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day. 2.If the cameras support face capture, support 8-ch Face Picture Comparision 3.Max resolution：8MP(4256*1888, 4096*2160) |
| Search Language | English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian, Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian, Brazilian Portuguese, Traditional Chinese |
| By NVR | 4-ch, 2 MP (H.264/H.265) video analysis |
| By Camera | All channels |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 8-ch |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | 4-ch human face capture (HD network camera, 4-ch 2MP, 2-ch 4MP, 1-ch 8MP, H.264/H.265) |
| Vehicle Attributes | Plate number, license plate color, license plate type |
| Plate Attributes | Vehicle brand, vehicle color, vehicle type |
| Heat Map Cameras | heatmap data record and presentation |
| IP Video Input | 64-ch |
| Bande passante entrante | 384 Mbps |
| Bande passante sortante | 256 Mbps |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| CVBS Output | NA |
| Sortie audio | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| HDMI 1 Output | 4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz，720P（1280×720）/60Hz |
| HDMI 2 Output | 1080P（1920×1080）/60Hz，720P（1280×720）/60Hz |
| VGA 1 Output | 1080P（1920×1080）/60Hz，720P（1280×720）/60Hz |
| VGA 2 Output | 1080P（1920×1080）/60Hz，720P（1280×720）/60Hz |
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Résolution d'enregistrement | 32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. |
| Synchronous playback | 16-ch |
| Live View Window Division | 1/2/4/6/8/9/16/25/36/64 |
| Aux Port Window Division | 1/2/4/6/8/9/16/25/36 |
| Compression audio | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Protocoles réseau | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 The RAID function and AI functions cannot be enabled simultaneously. |
| SATA | 8 SATA interfaces, Hot swap. |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex) |
| Capacity | Up to 20 TB capacity for each disk |
| Alarm In/Out | 16/9 |
| eSATA | 1 eSATA interface |
| USB Interface | Front panel: 2× USB 2.0; Rear panel: 2 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew |
| Alimentation | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 2U chassis |
| Dimension (W × D × H) | 442 x 462 x 88 mm（17.4" x 18.17" x 3.46"） |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC |
| CE | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 |
| EN 303645 | Support |
| Secure Boot | Support |
| Secure Component Verification SVC | Support |
| Password Protection | Support |
| IP & MAC Address Filtering | Support |
| HTTPS Encryption | Support |
| Live View & Playback Stream Encryption | Support : AES128 |
| IEEE802.1X(EAP-TLS) Network Access Control | Support |
| Signed Firmware | Support |
| Others | Digest authentication: Support User access log : Support Centralized certificate management : Support Brute force delay protection : Support |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-9664NXI-I8/VPro · Marque : Hikvision
