Description et caractéristiques

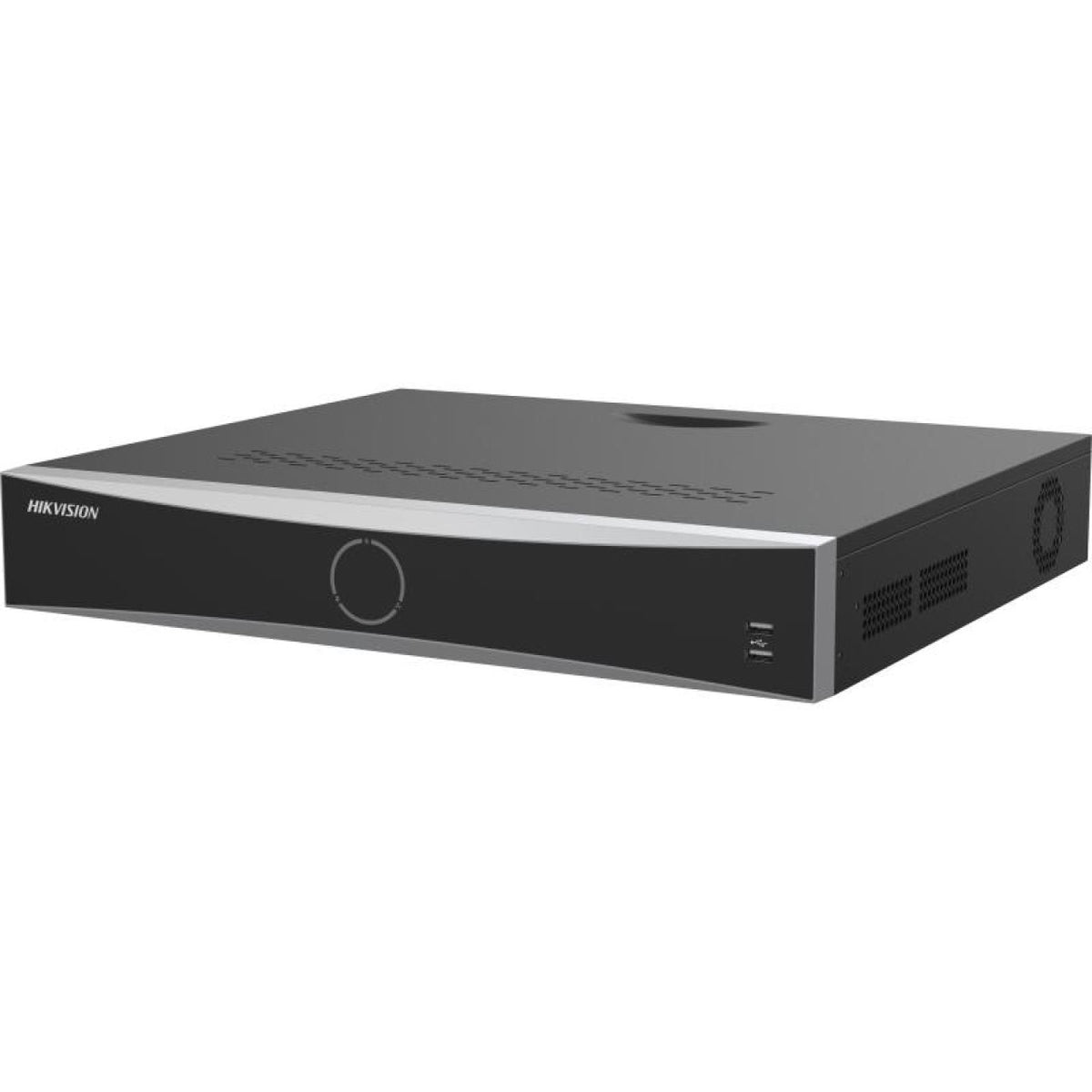

Enregistreur vidéo réseau NVR 8 canaux avec switch PoE intégré
- 8 canaux IP
- 12 MP
- 8 ports RJ45 PoE indépendants -budget total 120 W
- 4 emplacements pour disques durs SATA
- 1 HDMI / 1 VGA
- 1 port RJ45 -Analyse d'image Deep Learning (AcuSense) : Détection de mouvement 2.0 sur tous les canaux (filtrage personnes/véhicules), reconnaissance faciale ou protection périmétrique
- Bande passante entrante 80 Mbps / sortante 160 Mbps
- 1 entrée/1 sortie audio RCA, 16 entrées/4 sorties alarme matérielles
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 8 voies
- IA de l'enregistreur : AcuSense, Protection périmétrique, Reconnaissance faciale
- Résolution maximum : 12 MP
- Nombre de ports POE : 8 ports POE
Fiche technique
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
|---|---|
| AI by Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
| By Camera | All channels *: The camera should enable AcuSearch function |
| Performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day. |
| Search Language | English |
| By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| IP Video Input | 8-ch |
| Bande passante entrante | 80 Mbps |
| IP Speaker Input | 4-ch |
| Bande passante sortante | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, , 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| CVBS Output | N/A |
| Video Output Mode | HDMI/VGA independent output |
| Sortie audio | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ) |
| Decoding Format | H.265, H.265+, H.264, H264+ |
| Résolution d'enregistrement | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Capacité de décodage | AI on: 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps AI off: 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps |
| Stream Type | Video, Video & Audio |
| Live View Window Division | 1/2/4/6/8/9 |
| Playback Mode | Normal/Smart, Event, Tag, External File |
| Compression audio | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Protocoles réseau | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 150W |
| Standard | IEEE 802.3af/at |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| GUI Language | English,Russian,Bulgarian,Hungarian,Greek,German,Italian,Czech,Slovakia,French,Polish,Dutch,Portuguese,Spanish,Romanian,Turkish,Japanese,Danish,Swedish,Norwegian,Finnish,Korean,TraChinese,Thai,Estonia,Vietnamese,Croatian,Slovenian,Serbian,Latvian,Lithuanian,Uzbek,Kazak,Arabic,Hebrew,Ukrainian,Indonesian |
| Alimentation | 200 to 240 VAC, 50 to 60Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 440 × 391 × 72 mm (17.32 × 15.39 × 2.81 inch) |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE,CB,REACH,WEEE,UKCA,RCM,IC |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-7708NXI-K4/8P/VPro · Marque : Hikvision
