Description et caractéristiques

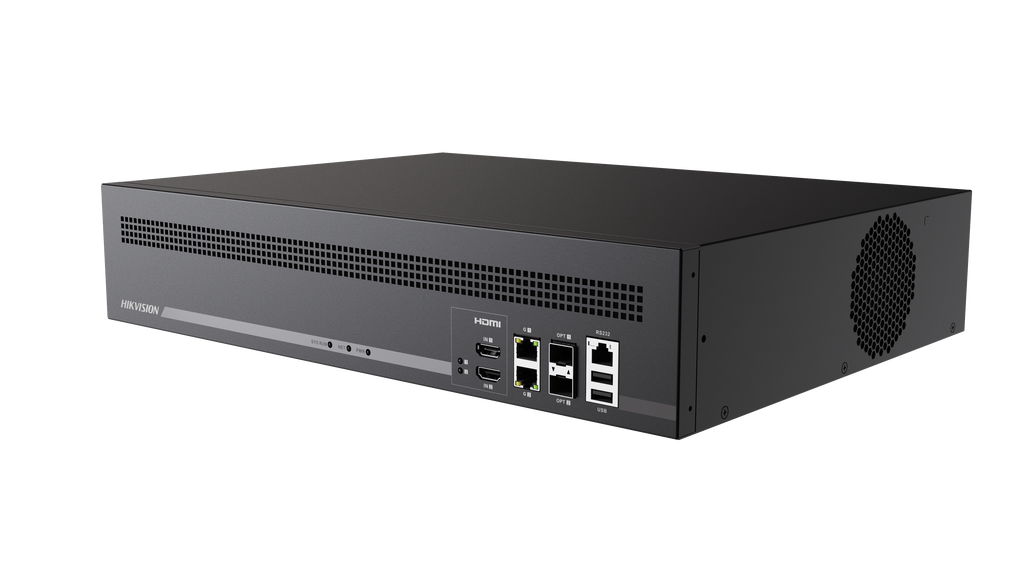

Décodeur UHD
- 192 caméras max
- 2 Entrées HDMI 4K
- 12 Sorties vidéo HDMI + 3 Sorties BNC
- Décodage H.264/H.265/Smart264/Smart265/MJPEG jusqu’à 32 MP
- Audio intégrée
- Video wall 64 scènes, 100 groupes
- PTZ, zoom et capture
- Contrôle via SDK, ONVIF, HCP et Web
- Alimentation 220V
Caractéristiques principales
- Nombre de sorties vidéo décodeur : 12 HDMI, 3 BNC
- Nombre d'entrée vidéo décodeur : 2 HDMI
- Nombre de caméras supportées décodeur : 192
Fiche technique
| Product Model | DS-6912UDI(C) |
|---|---|
| Network Interface | 2 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45) 2 × 100 BASE-FX/1000 BASE-X port Supports the self-adaption between the optical port and electrical port. |
| Alarm Input Interface | 8 channels |
| Alarm Out Interface | 8 channels |
| Serial Interface | 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port |
| USB Interface | 2 × USB 2.0 port |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| Device Power Consumption | < 120 W |
| Video Walls | 1 |
| Video Wall Scale | ≤ 12 |
| Split Window | Supported |
| Input Source Copy Capability | Not supported |
| Layers Per Screen | 4 × 1080p or 2 × 4K |
| Layers per Device | Layers Per Port × Output Port(s) |
| Scenes | 64 |
| Plans | 100 view groups on the HCP client |
| Window Division | 1, 2, 4, 6, 8, 9, 12, 16, 25, 36 |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 0％ RH to 90％ RH |
| Poids net | ≤ 6.4 kg (14.11 lb) |
| Poids brut | ≤ 7.8 kg (17.20 lb) |
| Dimensions (W × H × D) | 440 mm × 88 mm × 321 mm (17.32 inch × 3.46 inch × 12.64 inch) |
| Packing List | 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × mounting bracket, 1 × power cord, 4 × pads, 1 × grounding cable |
| Audio Input Interfaces | 2 |
| Audio Input Interface Type | Embedded HDMI |
| Video Input Interfaces | 2 |
| Video Input Interface Type | HDMI 1.4 |
| Max. Input Resolution | 4K (only in odd-numbered port) |
| Video Encoding Format | H.264 (default), H.265 |
| Video Encoding Channel(s) | 2 |
| Video Encoding Capability | 1 channel of 4K@30 Hz or 2 channels of 1080p@60 Hz |
| Audio Encoding Format | G722.1, G711_U, G711_A, AAC |
| Video Output Interface Type | HDMI 1.4 |
| Video Output Interface(s) | 12 |
| Max. Output Resolution | 4K |
| Video Output Resolution | 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz |
| Video Output Interface (BNC) | 3 channels of CVBS output (BNC port) |
| Video Output Resolution (BNC) | PAL: 704 × 576@25 Hz NTSC: 704 × 480@30 Hz |
| Loading Capacity for Video Output to LED | Single port load: 2600000, Width: 144 - 4096, Height: 144 - 2160, Width must be a multiple of 2 and height must be a multiple of 2 |
| Video Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
| Video Decoding Resolution | Up to 32 MP |
| Video Decoding Channel(s) | 192 |
| Audio Output Interface(s) | 12 |
| Audio Output Interface Type | Embedded HDMI audio output port or independent DB15-to-BNC audio output port |
| Audio Decoding Format | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-6912UDI(C) · Marque : Hikvision
