Description et caractéristiques

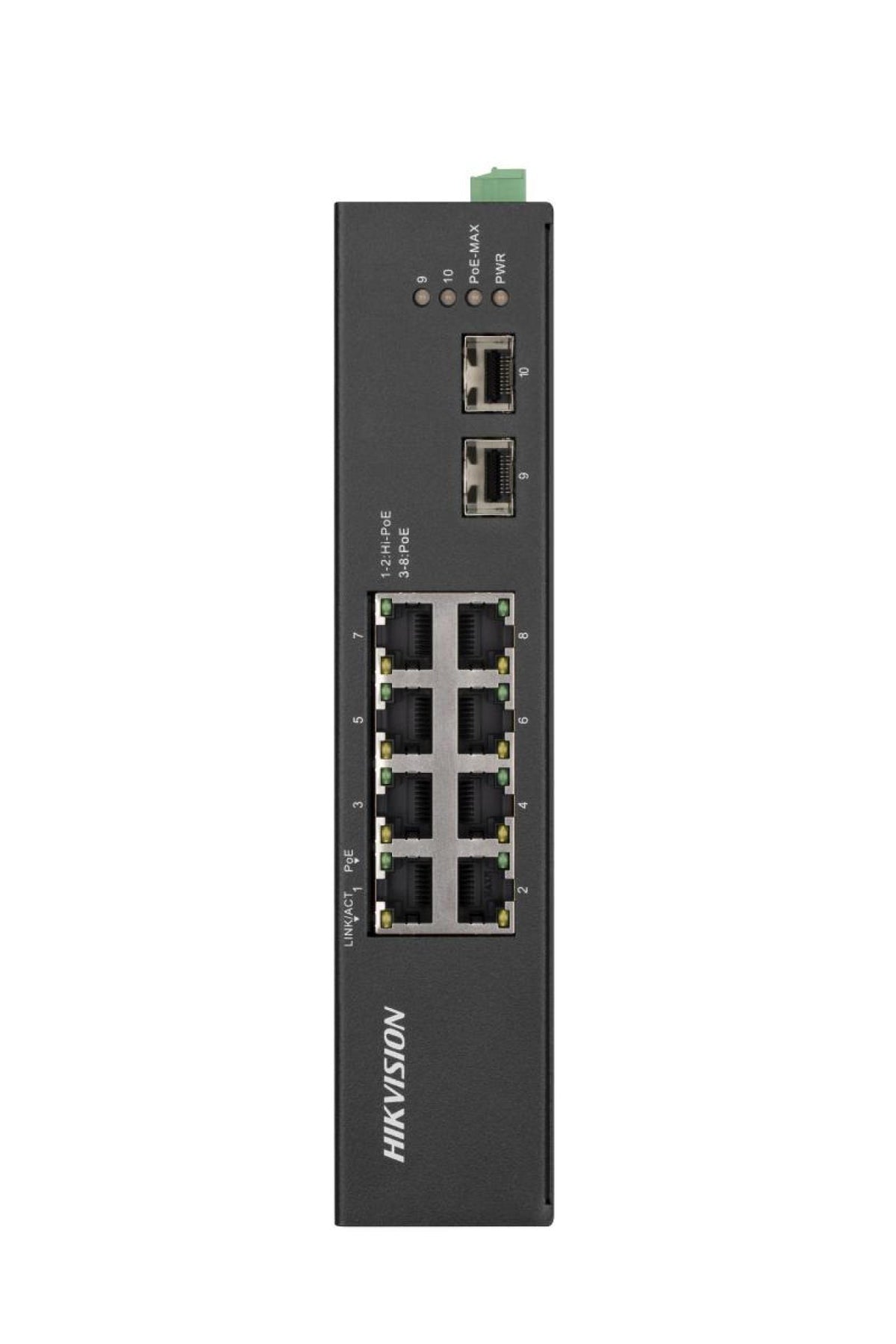

Switch industriel 8 ports POE HIKVISION
- 6 × gigabit ports PoE RJ45
- 2 × gigabit ports Hi-PoE RJ45
- 2 × gigabit SFP ports fibre optique
Caractéristiques principales
- Type de switch : Switch Non manageable, Switch Hi-POE
- Nombre de ports du switch : 10 ports
- Budget POE max : 110 W
- Nombre de ports POE Switch : 6 ports POE
- Nombre de Ports Hi-POE : 2 ports Hi-POE
Fiche technique
| Shell | Metal material, fan-free design |
|---|---|
| Poids net | 0.585 kg (1.29 lb) |
| Poids brut | 1.11 kg (2.45 lb) |
| Dimensions (W × H × D) | 197.0 mm × 114.2 mm × 42.2 mm (7.76'' × 4.50'' × 1.66'') |
| Température de fonctionnement | -30 °C to 65 °C (-22 °F to 149°F) |
| Température de stockage | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidité de fonctionnement | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Alimentation | 54VDC, 2.5A |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Installation Mode | Desk-Mounted,Rail |
| Surge Protection | 6 kV |
| Ports | 8 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC Address Table | 4 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 1.5 Mbits |
| Long Range | Ports 7 to 8: up to 300 m Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), ,4/5(+), 7/8(-) Ports 3 to 6: End-span: 1/2(-), 3/6(+) Ports 7 to 8:8-pin power: 1/2(-), 3/6(+) ,4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8 |
| Max. Port Power | Ports 1 and 2: 90 W Ports 3 to 8: 30 W |
| PoE Power Budget | 110 W |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-3T0510HP-E/HS · Marque : Hikvision
