Description et caractéristiques

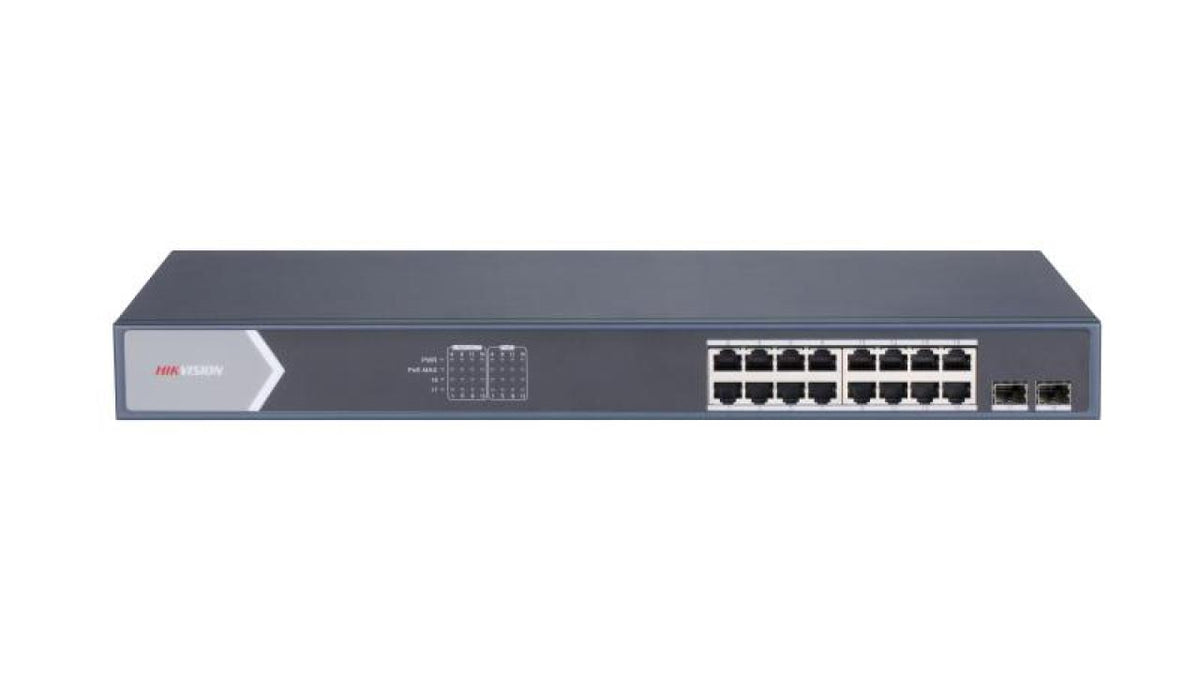

Switch 16 ports SMART POE HIKVISION + 2 Gigabits
- Serie Management Intelligent
- 300m transmission PoE
- Budget POE : 225W
- 16*10/100/1000Mbps
- Ports PoE
- 2*10/100/1000Mbps ports
Caractéristiques principales
- Type de switch : Switch manageable, Switch POE
- Nombre de ports du switch : 18 ports
- Budget POE max : 225 W
- Nombre de ports POE Switch : 16 ports POE
- Type de produit : Switch
Fiche technique
| Shell | Metal material |
|---|---|
| Poids net | 2.735 kg (6.03 lb) |
| Poids brut | 3.31 kg (7.30 lb) |
| Dimensions (W × H × D) | 440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”) |
| Température de fonctionnement | 0 °C to 45 °C (0 °F to 113 °F) |
| Température de stockage | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidité de fonctionnement | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Alimentation | 100 to 240 VAC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 25 W |
| Surge Protection | 6 KV surge protection for PoE ports. |
| Ports | 16 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| Long Range | Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 16: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
| System Maintenance | Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync |
| Port Rate-Limiting | Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. |
| Storm Control | Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets. |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-); |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 225 W |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-3E1518P-SI · Marque : Hikvision
