Description et caractéristiques

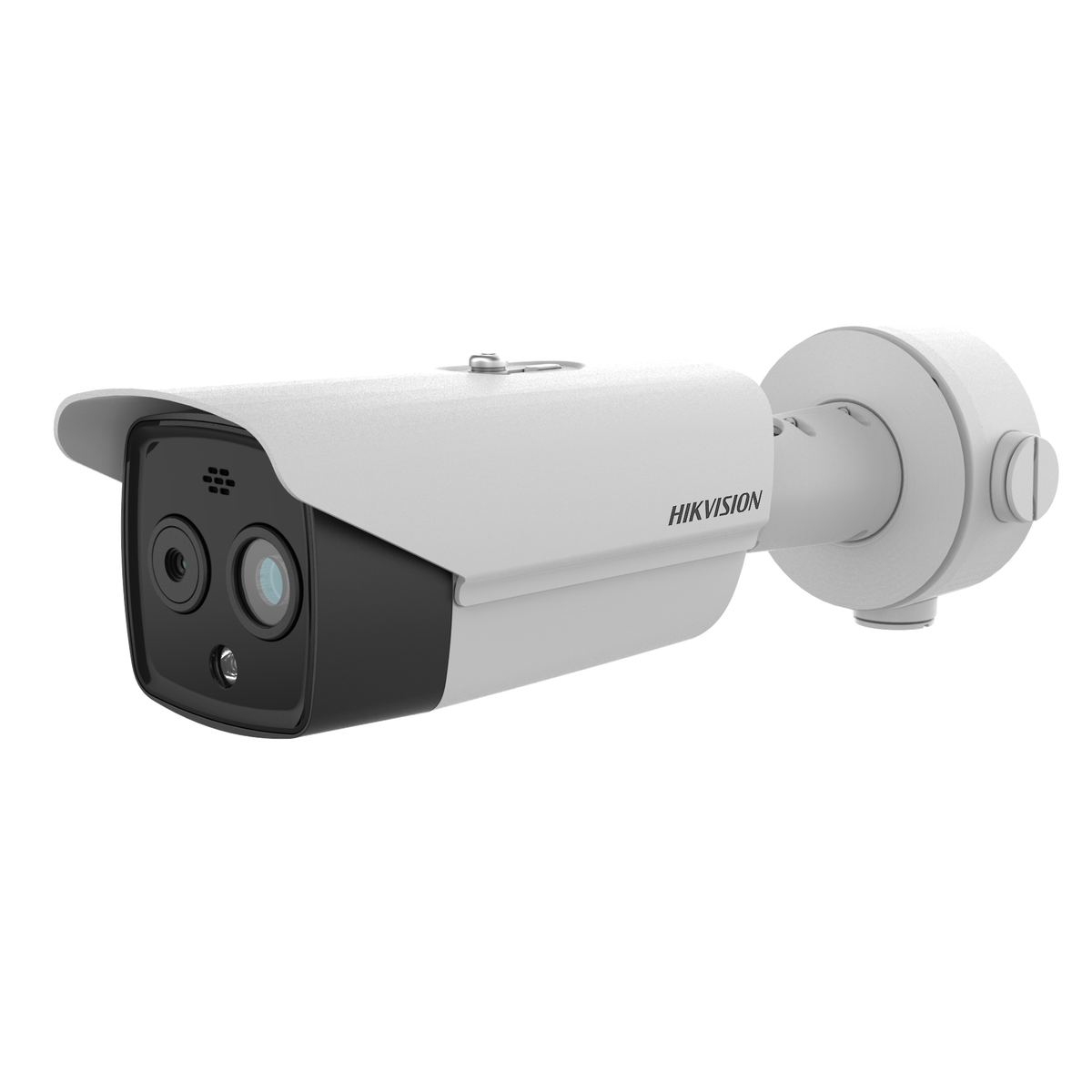

Tube IP Thermique HEATPRO double capteur :
- 1 x Capteur thermique de 9,7 mm en 256 × 192 Pxls
- 1 x Capteur 4 Mpxls avec focale 8 mm
- IR Distance 15m
- Fonction analyse embarquée
- Alerte AUDIO et FLASH Intégrée
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Intelligence Artificielle : Protection périmétrique
- Résolution : 4 MP
- Résolution thermique : 256 x 192
Fiche technique
| Capteur | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Résolutions | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | < 40 mK (25°C, F1.0) |
| Focale | 9.7 mm |
| IFOV | 1.24 mrad |
| Champ de vision | 18.0° × 13.5° (H × V) |
| Min. Focusing Distance | 1.5 m |
| Aperture | F1.0 |
| Zoom numérique | ×2, ×4 |
| Sensibilité (éclairement min.) | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| IR Distance | Up to 30 m |
| IR Intensity and Angle | Automatically adjusted |
| White Light Range | Up to 30 m |
| Visual Alarm | Yes. White light alarm with adjustable flashing frequencies |
| Audio alarm | Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Temperature Accuracy | ± 8°C (± 14.4°F) |
| General Function | Fire detection, smoking detection, sun-reflection filter |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Compression vidéo | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Compression audio | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Sécurité | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
| Entrée d'alarme | 2, alarm input (0-5 VDC) |
| Sortie d'alarme | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Entrée audio | 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Sortie audio | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Alimentation | 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) |
| Consommation | 24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W |
| Working Temperature/Humidity | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Protection Level | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection IK10-rated housing |
| Dimensions | 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21") |
| VCA Range for Humans | 80 m |
| VCA Range for Vehicles | 240 m |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2TD2628-10/QA · Marque : Hikvision
