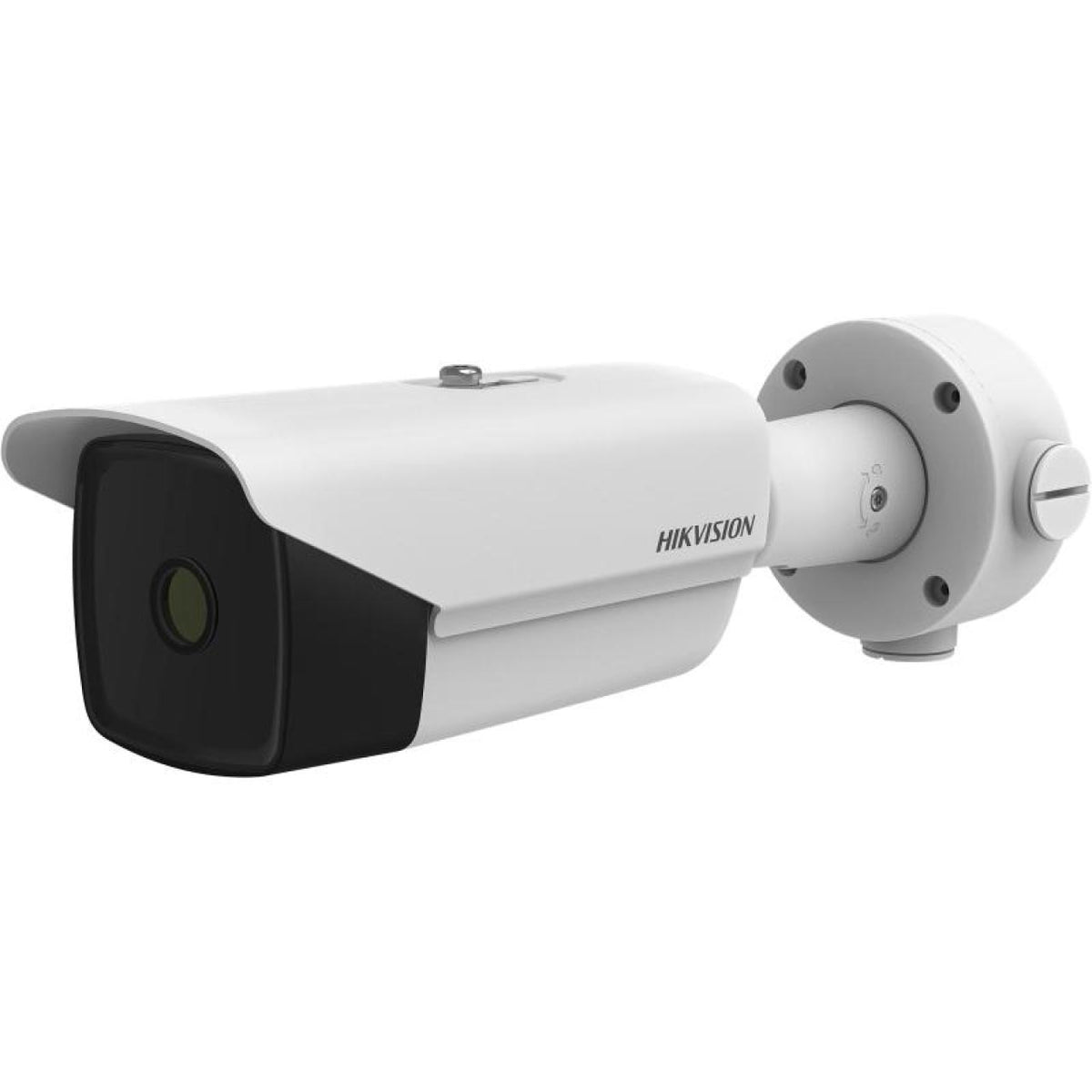

Description et caractéristiques
Caméra Thermique
- Focale Fixe 9.7mm
- Résolution 384 × 288 -Protection périmétrique
- Anti corrosion
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique, Anti-corrosion
- Intelligence Artificielle : Protection périmétrique
- Résolution thermique : 384 × 288
- Focale Fixe : 9.7 mm
Fiche technique
| Capteur | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Résolutions | 384 × 288 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | < 35 mK (25°C, F1.0) |
| Focale | 9.7 mm |
| IFOV | 1.24 mrad |
| Champ de vision | 26.0° × 20.0° (H × V) |
| Min. Focusing Distance | 1.2 m |
| Aperture | F1.0 |
| Zoom numérique | 2×, 4×, 8× |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Temperature Accuracy | ± 8°C (± 14.4°F) |
| Main Stream | 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288) |
| Sub-stream | 25 fps (704 × 576, 640 × 512, 352 × 288) |
| Third Stream | 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288) |
| Compression vidéo | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| Compression audio | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP，SSL |
| API | ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Sécurité | User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Simultaneous Live View | Up to 20 channels |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed): Internet Explorer 11 Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 + Local service: Chrome 57.0 +, Firefox 52.0 + |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Entrée d'alarme | 2, alarm input (0 to 5 VDC) |
| Sortie d'alarme | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Entrée audio | 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Sortie audio | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface (half duplex) |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Alimentation | 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) |
| Consommation | 24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W 12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W |
| Working Temperature/Humidity | Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 90% or less |
| Protection Level | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection IK10-rated housing |
| Dimensions | 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53") |
| VCA Range for Humans | 100 m |
| VCA Range for Vehicles | 300 m |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2TD2138-10/QY · Marque : Hikvision
