Description et caractéristiques

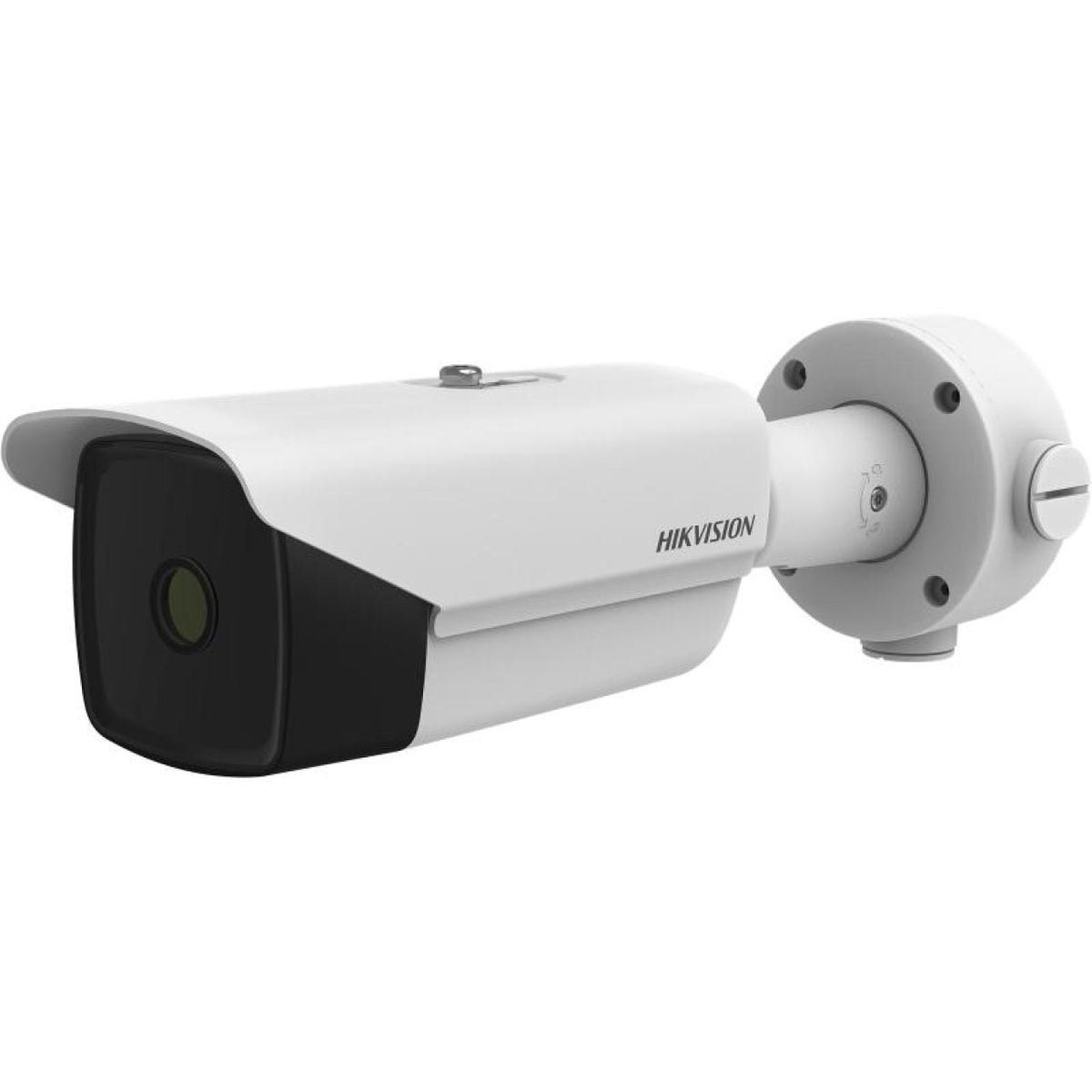

Caméra Thermique Thermographique
- Focale Fixe 6,5mm
- Résolution 384 × 288
- Fonction analyse embarquée
- Détection de feu à +/- 2°C
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Résolution thermique : 384 × 288
- Focale thermique : 7 mm
- Audio : Entrée audio, Sortie audio
Fiche technique
| Capteur | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Résolutions | 384 × 288 |
| Pixel Interval | 17 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | ≤ 35 mk (25 °C, F# = 1.0) |
| Focale | 6.5 mm |
| IFOV | 2.62 mrad |
| Champ de vision | 60° × 44.1° (H × V) |
| Min. Focusing Distance | 0.6 m |
| Aperture | F 1.0 |
| Zoom numérique | ×2, ×4, ×8 |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
| Temperature Range | - 20 °C to 550 °C (- 4 °F to 1022 °F) |
| Temperature Accuracy | Max (± 2 °C, ±2 %) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. |
| Main Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288) |
| Sub-stream | 50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288) |
| Third Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288) |
| Compression vidéo | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| Compression audio | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) |
| Sécurité | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Simultaneous Live View | Up to 20 channels |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Entrée d'alarme | 2-ch inputs (0-5 VDC) |
| Sortie d'alarme | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Entrée audio | 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Sortie audio | Linear level, impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power | 24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block PoE (802.3af, class 3) |
| Consommation | 18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W 24VDC: 0.21A, max 5 W PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W |
| Working Temperature/Humidity | Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less |
| Protection Level | IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53") |
| VCA Range for Humans | 49 m |
| VCA Range for Vehicles | 147 m |
Référence fabricant : DS-2TD2137T-7/P · Marque : Hikvision
