Description et caractéristiques

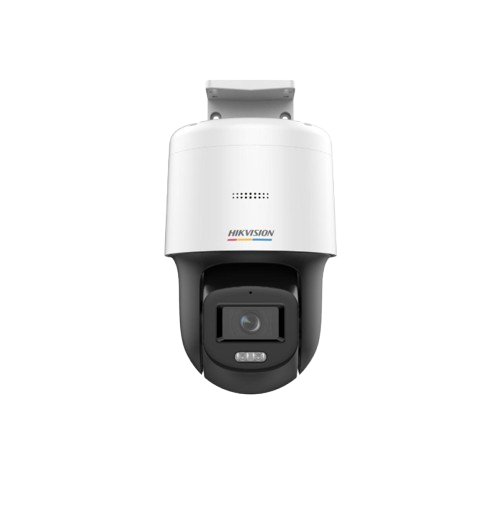

Dôme PTZ IP blanc
- 4 MP
- FF 2.8 mm LED 30 m
- ColorVu
- Micro et haut-parleur intégrés
- IP66
- 12V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : ColorVu
- Résolution : 4 MP
- Focale Fixe : 2.8 mm
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 1/1.8" Progressive Scan CMOS |
|---|---|
| Résolution max. | 2560 × 1440 |
| Sensibilité (éclairement min.) | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light |
| Focale | 2.8 mm/4 mm |
| FOV | 2.8 mm, horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9° 4 mm, horizontal FOV 88.7°, vertical FOV 44.7°, diagonal FOV 107.5° |
| Aperture | F1.0 |
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
| Smart Supplement Light | Yes |
| Movement Range (Pan) | 0° to 340° |
| Movement Range (Tilt) | -5° to 105° |
| Pan Speed | Pan speed: configurable from 4° to 21°/s |
| Tilt Speed | Tilt speed: configurable from 4° to 19°/s |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Compression vidéo | H.265, H.264, MJPEG |
| Débit vidéo | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Compression audio | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Protocols | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| API | Open Network Video Interface, ISAPI, SDK |
| Image Settings | Saturation, brightness, contrast, sharpness |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset | Yes |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card |
| Power | 12 V, 0.6 A, max 7.2 W, PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A, max 10 W |
| Dimension | Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4") |
| Operating Condition | With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing) |
| General Function | Mirror, password protection, watermark |
| EMC | FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7 |
| Indice de protection | IP66: IEC 60529-2013 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2DE2C400SCG-E(F0) · Marque : Hikvision
