Description et caractéristiques

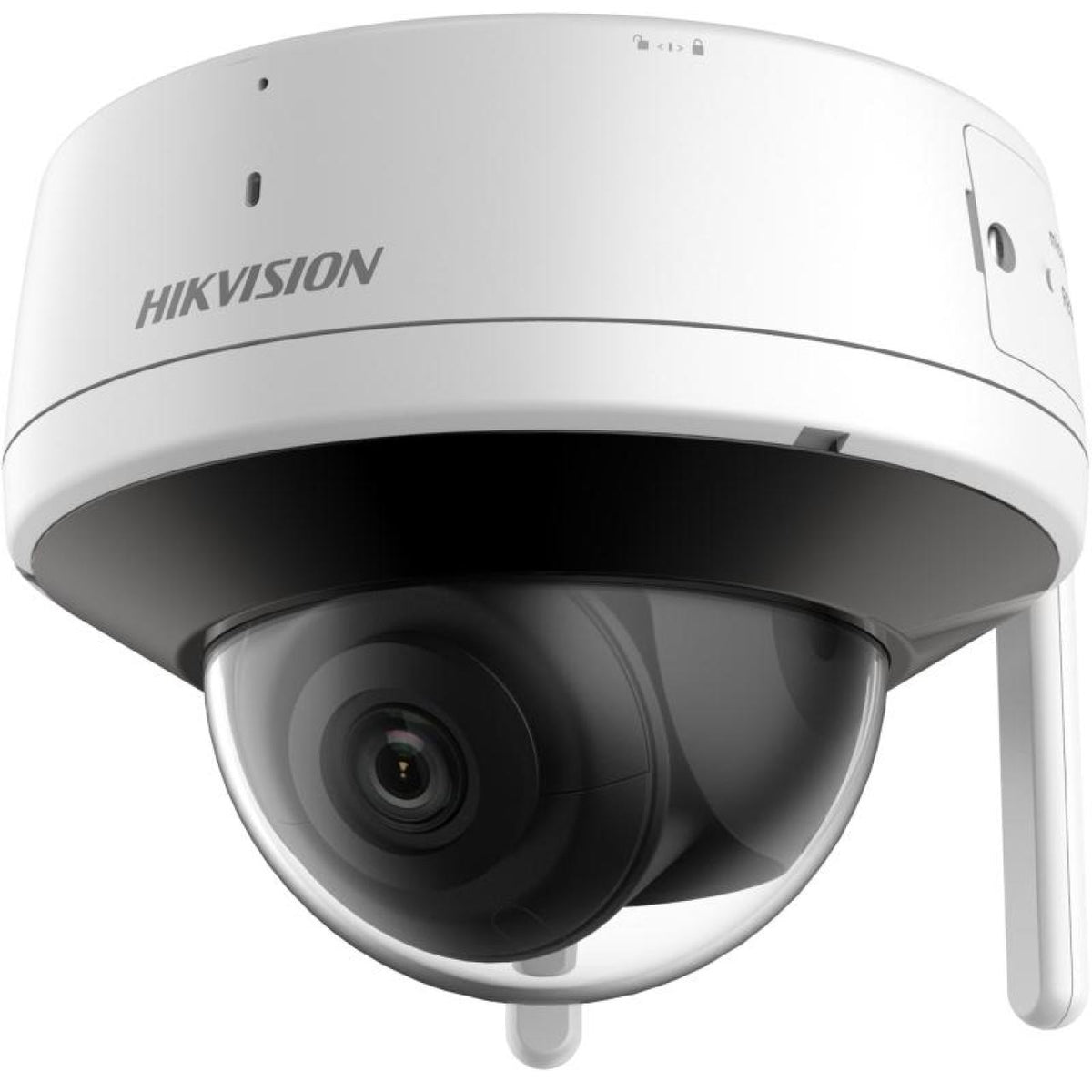

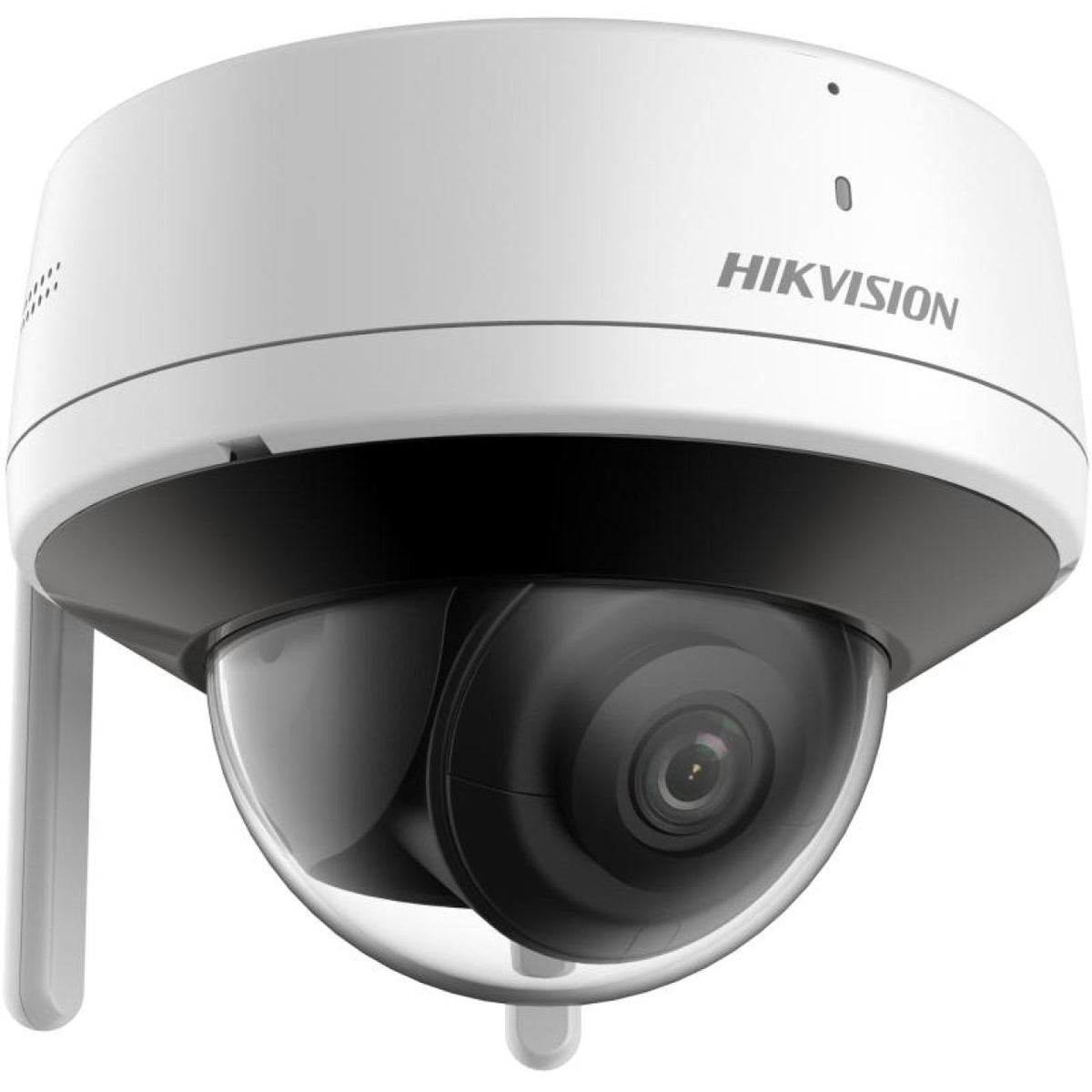

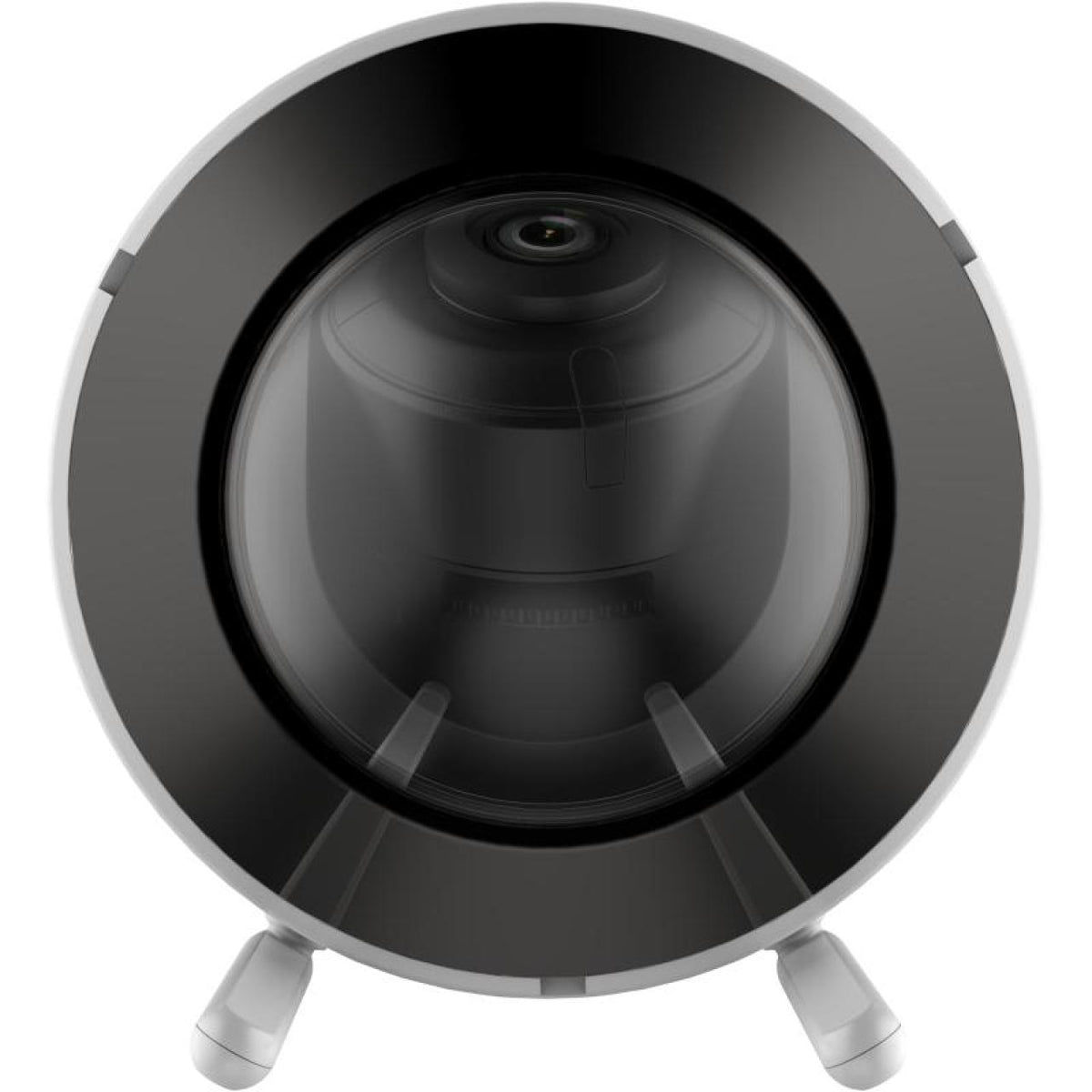

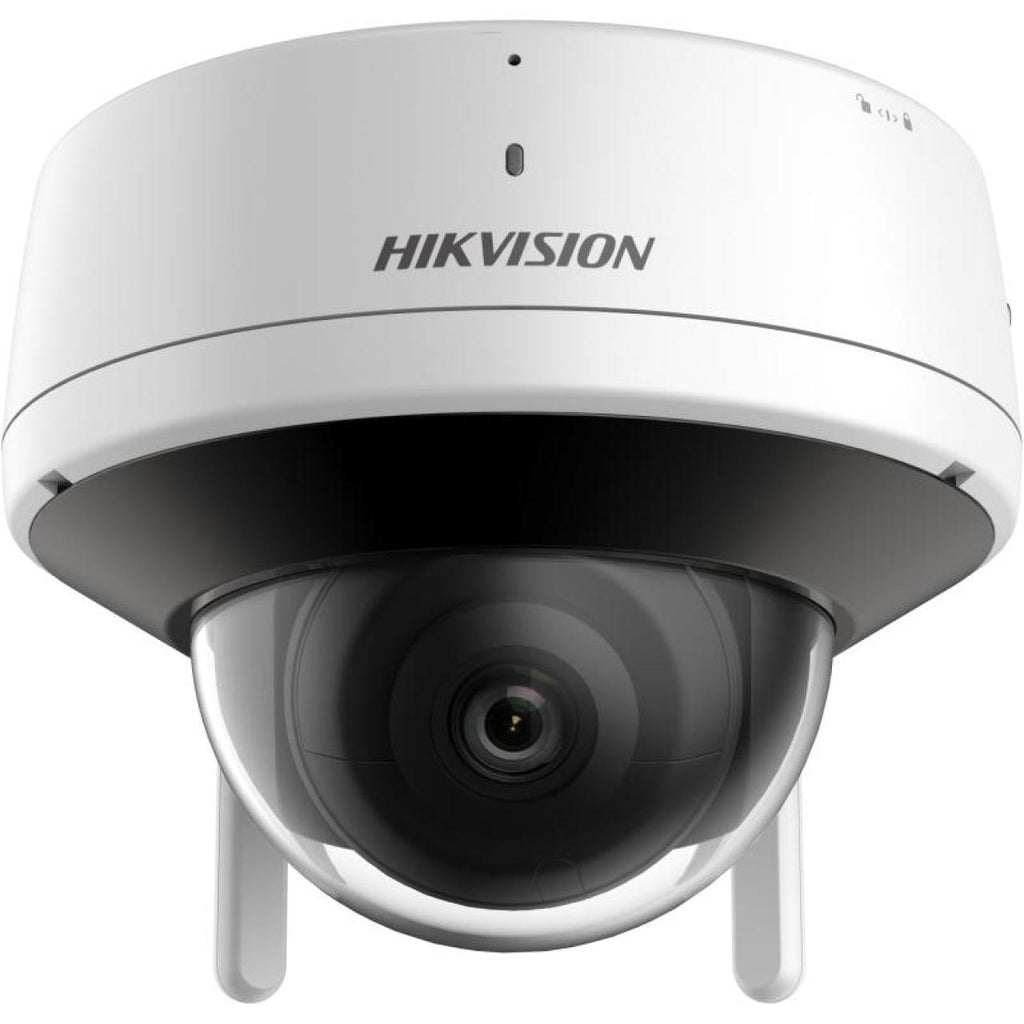

Dôme IP blanc
- 4 MP
- FF 2.8mm
- IR 30m
- Micro/Haut-parleur intégrés
- 12V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Résolution : 4 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 30 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 1/3" Progressive Scan CMOS |
|---|---|
| Résolution max. | 2560 × 1440 |
| Sensibilité (éclairement min.) | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Réglage angulaire | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Type d'objectif | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111° 4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94° |
| Aperture | F1.6 |
| Iris Type | Fixed |
| Monture | M12 |
| Depth of Field | 2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞ |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Compression vidéo | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264 |
| Débit vidéo | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Contrôle du débit | CBR,VBR |
| Compression audio | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Sécurité | Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS |
| Utilisateurs simultanés | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage | NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible. |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Wi-Fi Protocol | 802.11n: OFDM,802.11b: CCK, QPSK, BPSK,802.11g: OFDM |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11n: OFDM ,802.11b: CCK, QPSK, BPSK,802.11g: OFDM |
| Transfer Rate | 11n: up to 300 Mbps |
| Wireless Range | Up to 120 m (The performance varies based on actual environment) |
| Antenna | 2 Antennas |
| Image Settings | saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event | Motion detection, exception |
| Linkage | notify surveillance center,trigger recording,trigger capture, Upload to NAS/memory card |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package. |
| Language | English, Ukrainian |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Material | Polycarbonate cover, polycarbonate body |
| Dimension | Ø126 mm × 96.1 mm (Ø5" × 3.8") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| With Package Weight | Approx. 989 g (2.2 lb.) |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| RF | FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); MIC (JPN) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Indice de protection | IP66: IEC 60529-2013 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2CV2141G2-IDW(W)(2.8mm) · Marque : Hikvision
