Description et caractéristiques

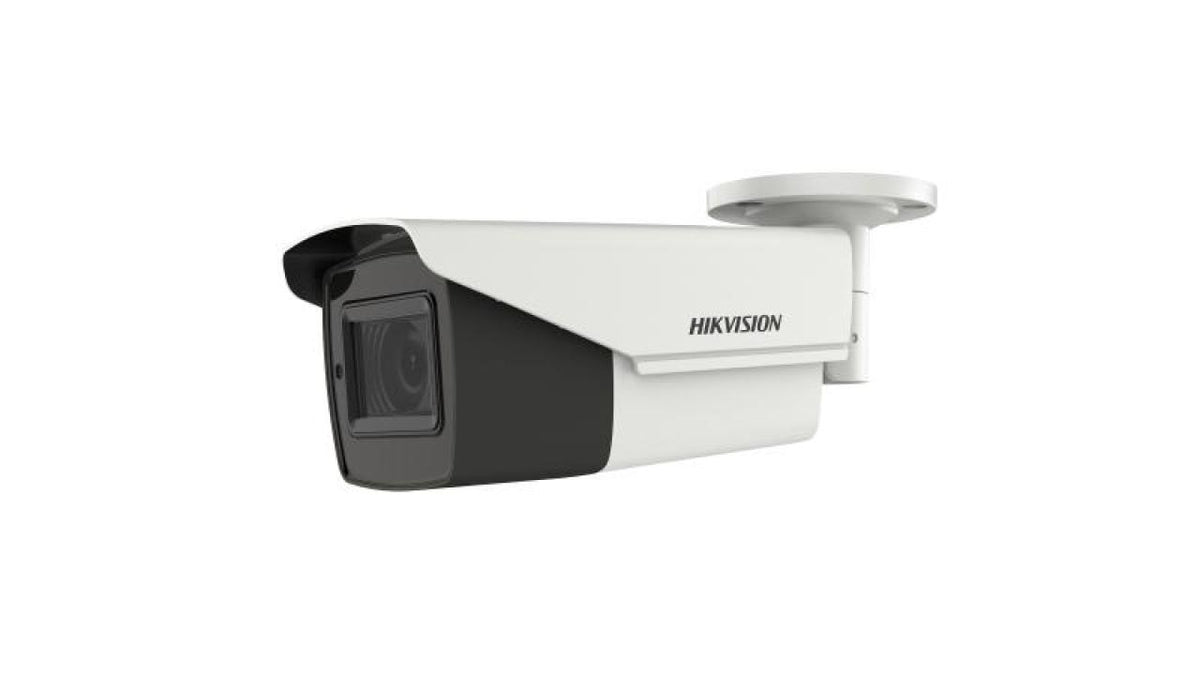

Tube AHD CVBS HDCVI HDTVI blanc
- 8 Mp
- VF motorisée 2.7-13.5 mm
- IR 80m
Caractéristiques principales
- Technologie de caméra : Caméra AHD, Caméra CVBS, Caméra HDCVI, Caméra HDTVI
- Résolution : 8 MP
- Varifocale : 2.7 - 13.5 mm
- IR & LED : IR 80 m
- Compensation contre jour : WDR 130dB
Fiche technique
| Capteur | 8.29 megapixel progressive scan CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| Sensibilité (éclairement min.) | Color: 0.003 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Réglage angulaire | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Type d'objectif | 2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length & FOV | 108.1° to 45.6° |
| Monture | Φ14 |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 80 m |
| Smart Supplement Light | Yes |
| Image Settings | Brightness;Sharpness;Mirror;Smart IR;AGC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC;WDR |
| Réduction du bruit | 3D DNR |
| Balance des blancs | Auto/Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS;1 HD analog output |
| Power | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.8W |
| Material | Metal |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Indice de protection | IP67 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2CE19U7T-AIT3ZF(2.7-13.5mm) · Marque : Hikvision
