Description et caractéristiques

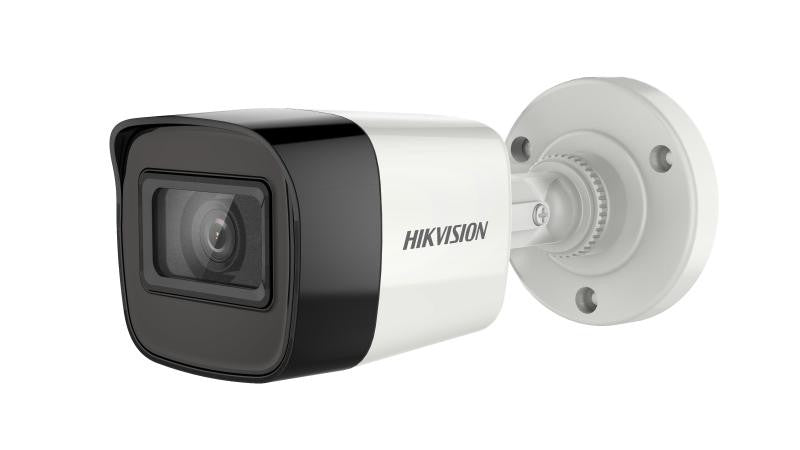

Tube AHD CVBS HDCVI HDTVI blanc
- 5 Mp
- FF 2.8mm
- IR 20m
Caractéristiques principales
- Technologie de caméra : Caméra AHD, Caméra CVBS, Caméra HDCVI, Caméra HDTVI
- Résolution : 5 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 20 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 5 MP CMOS image sensor |
|---|---|
| Résolution max. | 2560 (H) × 1944 (V) |
| Sensibilité (éclairement min.) | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | IR cut filter |
| Réglage angulaire | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Type d'objectif | Fixed Lens |
| Focal Length & FOV | 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm) |
| Monture | M12 |
| Image Settings | Brightness, Sharpness, DNR , Mirror, Smart IR |
| Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | DWDR |
| Image Enhancement | BLC |
| Balance des blancs | ATW/MWB |
| AGC | Support |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42") |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Language | English |
| Alimentation | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 20 m |
| Indice de protection | IP67 |
Référence fabricant : DS-2CE16H0T-ITF(2.8mm)(C) · Marque : Hikvision
