Description et caractéristiques

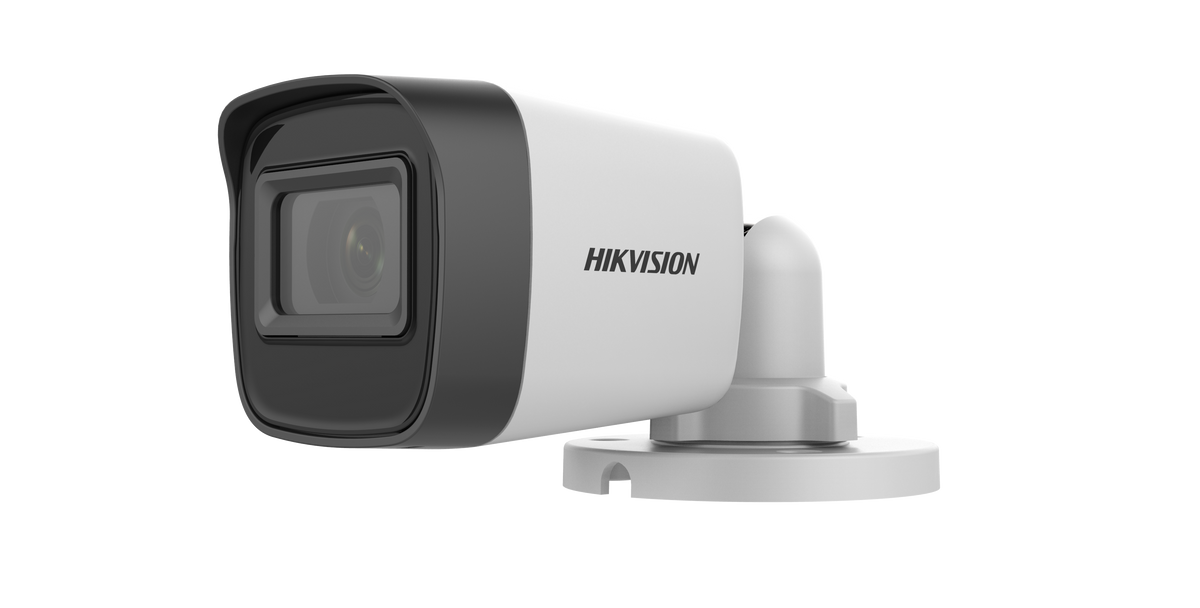

Tube TVI/CVI/CVBS/AHD
- Blanc
- 2 MP
- Focale fixe 2.8mm
- IR 30m
- 12V
- IP67
- DWDR
Caractéristiques principales
- Technologie de caméra : Caméra AHD, Caméra CVBS, Caméra HDCVI, Caméra HDTVI
- Résolution : 2 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 30 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 2 MP CMOS |
|---|---|
| Résolution max. | 1920 (H) × 1080 (V) |
| Sensibilité (éclairement min.) | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Réglage angulaire | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Type d'objectif | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8° |
| Monture | M12 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| Balance des blancs | ATW/MANUAL |
| AGC | Support |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Material | Metal |
| Dimension | 57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47") |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Alimentation | 12 VDC ± 25% |
| Consumption | Max. 3 W |
| IR Range | Up to 30 m |
| Indice de protection | IP67 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2CE16D0T-ITF(2.8mm)(C) · Marque : Hikvision
