Description et caractéristiques
Tube AHD CVBS HDCVI HDTVI blanc
- 2 Mp
- FF 2.8mm
- IR 20m
Caractéristiques principales
- Technologie de caméra : Caméra AHD, Caméra CVBS, Caméra HDCVI, Caméra HDTVI
- Résolution : 2 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 20 m
- Compensation contre jour : DWDR
Fiche technique
| Capteur | 2MP CMOS image sensor |
|---|---|
| Résolution max. | 1920 (H) × 1080 (V) |
| Sensibilité (éclairement min.) | 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Day & Night | IR cut filter |
| Réglage angulaire | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Type d'objectif | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) |
| Monture | M12 |
| Image Settings | Brightness, Sharpness, DNR, Mirror |
| Frame Rate | PAL: 1080p@25fps,NTSC: 1080p@30fps |
| Day/Night Mode | Smart/color/BW(Black and White) |
| Wide Dynamic Range (WDR) | DWDR |
| Image Enhancement | BLC |
| AGC | Low/middle/high |
| Video Output | TVI/AHD/CVI/CVBS |
| Material | Metal |
| Dimension | Φ 70 mm × 154.5 mm (Φ 2.76" × 6.08") |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Language | English, Chinese |
| Alimentation | 12 VDC±15% |
| Consumption | Max. 4 W |
| IR Range | Up to 20 m |
| Indice de protection | IP66 |

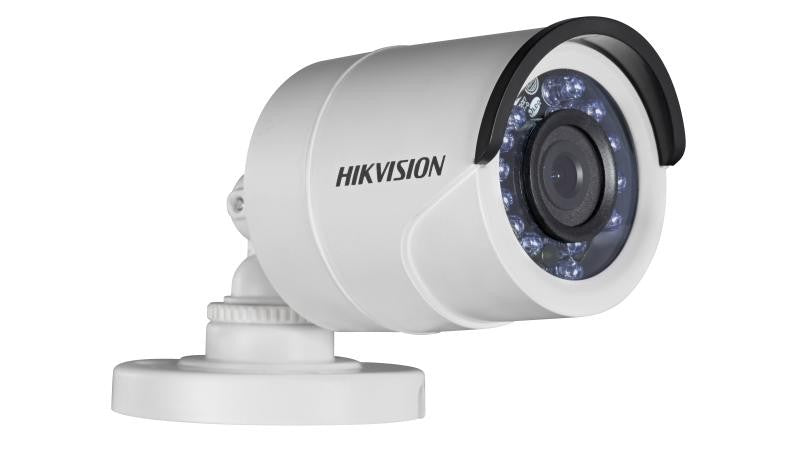

Référence fabricant : DS-2CE16D0T-IRF(2.8mm)(C) · Marque : Hikvision
