Description et caractéristiques

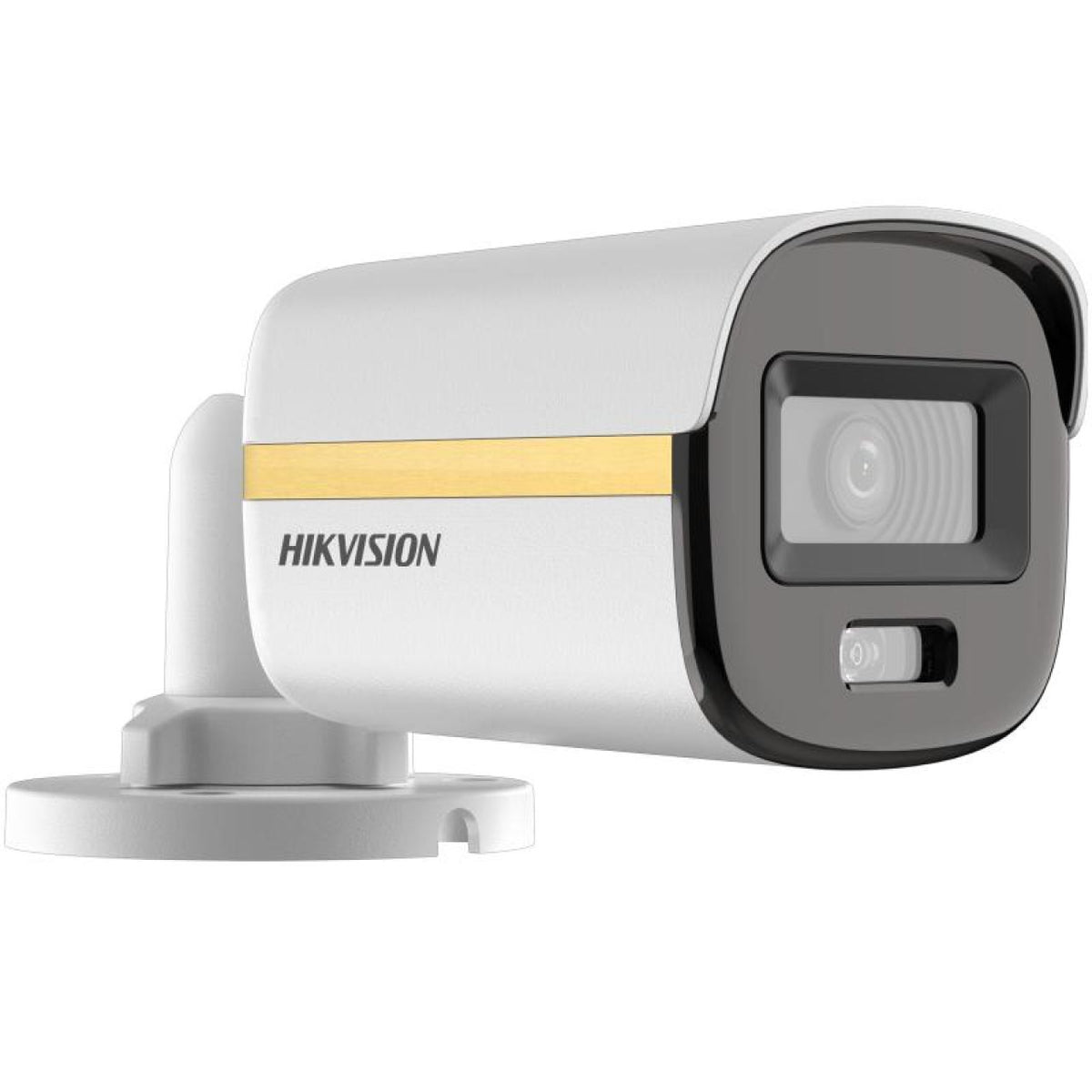

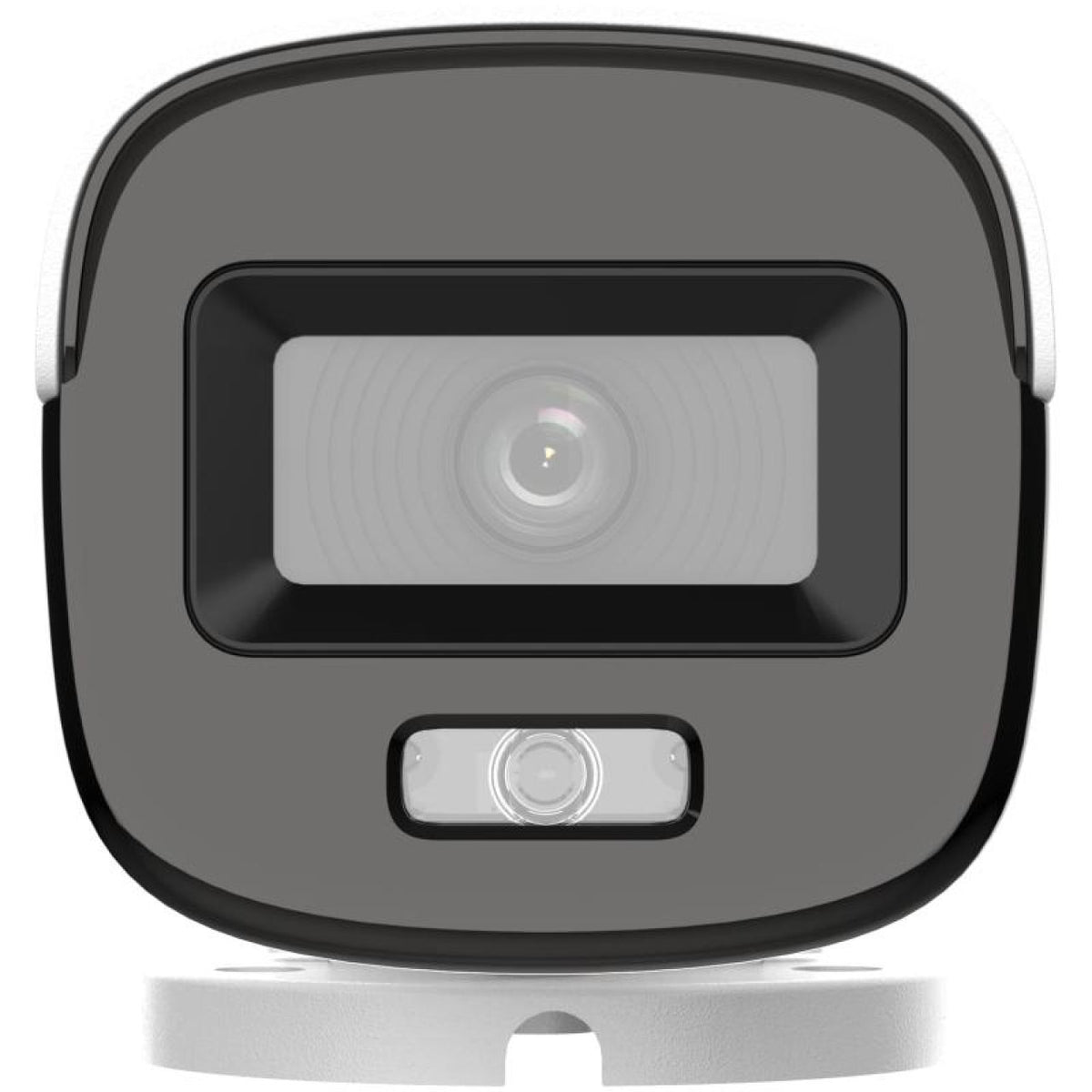

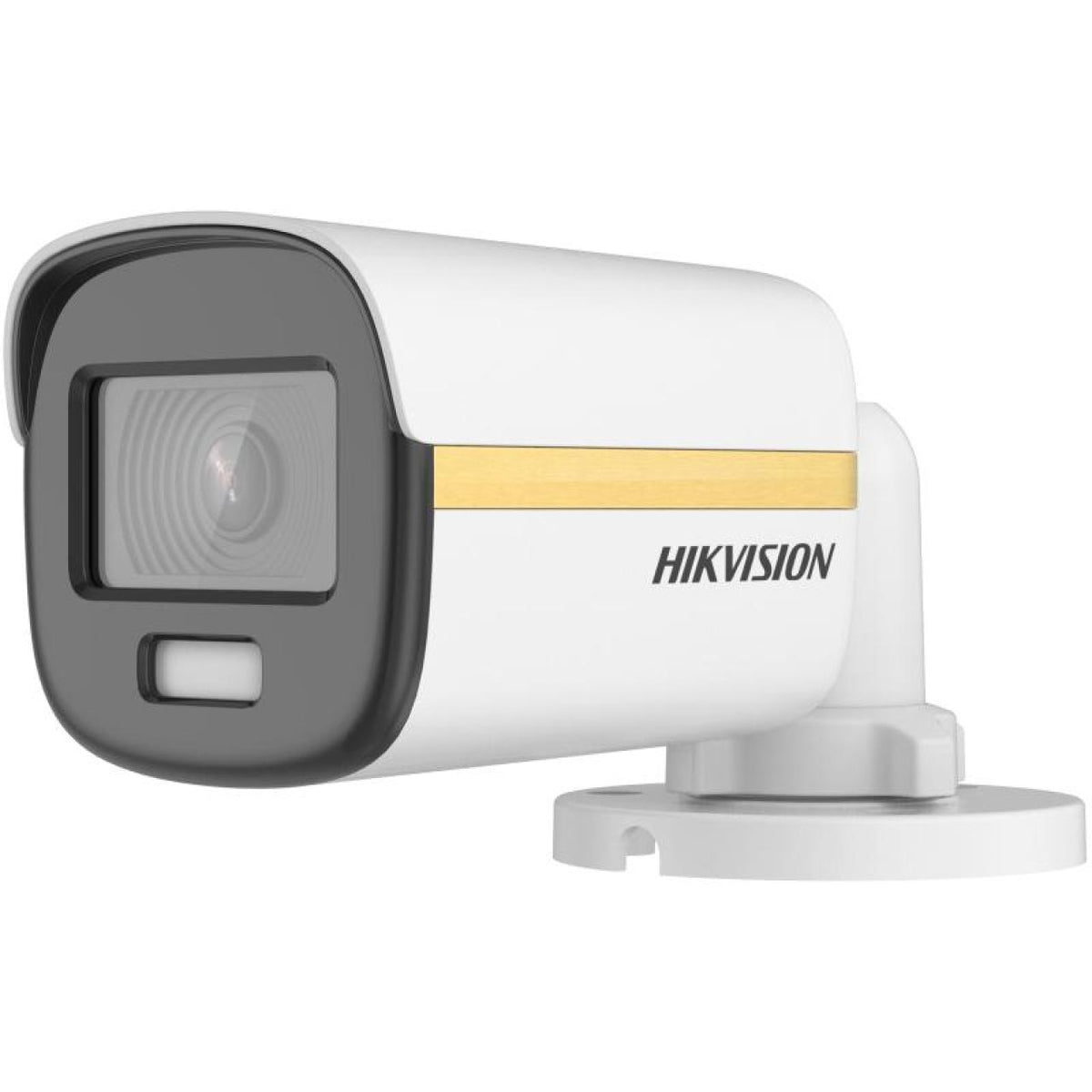

Tube HDTVI blanc POC
- 8 Mp
- FF 2.8mm
- IR 20 m
- ColorVu
Caractéristiques principales
- Technologie de caméra : Caméra HDTVI
- Fonctionnalités de la caméra : ColorVu
- Résolution : 8 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 20 m
Fiche technique
| Capteur | 8 MP CMOS |
|---|---|
| Signal System | PAL/NTSC |
| Résolution max. | 3840 (H) × 2160 (V) |
| Sensibilité (éclairement min.) | 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Réglage angulaire | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Type d'objectif | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113° |
| Monture | M16 |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Frame Rate | TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Color |
| Balance des blancs | Auto/Manual |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Réduction du bruit | 3D DNR/2D DNR |
| Image Settings | Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC |
| Video Output | 1 HD analog output |
| Alarm | Solid Light Alarm (White Light) |
| Détection de mouvement | 4 programmable motion areas |
| Language | English |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Metal |
| Communication | HIKVISION-C |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Power | 12 VDC ± 25%/PoC.at, Max. 3.6 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
| Indice de protection | IP67 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-2CE10UF3T-E(2.8mm)(O-STD) · Marque : Hikvision
