Description et caractéristiques

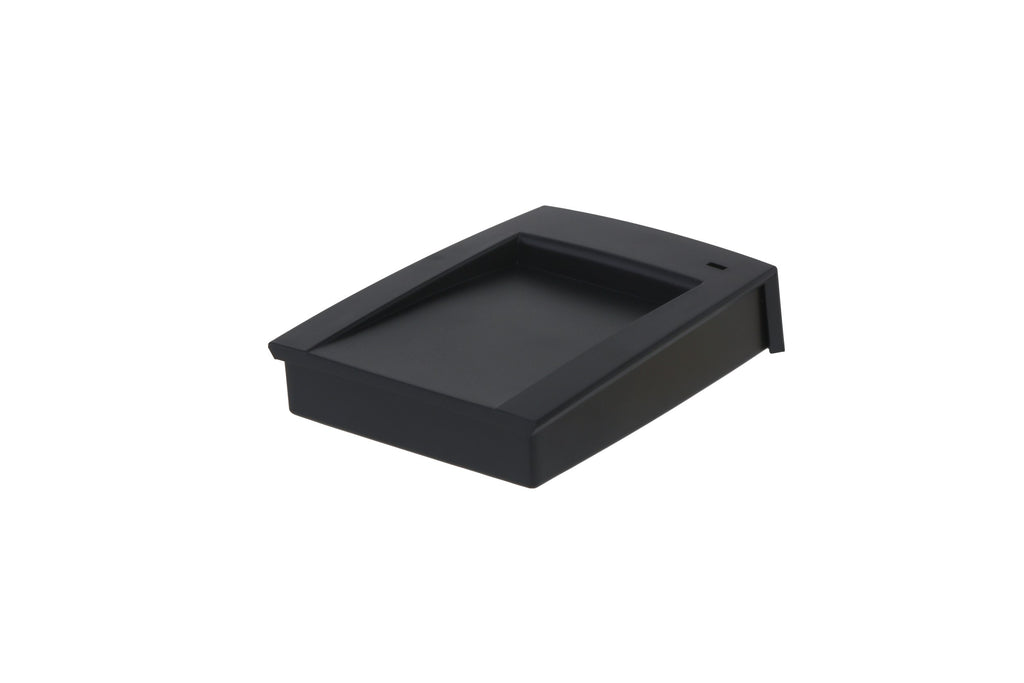

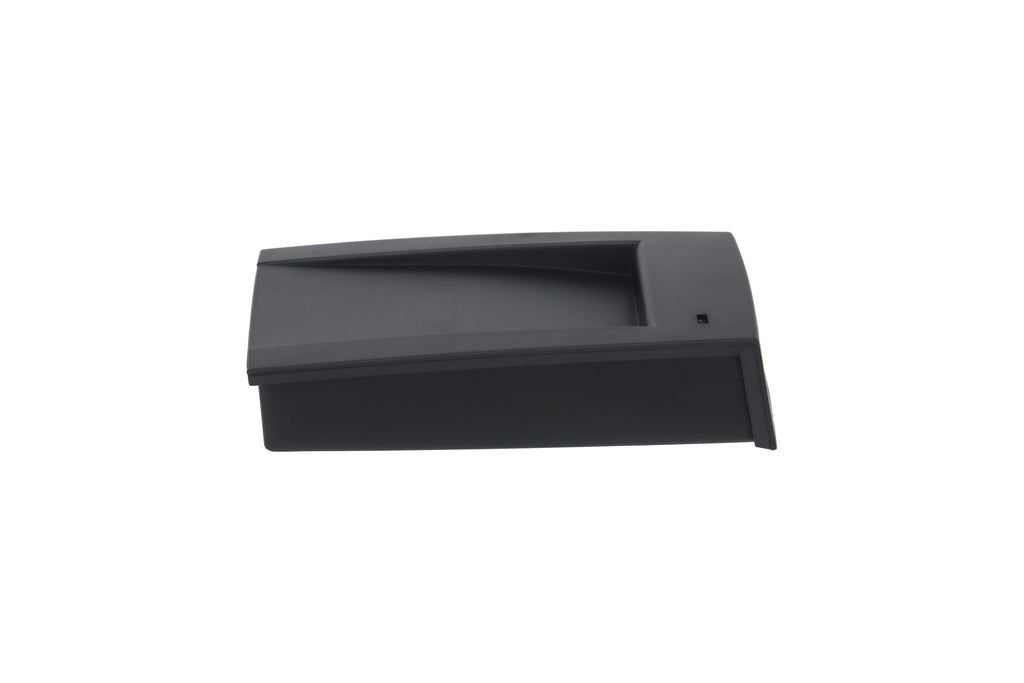

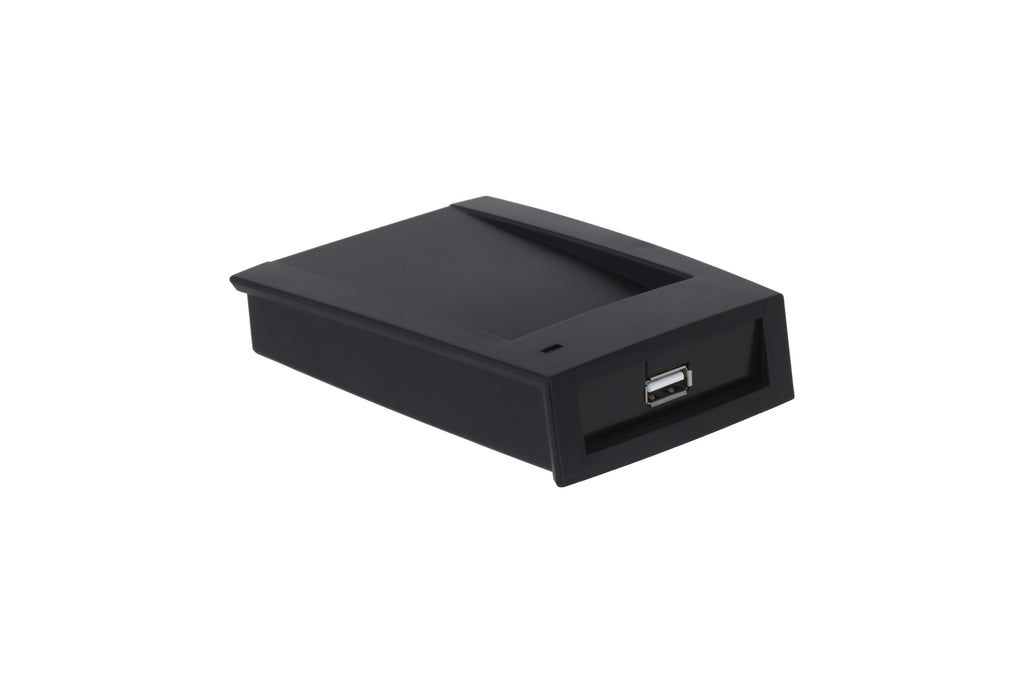

Enrôleur de carte Mifare
- USB
- Plug and play
Caractéristiques principales
- Type de produit : Enroleur de badge
- Type de protocole : RS-485
- Type d'accès : Mifare
- Protection : IP65
- Couleur : Noir
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Status Indicator Light | 1 (Green: Normal; red: abnormal) |
| Casing | PC+ABS |
| Buzzer | Yes |
| Communication Mode | Issues IC (Mifare) cards |
| Prompt of Succeeded in Issuing Card | Card issuer is solid green and buzzer sounds for 1 s |
| Prompt of Failed to Issue Card | Card issuer flashes red and buzzer sounds 3 times |
| Card Reading Frequency | 13.56MHz |
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max Transmission Power | 42 dBuA/m @10 m |
| Card Issuing Distance | 3 cm–5 cm (1.18"–1.97") |
| Network Update | Yes |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Alimentation | 5 V DC, 0.5 A |
| Dimensions | 105 mm × 75 mm × 20 mm (4.13" × 2.95" × 0.79") (H × W × D) |
| Packaging Dimensions | 192 mm × 132 mm × 54 mm (7.56" × 5.20" × 2.13") |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | 5%–95% (RH), non-condensing |
| Operating Environment | Indoor |
| Poids brut | 0.18 kg (0.40 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASM100-V1 · Marque : Dahua
