Description et caractéristiques

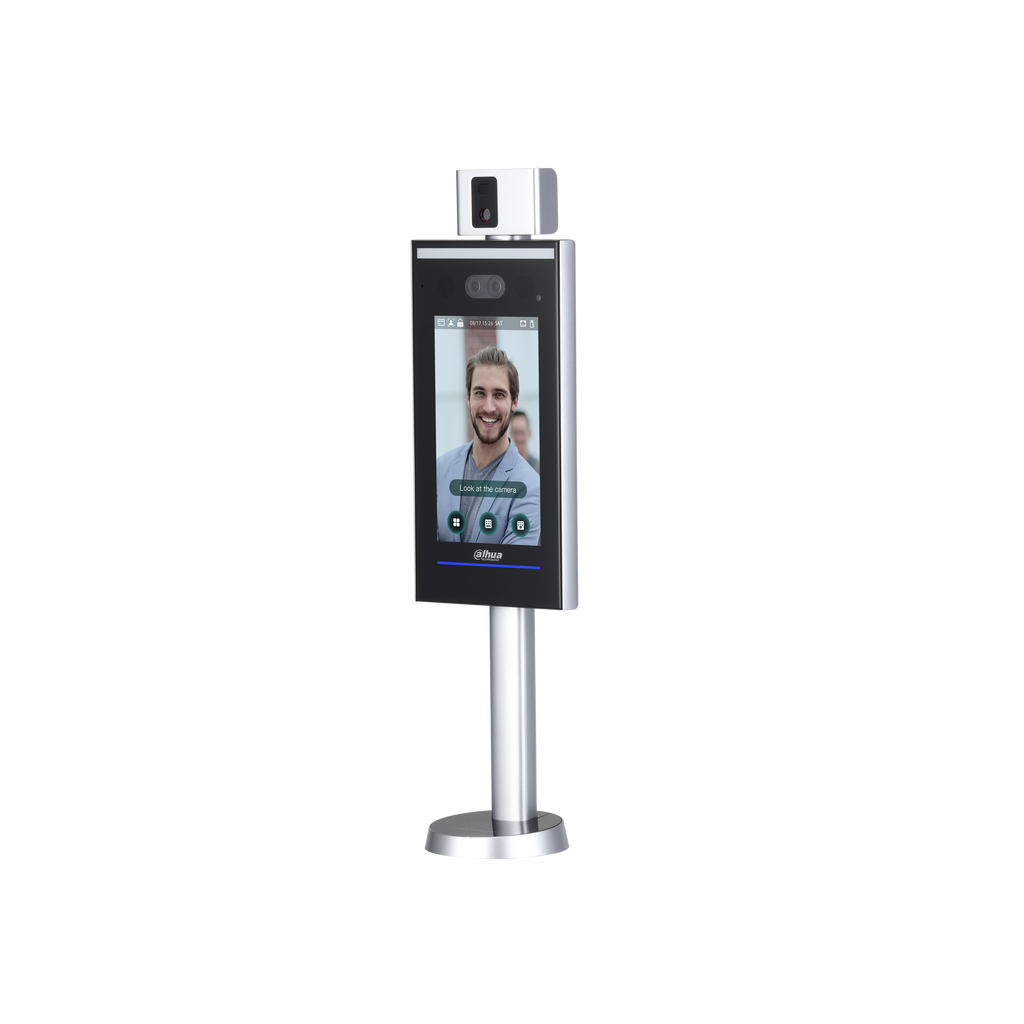

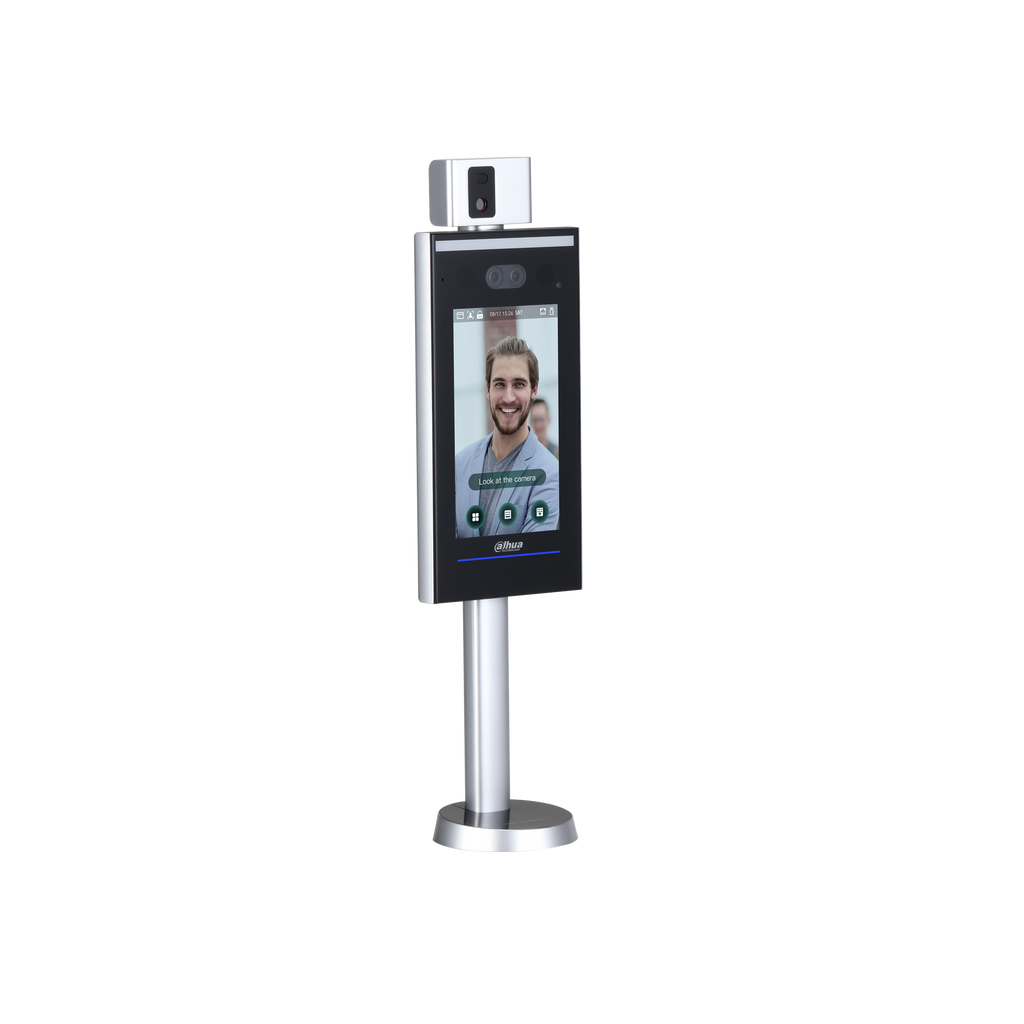

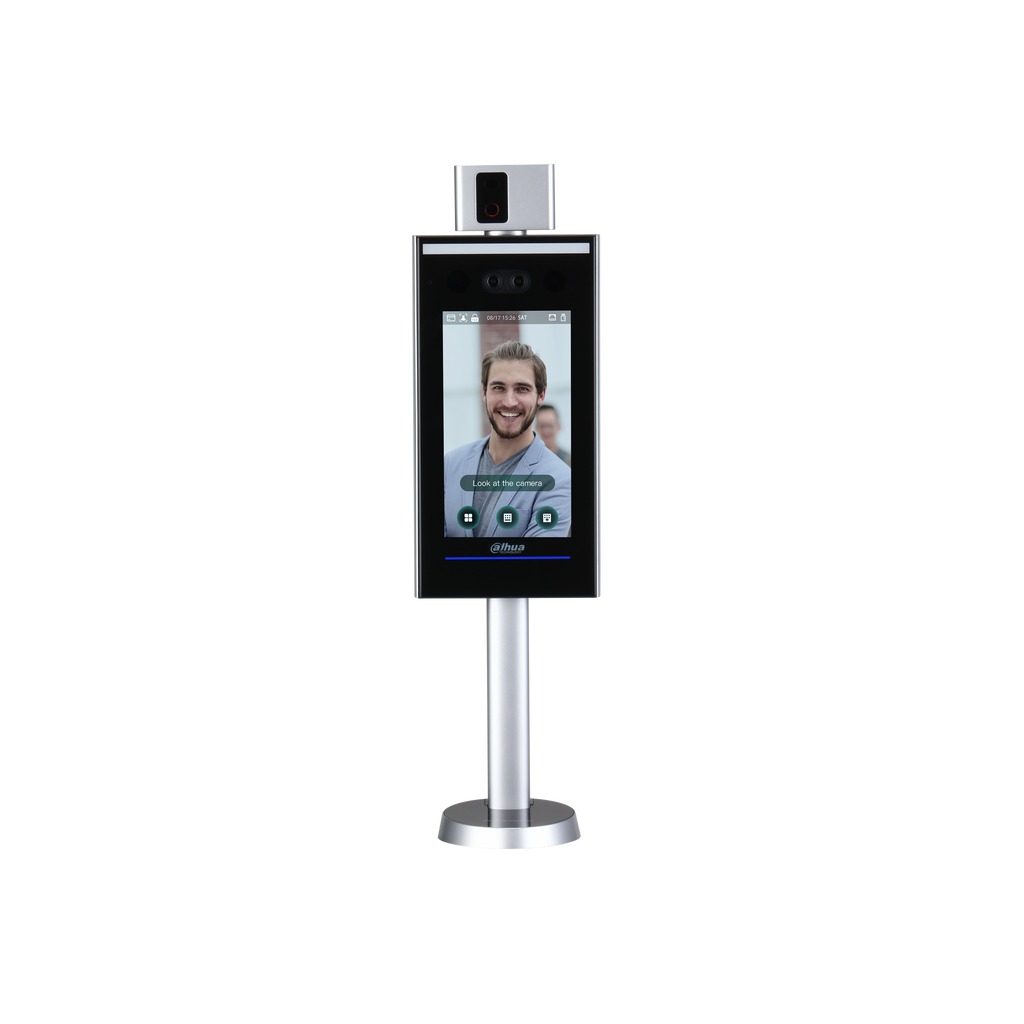

Terminal de Contrôle d’Accès Biométrique
- Écran LCD 7"
- Caméra 2 MP
- Reconnaissance Faciale
- Détection Température
- Détection Masque
- TCP/IP
- RS485
- Wiegand
- USB
- 12V
Caractéristiques principales
- Type d'accès : Application mobile, Digicode, Reconnaissance faciale
- Type de protocole : RS-485, Wiegand
- Nombre de portes : 1 porte
- Spécificité : Compatible interphonie
- Alimentation : Alimentation 12V
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Protocoles réseau | IPv4, RTSP, RTP, TCP, UDP, P2P |
| OSDP Protocol | Yes |
| Interopérabilité | ONVIF; CGI |
| SDK and API | Support SDK |
| Display Screen | 7-inch display screen |
| Screen Type | Capacitive screen |
| Résolutions | 600 (H) × 1024 (V) |
| Camera | 1/2.8" 2MP CMOS high definition WDR dual camera |
| WDR | 120 dB |
| Light Compensation | Auto white light Auto IR light |
| Status Indicator | 1 indicator light. Red: Error; Green: Normal; Blue: Working |
| Voice Prompt | Yes |
| Casing | Aluminium alloy/tempered glass/PC |
| Unlock Mode | Remote/Password/Face unlock and unlock through their cmbinations Face unlock under temperature monitoring mode |
| Period List | 128 |
| Holiday Period | 128 |
| Remote Verification | Yes |
| Peripheral Card Reader | 1 RS-485, 1 Wiegand |
| Real-Time Surveillance | Yes |
| Web Configuration | Yes |
| Face Recognition Distance | Face-camera distance: 0.3 m–2.0 m Human height: 0.9 m–2.4 m |
| Face Verification Accuracy | 99.5% |
| Face Recognition Time | 0.2 s |
| Temperature Monitoring accuracy | 0.1°C |
| Temperature Monitoring Range | 30°C to 45°C |
| Temperature Monitoring Error | ≤ 0.5 °C |
| Temperature Monitoring Distance | 0.3 m–1.2 m |
| Temperature Monitoring Height | 135 cm–185 cm (when temperature monitoring distance is 0.5 m) 120 cm–210 cm (when temperature monitoring distance is 1.2 m) |
| User Capacity | 100, 000 |
| Face Image Capacity | 100, 000 |
| Password Capacity | 100, 000 |
| Record Capacity | 300, 000 records |
| RS-485 | 1 |
| Wiegand | 1 (input or output) |
| USB | 1 USB2.0 port |
| Network | 1 1000Mbps network port 1 100Mbps network port |
| Entrée d'alarme | 1 (Switch quantity) |
| Sortie d'alarme | 1 (Relay) |
| Alarm Linkage | Yes |
| Exit Button | 2 |
| Lock Control | 2 |
| Anti-Passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Effective Pixels | 120 x 90 |
| Pixel Size | 17 um |
| Focale | 1.3 mm F 1.1 |
| Shutter | Automatic built - in shutter |
| Consommation | ≤ 24W |
| Peak Current | <100 mA |
| Standby Current | <30 mA |
| Working Current | <30 mA |
| Power Adapter | Included |
| Alimentation | 12V 2A DC |
| Dimensions | 477.0 mm × 129.0 mm × 99.7 mm (18.78" × 5.08" × 3.93") |
| Packaging Dimensions | Controller packging: 593 mm × 258 mm × 130 mm (23.35" × 10.16" ×5.12") Protective case: 672 mm × 615 mm × 291 mm (26.46" × 24.21" × 11.46") |
| Température de fonctionnement | Temperature monitoring mode disabled: –10°C to +55°C (+14°F to +131°F) Temperature monitoring mode enabled: +15°C to +30°C (+59°F to +86°F) |
| Humidité de fonctionnement | 0%RH–90%RH (non-condensing) |
| Operating Environment | Indoor |
| Poids brut | 3.1 kg (6.83 lb) |
| Installation | Desktop |
| Certifications | CE/FCC |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASI7223X-A-T1 · Marque : Dahua
