Description et caractéristiques

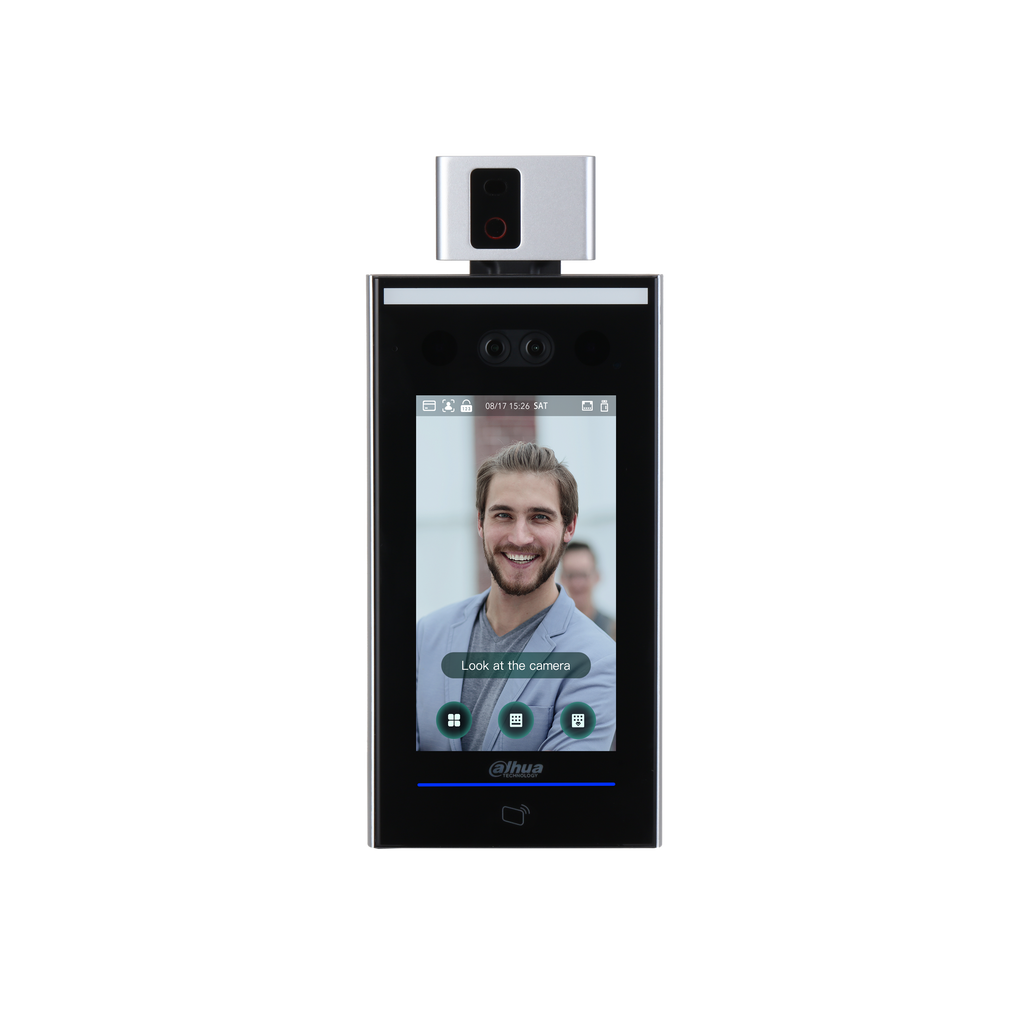

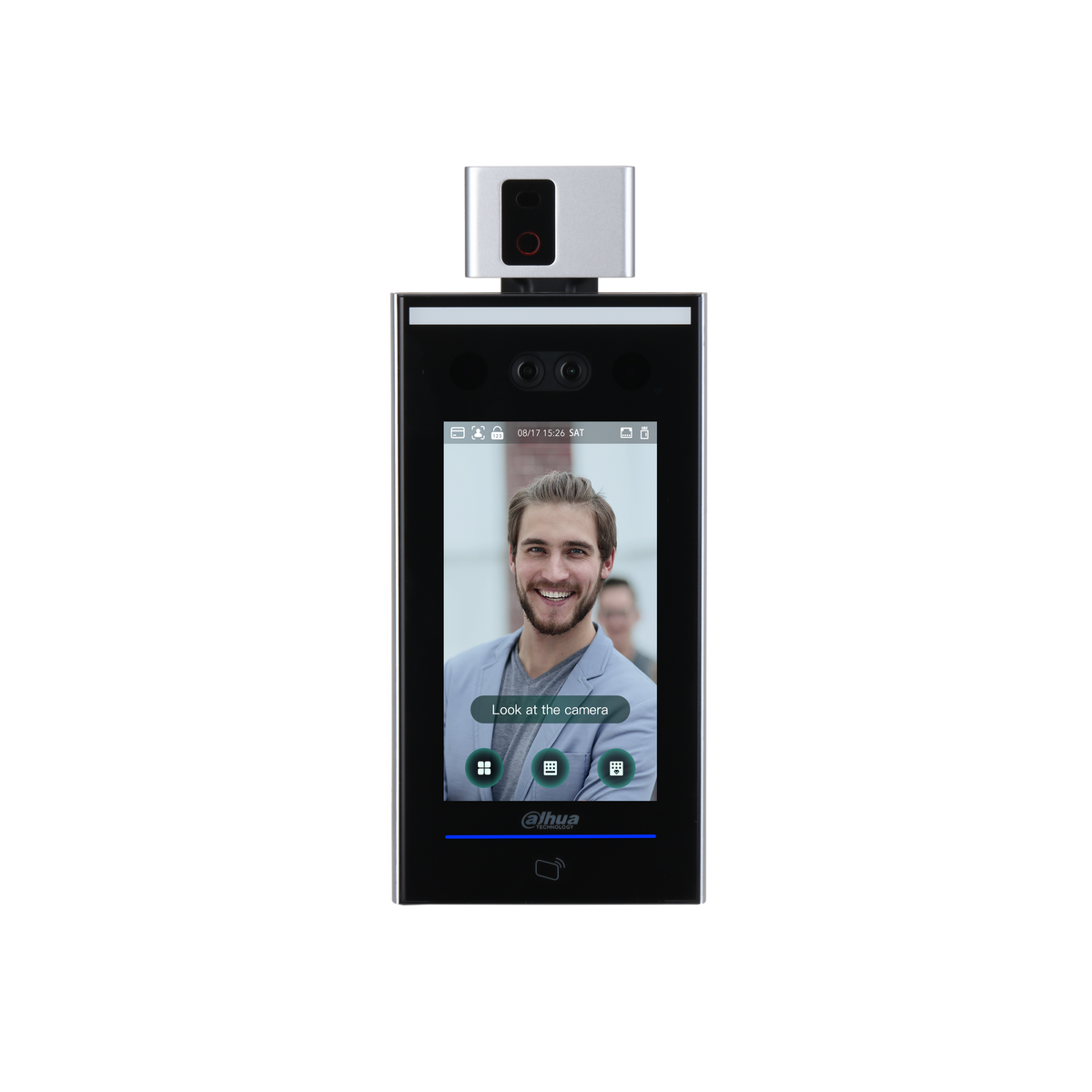

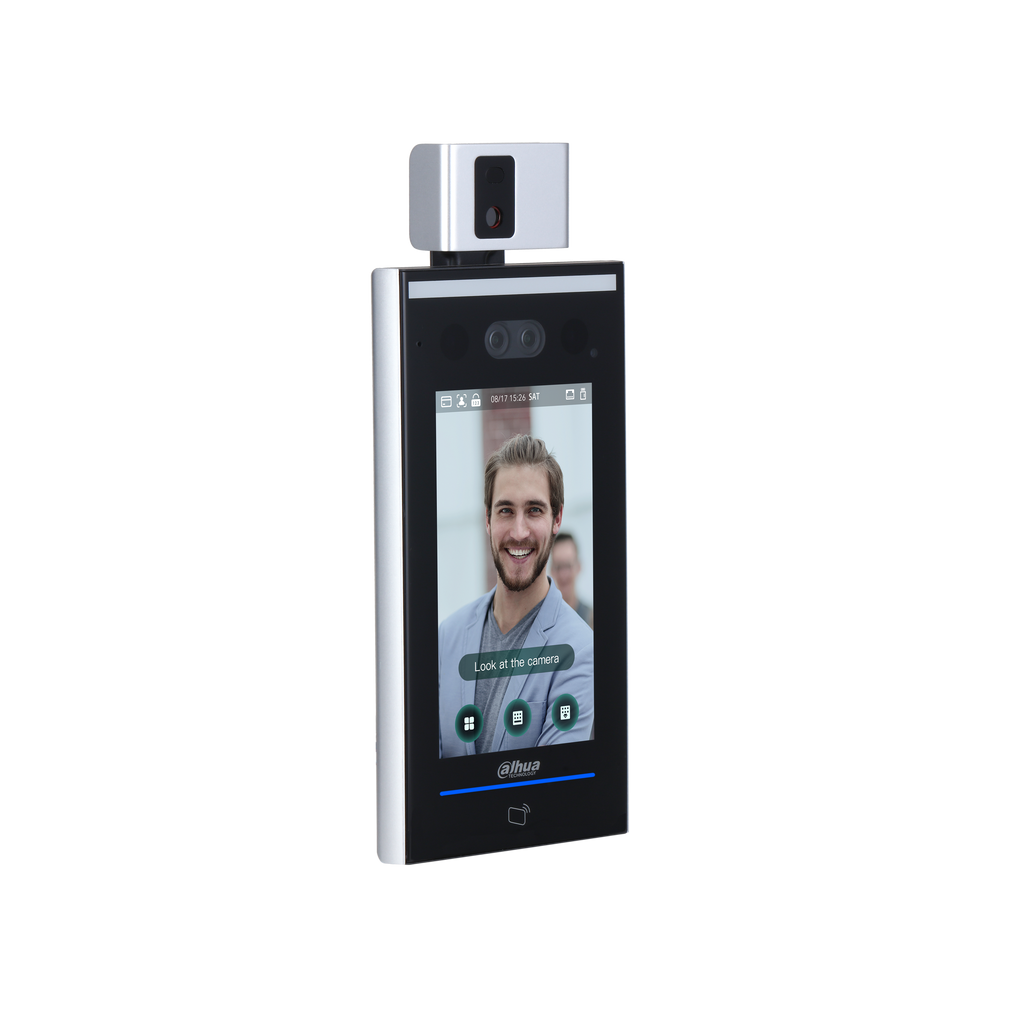

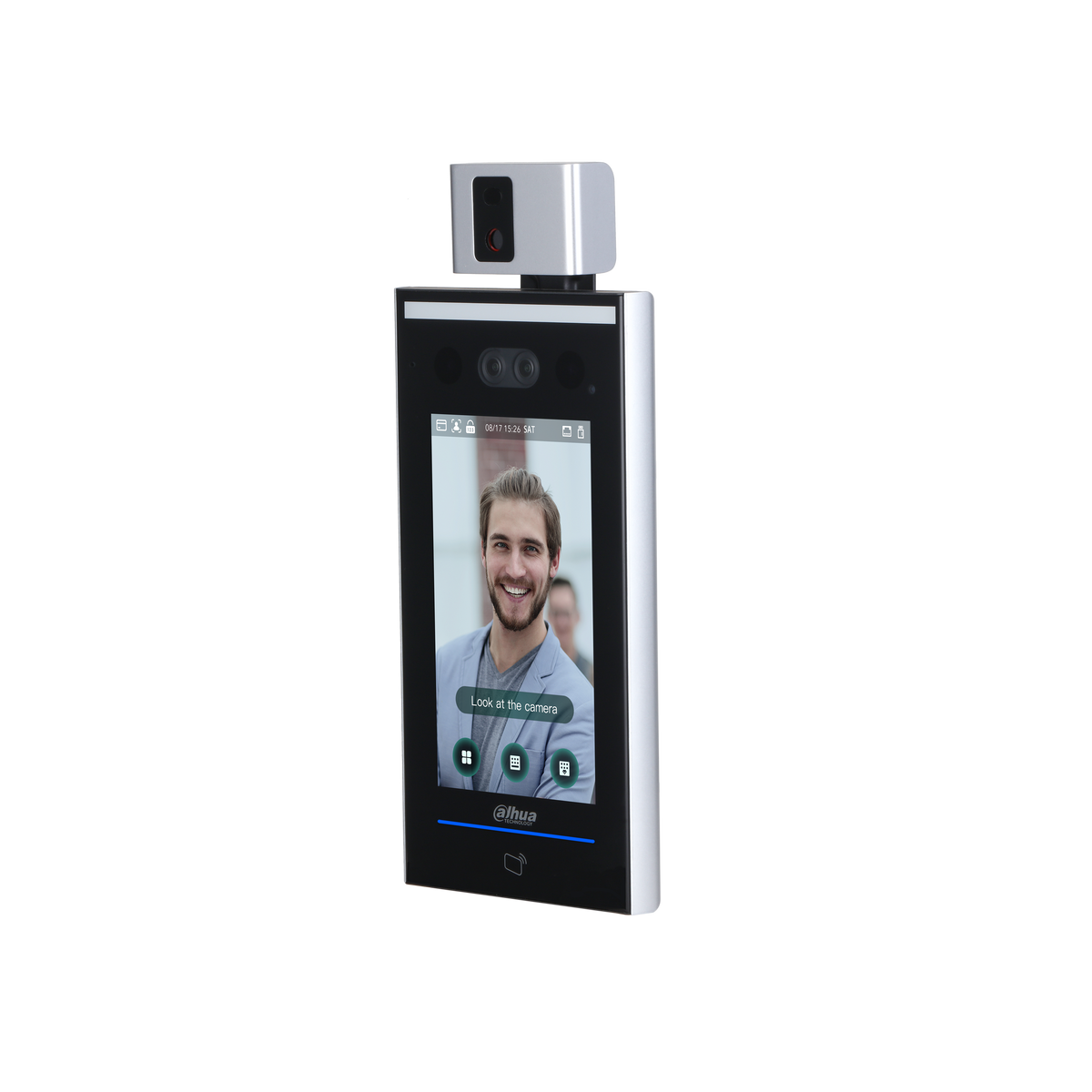

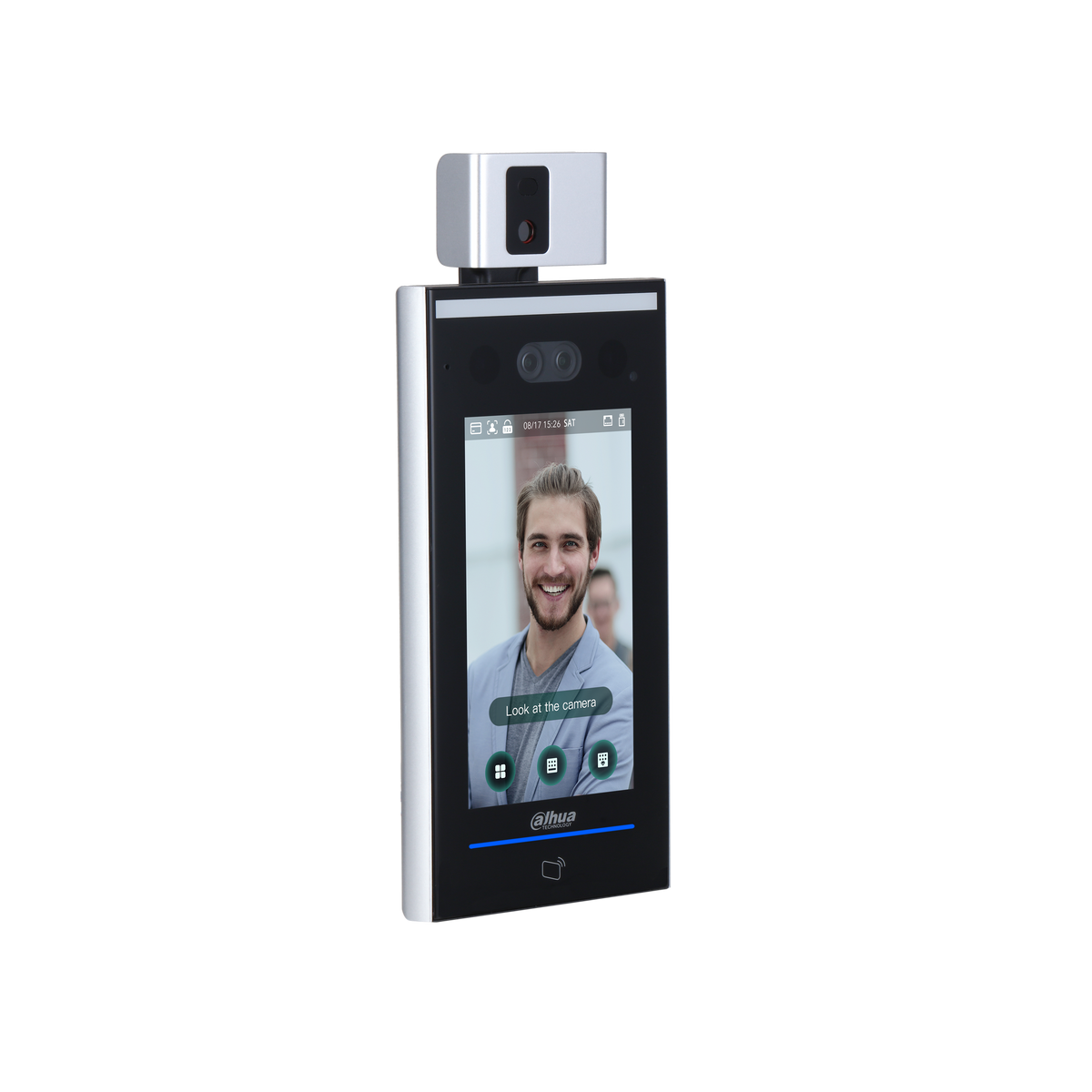

Terminal avec caméra intégrée pour mesure de température et reconnaissance faciale
Caractéristiques principales
- Technologie de lecture : Lecteur Prox
- Type d'accès : Badge, Digicode, Reconnaissance faciale
- Type de protocole : RS-485, Wiegand
- Alimentation : Alimentation 12V
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Protocoles réseau | IPv4, RTSP, RTP, TCP, UDP, P2P |
| OSDP Protocol | Yes |
| Interopérabilité | ONVIF; CGI |
| SDK and API | Support SDK |
| Display Screen | 7-inch display screen |
| Screen Type | Capacitive screen |
| Résolutions | 600 (H) × 1024 (V) |
| Camera | 1/2.8" 2MP CMOS high definition WDR dual camera |
| WDR | 120 dB |
| Light Compensation | Auto white light Auto IR light |
| Status Indicator | 1 indicator light. Red: Error; Green: Normal; Blue: Working |
| Voice Prompt | Yes |
| Casing | Aluminium alloy/tempered glass/PC |
| Unlock Mode | Card/Remote/Password/Face unlock and unlock through their combinations Face unlock under temperature monitoring mode |
| Card Type | IC card |
| Period List | 128 |
| Holiday Period | 128 |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Peripheral Card Reader | 1 RS-485, 1 Wiegand |
| Multiple Authentication | Yes |
| Real-Time Surveillance | Yes |
| Web Configuration | Yes |
| Card Reading Distance | 3 cm |
| Face Recognition Distance | Face-camera distance: 0.3 m–2.0 m Human height: 0.9 m–2.4 m |
| Face Verification Accuracy | 99.5% |
| Face Recognition Time | 0.2 s |
| Temperature Monitoring Range | 30°C to 45°C |
| Temperature Monitoring Error | ≤ 0.5°C |
| Temperature Monitoring Distance | 0.3 m–1.2 m |
| Temperature Monitoring Height | 135 cm–185 cm (when temperature monitoring distance is 0.5 m) 120 cm–210 cm (when temperature monitoring distance is 1.2 m) |
| User Capacity | 100, 000 |
| Face Image Capacity | 100, 000 |
| Card Capacity | 100, 000 |
| Password Capacity | 100, 000 |
| Record Capacity | 300, 000 records |
| RS-485 | 1 |
| Wiegand | 1 (input or output) |
| USB | 1 USB2.0 port |
| Network | 1 1000Mbps network port 1 100Mbps network port |
| Entrée d'alarme | 2 (Switch quantity) |
| Sortie d'alarme | 2 (Relay) |
| Alarm Linkage | Yes |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Anti-passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Power Adapter | Included |
| Alimentation | 12V 2A DC |
| Consommation | ≤ 24W |
| Dimensions | 302.6 mm × 129.0 mm × 32.0 mm (11.91" × 5.08" × 1.26") |
| Packaging Dimensions | Controller packaging: 380 mm × 235 mm × 124 mm (14.96" × 9.25" × 4.88") Protective case: 494 mm × 402 mm × 275 mm (19.45" × 15.83" × 10.83") |
| Température de fonctionnement | Temperature monitoring mode disabled: –10 °C to +55 °C (+14 °F to +131 °F ) Temperature monitoring mode enabled: +15 °C to +30 °C (+59 °F to +86 °F ) |
| Humidité de fonctionnement | 0%RH–90%RH (non-condensing) |
| Operating Environment | Indoor |
| Poids brut | 2.2 kg (4.85 lb) |
| Installation | Wall mount |
| Certifications | CE/FCC |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASI7213X-T · Marque : Dahua
